Product Details

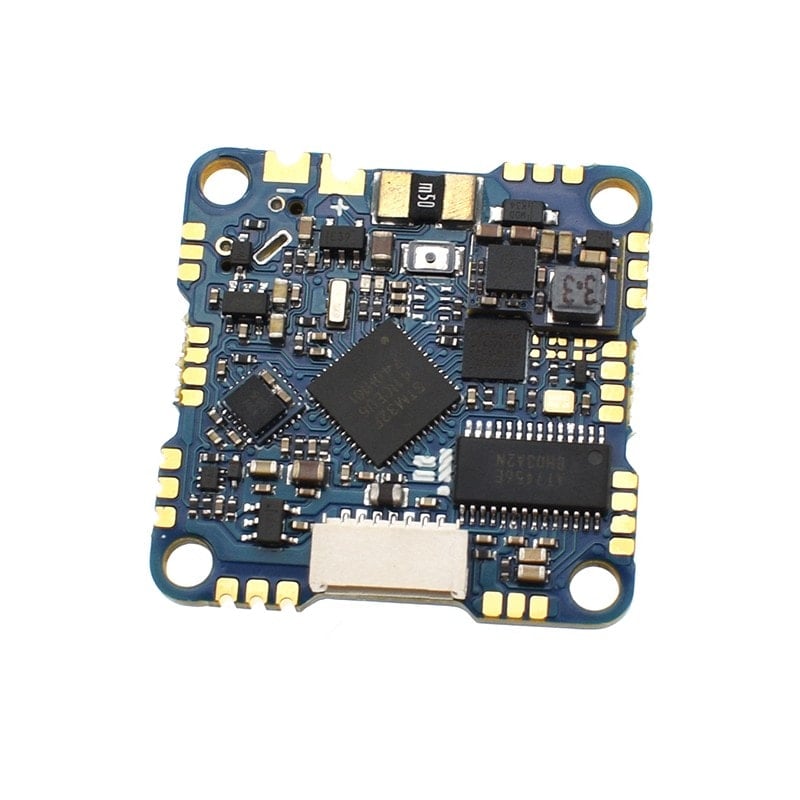

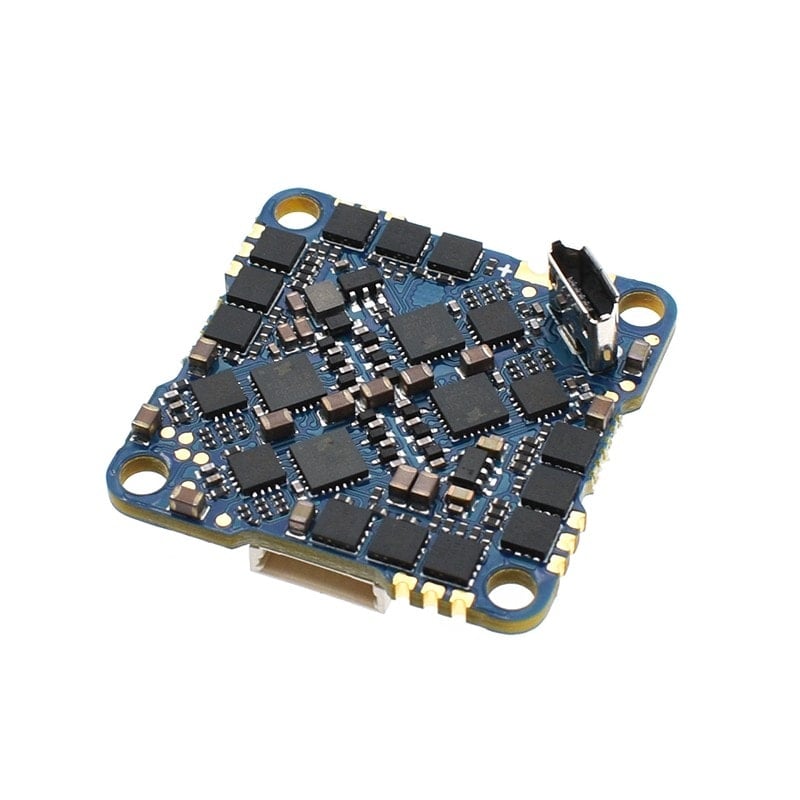

The iFlight Whoop AIO 20A F411 Flight Controller is a versatile and powerful board that is perfect for use in mini quadcopters and other small drones. The board features an STM32F411 processor and a BMI270 gyro, giving it fast and accurate flight control capabilities. The board also has an 8MB blackbox for logging flight data, and a 5V 2A BEC output for powering accessories. The board is 30.5mm x 30.5mm in size and weighs just 7.5g, making it easy to install in a variety of drone builds. The board also has a dedicated port for connecting a DJI air unit or other peripherals. However, please note that there are no motor connection ports on this board, so you will need to solder your own connections. Overall, the iFlight Whoop AIO 20A F411 Flight Controller is a great choice for whoop and toothpick drones because of its small size and lightweight design.
Specifications
- Size：30.5*30.5mm
- Mounting pattern：25.5*25.5mm/φ3mm
- Weight: 7.5g
- MCU：STM32F411
- Gyro：BMI270
- Blackbox：8MB
- BEC output: 5V 2A
- Config：IFLIGHT_F411_PRO.config
- INA pad：nR2
- Barometer：No
- Constant current：20A，25A（Burst）
- Input：2-4S
- Current sensor：yes
- BLHeli：BLHeli-S
- ESC Telemetry：no
- Firmware Target：IFLIGHT_F411_PRO
- ESC Firmware: Bluejay Q-H-50
Included
- 1x Whoop AIO 20A F411 Flight Controller
- Accessories Kit (Gummies, Cables) - Please note contents may vary based on supply
