Product Details

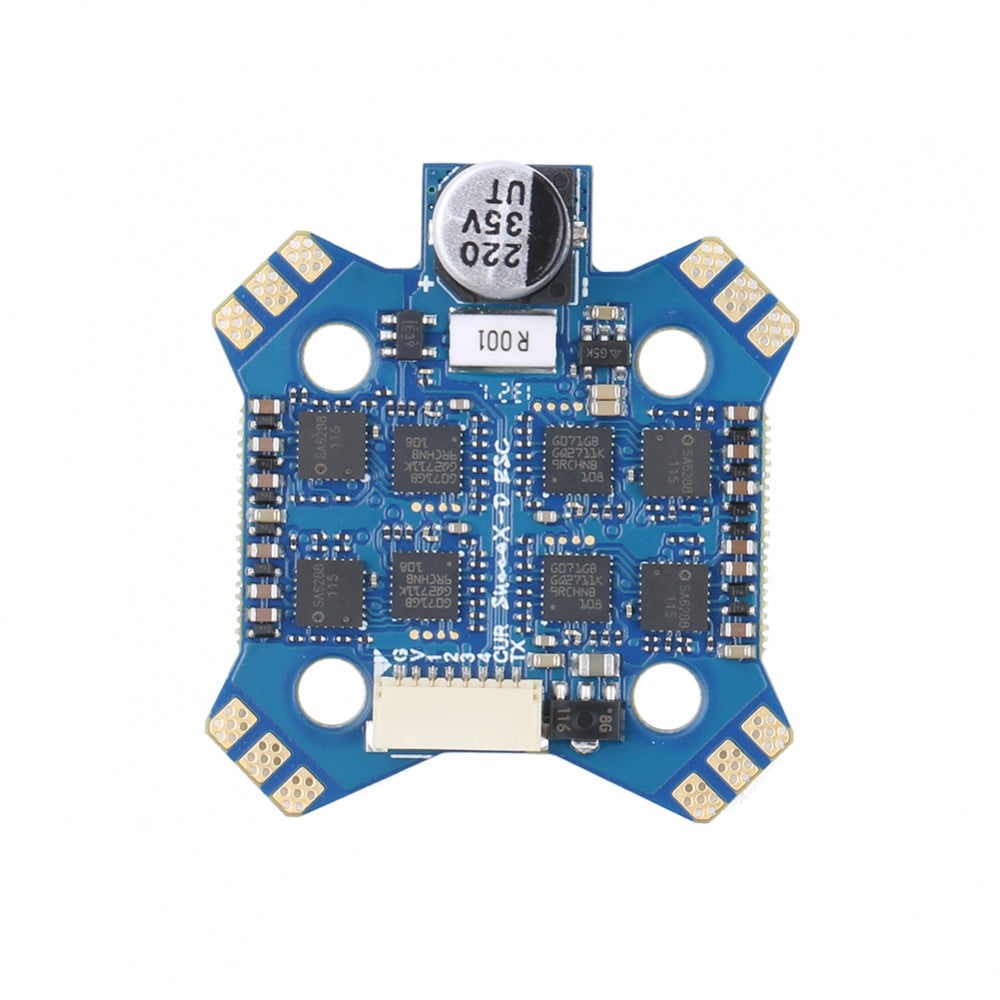

This improved version 2 of a small form factor ESC provides an incredible 55A max constant (60A burst) current to your motors, putting it firmly amongst the most powerful available at this tiny size. It's all you can eat, in a bite-sized board!
Features
- 6 layers double-sided PCB board;
- 2OZ copper skin thickness for 1-4 layers,better operating load capacity;
- Standard 20*20 Φ4mm mounting holes, rational layout, countersunk holes on extended power soldering pad enable each layer board can be powered;
- Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
Specification

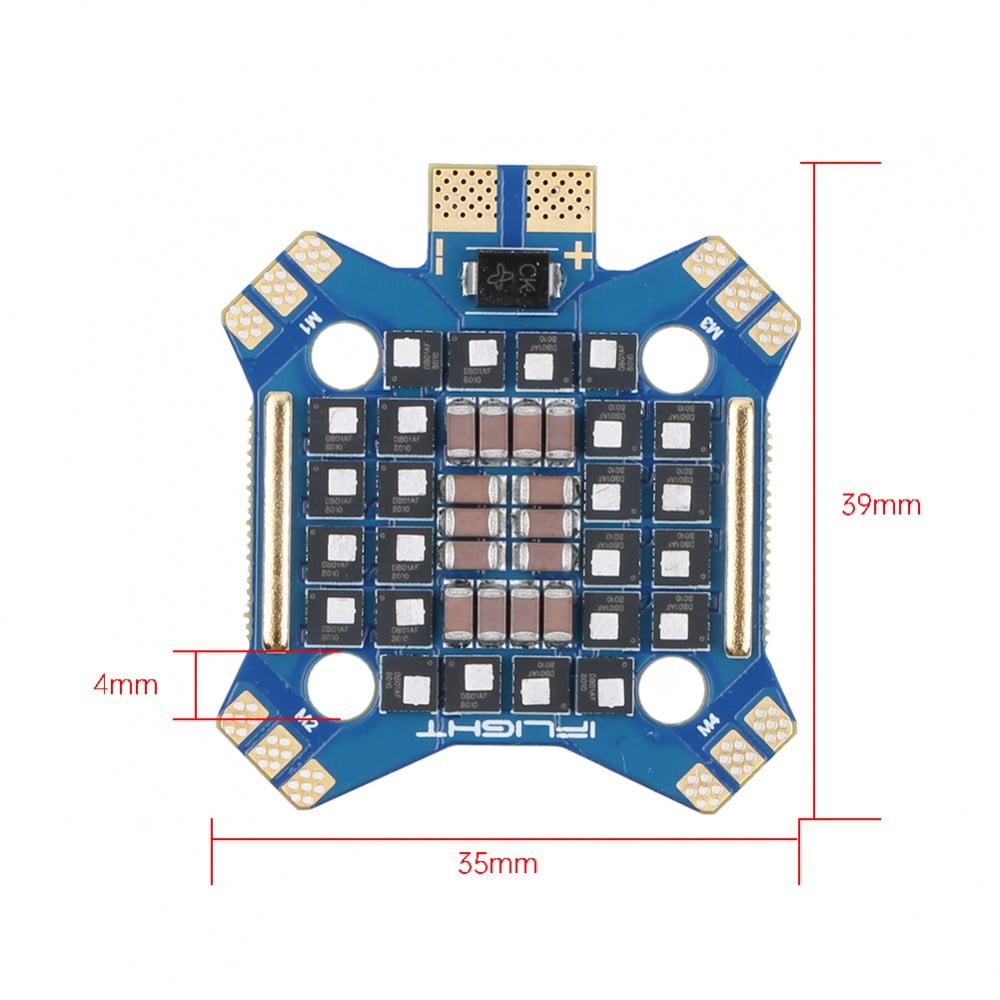

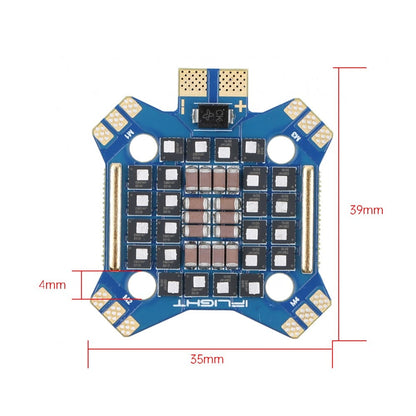

- Dimension: 31*29.5mm
- Mounting Holes: 20*20mm/Φ4mm

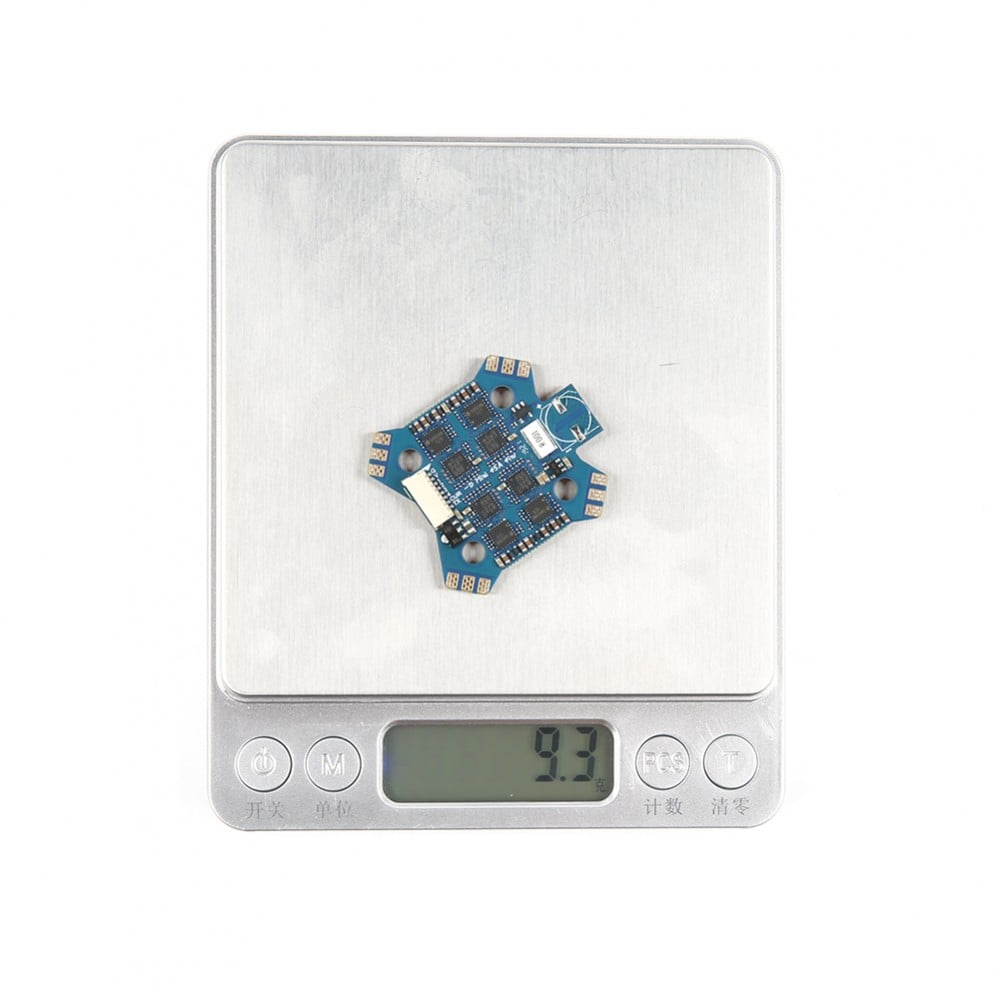

- Weight: 10.8g
- Supports 2-6S lipo input

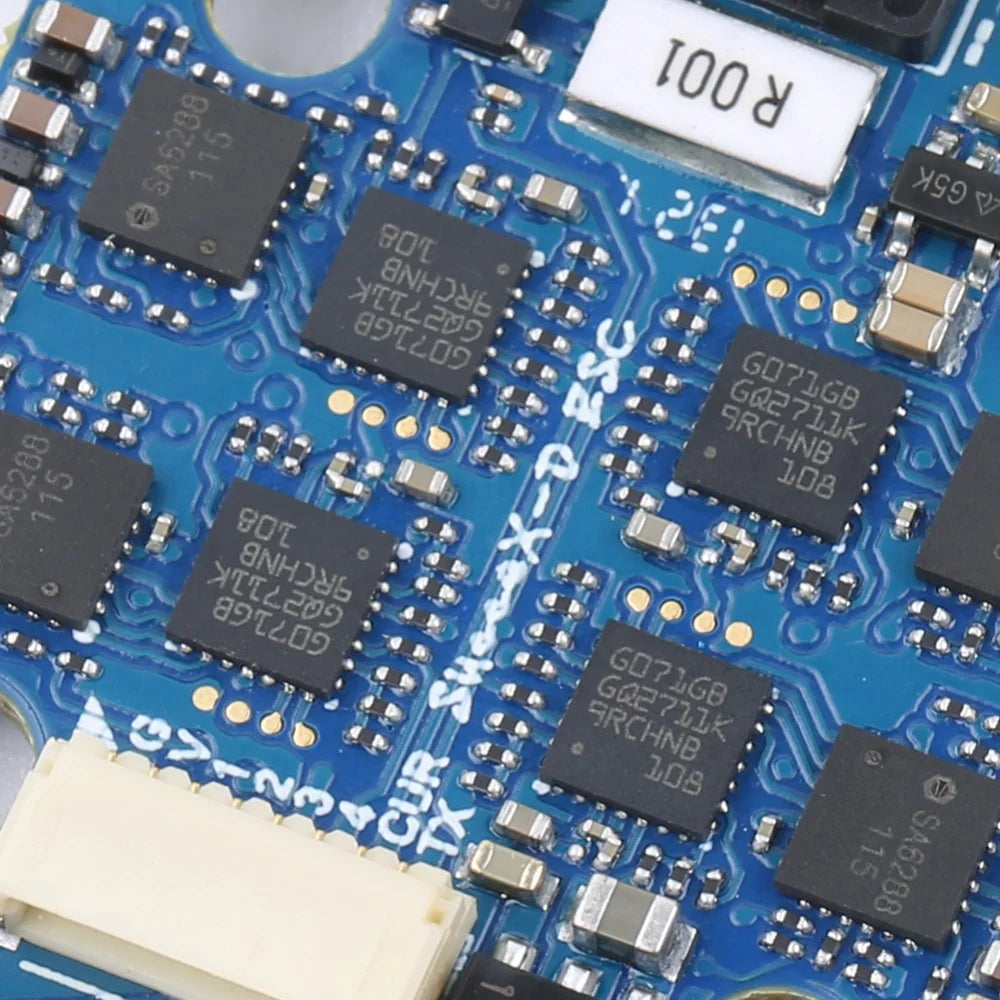

- MCU：G071
- Constant: 55 Amps
- Burst: 60 Amps

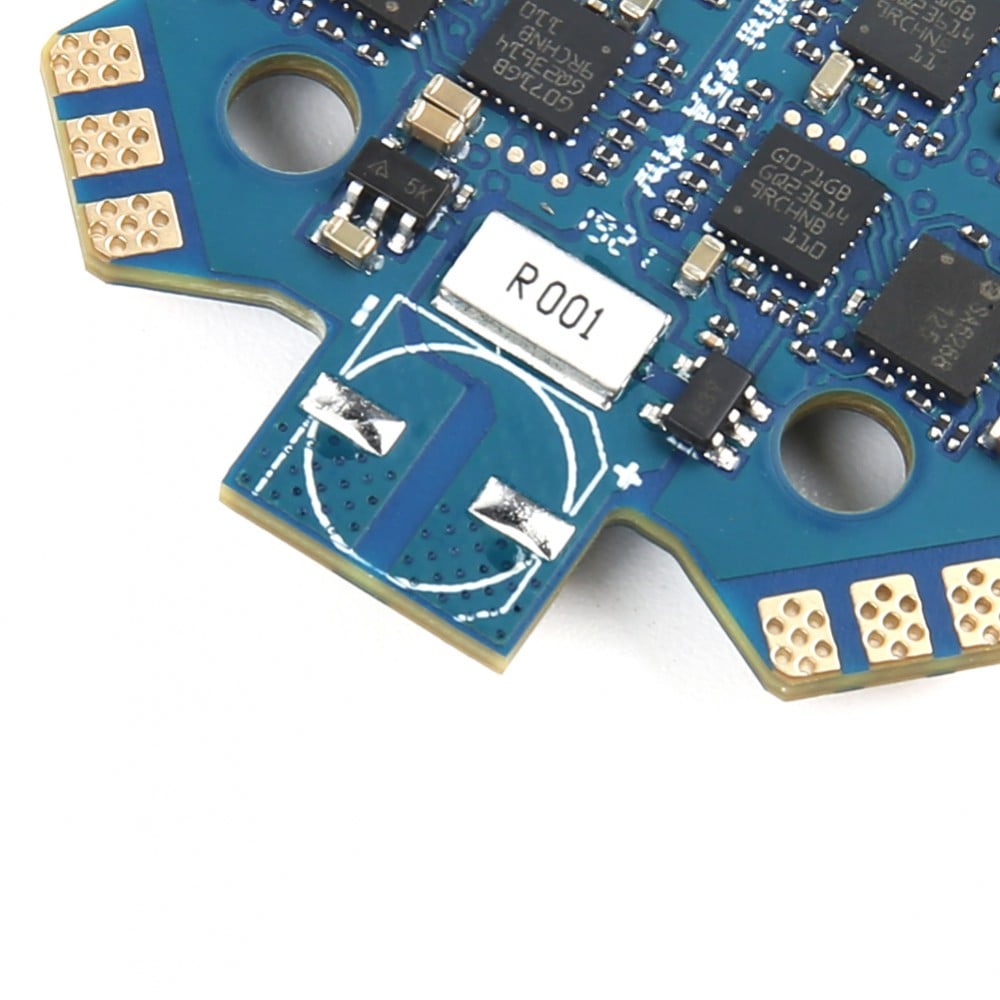

- Current sensor: Yes
- BEC: No
- Current rate: 100
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Firmware: BLHeli 32
- Target: iFlight-G071-4IN1
Included
- SucceX 55A V2 4-in-1 ESC * 1pc
- Accessory Pack
