Product Details

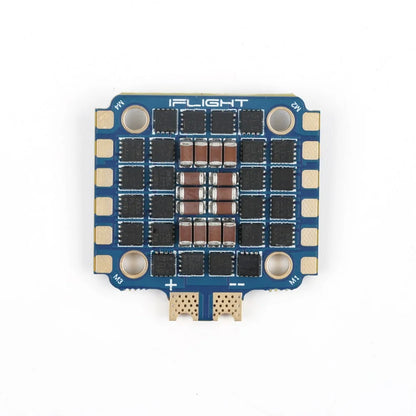

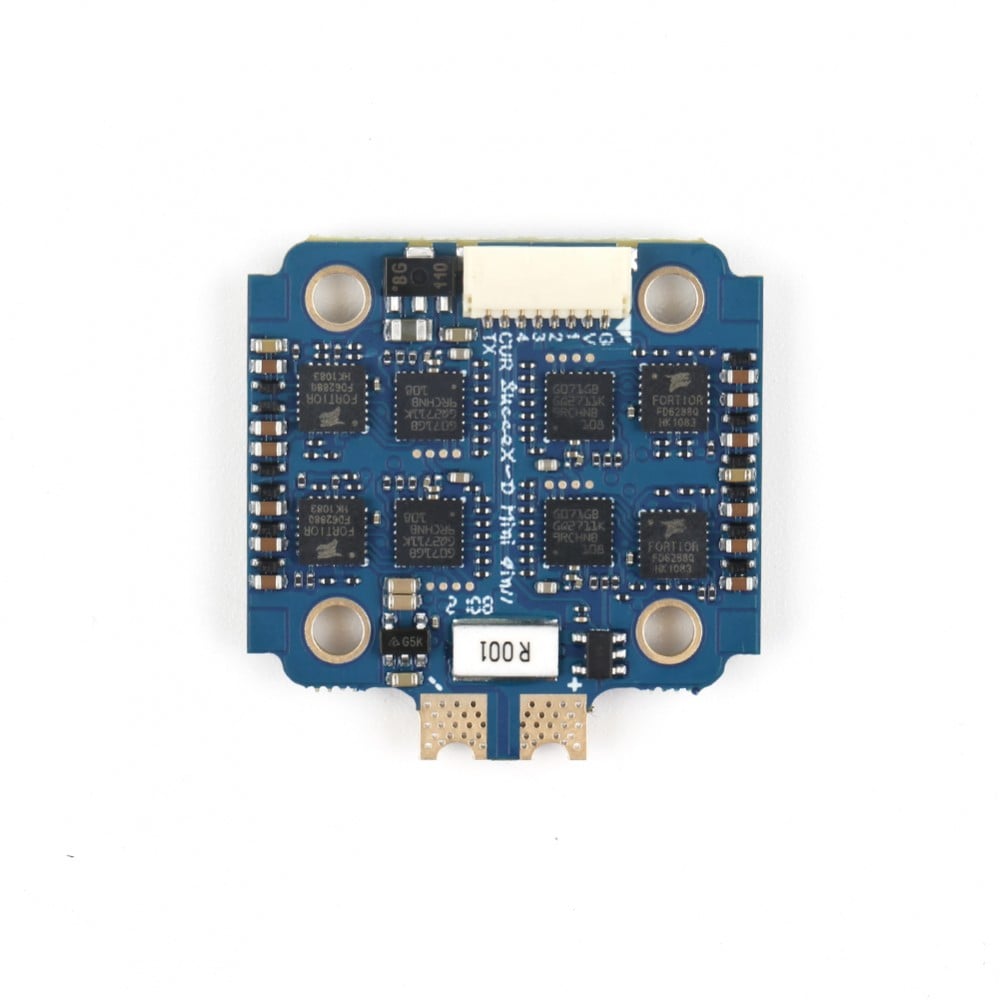

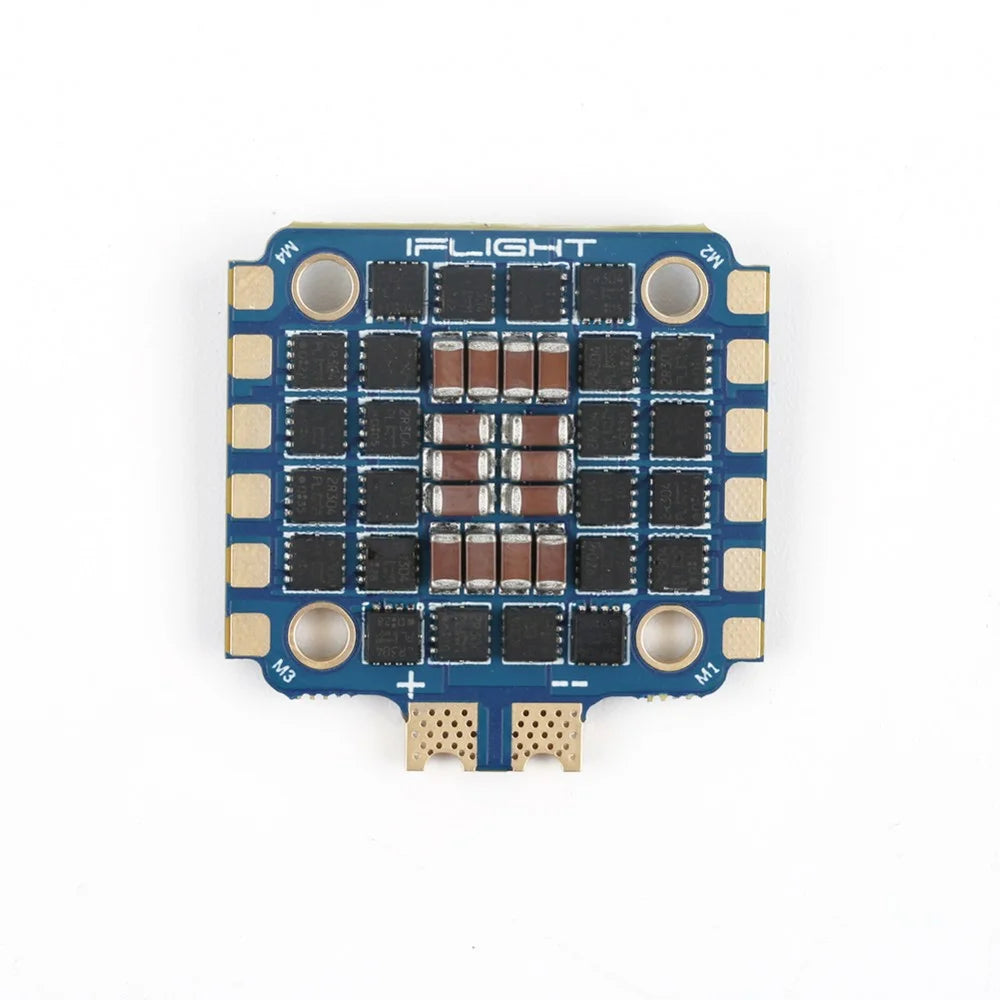

The latest developed BLHeli-32-bit 45A 4-in-1 mini ESC is highly integrated, greatly reduced from the standard size, features excellent performance, supports 6S, the target is iFlight-BL32-4IN1.Supporting Dshot, Multishot, Oneshot, etc. The soldering pad is semi-extended, save more room but solid.
Features:
- 4x F051 MCU processers
- TDK MLCC Low ESR ceramic capacitors
- 6 layers single-board stacking PCB board
- 48Mhz Runs BLHELI 32.X Firmware
- 2-6s LiPo battery compatible
- 45A per channel, 55A burst
- Onboard current sensor
- Supports DShot150/300/600/MultiShot/OneShot etc.
Specifications:
• Input: 2-6s LiPoly
• Constant: 45 Amps (per channel)
• Burst: 55 Amps (per channel)
• BEC: No
• BlHeli32 telemetry: Yes

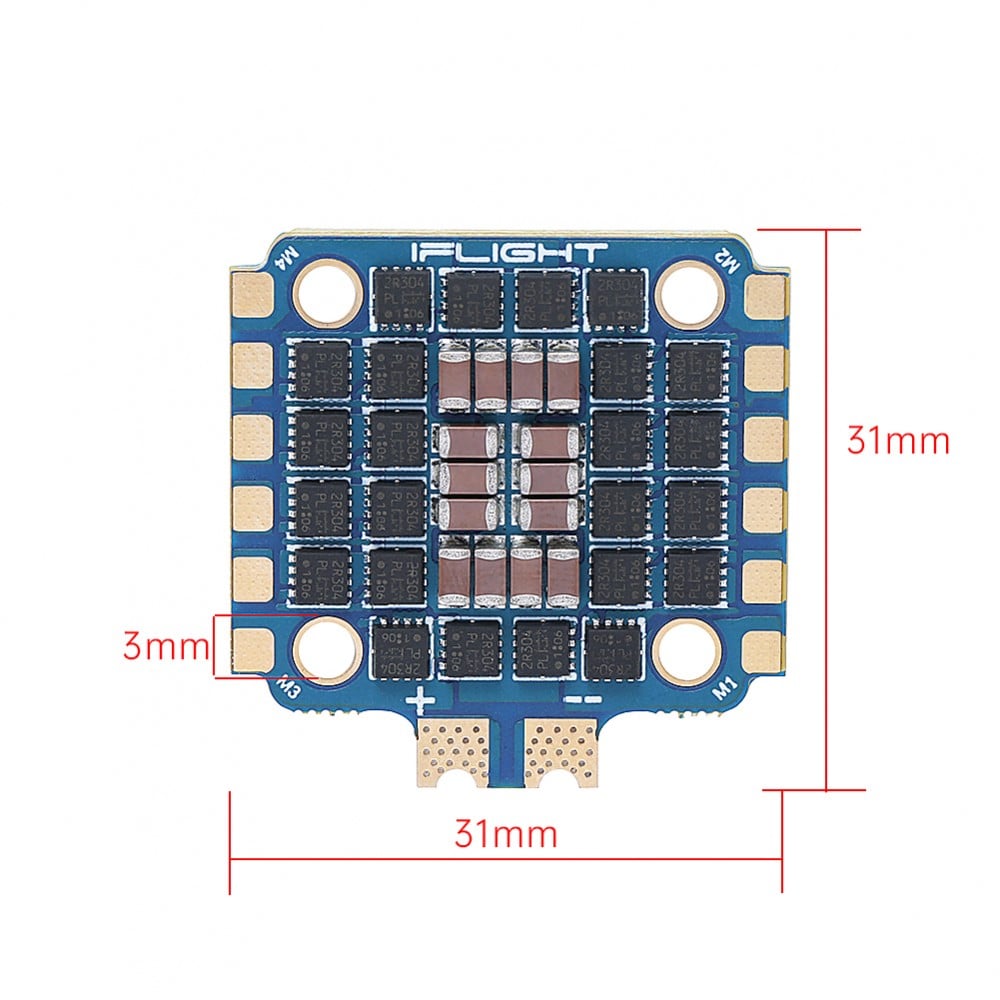

• Dimensions: 31x29.5mm
• Mounting Holes: 20*20mm φ3mm

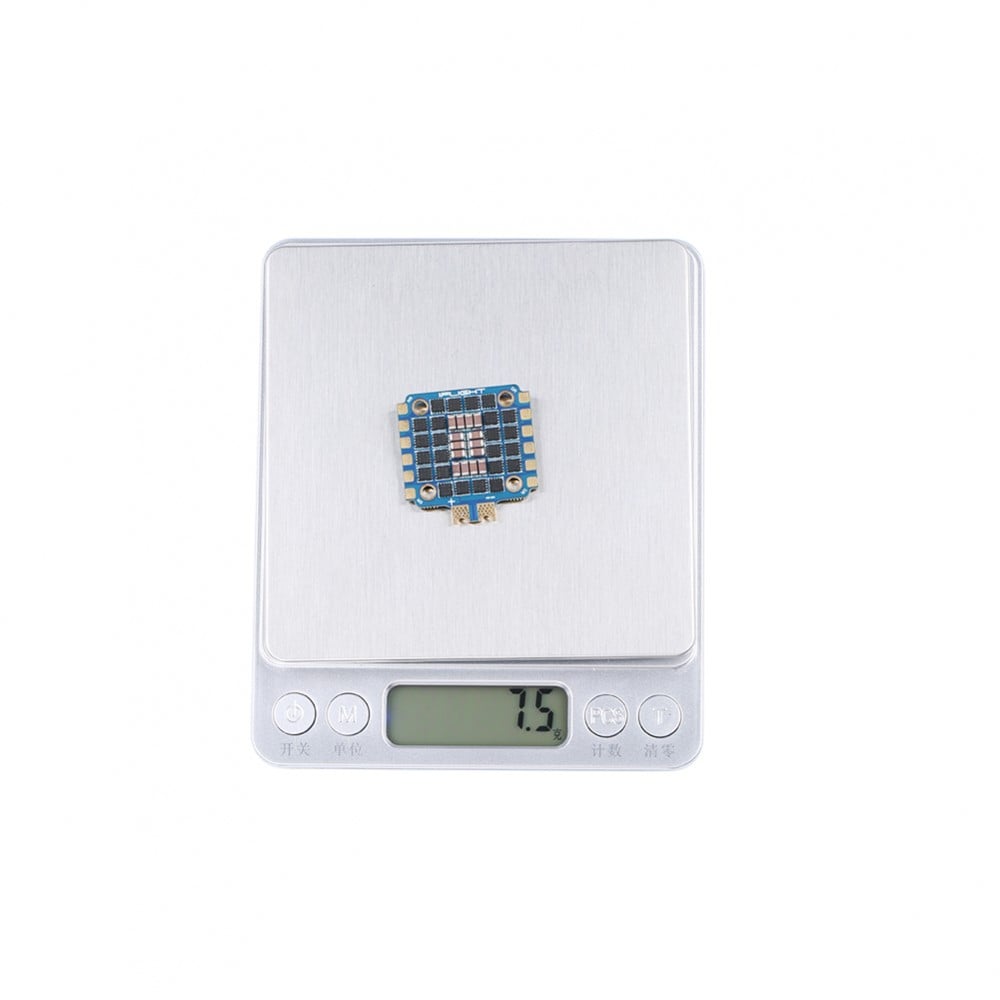

• Weight: 6.7g (without motor wires)
• Target: iFlight-F051-4IN1
Package included:
- 1pc x SucceX Mini 45A 2-6S BLHeli_32 Dshot 600 4-in-1 ESC
- Cable Set
