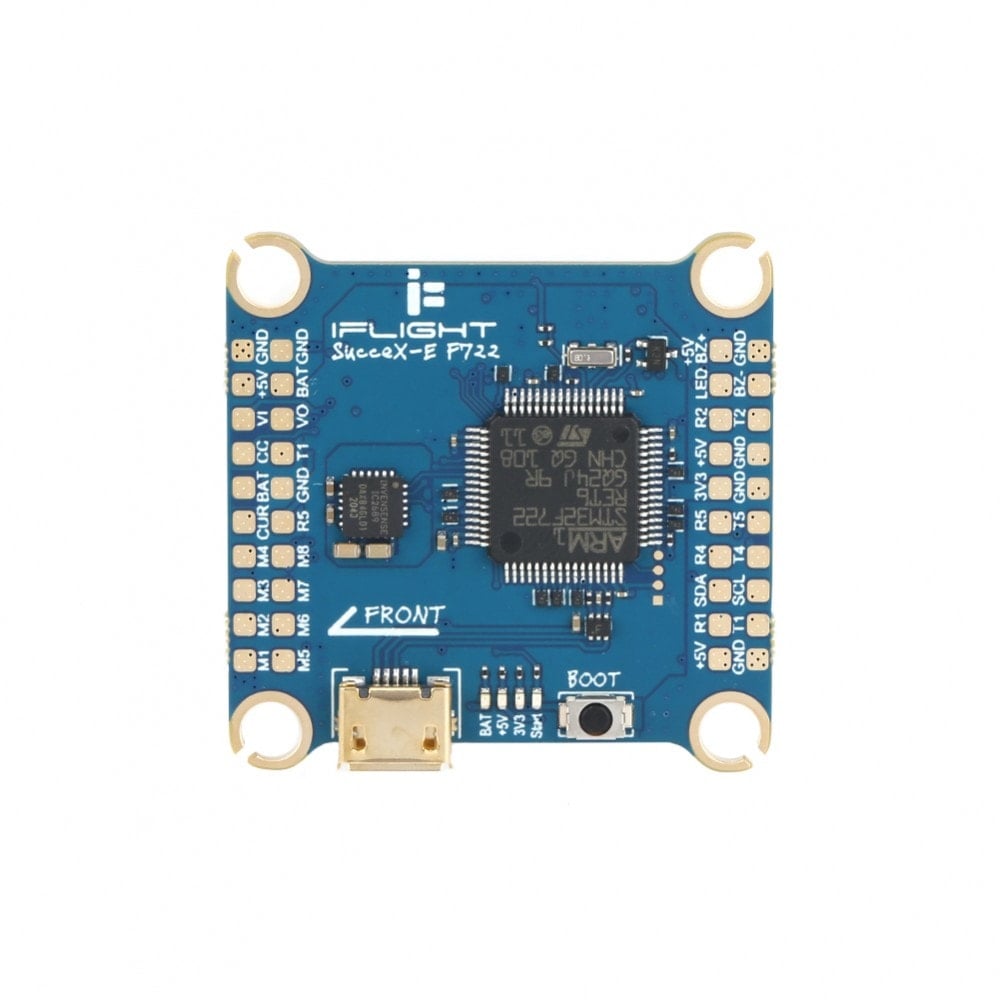

Product Details
Due to some global supply issues, the Barometer and Flash component was updated as well as some circuit improvements implemented. If you are not sure, please contact us before you order so we can check what version we have at the time of you ordering.
Features

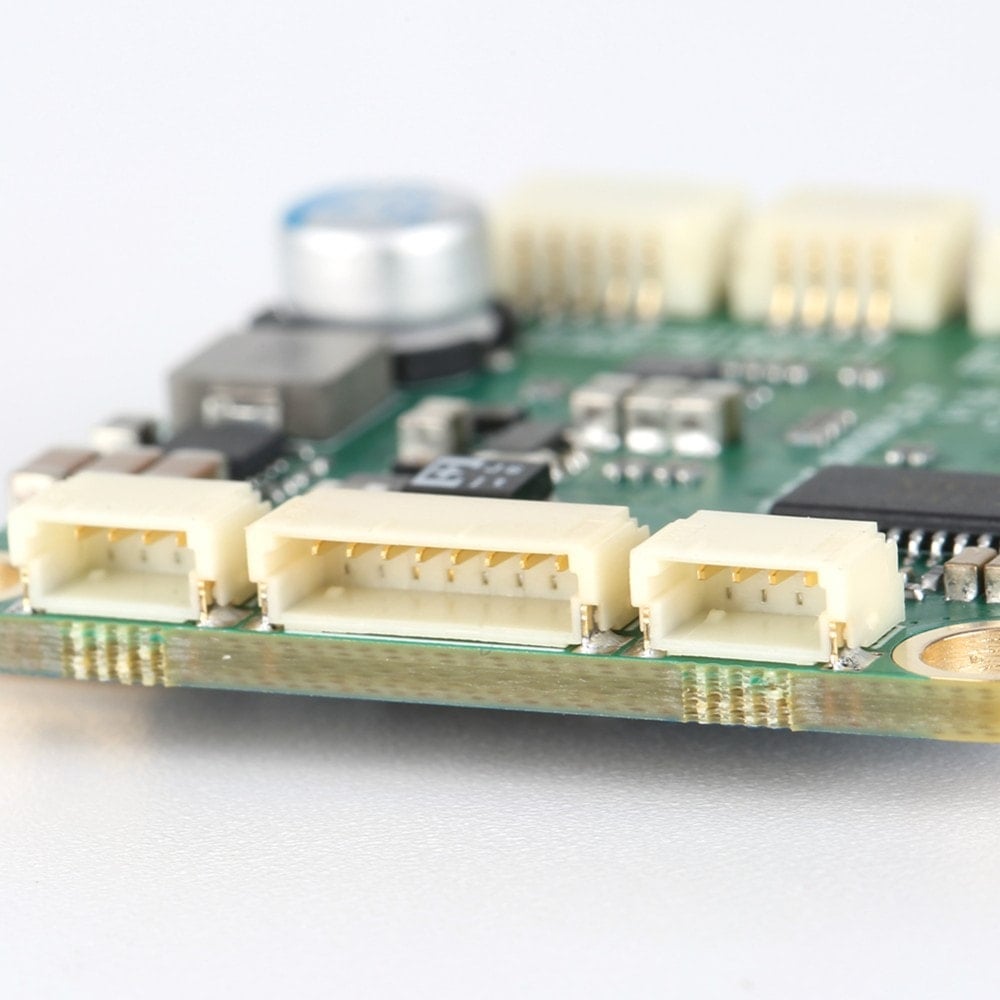

- Gold-plated plug
- BlackBox: 16MB
- Vista HD Plug-and-Play. No need to solder tiny wires.

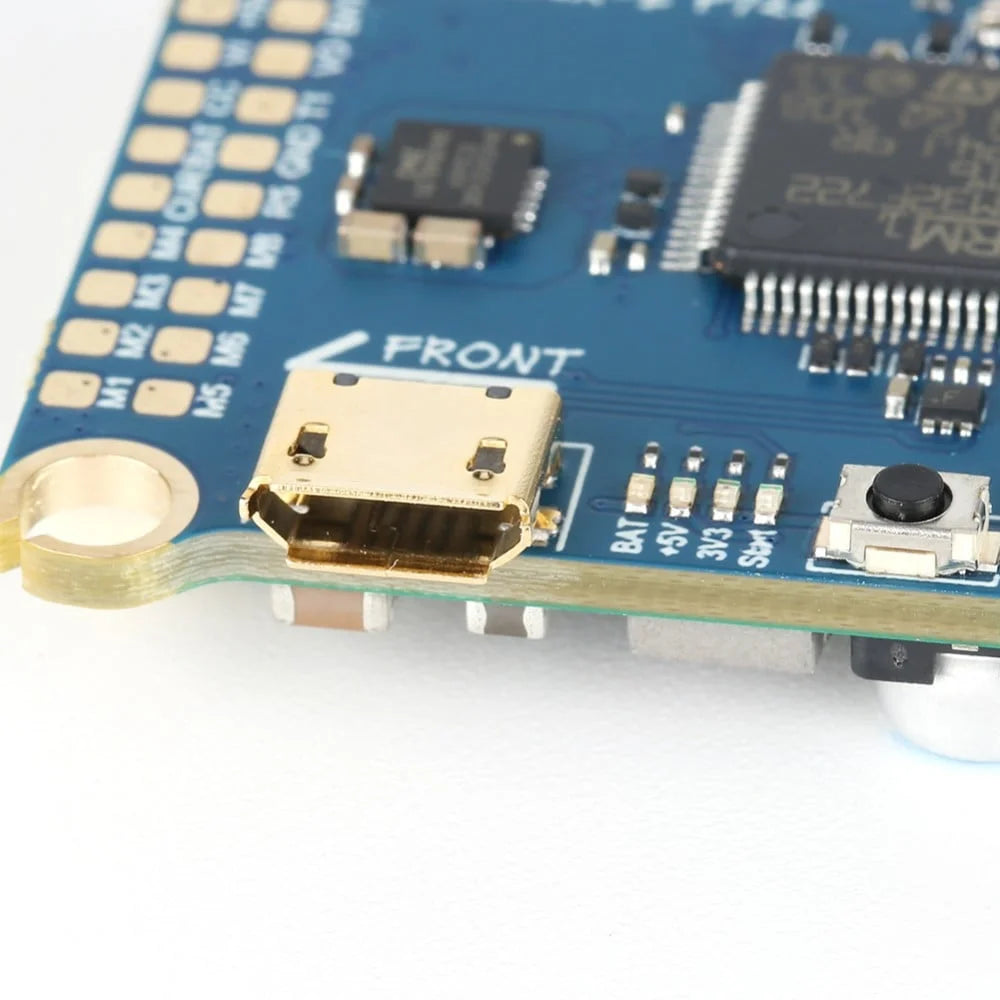

- BAT, +5V, 3.3, Start indicator
- Smartaudio & IRC Tramp VTX protocol supported
Specifications

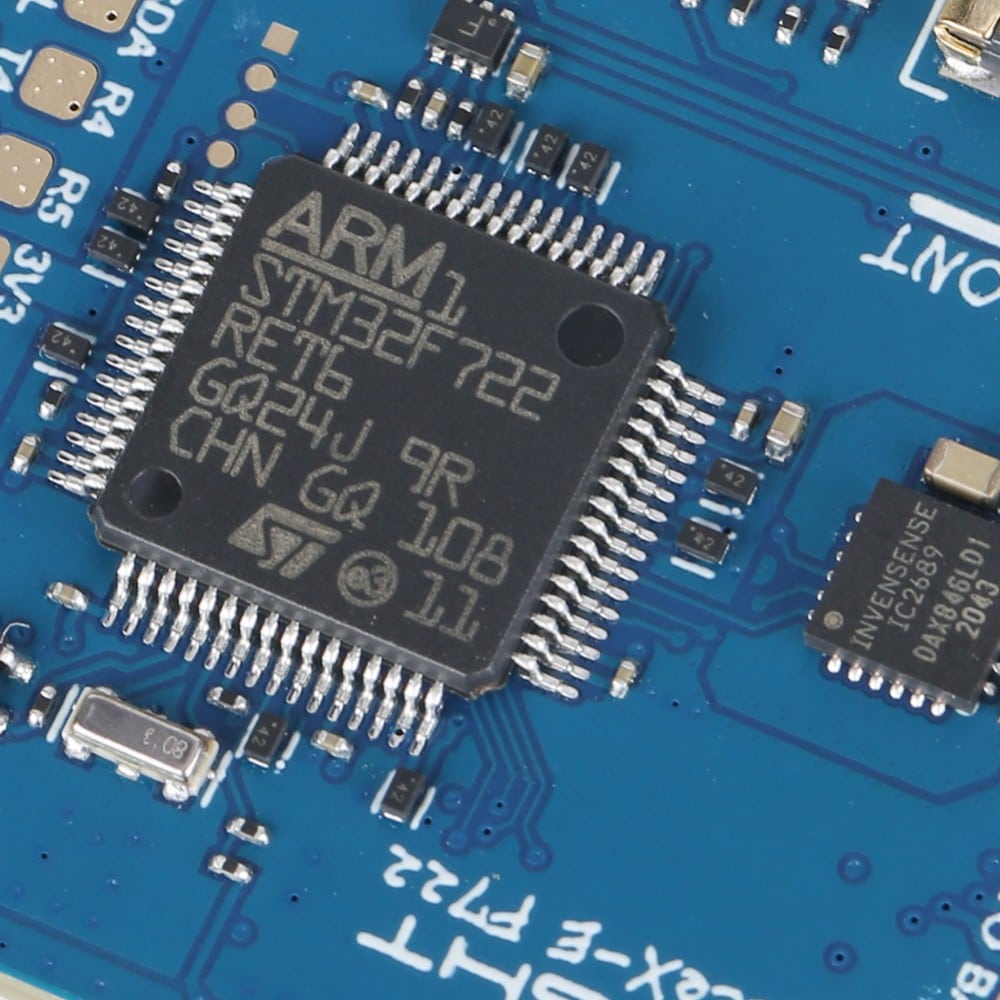

- MCU: STM32F22RET6 216MHz
- Gyro: 20689
- Baro: DSP310 (Barometer can only be used with Betaflight 4.3.0 and above)
- OSD: IFLIGHT OSD （AT7456E）
- BEC: 5V 2.5A
- BlackBox: 16MB
- Uart: 4*UART(UART1、UART2、UART4、UART5)
- UART1 for VTX HD（for 4-6S Vista，for 4S DJI Air Unit）/AnalogTelemetry
- UART2 for Receiver
- UART4 for Free
- UART5 for ESC Telemetry
- 4×Dshot/PWM outputs
- Smartaudio & IRC Tramp VTX protocol supported
- WS2812 led Strip: Yes
- Bepper: Yes

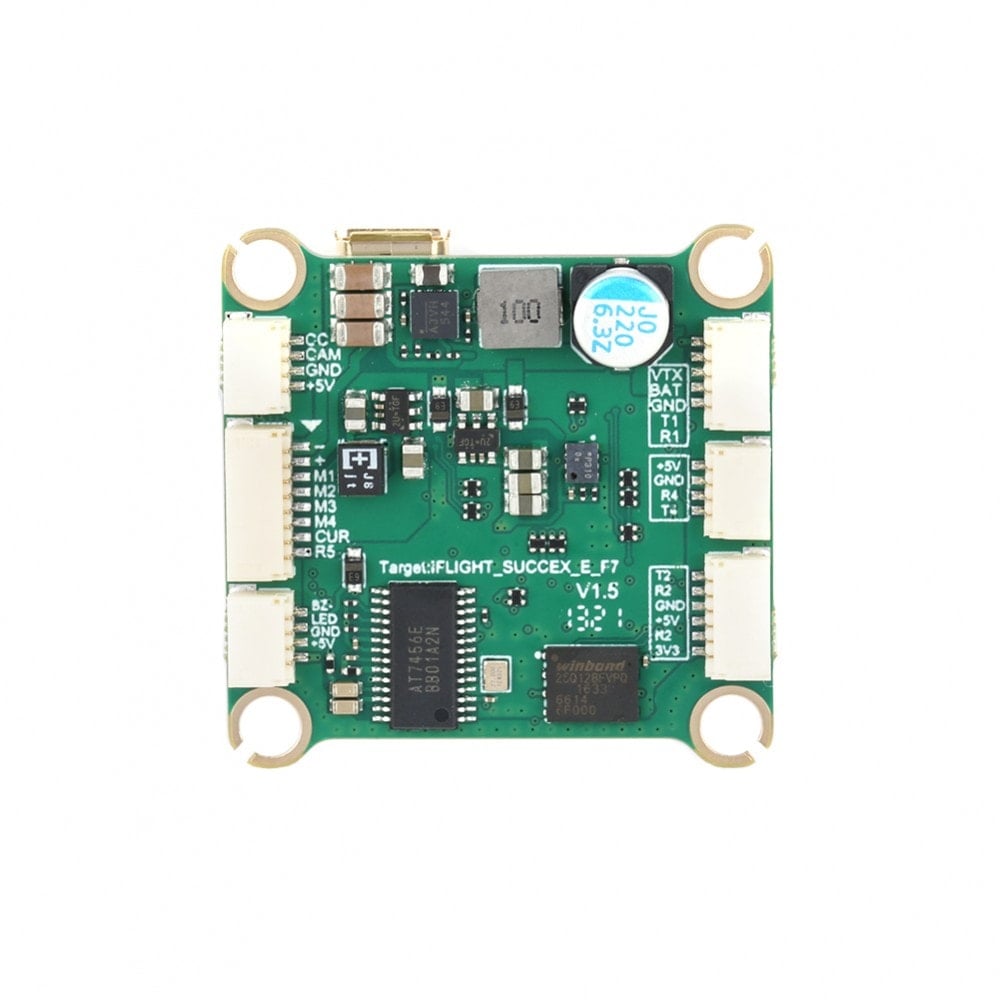

- Firmware: IFLIGHT_SUCCEX_E_F7

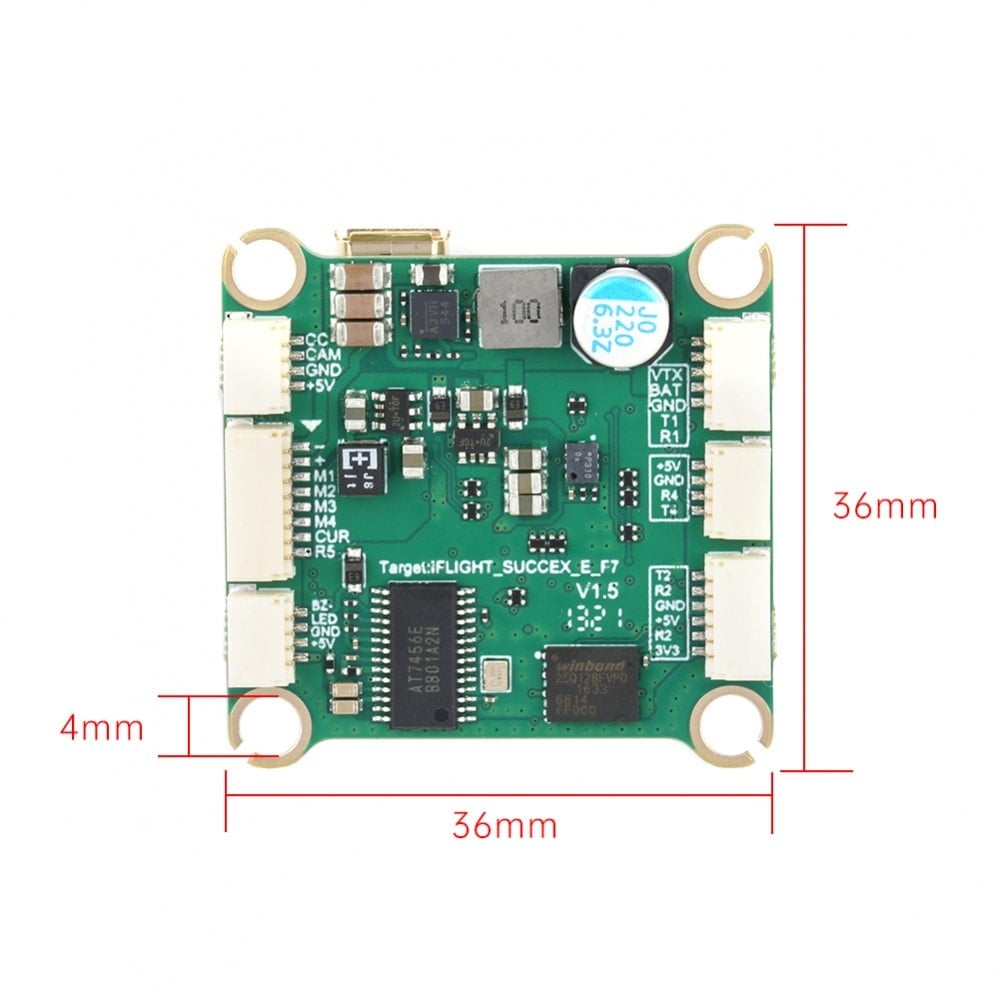

- Outer Size: 36*36mm / 30.5*30.5/φ4 mounting

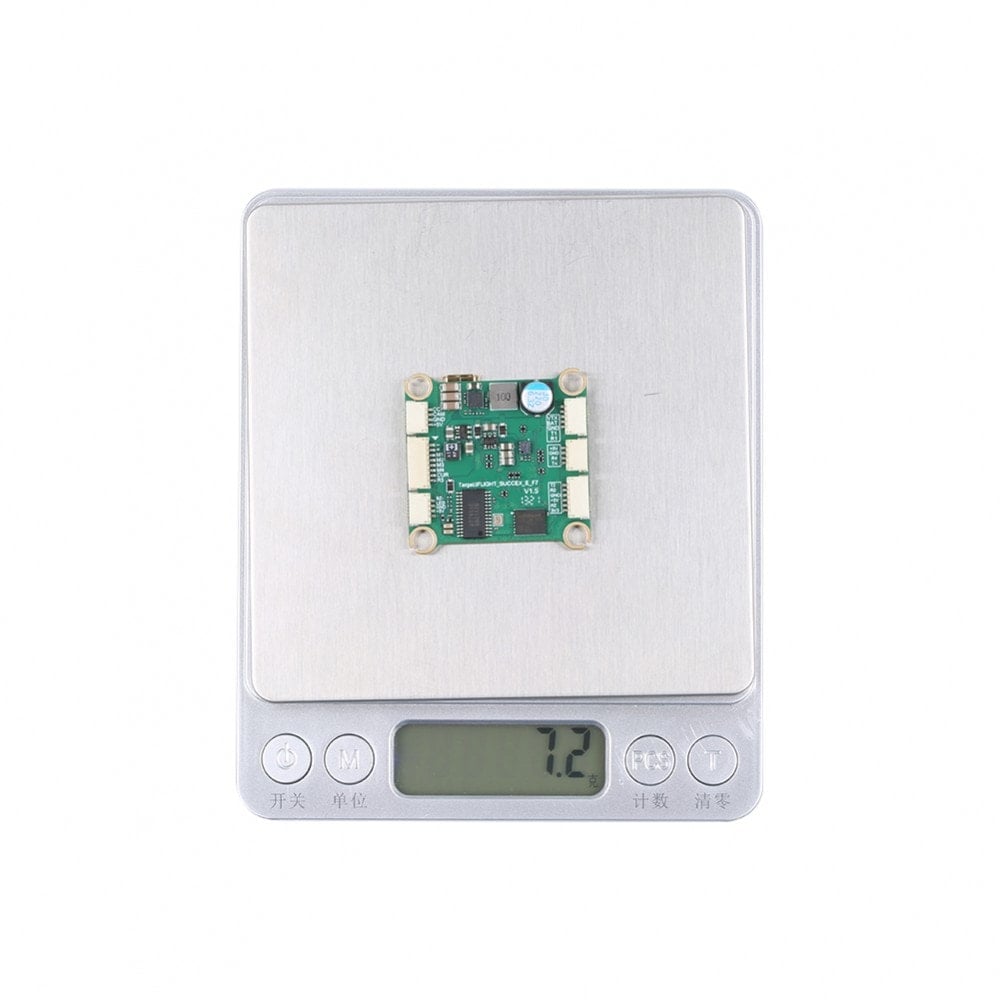

- Weight: 6.9g
Wiring Guide
