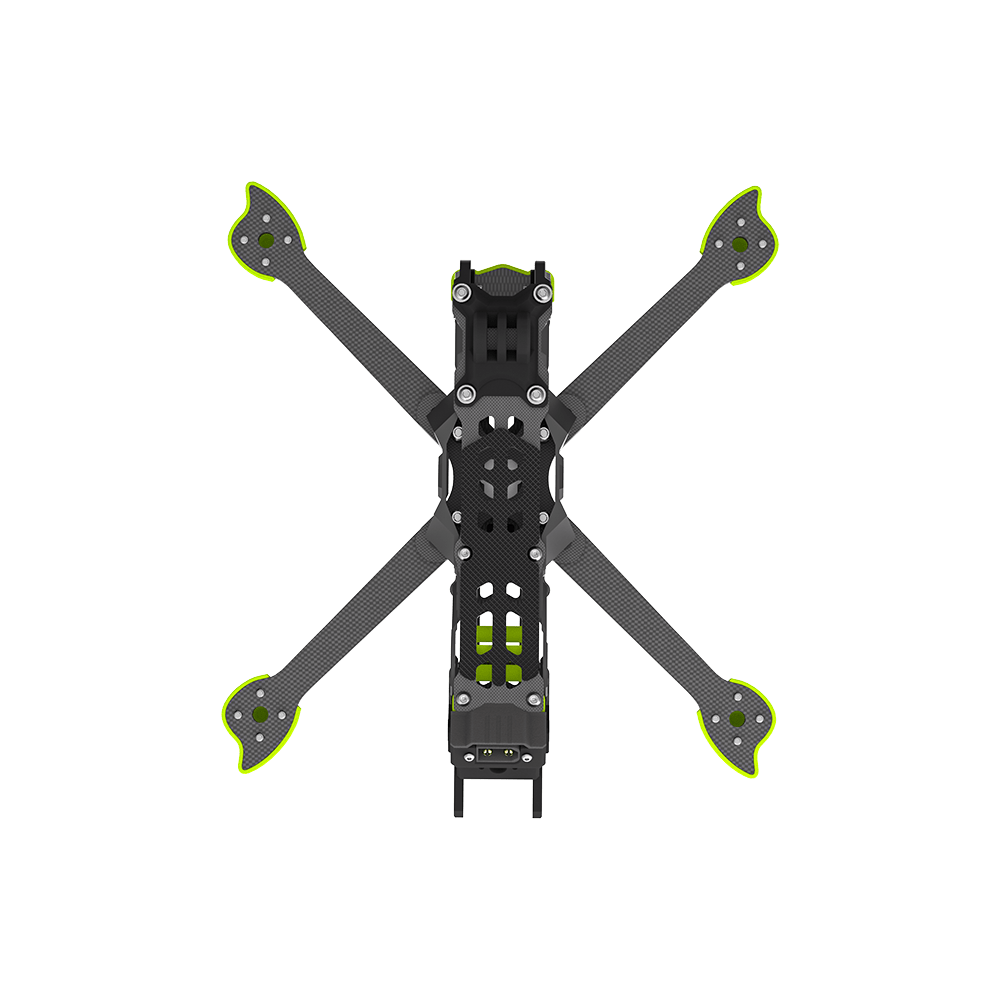

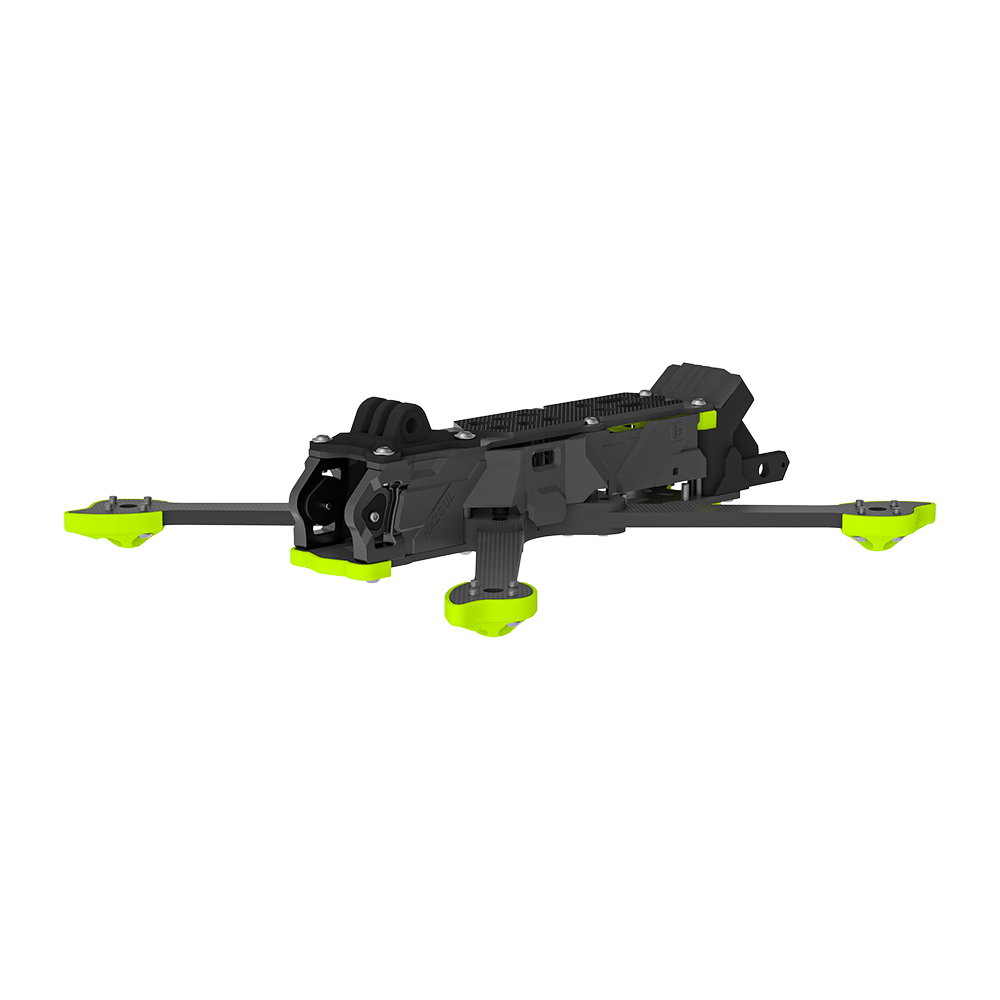

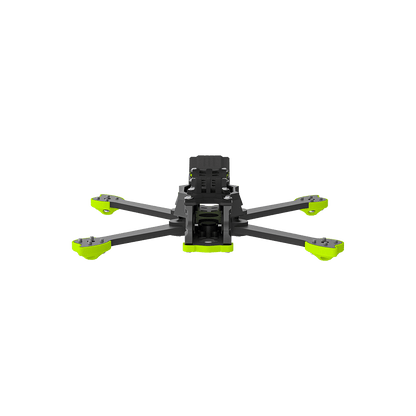

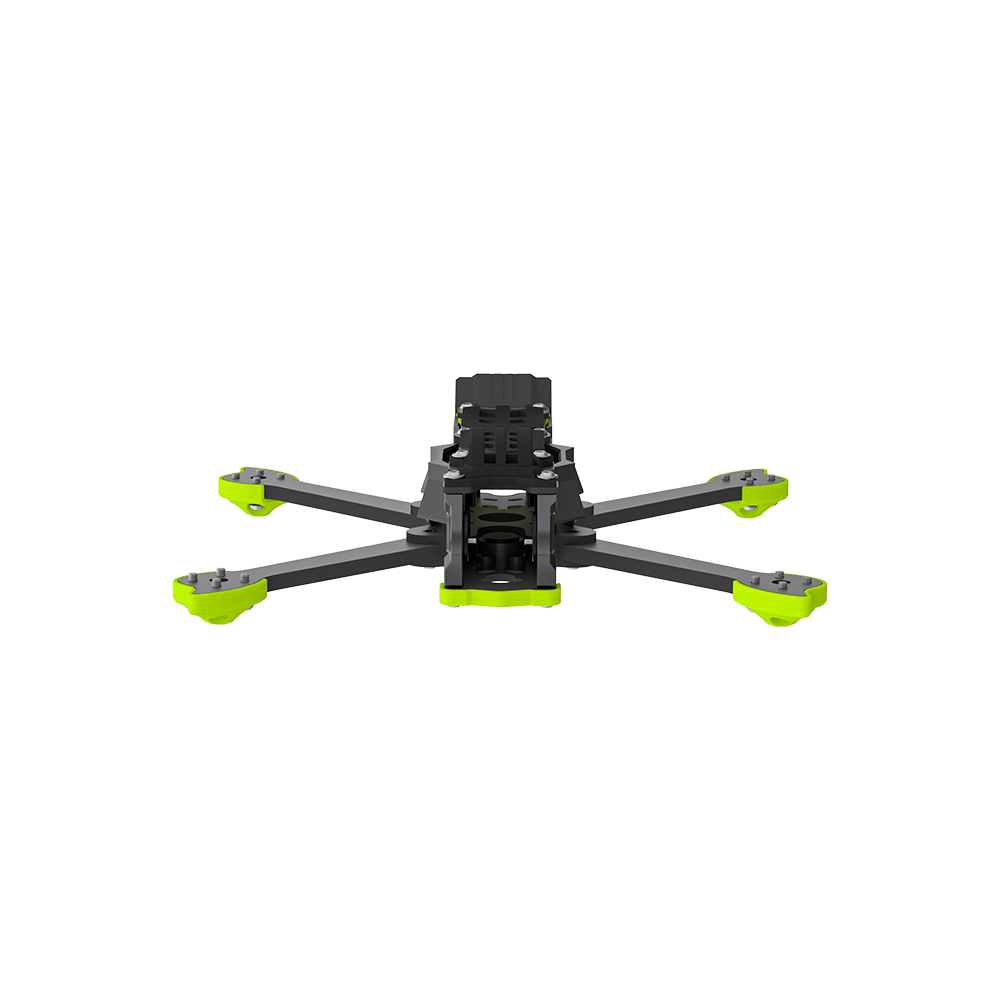

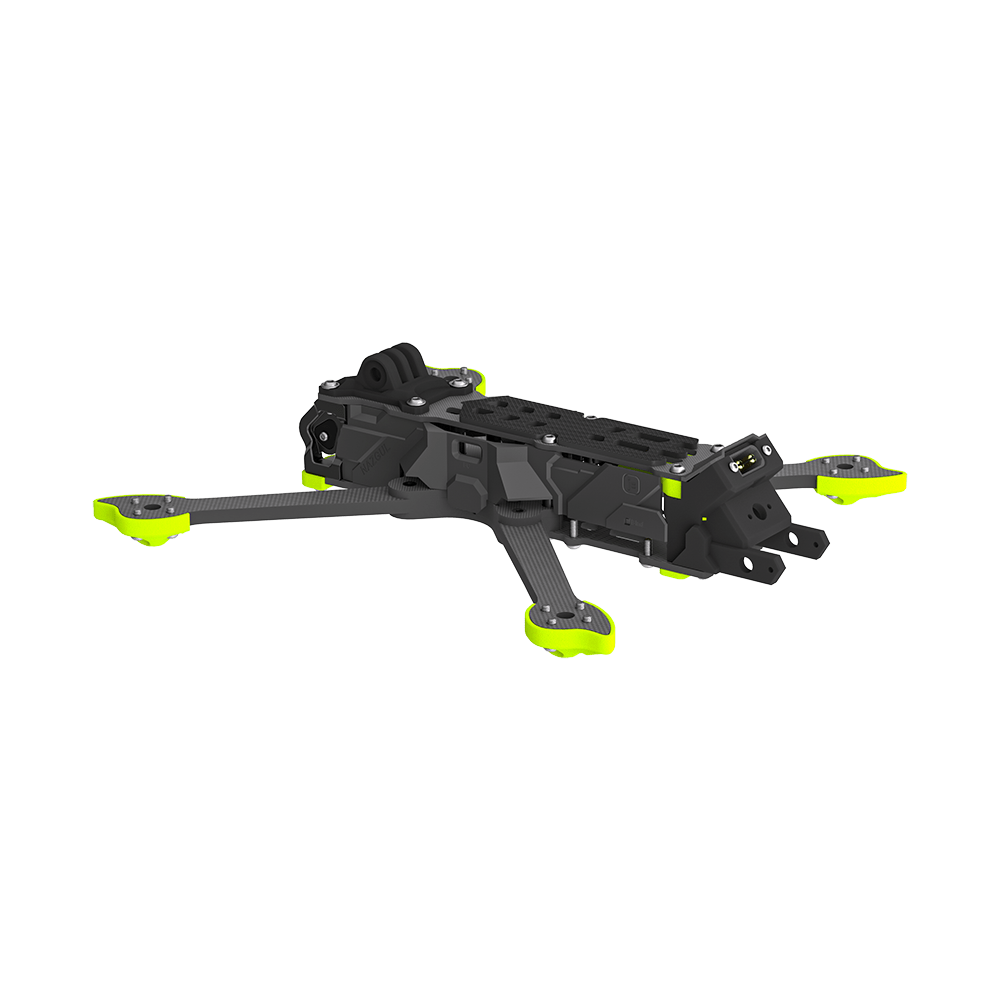

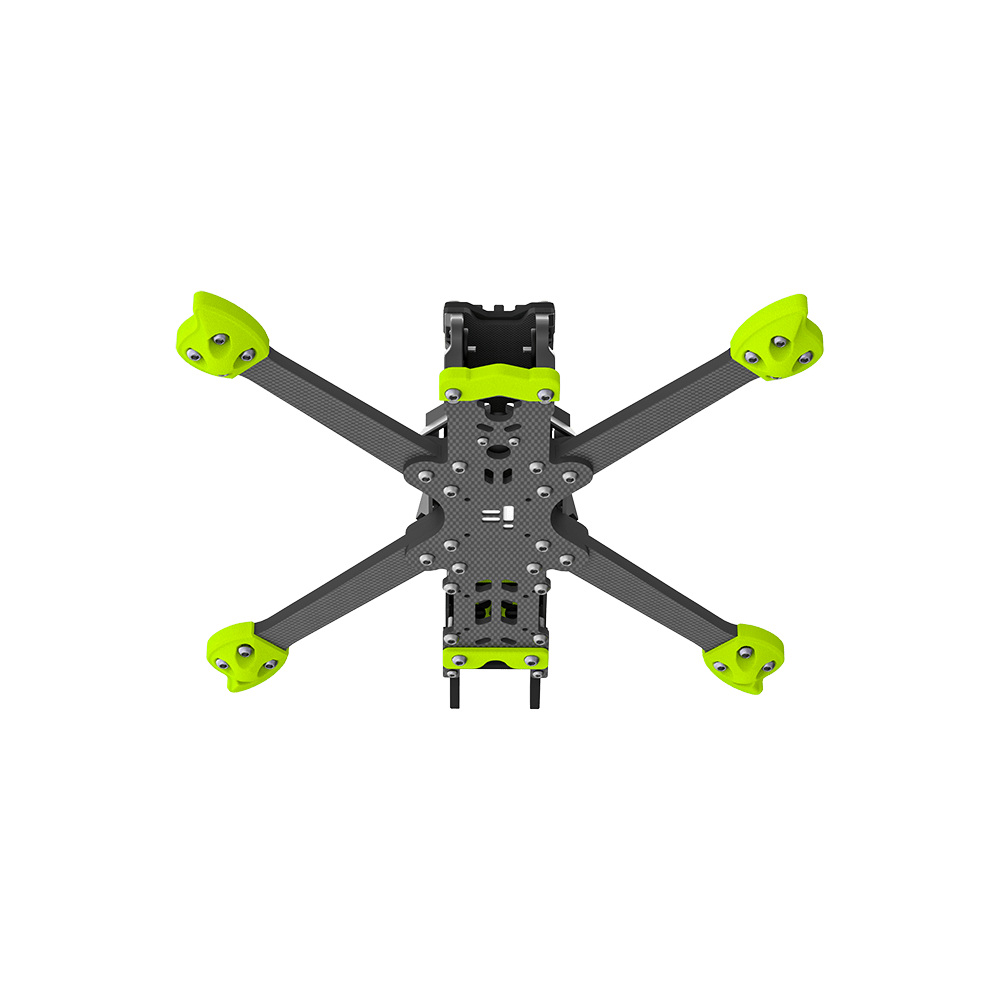

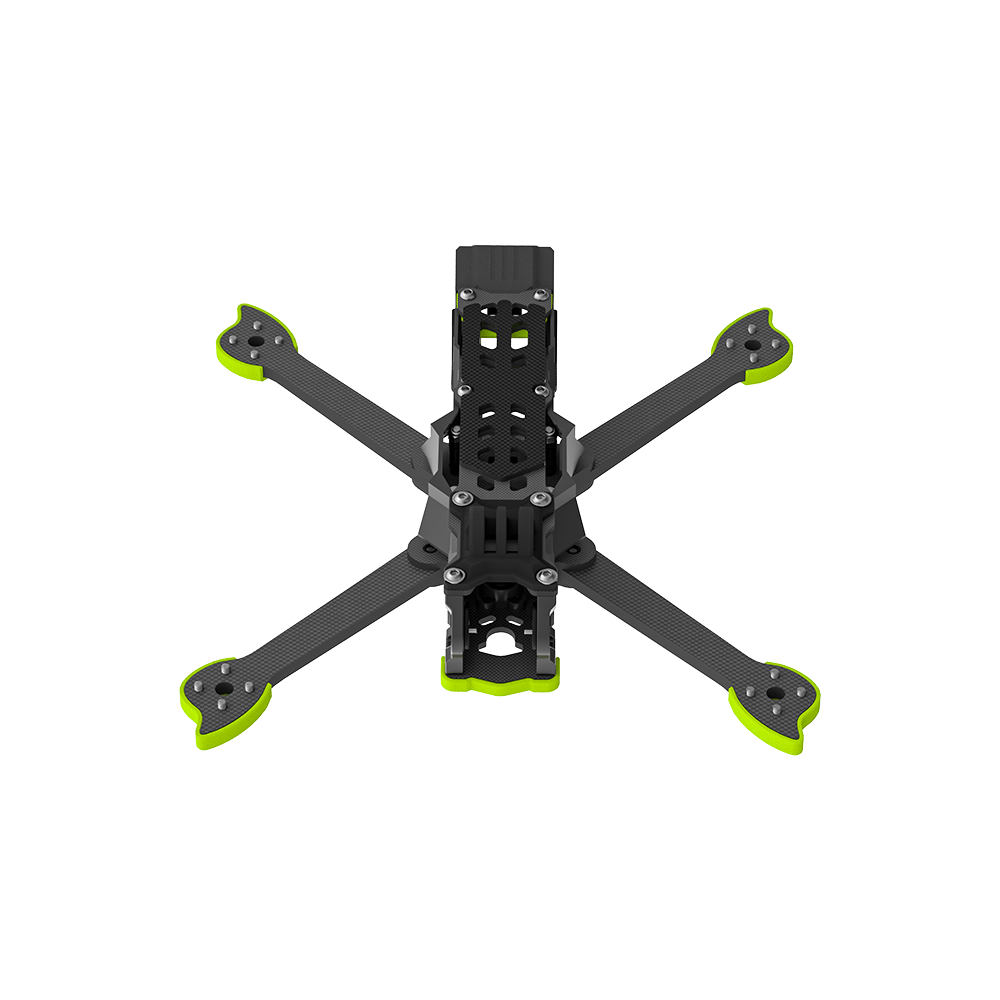

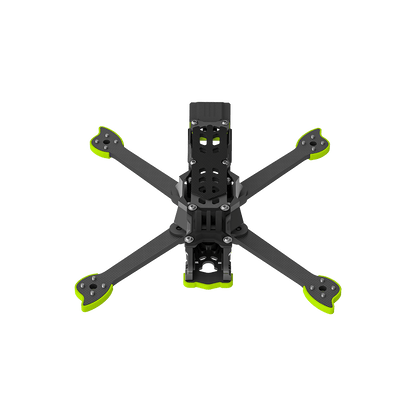

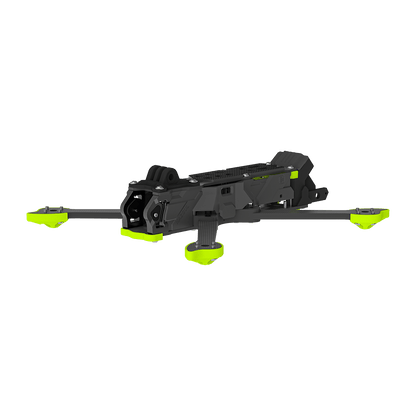

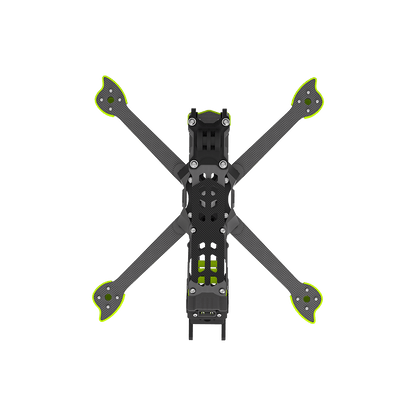

Nazgul XL5 (ECO) V1.1: The Frame Your Wallet Won't Divorce You For

Congratulations, you’ve clicked on a frame kit. Whether you're here because you decimated your previous build against a concrete pillar or you're a serial builder looking for your next fix, the iFlight Nazgul XL5 ECO V1.1 is the 'reliable hatchback' of the FPV world. It’s made of carbon fiber, it holds motors, and it doesn't cost a kidney. What else do you want, a hug? (Hugs not included, we're in the UK, keep your distance).

Why You Want It

Look, we know the drill. You want a 5-inch freestyle frame that’s stiff enough to stop mid-air oscillations but cheap enough that you don't weep when you inevitably 'send it' into a tree. The Nazgul XL5 ECO uses super-stiff carbon to minimize resonance, meaning your flight controller won't have a nervous breakdown trying to filter out the noise. It’s optimized for 2207 motors, which are basically the industry standard for 'I want to go fast but I also like control'.

Specs

• Wheelbase: 240mm (The perfect size for getting stuck in high-tension power lines)
• Body Dimension: 160x160mm (Plenty of room for your questionable wiring)
• Arm Thickness: 5mm (Thick enough to survive a 'moderate' lithobraking maneuver)
• Bottom Plate Thickness: 3mm (Solid foundation for your FPV hopes and dreams)
• Top Plate Thickness: 2mm (Protects the bits that actually matter)
• Mounting Holes: 30.5x30.5mm / 20x20mm (Because choice is an illusion, but we give it to you anyway)
• Motor Mount: 16x16mm (Fits your 2207s like a glove)
• Camera Space: 19mm/20mm (Fits most modern FPV cameras that haven't been discontinued yet)

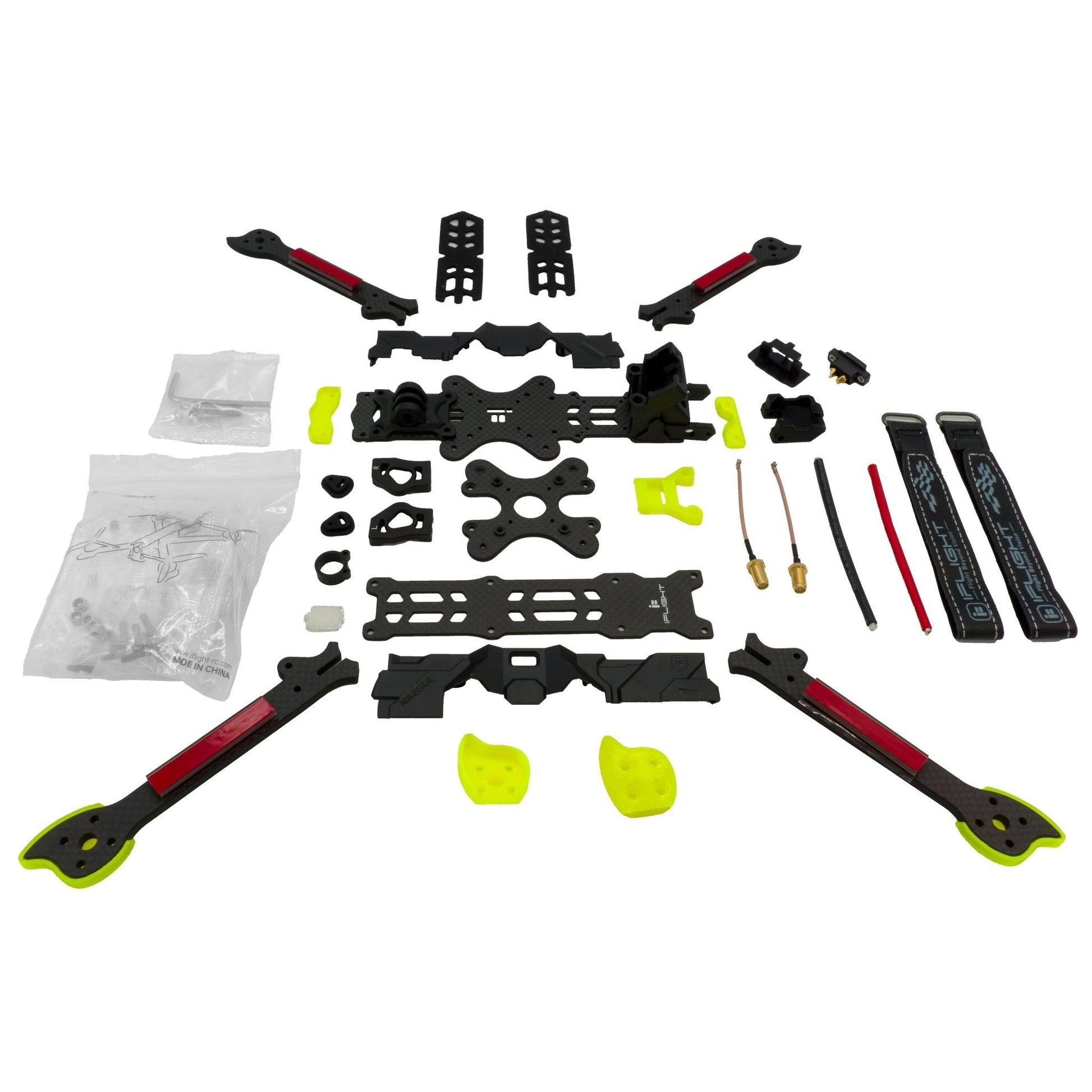

In the Box

• 1x Nazgul XL5 ECO V1.1 Frame Kit (Assembly required; it's not LEGO, but it's close)
• 1x Screw Bag (Contains exactly enough screws to lose one in your carpet)
• 1x Battery Anti-slip Pad (Stops your LiPo from becoming a projectile)

Compatibility

This frame is designed to play nice with standard 30.5mm and 20mm stacks. It loves 5-inch props and 2207 motors. If you try to fit 7-inch props on this, don't come crying to our support team when they hit the body.

Highlights

• Carbon Stiffness: High-grade carbon that’s stiffer than a Brit's upper lip during a minor inconvenience.
• ECO Friendly (To your bank account): Pro-level geometry without the pro-level price tag.
• V1.1 Refinements: Because the first version wasn't perfect, and we're honest about that.

Notes

This is a frame kit. It does not fly by itself. You will need motors, an ESC, a FC, a receiver, a VTX, a camera, and a basic understanding of why you shouldn't solder while intoxicated.

Disclaimer

Carbon fiber is conductive. Don't touch live wires to it. Don't eat the dust. Fly responsibly, or at least don't film the illegal bits.

Still Here?

If you're still reading this, you’re either a crawler bot trying to index our metadata or you’re procrastinating on actually building your drone. Buy the frame, get the iFlight Nazgul XL5 V1.1 UK stock while it's here, and go crash something. Your simulator time is up.
