Product Details
Choose Your Receiver and GPS Option
Select both Receiver and Add GPS before ordering. The receiver must match your transmitter system; analogue video requires a compatible analogue receiving setup.
TBS Crossfire Nano RX / No GPS — F016802
This option is the Nazgul ECO XL5 V1.1 6S analogue BNF with a fitted TBS Crossfire Nano RX and no GPS module. It needs a compatible Crossfire transmitter or transmitter module, not an ELRS control link. Do not rely on GPS-dependent functions being available as supplied.
- Flight controller: BLITZ F7.
- ESC: BLITZ E55 4-in-1, 55A.
- Motors: XING-E Pro 2207 1800KV.
- Video: BLITZ 5.8GHz 1.6W analogue VTX; use only power settings permitted where you fly.
- Configuration: TBS Crossfire Nano RX fitted; no GPS fitted.
- Contents for F016802: One aircraft in this configuration, one antenna, one battery pad and two pairs of Nazgul F5 propellers. The manufacturer also lists a GoPro mount; the action camera is not included.
A compatible radio system, analogue goggles or receiver/display, suitable 6S flight battery and charger are required and are not included. Complete binding, control-direction and failsafe checks before flight; remove propellers for powered bench setup.
Existing ELRS 2.4GHz and No RX Options
The original feature and specification information below applies to the existing ELRS and receiver-free choices. For the new TBS Crossfire / No GPS option, use the configuration-specific information above, including its F7 flight controller and E55 ESC.

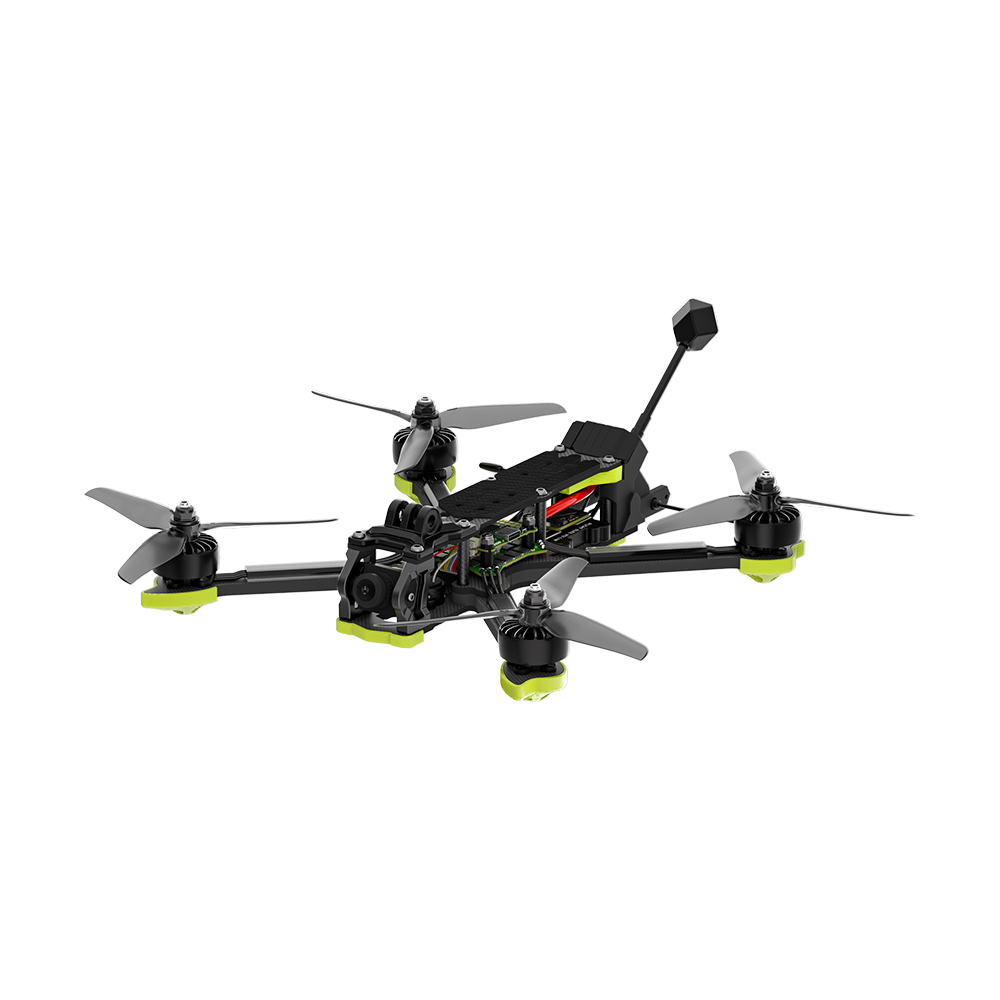

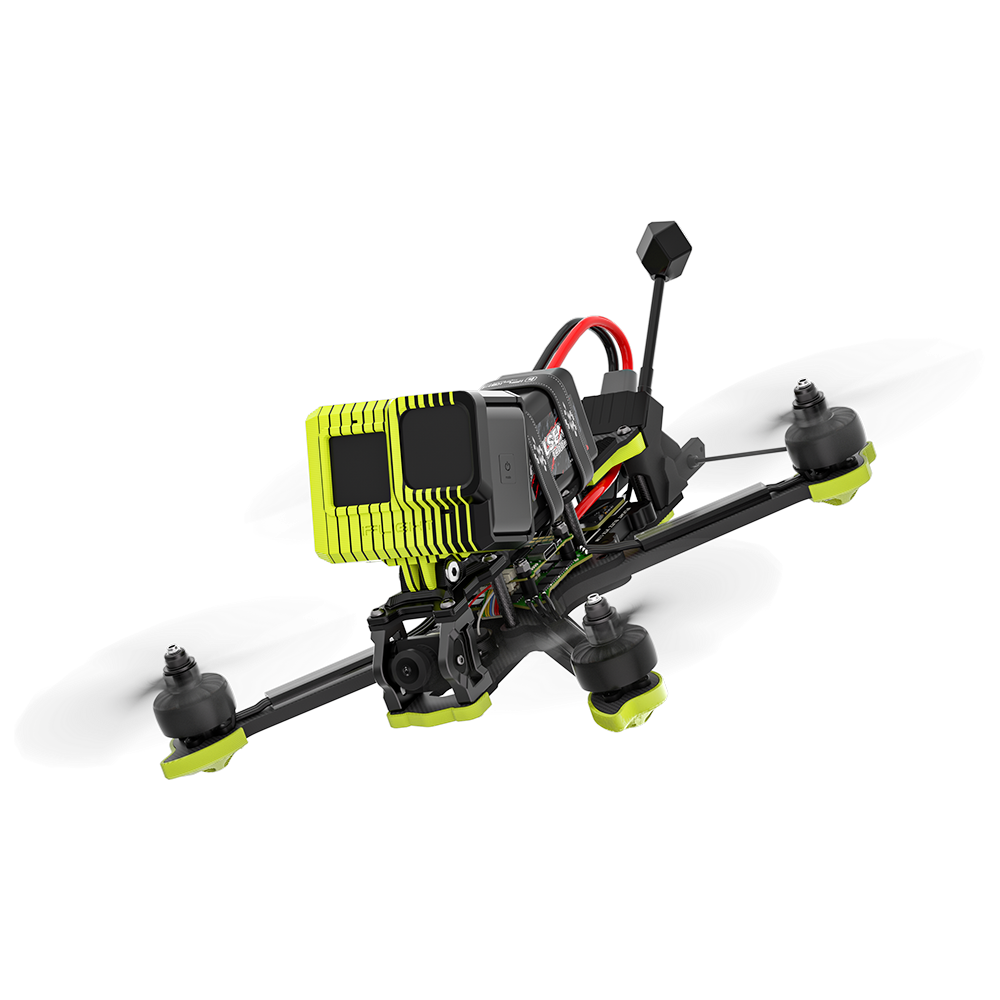

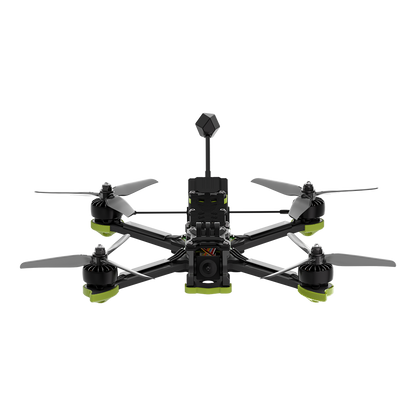

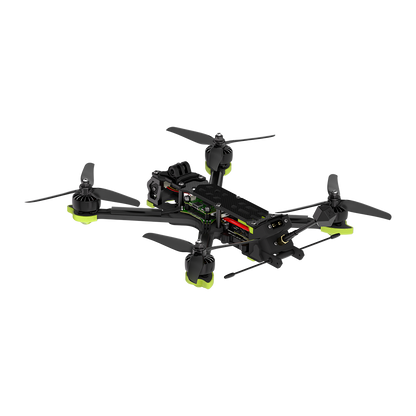

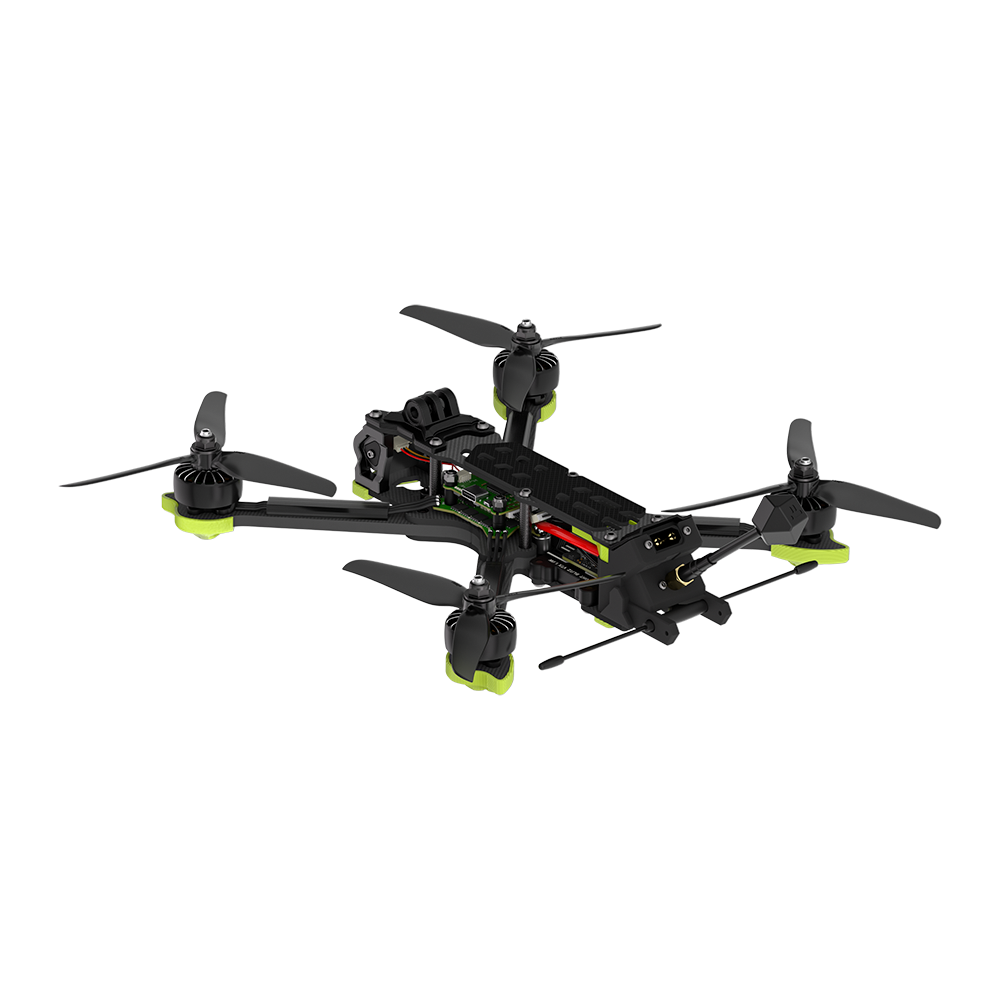

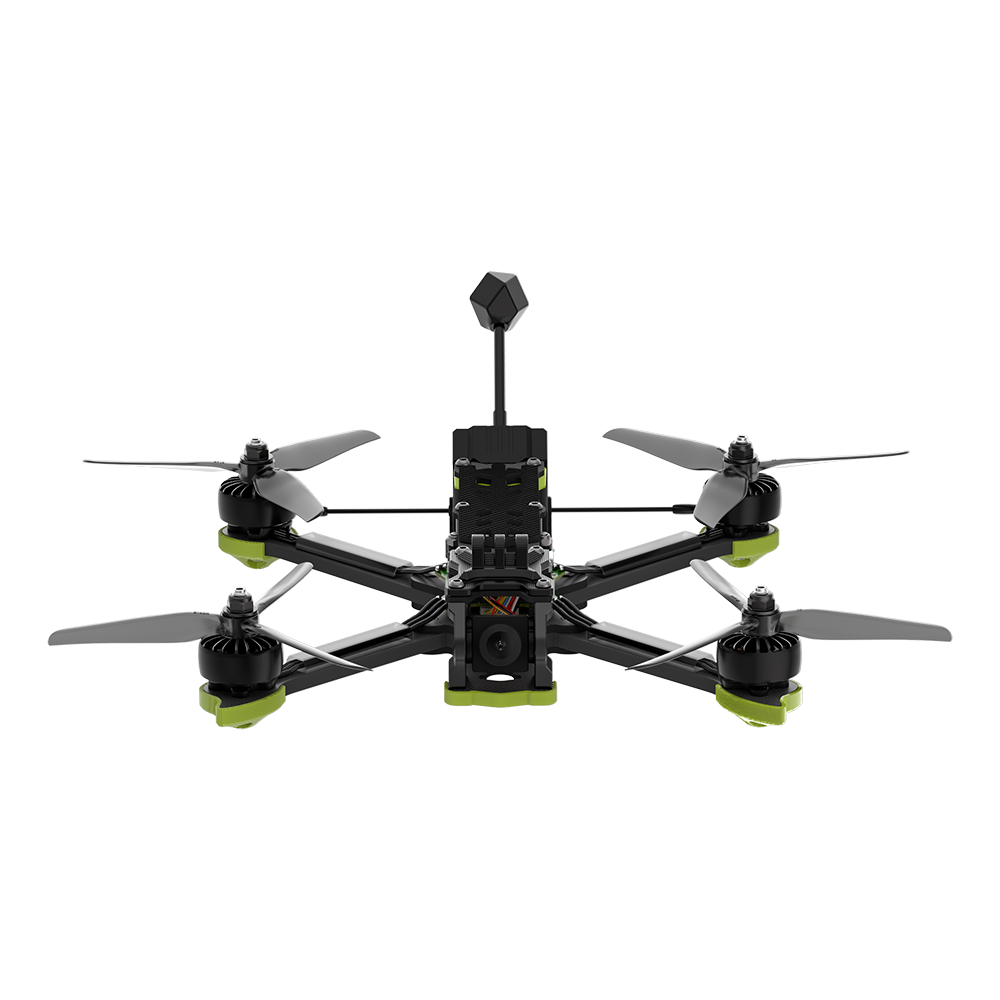

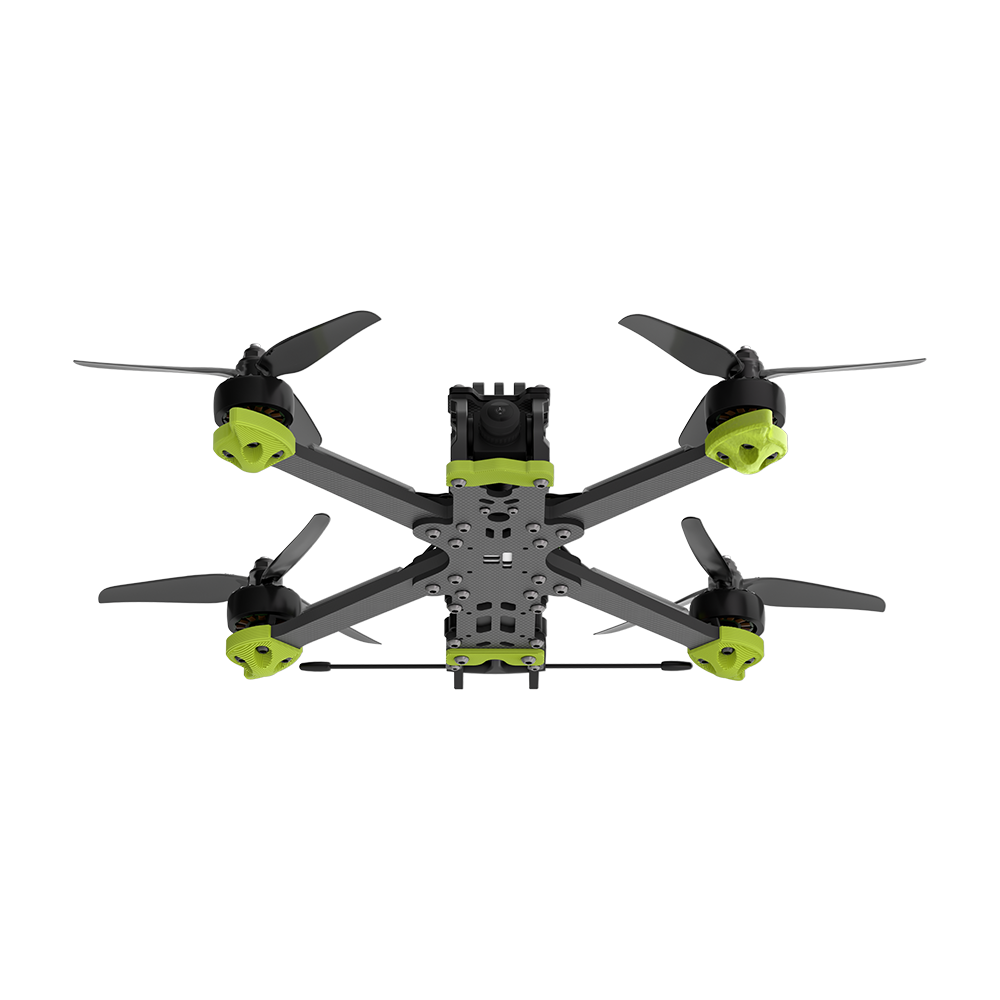

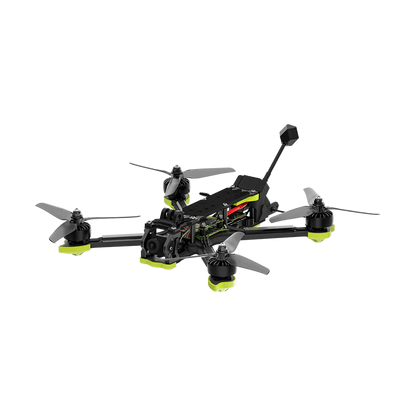

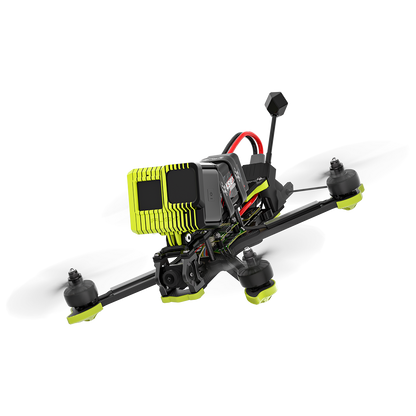

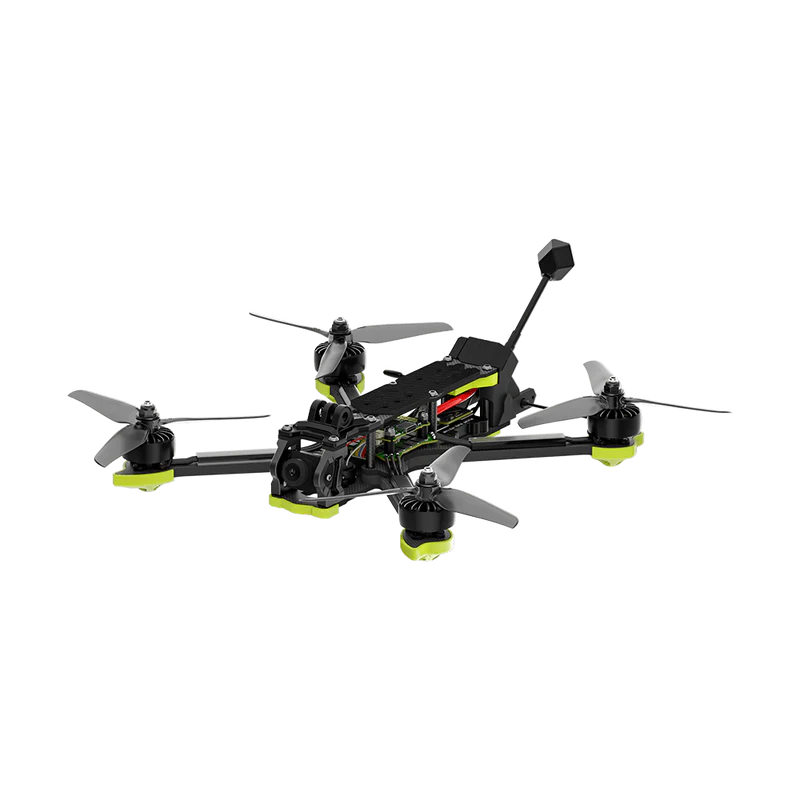

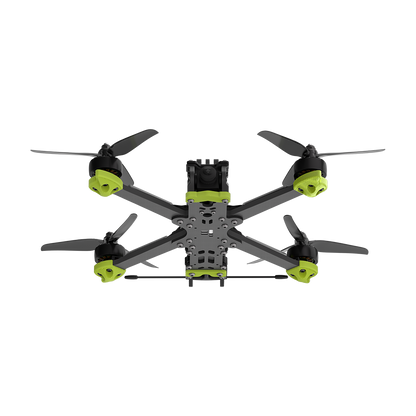

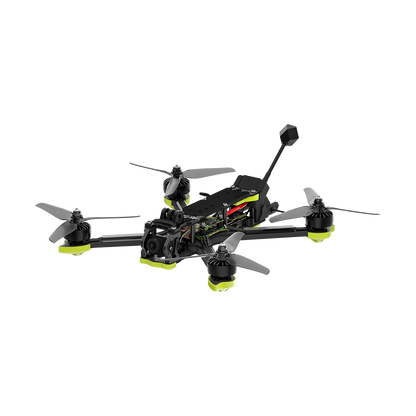

Introducing the Nazgul XL5 ECO, the 5-inch freestyle drone that combines cutting-edge technology and unbeatable value. This drone is packed with high-performance features, including the BLITZ ATF435 flight controller, BLITZ 1.6W VTX, and BLITZ E55S 2-6S 55A ESC. Its robust carbon fiber frame with an aluminum camera mount ensures durability without compromising on weight. Plus, the included GoPro mount lets you capture all your high-flying adventures in stunning detail. Elevate your drone experience with the Nazgul XL5 ECO.
Key Features
Lightweight and Durable Construction

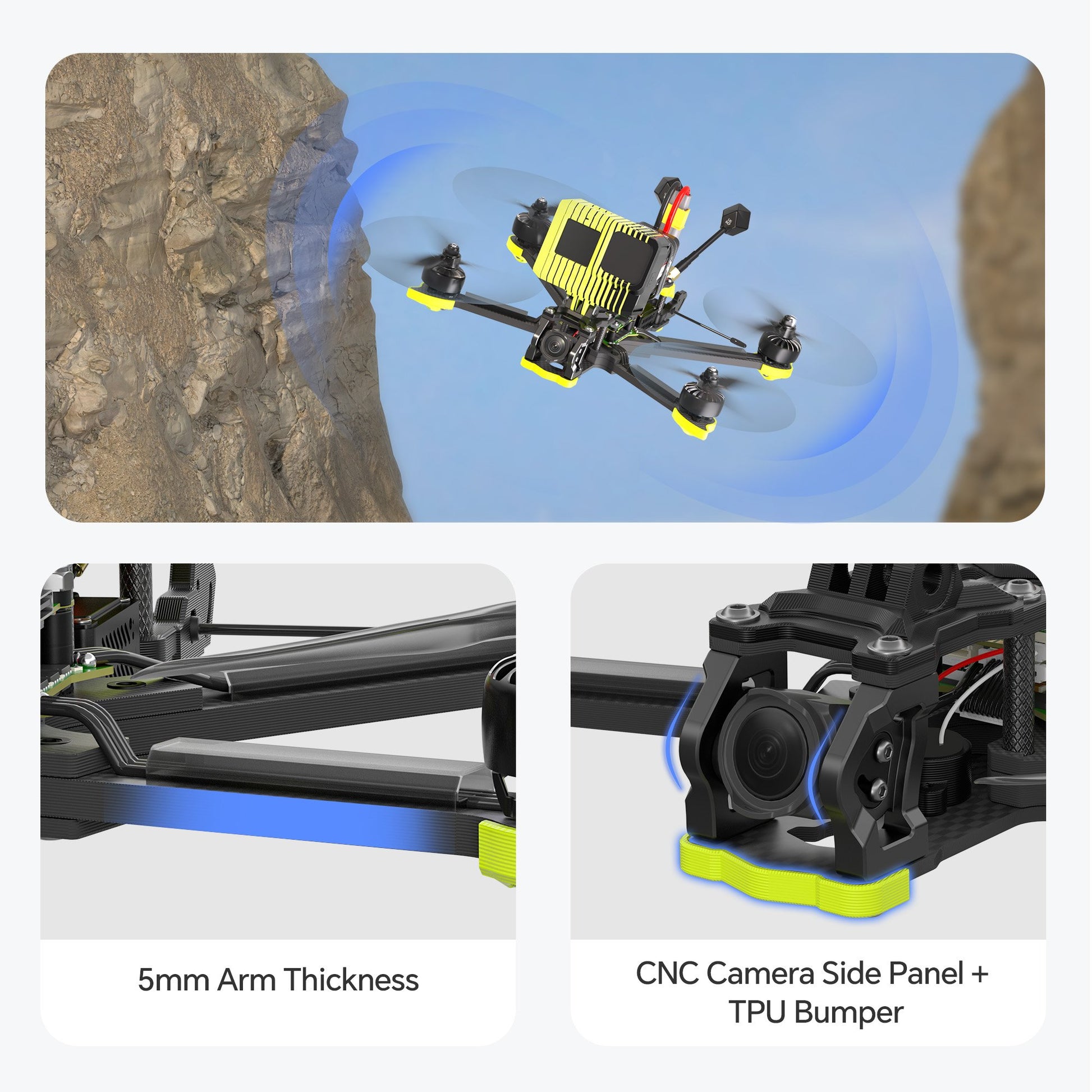

Crafted from carbon fiber and aluminum, the Nazgul XL5 ECO is built to last. This combination provides a lightweight yet sturdy frame, perfect for securing your camera gear and capturing unobstructed aerial footage.
Anti-Spark Filter
Our advanced anti-spark filter extends the life of XT60 connectors by preventing voltage spikes and protecting your electronics from damage. Say goodbye to those alarming sparks when you plug in your battery.
User-Friendly Maintenance
Equipped with a built-in buzzer and receiver mount, the Nazgul XL5 ECO simplifies maintenance and adjustments, ensuring you spend more time flying and less time tinkering.
DIY Customization
Featuring standard 20x20 and 30.5x30.5 mounting holes, this drone offers versatile compatibility with popular flight stacks and VTX systems. Customize your setup to suit your needs and enjoy seamless integration.
Specifications
- Product Name: Nazgul XL5 ECO 6S Analog

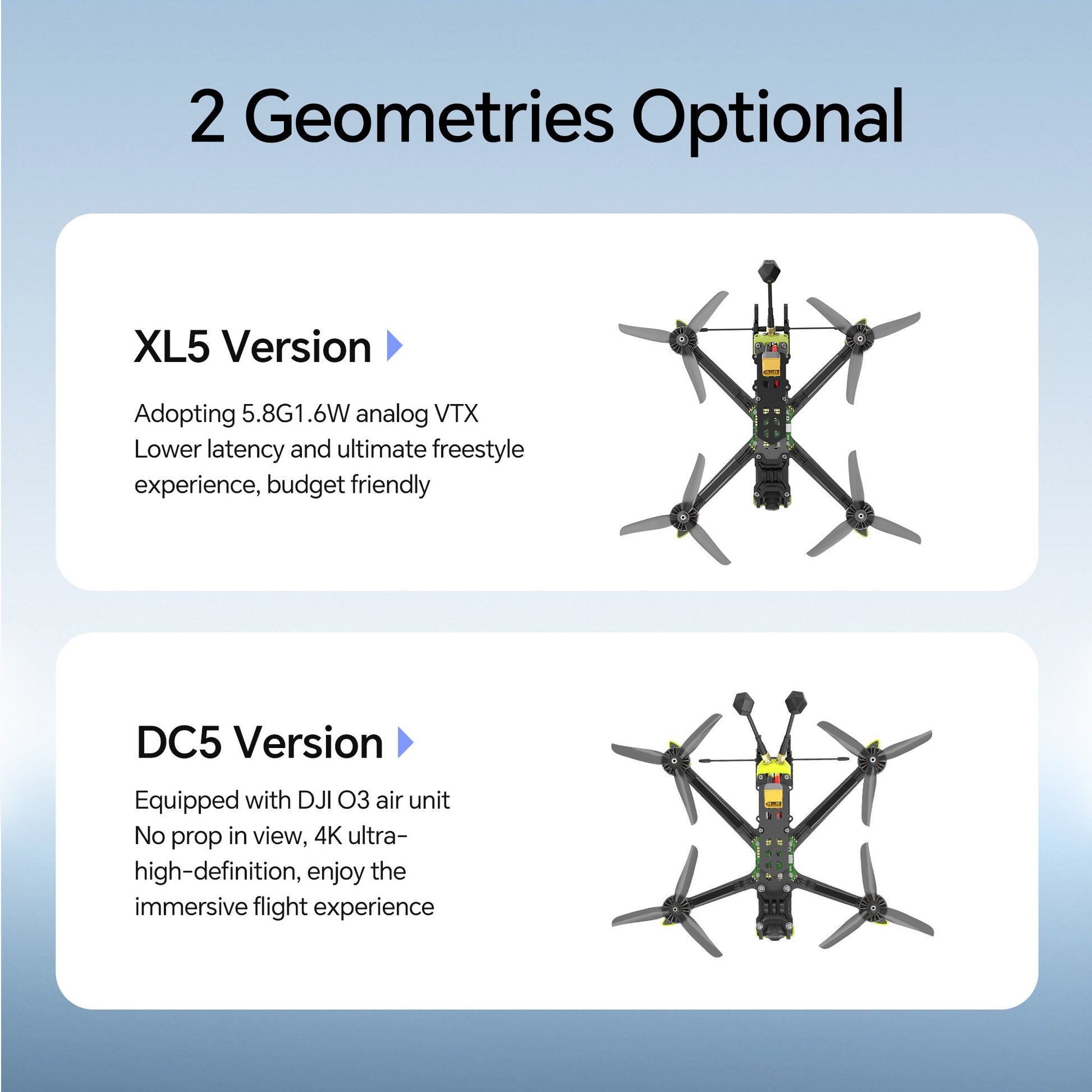

- Geometry: True-X
- Flight Controller: BLITZ ATF435
- ESC: BLITZ E55S 4-IN-1
- Video Transmission: BLITZ 1.6W VTX
- Frame: 245mm wheelbase
- Motor: XING-E Pro 2207 1800KV
- Propellers: Nazgul F5
- Weight: 427g
- Takeoff Weight: Approx. 652g (with 6S 1400mAh battery)
- Dimensions (L×W×H): 173×173×34±2 mm
- Diagonal Distance: 245mm
- Max Speed: 190 km/h (manual mode)
- Max Takeoff Altitude: 3200 m
- Max Hover Time: Approx. 7.5 mins (no load with 6S 1400mAh battery)
- Max Wind Speed Resistance: Level 7
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Antennas: Single
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)
Video Transmission
- Product Name: BLITZ 5.8G 1.6W VTX
- Output Power: PIT/25mW/400mW/800mW/1600mW
- Input Voltage: 7-34V (2-8S)
- Working Current: Varies with power output
- Transmission Frequency: 40CH (A-B-E-F-R)
- Antenna Interface: MMCX
- Mounting Hole: 30.5×30.5/Φ3mm
- Weight: 18.9g (antenna not included)
- Dimensions: 38.5×38.5mm
What's in the Box?
- 1 x Nazgul XL5 ECO 6S Analog BNF
- 1 x Antennas
- 2 x Battery pads
- 2 x Nazgul F5 Prop (Pairs)
Important Note: Accessories may vary based on supply. All iFlight BNFs are tested before shipment to ensure the highest quality. For any issues, please contact our iFlight customer support at www.iflightrc.freshdesk.com .
