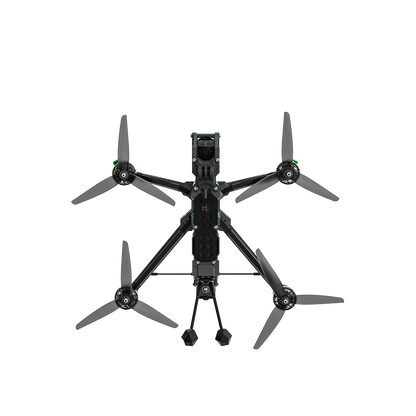

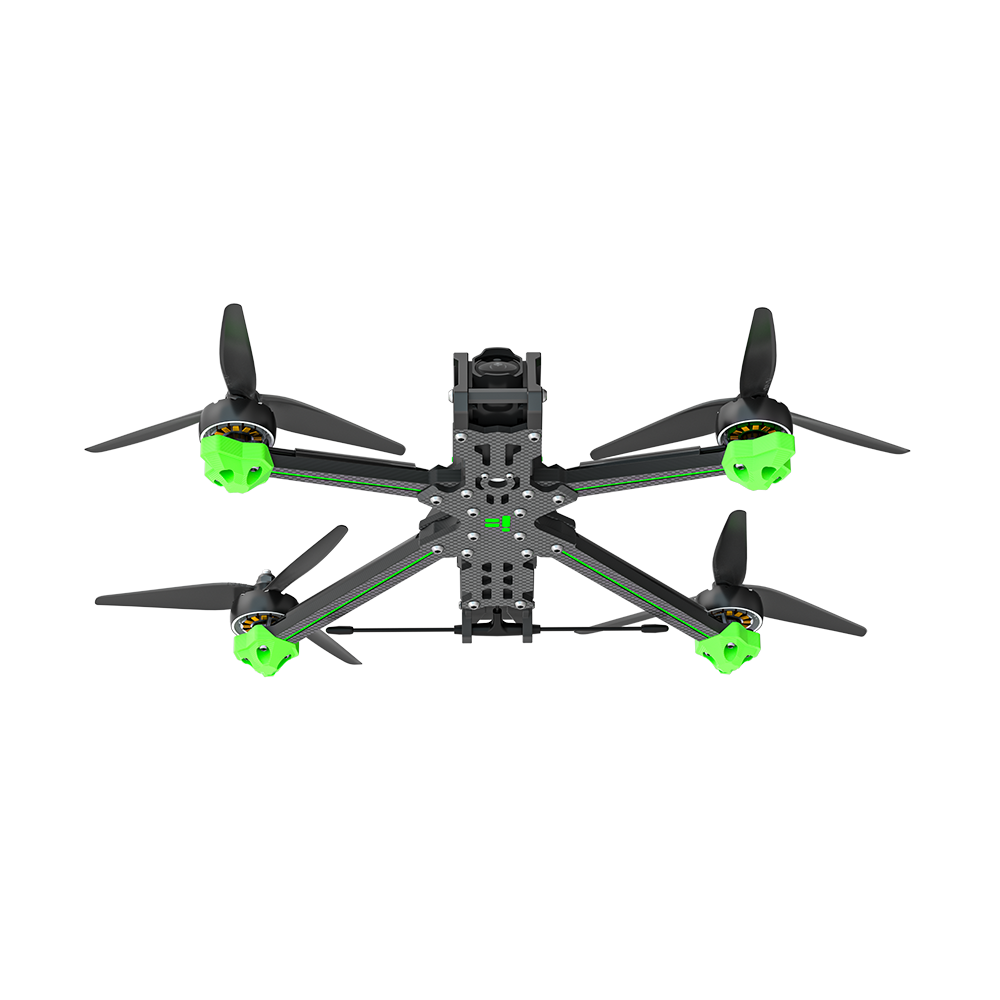

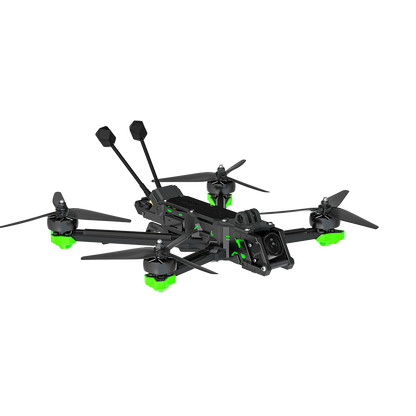

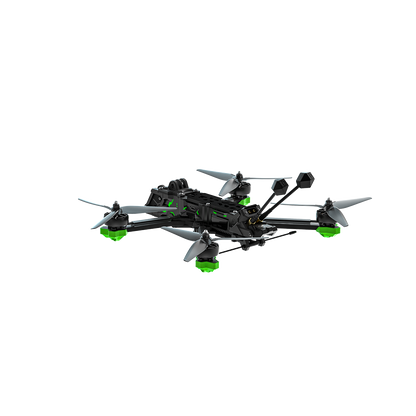

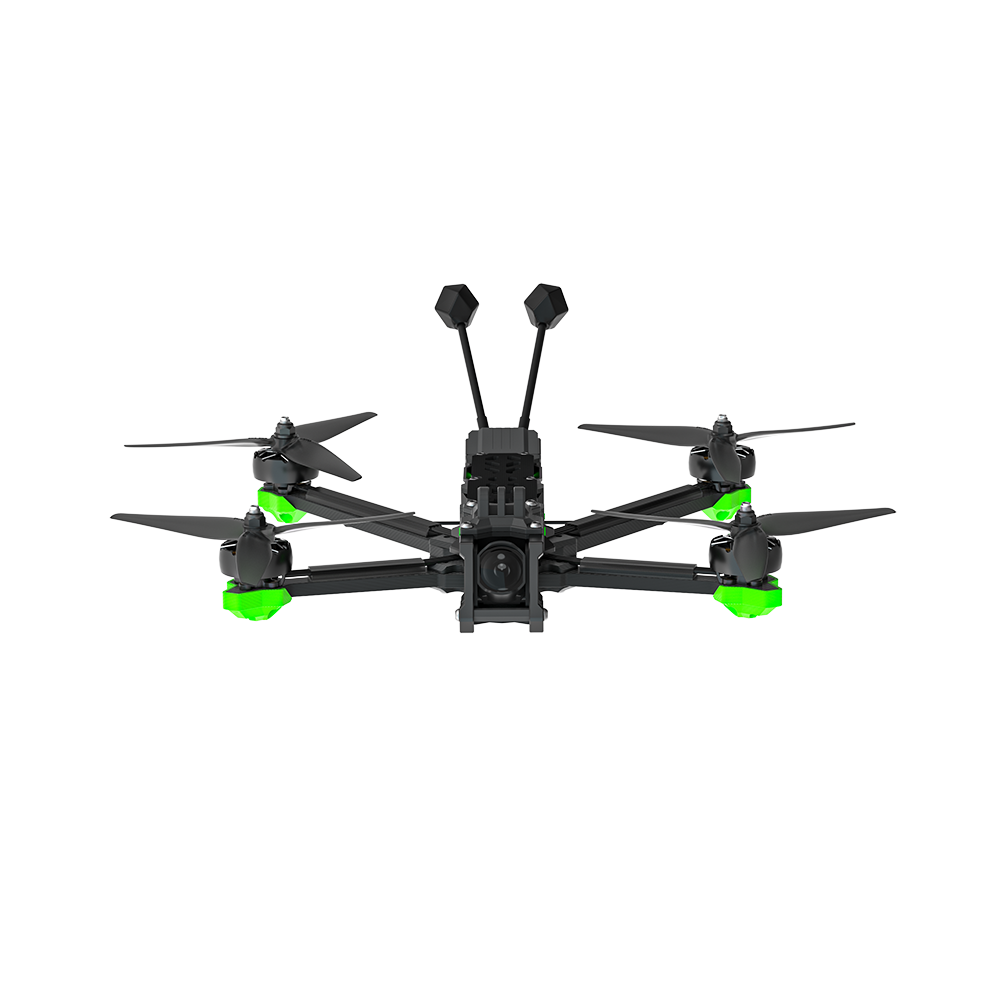

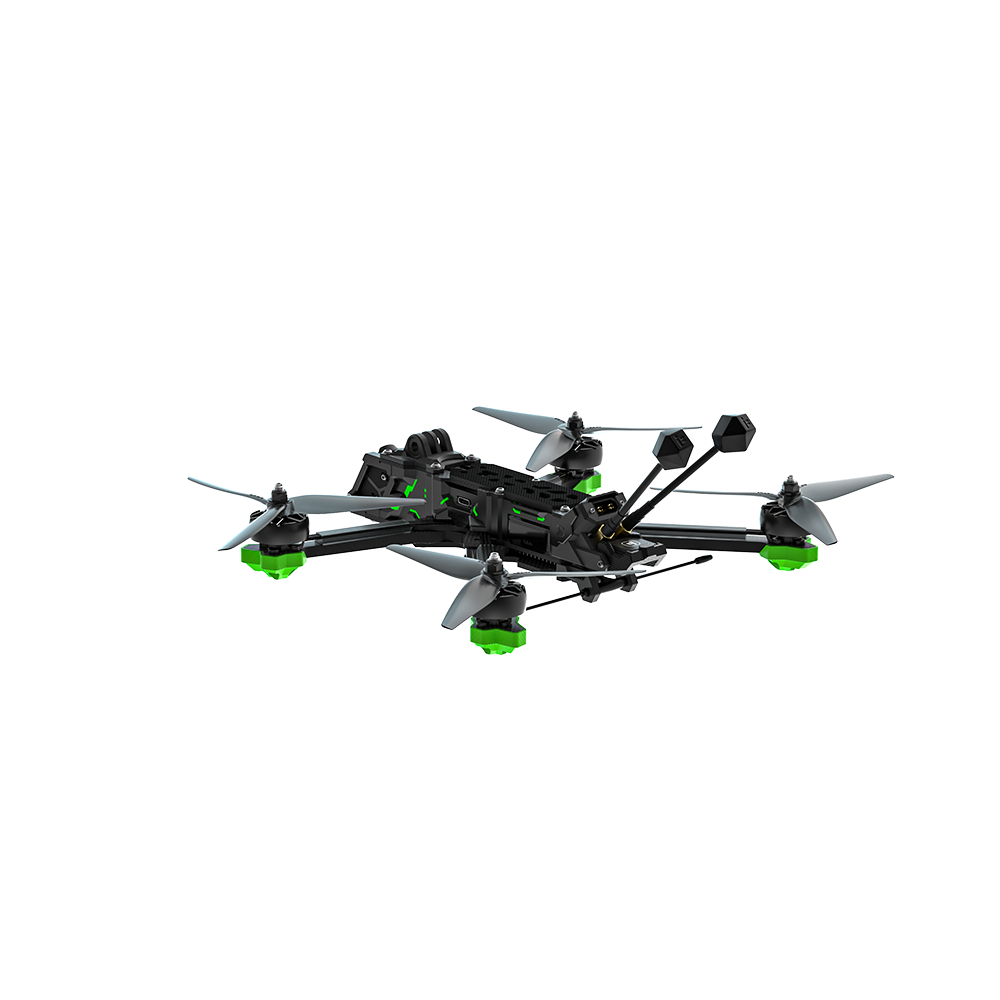

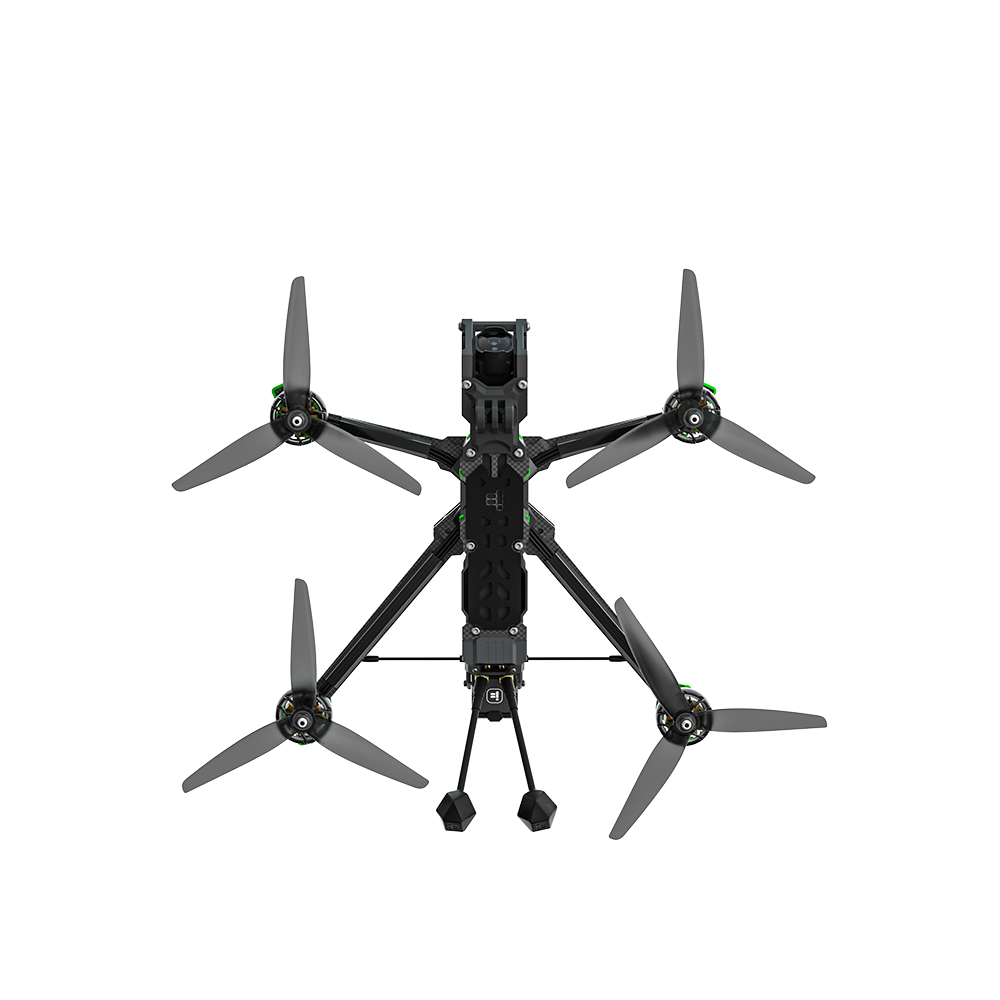

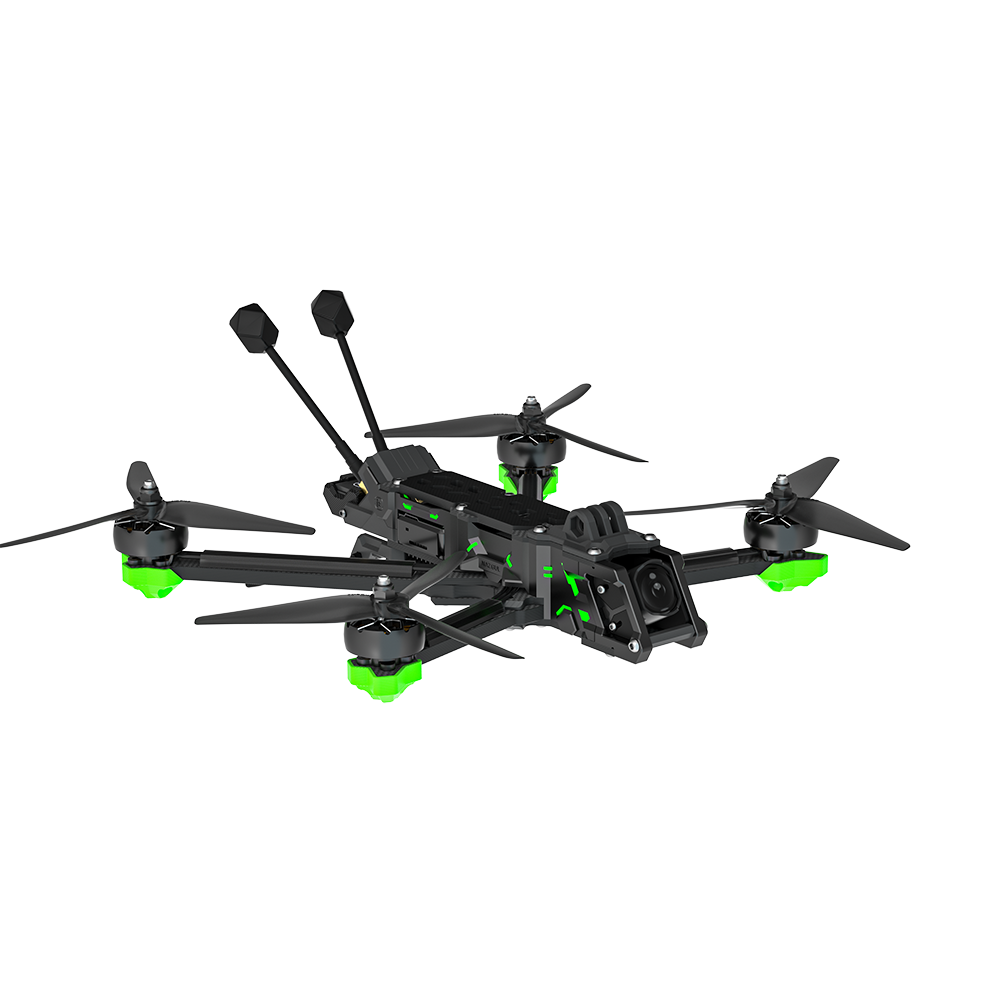

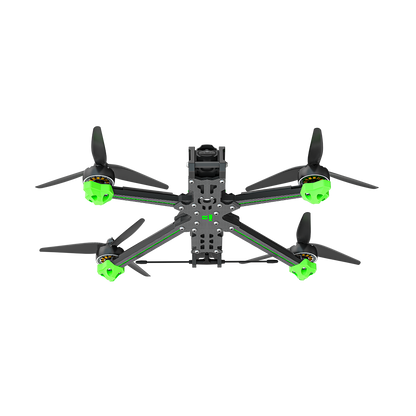

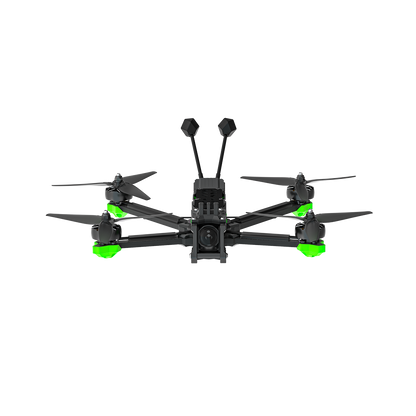

Evoque F6 V2 O4 HD - Next-Level Freestyle and Cinematic FPV Drone
The Evoque F6 V2 O4 HD is the ultimate 6-inch drone designed to combine high-performance freestyle flying with cinematic-grade video. Powered by DJI's cutting-edge O4 Pro Air Unit , this Bind-and-Fly beast delivers stunning 4K stabilized footage , real-time 1080p/100fps transmission , and a sleek, durable frame to handle anything you throw at it. With extended flight times, powerful XING2 motors, and an innovative frame that keeps your components cool and clean, the Evoque F6 V2 is built for both enthusiasts and professionals.
Key Features
1. Smooth and Reliable XING2 Motors
The XING2 2506 1500KV motors feature durable unibell (one-piece bell) construction, titanium alloy shafts, and high-quality Japanese NSK bearings for unmatched durability and smooth performance. They're built to handle aggressive freestyle maneuvers while offering efficiency for longer flight times.
2. DJI O4 Pro Air Unit for Immersive FPV
Enjoy unparalleled video clarity with DJI's 1/1.3-inch image sensor and 155° ultra-wide-angle lens , delivering 4K stabilized video with RockSteady 3.0+. Real-time 1080p/100fps transmission and low-latency (as low as 24ms) make this the ultimate FPV experience for racers, freestylers, and filmmakers.
3. Durable, Contaminant-Free Frame
The Nazgul frame is upgraded with illuminated side panels and TPU protective parts, offering 360° coverage for your electronics. The frame prevents dirt, grass, and debris buildup after crashes, keeping your components safe while optimizing airflow for heat management.
4. Extended Flight Time and Efficiency
Lower KV motors and a larger frame allow the Evoque F6 V2 to accommodate a high-capacity battery. With a 6S 1480mAh battery , achieve up to 8.5 minutes of hover time and experience longer flights perfect for exploration or cinematic work.
5. Anti-Spark XT60 Connector for Longevity
The built-in anti-spark filter protects your drone's electronics and extends the lifespan of the XT60 connectors, preventing damage from sudden voltage or current spikes during battery connections.
Specifications
- Frame Geometry: DeadCat
- Flight Controller (FC): BLITZ Mini F722
- ESC: BLITZ Mini E55 4-IN-1 2-6S 55A
- Motors: XING2 2506 1500KV
- Propellers: HQ 6x2.5x3
- Wheelbase: 262mm
- Weight (Without Battery): 485g ±5g
- Takeoff Weight: Approx. 710g ±5g (with 6S 1480mAh battery)
- Max Speed: 180 km/h
- Max Hover Time: Approx. 8.5 minutes (no load, with 6S 1480mAh)
- Video Transmission: DJI O4 Pro Air Unit (4K stabilized video)
- Maximum Video Transmission Range: Up to 15 km (FCC), 8 km (CE/SRRC)
- Max Takeoff Altitude: 3200m
- GPS Systems: GPS, Galileo, Glonass, QZSS, SBAS
- Operating Temperature: -10°C to 40°C
- Max Wind Speed Resistance: Level 7

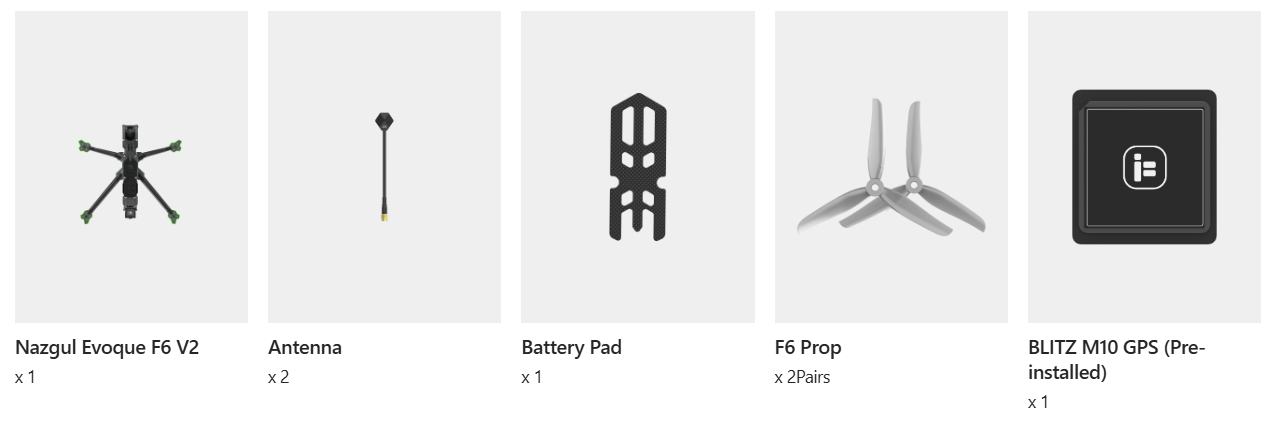

What's in the Box
- 1 x Evoque F6 6S O4 HD BNF
- 2 x Antennas
- 1 x Battery Pad
- 2 x Propeller Pairs (HQ 6x2.5x3)
- 1 x Battery Strap
Important Note
Accessories included may vary slightly depending on supply. Please verify contents upon delivery.
Compatibility
-
Supported Goggles:
- DJI Goggles 3 / DJI Goggles N3 (with DJI FPV Remote Controller 3)
- DJI Goggles 2 / DJI Goggles Integra (with DJI FPV Remote Controller 2)
- Radio Transmitter: Compatible with other RX modules configured for the SBUS protocol .
