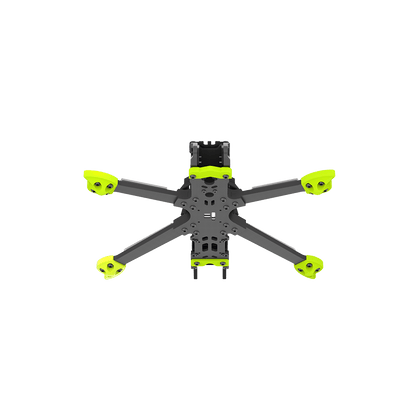

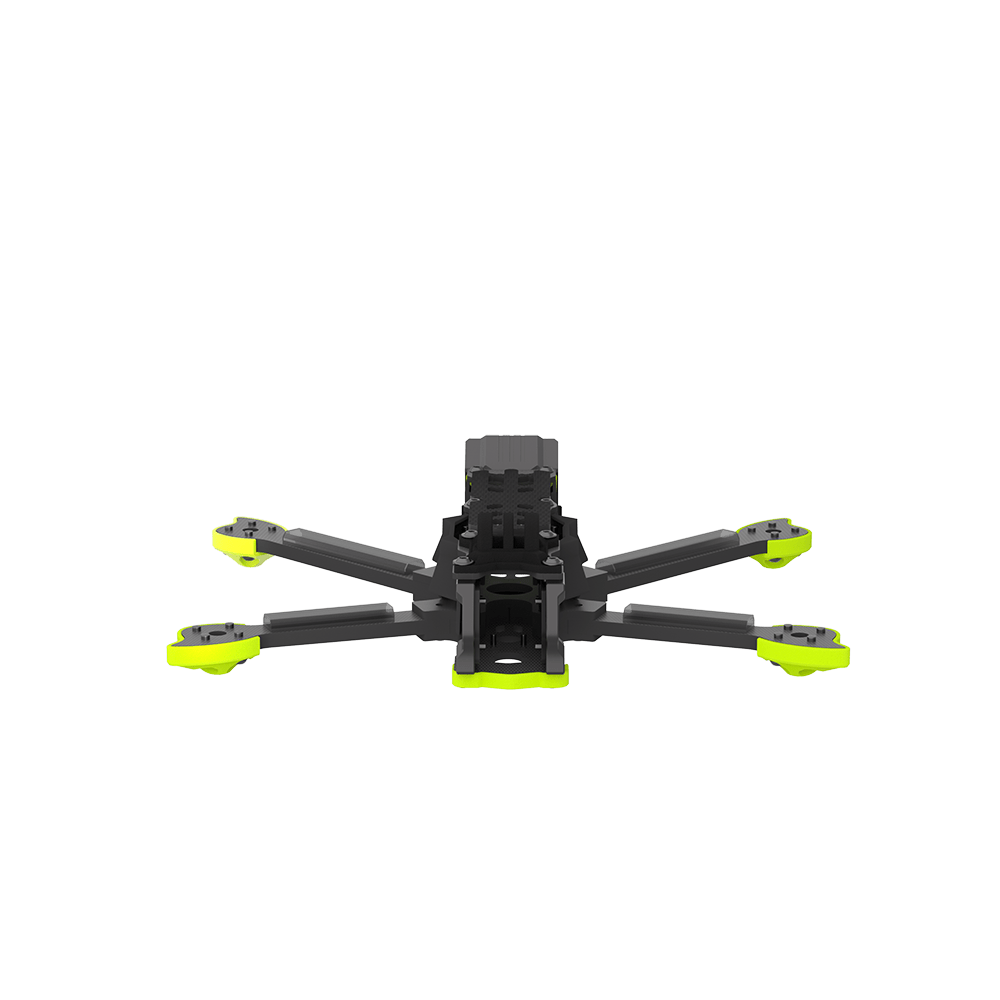

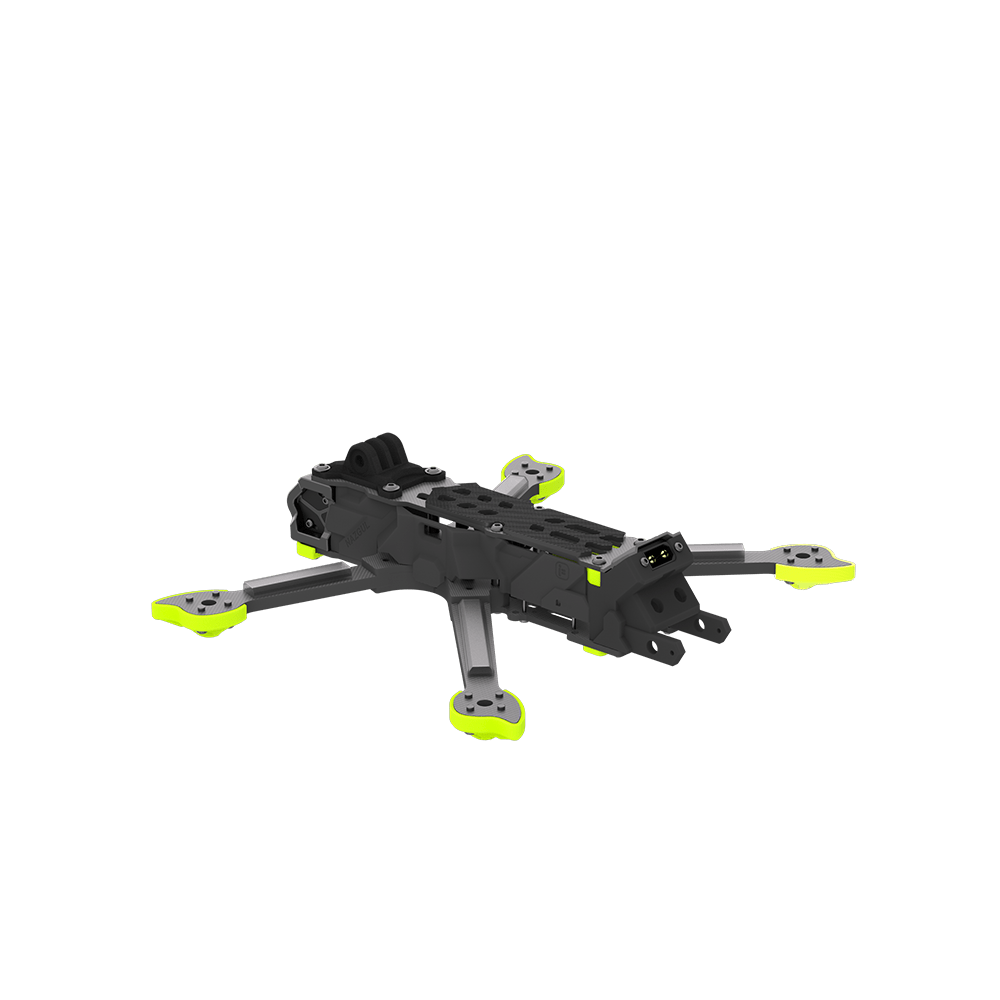

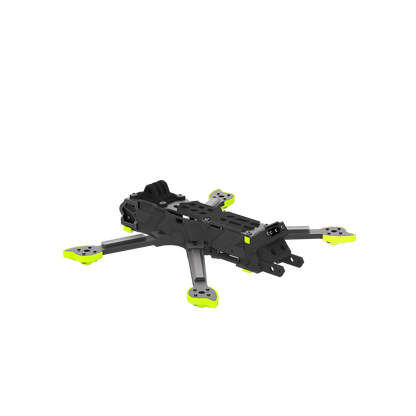

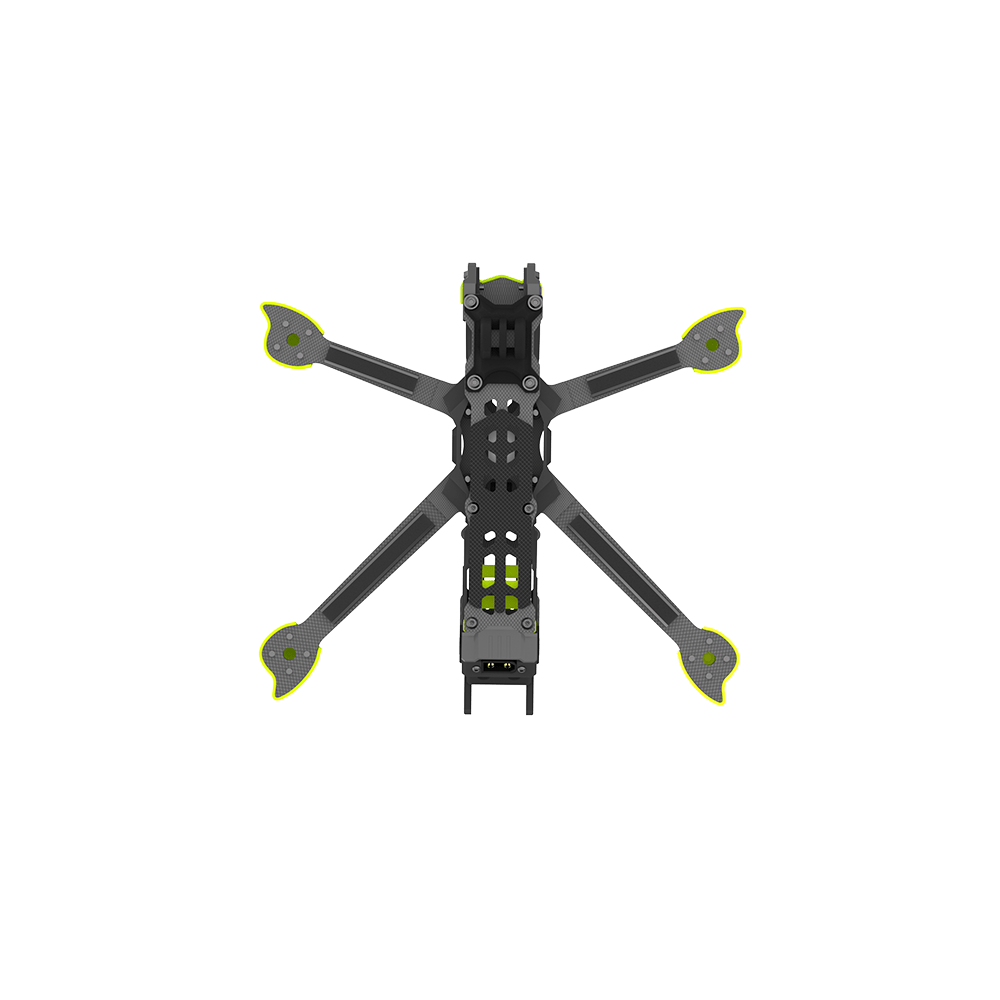

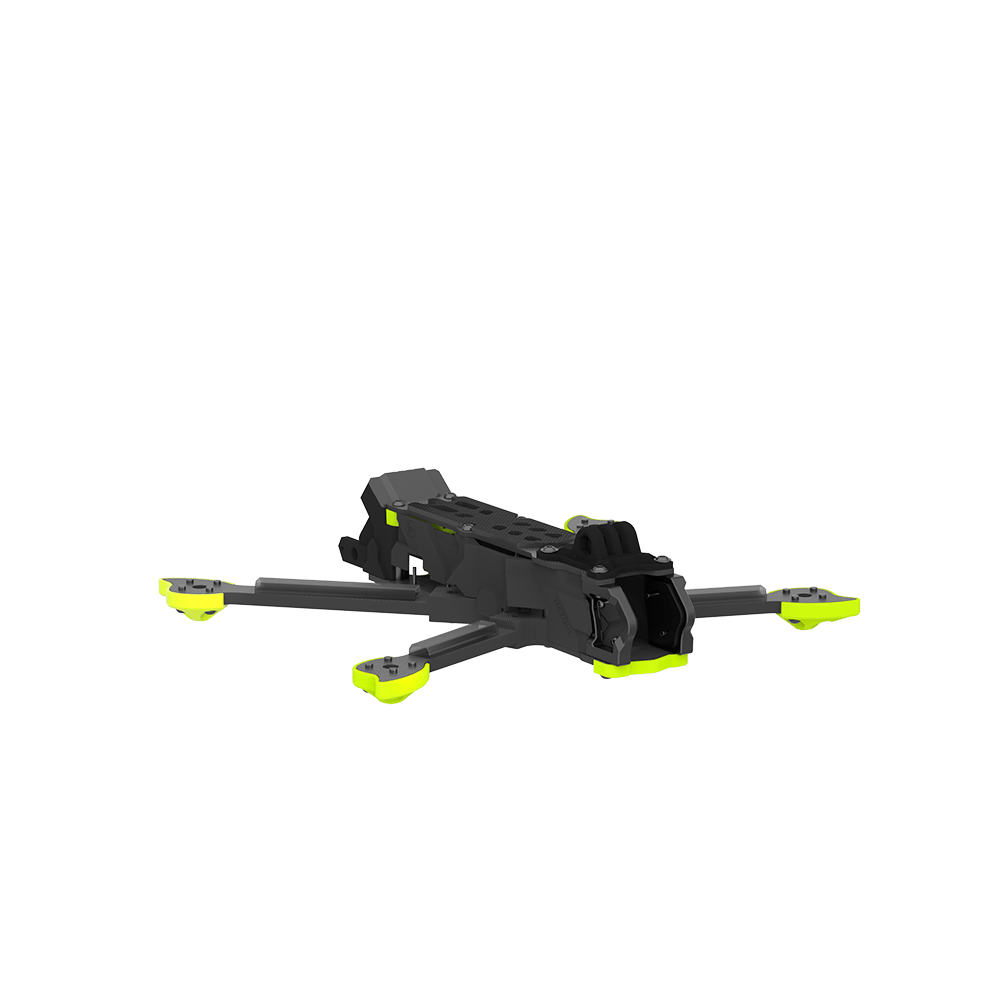

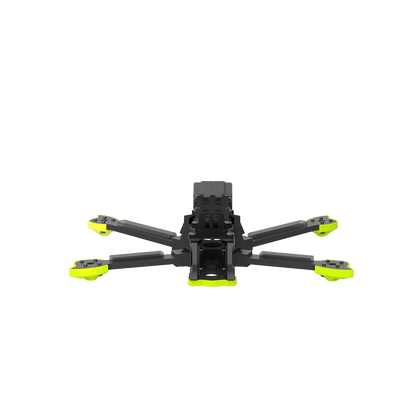

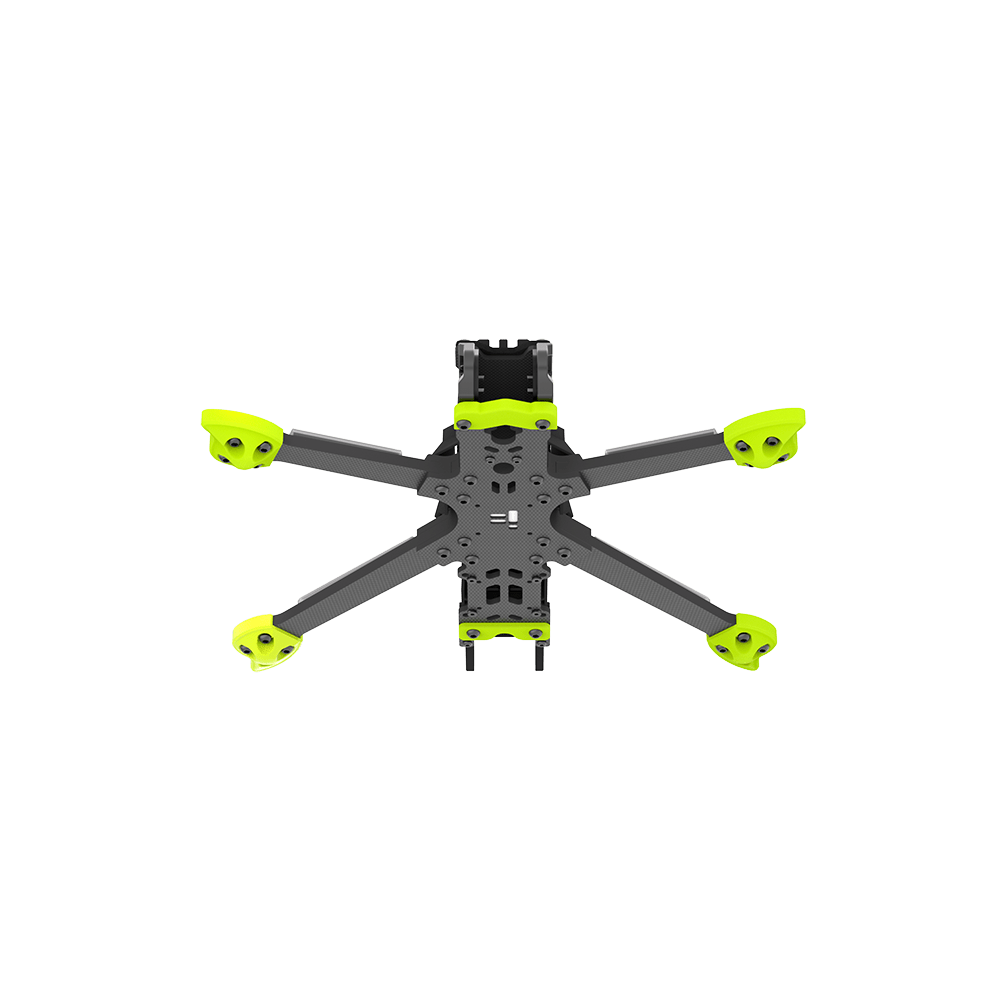

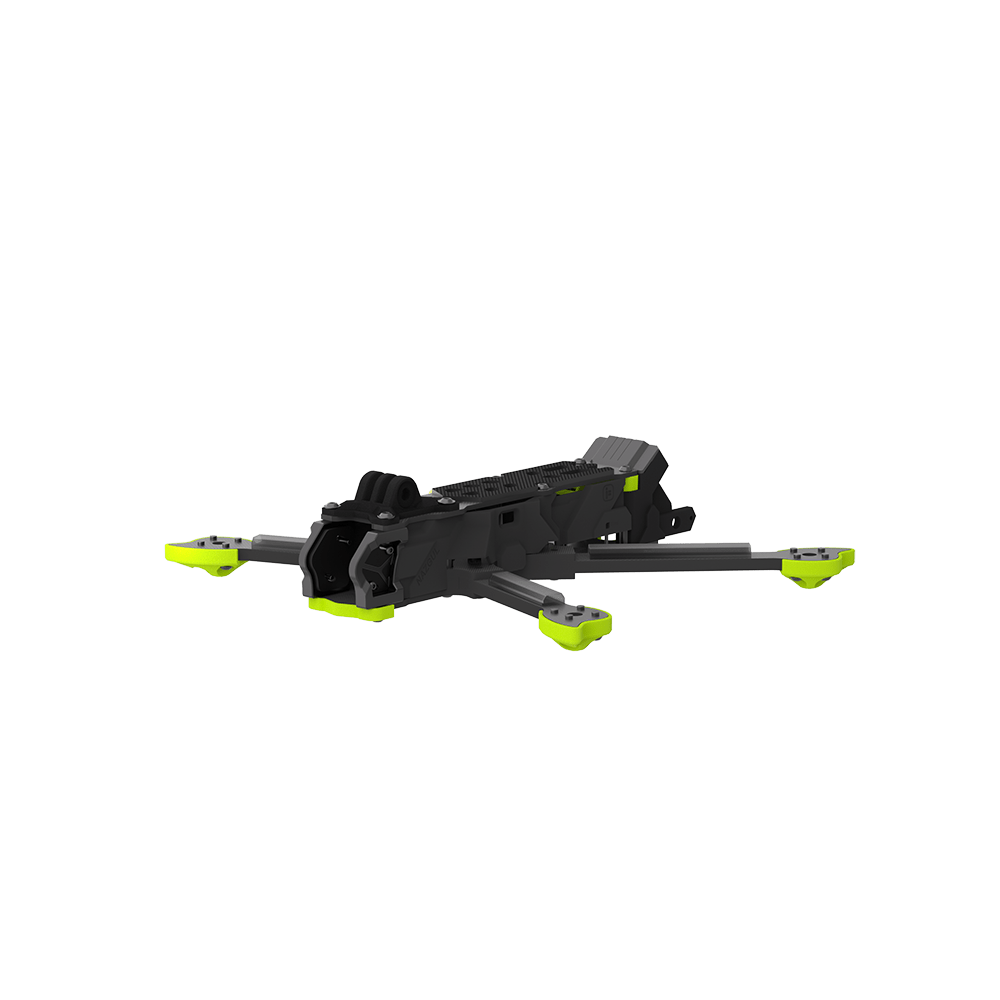

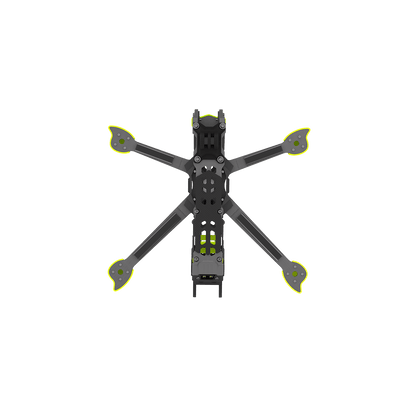

Nazgul DC5 V1.1 O4: No Props, No Problems

So, you finally decided to stop flying that battered frame held together by zip ties and hope? Wise choice. The iFlight Nazgul DC5 V1.1 O4 is here to save your footage from the ultimate sin: seeing your own props. Thanks to the DeadCat geometry, the only things in your goggles will be the horizon and that tree you’re about to hit. We’ve updated this beast for the DJI O4 Pro Air Unit because we know you can’t resist buying the latest shiny thing. It's rigid, it's carbon, and it’s probably tougher than your last relationship.

Why You Want It

Let’s be real, you’re here because you want professional-grade performance on a budget that doesn't involve selling a kidney. This frame uses exceptionally rigid carbon fiber to kill resonance before it starts, giving you flight characteristics so stable you might actually look like you know what you're doing. It’s the FPV equivalent of a ‘glow-up’ for your electronics. If you're a spec-nerd who likes to read every line, we've laid it out below just for you.

Specs

• Geometry: DC (DeadCat)

• Wheelbase: 240mm

• Frame Dimension: 193*144*34mm

• Arm Thickness: 5mm

• Bottom Plate Thickness: 2.5mm

• Upper Plate Thickness: 3mm

• Max Flight Stack Height: 22mm

• Max VTX Height: 29mm

• FC Mounting: 20*20/Φ2mm 30*30/Φ3mm

• Motor Mounting: 16*16/Φ3mm

• VTX Mounting：30*30 φ3mm / 25.5*25.5 φ1.6mm / 20*20 φ2mm

• Weight: 239g±5g

• Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX

In the Box

• 1 x Nazgul DC5 V1.1 O4 Frame Kit

• 1 x TPU set (incl. GoPro TPU Base Mount and GPS Mount)

• 1 x Screw Bag

• 2 x Anti-slip Battery Pad

• 4 x Motor Wire Shield Tube

• 2 x Battery Strap

Compatibility

Designed specifically to hug the DJI O4 Pro Air Unit, but it’s also happy to house the DJI O4 Air Unit, Vista HD, or the BLITZ Whoop 1.6W VTX if you're feeling retro.

Highlights

• O4 Optimized: New camera mounts and silicone side panels specifically for the DJI O4 Pro.
• Prop-Free View: DeadCat layout ensures your 4K footage isn't ruined by blurry plastic spinning in the corners.
• Crash Resistant: 5mm arms mean you might actually survive that 'proximity' move you saw on YouTube.

Notes

Manufacturing tolerances are ±0.2mm on thickness. If you’re measuring with a micrometer and complaining, please go outside and fly instead.

Disclaimer

Unmanned Tech is not responsible for your inability to dodge trees, walls, or the ground. Fly responsibly, or at least film it.

Still Here?

You’ve scrolled past the specs, the features, and my jokes. You clearly want this. Stop window shopping and get this iFlight Nazgul DC5 V1.1 O4 in your basket before the next breeze blows it out of stock. Your DJI O4 unit is lonely. #iFlight #NazgulDC5 #FPVFreestyle #DJIO4 #UnmannedTechUK
