Product Details
Looking for a motor that can help you build an ultralight FPV drone? Look no further than the iFlight Defender 25 Motor. Designed specifically for an ultralight build, this 1404 4150KV motor is both light and durable, allowing you to stay in the Sub250 category. With its compatibility with the iFlight Defender 25, this motor is the perfect choice for pilots who want to achieve maximum performance and efficiency in their builds. Plus, with two versions available, one with clockwise rotation markings and the other with counter-clockwise rotation markings, prop installation has never been easier. And in case of any accidents or breakage, it's a drop-in replacement for the Defender25 drone. Upgrade your FPV drone today with the iFlight Defender 25 Motor.
Features
- Works well with the iFlight Defender 25
- Ultralight Motor
- CW/CCW Markings (motor can be used in any spin direction but this makes it easier for prop installation)

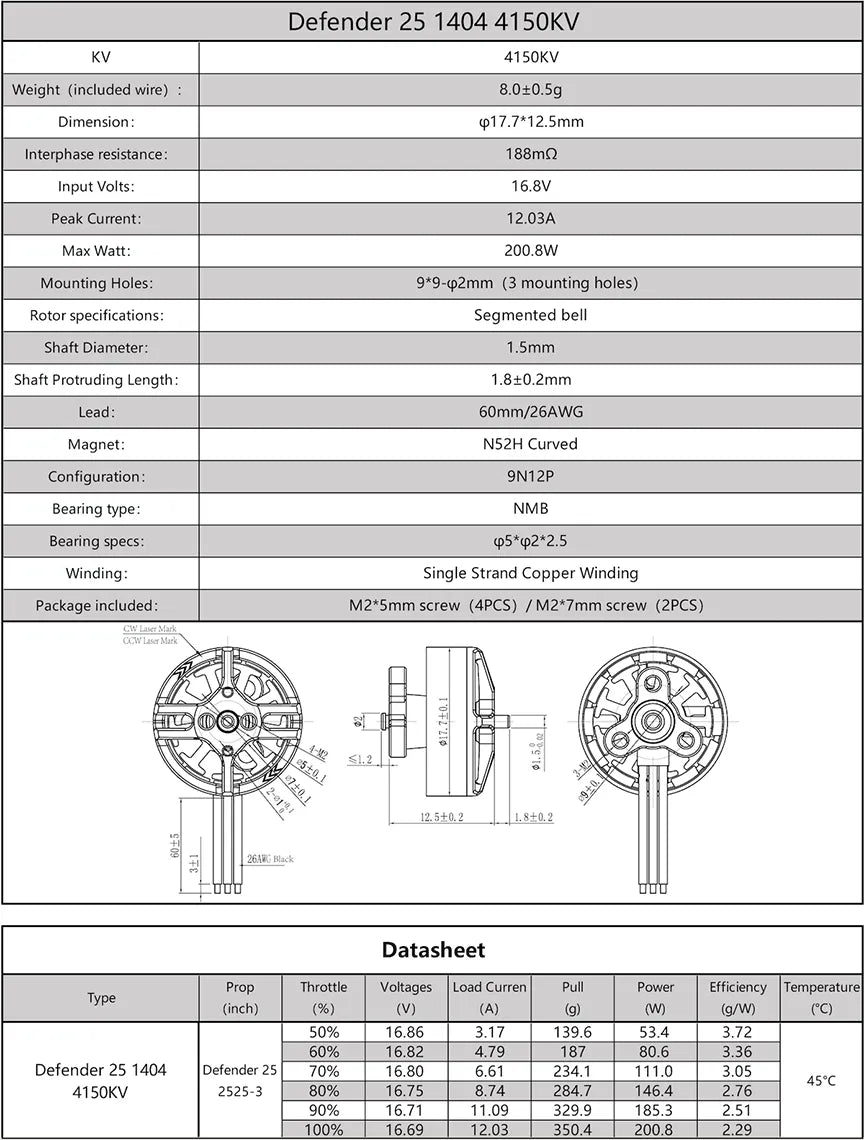

Specifications
- Mounting Holes: 3 x 9 x 9 /2mm (3 mounting holes)
- Shaft Protruding Length: 1.8mm/0.2mm
- Winding: Single Strand copper winding
- Rotor Specifications: Segmented bell
- Weight (including wire): 8g/0.5g
- Interphase Resistance: 0.188Ω
- Bearing Specification: 5x2x2.5
- Model: Defender 25 Motor
- Dimension: 17.7x12.5mm
- Shaft Diameter: 1.5mm
- Magnet: N52H Curved
- Peak Current: 12.03A
- Configuration: 9N12P
- Lead: 65mm/26AWG
- Bearing Type: NMB
- Max Watt: 200.8W
- Input Volts: 4S
- Rotation: CCW/ CW
- KV: 4150KV
Includes
- 1x iFlight Defender 25 1404 Motor - 4150KV (CCW)
- 4x M2 mounting screws
