Product Details
repare to meet the motor that's lighter than a feather and might just make gravity question its life choices—the Defender 20 Motor. It's the tiny titan transforming the FPV scene one micro drone at a time, and it's doing it all under 250 grams. You thought sub-250 builds were nice before? Please. With this newcomer, it's like going from a flip phone to the latest smartphone overnight.

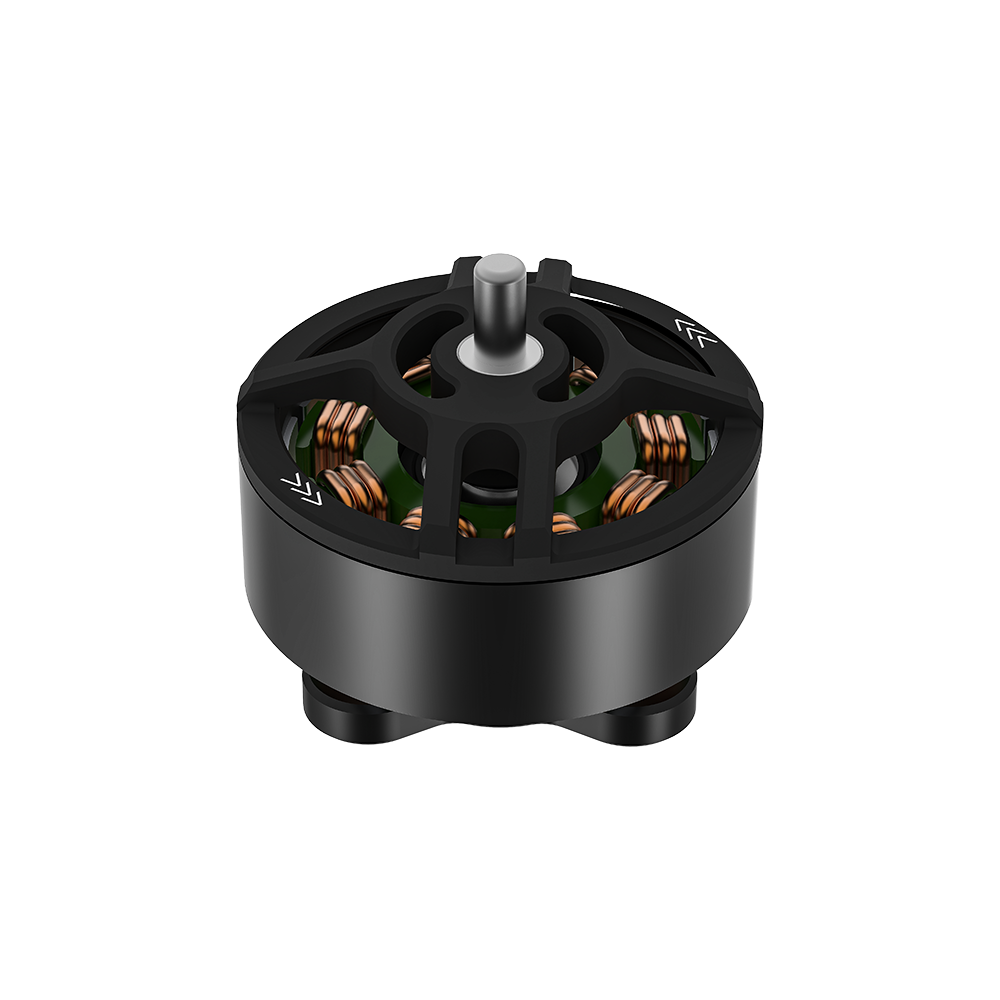

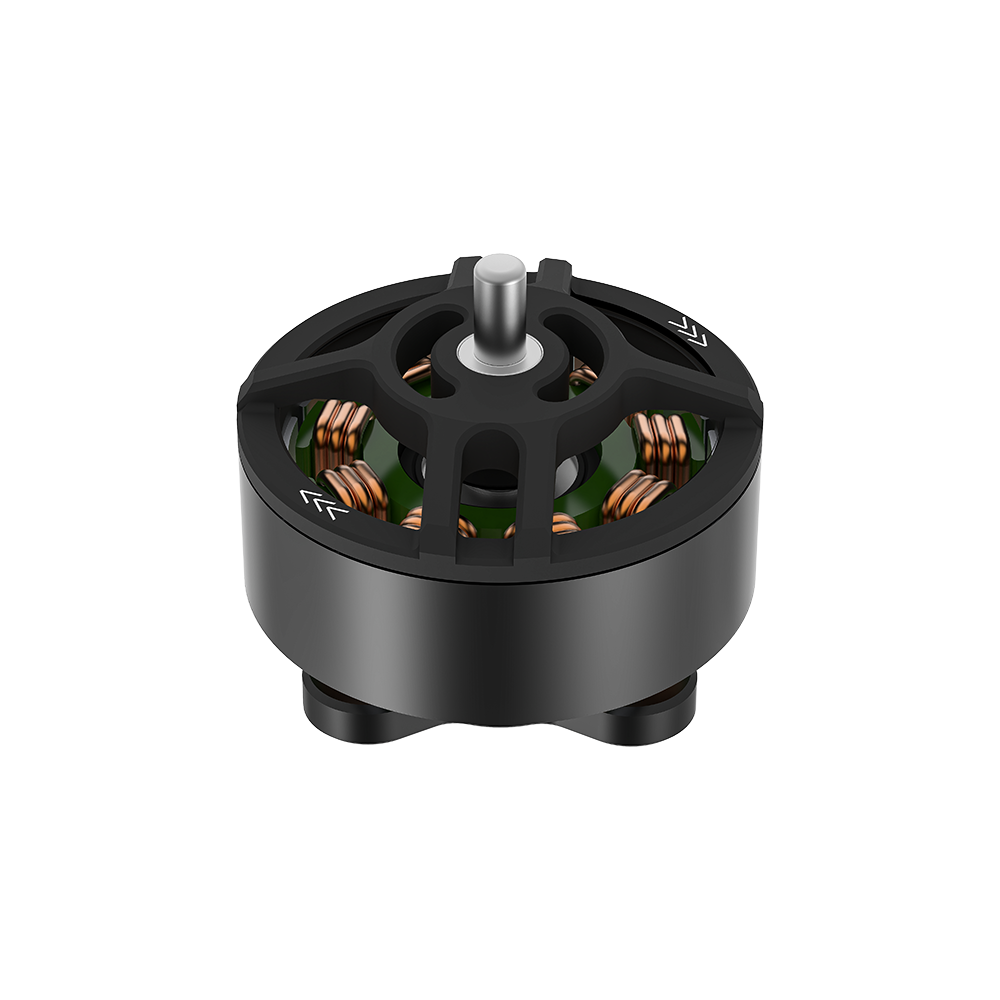

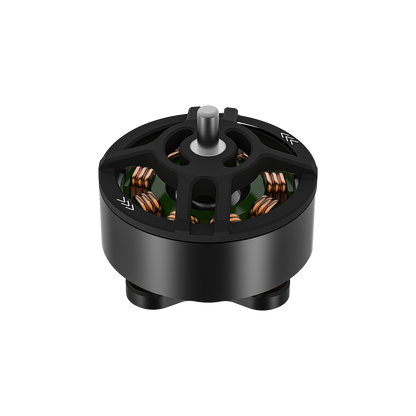

Meet the Featherweight Champion: The Defender 20 Motor
With its whoop-style AIO charm and the iFlight's latest innovation in frame design, this is not just a motor; it's your micro drone's ticket to the big leagues of ultralight flight. Here's what this little beast brings to the aerial table:
- Model : Defender 20 1204, because numbers and names should sound like secret agents.
- KV : 6200V of "whoa, that's fast!"
- Weight : 5.8 grams. Yes, that includes the wires. Even your pet hamster's food weighs more.
- Dimension : 13.5*14.2mm - It's small enough to lose in your couch cushions.
- Resistance : It's 0.202Ω, which means it's got less resistance than a teenager asked to do chores.
- Voltage : Optimized for 12V, because who needs more numbers to worry about?
- Peak Current : 7.85A, peaking like it's spying on the neighbors.
- Max Wattage : 89.7W - Small but mighty, like an ant lifting a leaf.
- Mounting Holes : φ9 φ2mm with 3 holes, because more holes, more fun?
- Rotor Specs : A segmented bell, not the kind you ring, but just as attention-grabbing.
- Shaft Dimensions : A 1.5mm diameter and 3mm protruding length. It's precise; it's finicky; it's engineering!
- Lead : 60mm/28AWG, because we like our numbers like we like our dessert: sweet and uncomplicated.
- Magnet : N52H Curved, so your motor sticks to its tasks better than your New Year's resolutions.
- Configuration : 9N12P, which is not a password but might as well be for its complexity.
- Bearings : The NMB type, rolling smooth like your favorite office chair.
- Winding : Single-strand copper because dual is just showing off at this point.
What's in the Box?
- The Motor Itself : One Defender 20 1204 Motor, obviously.
- Screws : 4 of the M2x4 variety, because we're not animals; we provide the essentials.
This little dynamo is here to upgrade your drone game from "Meh" to "Heck, yeah!" Get it, and watch your drone do the air-dance of its life. Gravity? Never heard of her.
