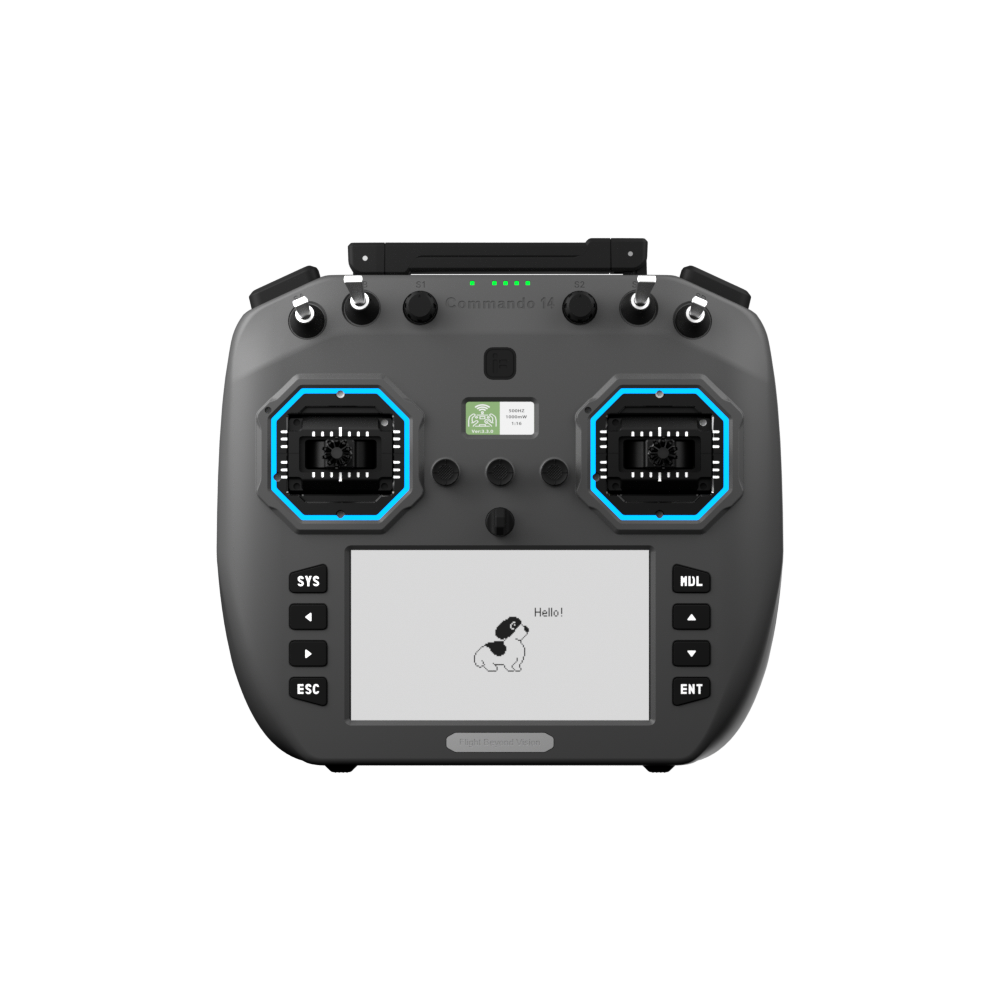

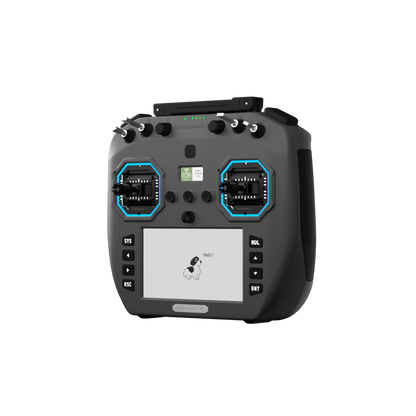

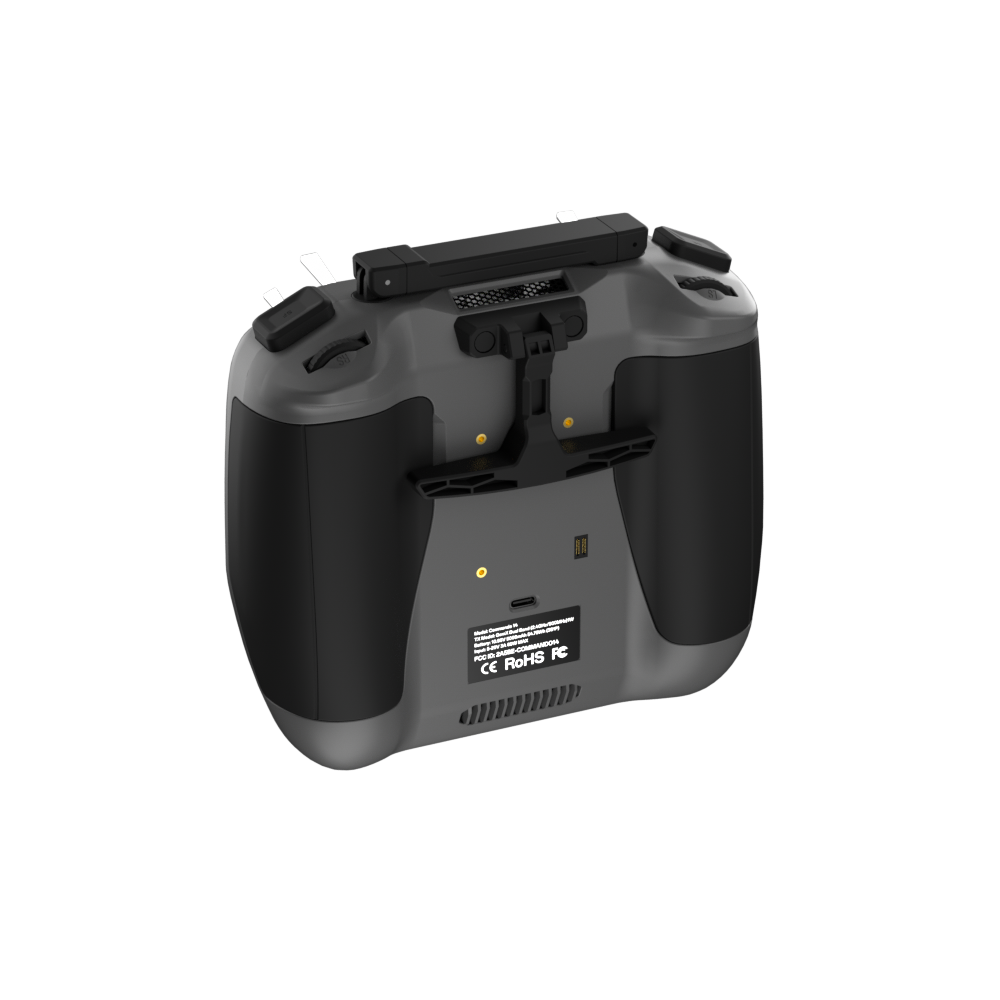

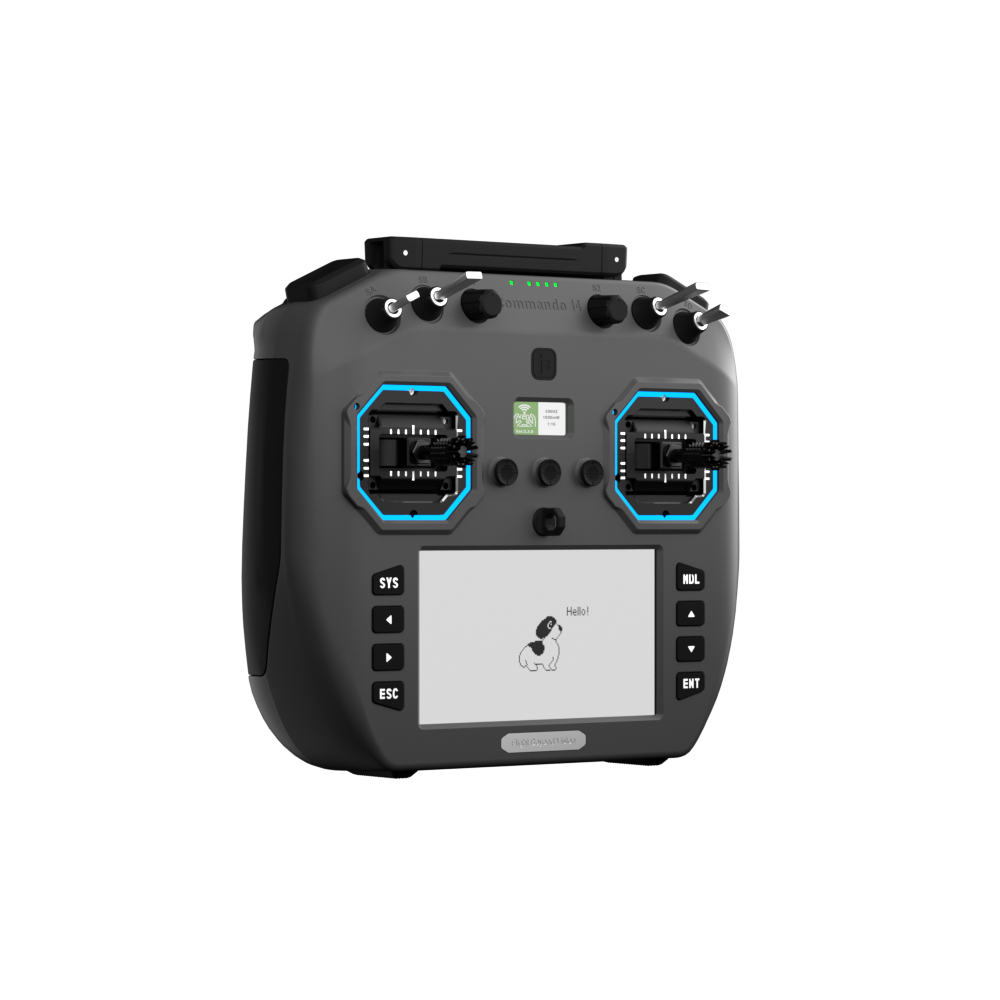

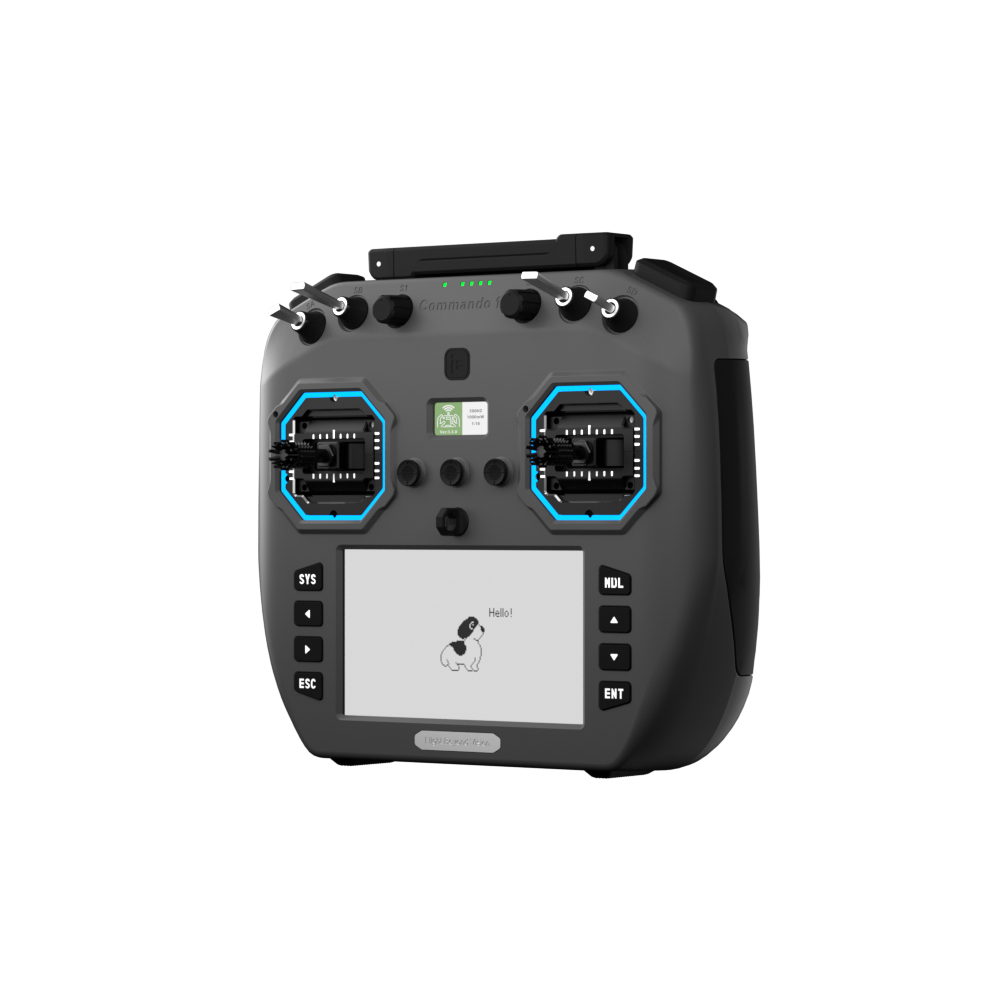

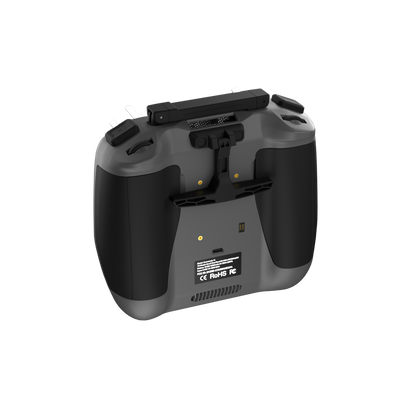

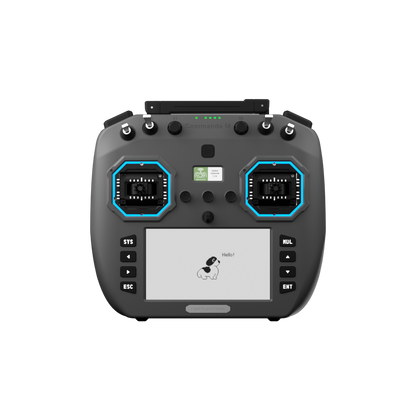

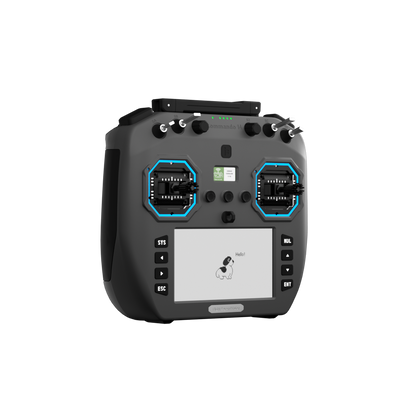

iFlight Commando 14 GemX Dual-Band ELRS Radio

Stop blaming ghost packets when you hit the concrete. The Commando 14 GemX Dual-Band ELRS Radio brings simultaneous 2.4GHz + 900MHz dual 1W RF output to wipe out urban interference and mid-dive failsafes. Packed with EdgeTX 3.0.0, CNC Hall sensor gimbals, a blinding 1000-nit touchscreen, and backed by our 10 years of commercial FPV manufacturing and support in the UK, it provides bulletproof link quality for pilots who prefer flying over chasing lost quads in muddy bogs.

Key Highlights

• Dual-Band Dual 1W ELRS: Internal GemX RF system transmits simultaneous 2.4GHz and 900MHz/868MHz at up to 1W per band with foldable omnidirectional dual-band antennas.
• Sunlight-Readable Dual Displays: 4.3-inch 1000-nit high-brightness EdgeTX touchscreen paired with a dedicated 0.96-inch OLED screen for real-time internal module status.
• Precision CNC Hall Gimbals: Full aluminium construction with external stick travel, spring tension, and damping adjustments plus customisable RGB LED stick rings.
• Active Turbofan Cooling: Dual aluminium heat sinks and integrated turbofan keep high-power RF stages cool during extended long-range sorties.
• Rapid PD 60W Charging: Built-in 3S 5000mAh pack runs for up to 7 hours and hits 80% charge in 60 minutes via USB Type-C.

Why You Want It

You have roasted enough flight controllers and spent enough late nights diagnosing Betaflight UART drops to know RF link drops are the worst way to write off a £400 build. The Commando 14 solves this by throwing raw, simultaneous dual-band ExpressLRS power right through dirty 2.4GHz residential noise floors and structural bando rebar. Running real EdgeTX 3.0.0, the stick-feel matches the link: silky-smooth CNC digital hall mechanics let you nail gaps without slop, while the 1000-nit display means you can actually tweak your model settings in broad daylight instead of huddling under an umbrella in Milton Keynes rain.

Specifications

• Operating System: EdgeTX 3.0.0
• Channels: 14 Channels
• Internal RF Module: ELRS GemX Dual Band (2.4GHz + 900MHz / 868MHz)
• RF Output Power: Dual 1W (1000mW) high-power output
• Antennas: Linearly polarised omnidirectional foldable dual-band antennas
• Main Display: 4.3-inch IPS full-view 1000-nit high-brightness touchscreen
• Module Display: 0.96-inch dedicated status screen
• Gimbals: CNC aluminium digital Hall sensor gimbals with adjustable travel, spring tension, and damping
• Battery: Built-in 3S 5000mAh (supports passthrough charging while in use)
• Charging: USB Type-C PD 60W Max (5–20V 3A)
• Battery Life: Up to 7 hours
• Expansion Bay: External micro module bay (supports TBS Crossfire / ELRS)
• Simulator & Trainer: Bluetooth / USB-C wired simulator; wired Type-C trainer mode
• Dimensions (Folded): 180 × 168.2 × 81.4 mm (±5mm)
• Dimensions (Unfolded): 180 × 217.4 × 85.3 mm (±5mm)
• Weight: 950g (±10g)

FAQ

Can I fly using 2.4GHz and 900MHz at the same time?

Yes. The built-in GemX RF module transmits true dual-band dual 1W output on both 2.4GHz and 900MHz/868MHz frequencies simultaneously, giving you both high packet-rate agility and deep penetrating long-range redundancy.

Do I need to take the radio apart to adjust stick tension or switch modes?

No. Mode changes, X/Y axis travel limits, and stick damping can all be adjusted externally without opening the radio housing or risking stripped plastic threads.

How fast does the 5000mAh battery charge?

Using a standard 60W USB-PD charger via the Type-C port, the internal 3S 5000mAh battery charges from flat to 80% in approximately one hour, and it fully supports charging while flying.

What’s in the Box*

• 1× Commando 14 GemX Radio Transmitter

Disclaimer

Transmitting at full 1W output on dual bands will cut through tree lines, but it will not magically steer your drone away from concrete light poles. Always configure failsafe switches correctly in your flight controller before sending your rig over the horizon. Comply with local UK and international radio frequency regulations regarding transmission wattage and frequency bands.

Still Here?

Your current radio has squeaky plastic gimbals and a monochrome screen that gave up five firmware updates ago. Put this 950-gram chunk of dual-band aluminium in your cart, let our UK warehouse get it safely packed, and finally stop pacing across sheep fields hunting for a dropped quad.
