Product Details

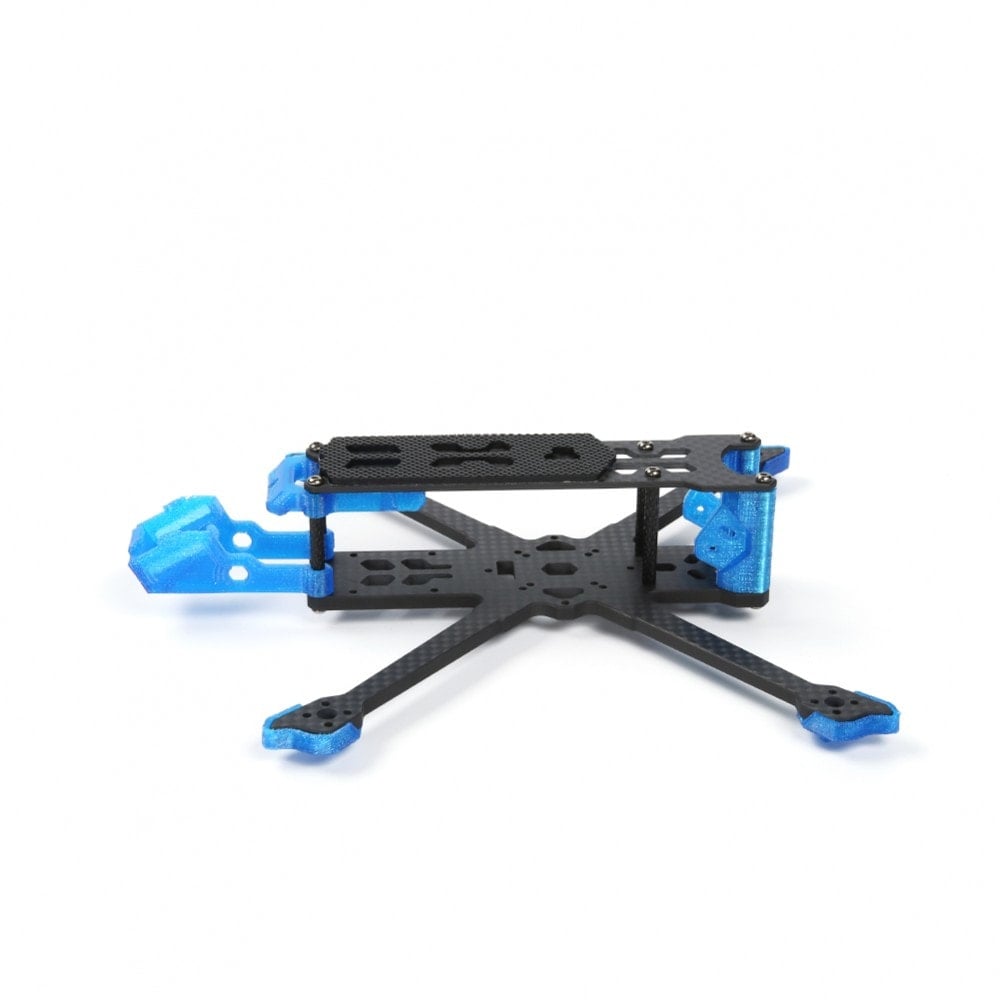

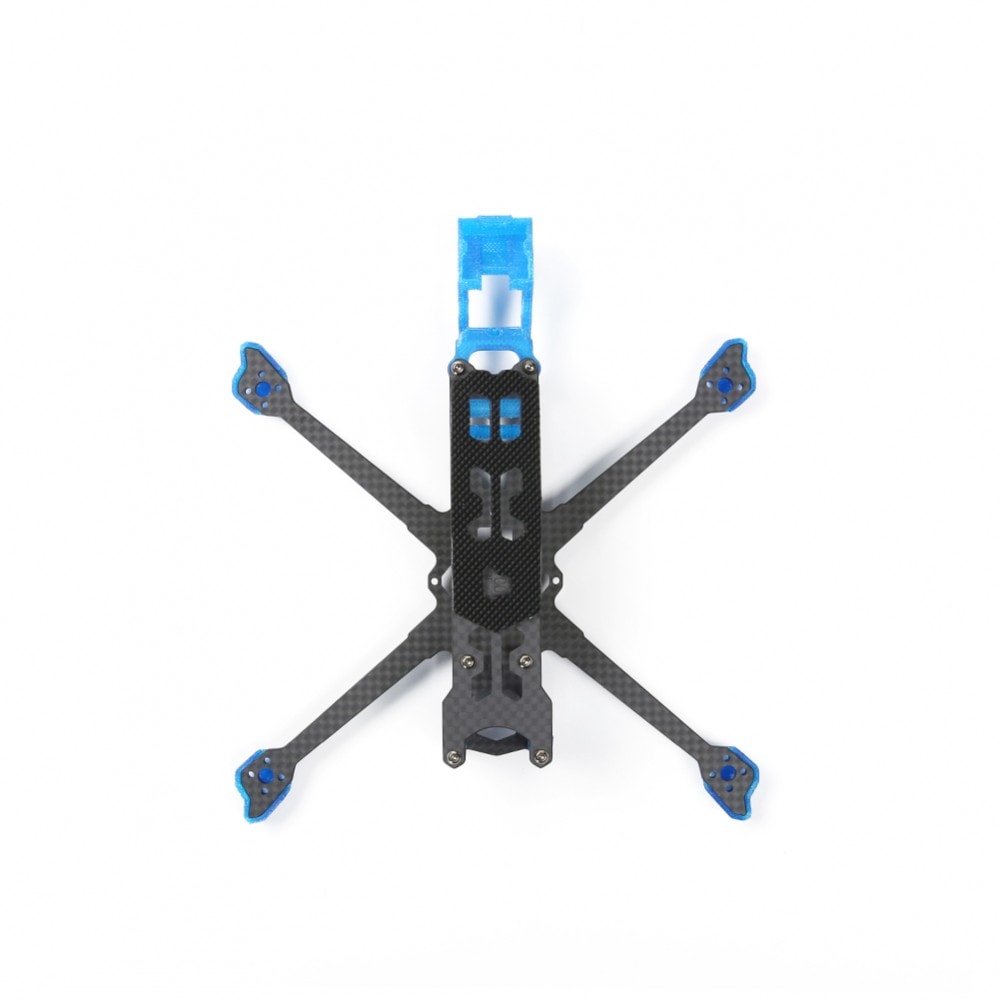

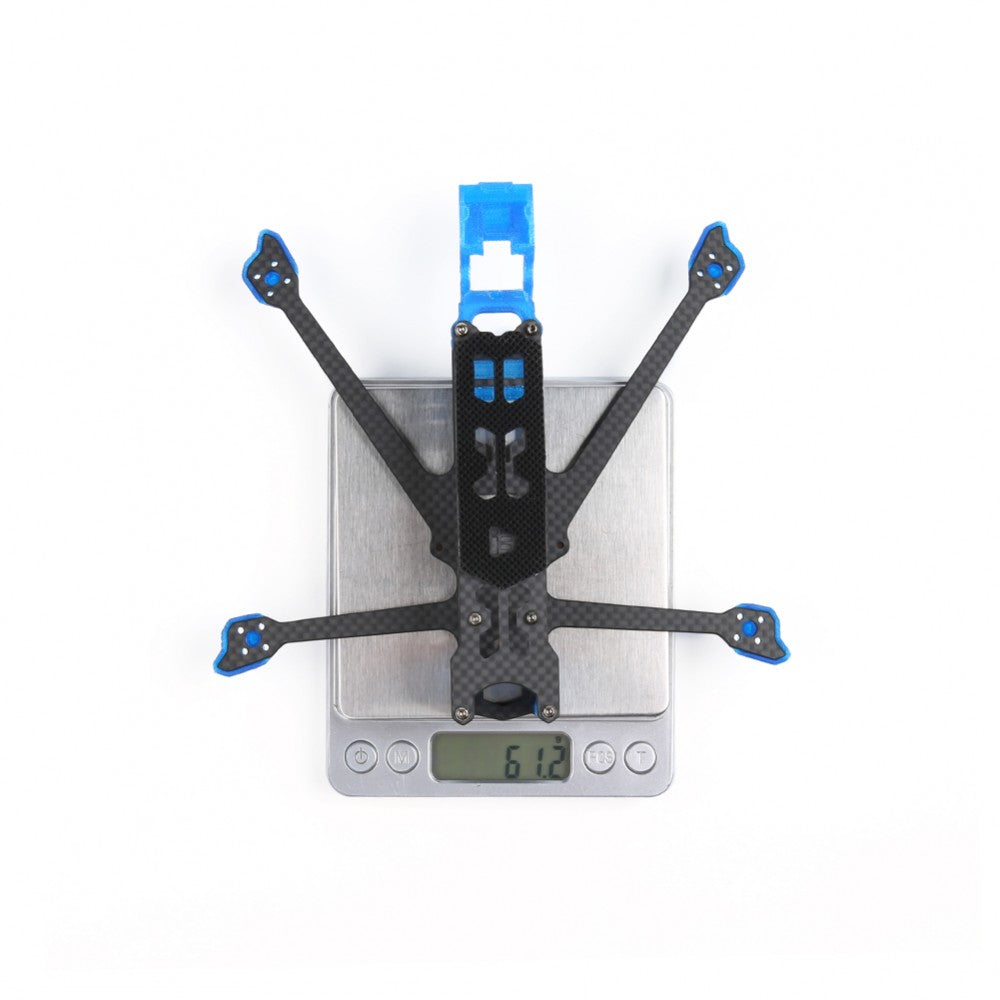

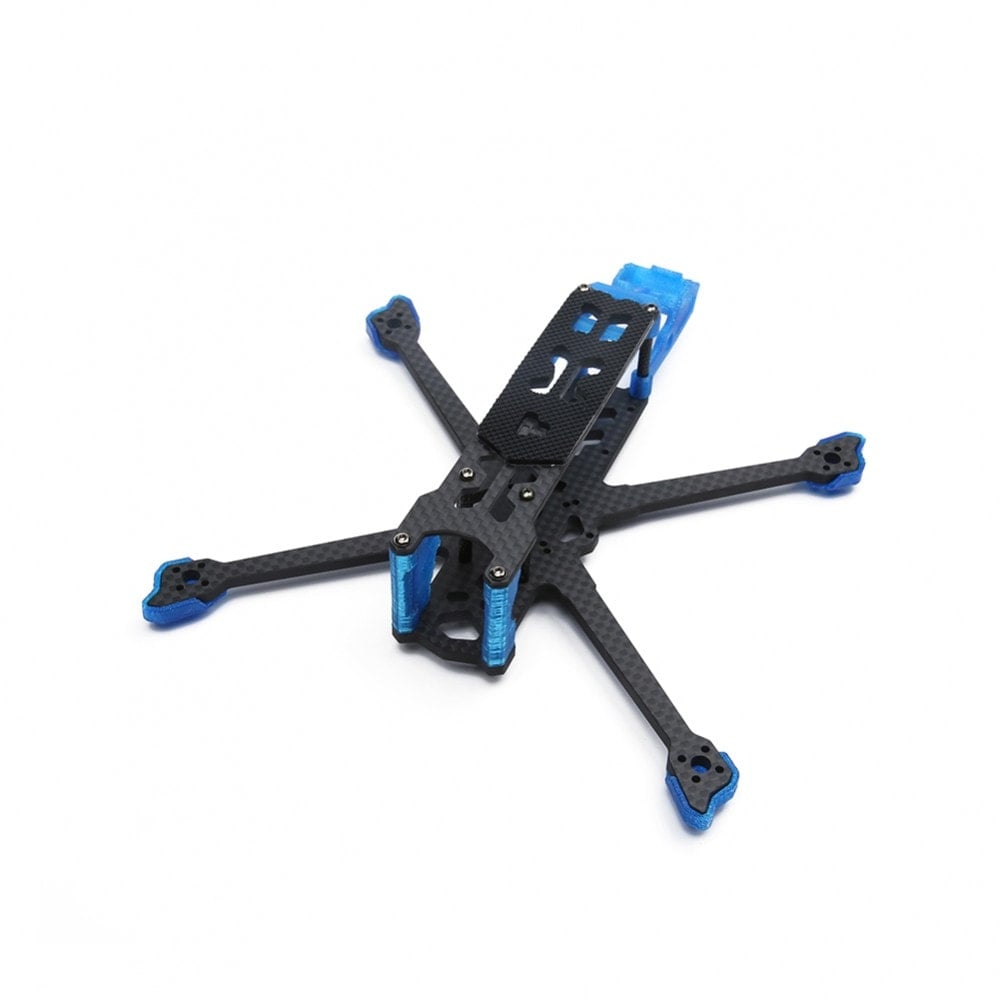

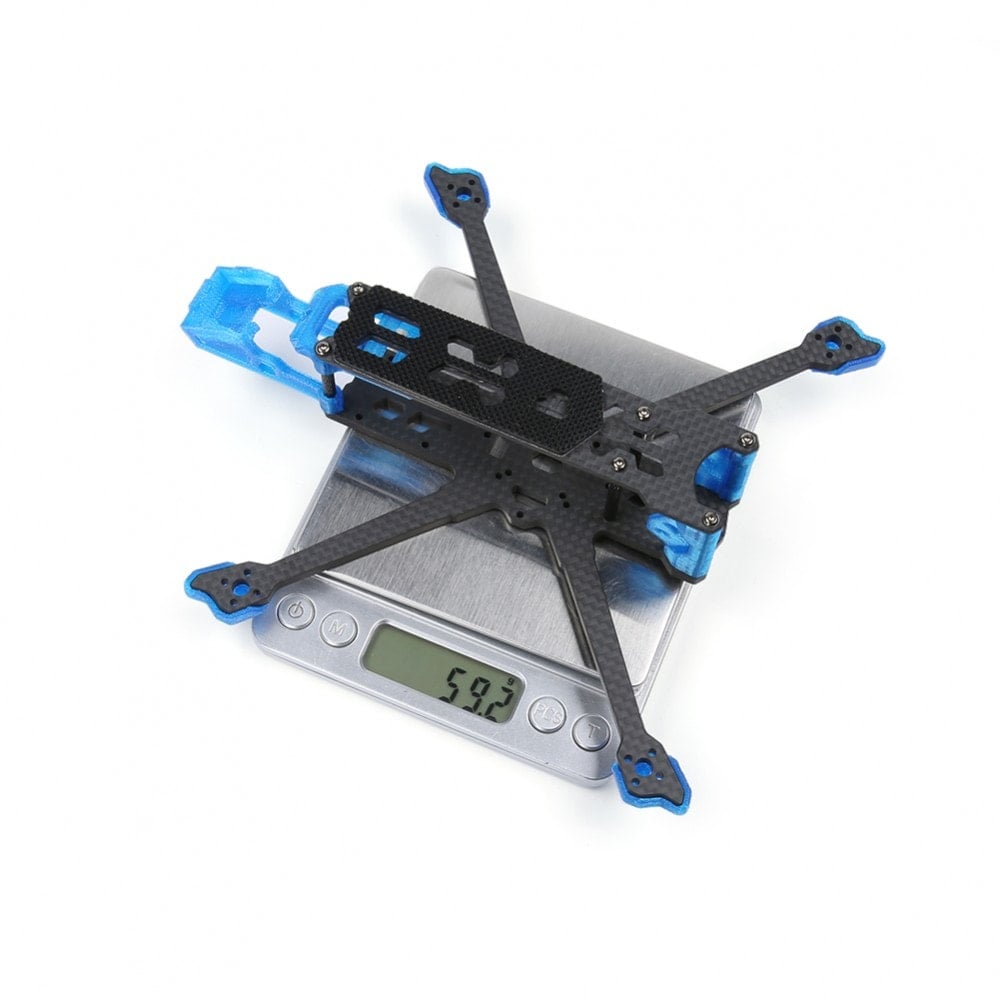

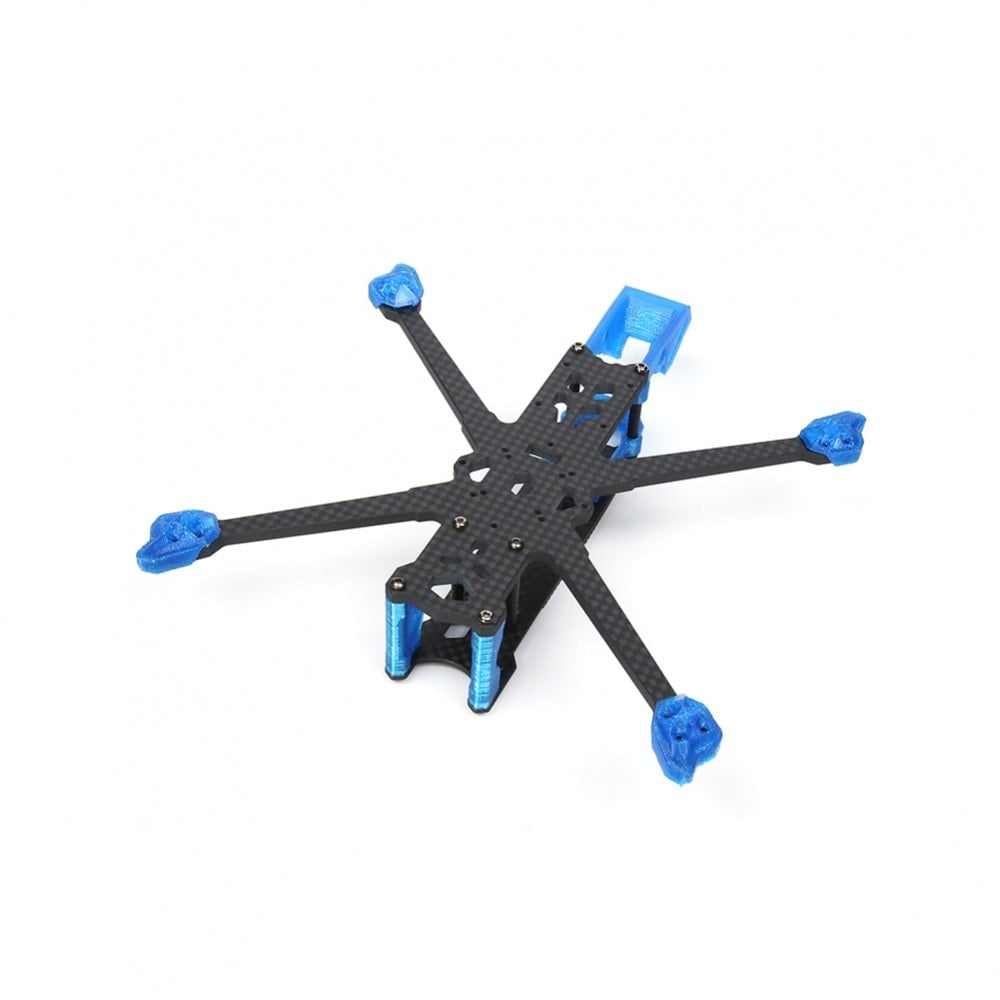

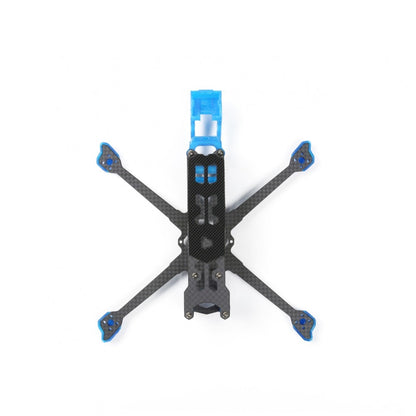

This is a frame used on the Chimera4 LR 4" quadcopter, you can use it for spare parts, or to build your own custom 4" long range quad. This frame can fit either the Caddx Vista HD FPV system or a more traditional analogue system.
Specifications
- Wheelbase: 178mm
- Main body dimension: 136.8*114.8mm
- Bottom to top distance: 28mm
- Arm thickness: 4mm
- Bottom plate thickness: 4mm
- Top plate thickness: 2mm
- TPU Camera plate thickness: 2mm
- FC: 25.5*25.5mm/20*20mm/16*16mm
- FPV Cam: 19mm Micro / 20mm

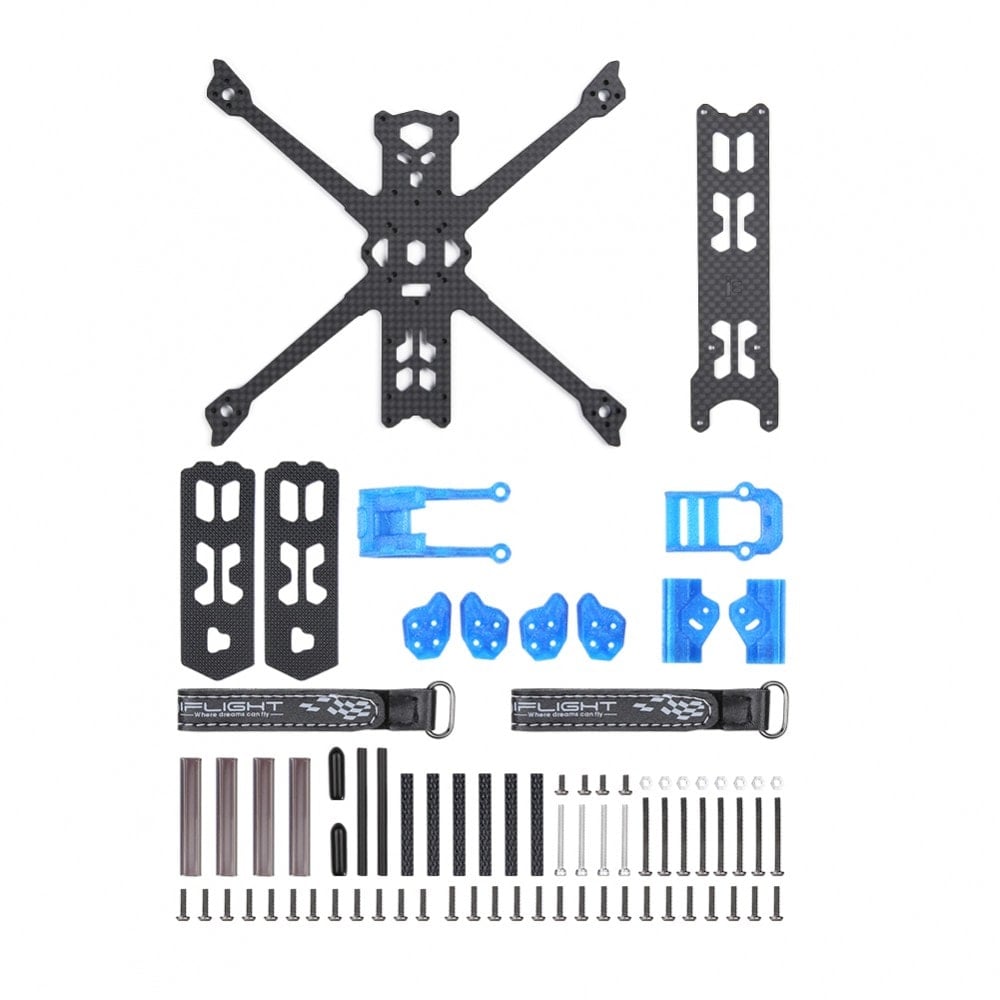

Included
- 1 x Chimera4 Frame
- 2 x battery straps
- 1set x TPU parts
Suggested Parts
- 20x20 Flight Stack
- 1404 3000-3800kV motors
- 4" props
- Caddx Vista FPV system (or analogue VTX)
