Product Details
FC Features
- Improved circuit design, better components, and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- With LC filter

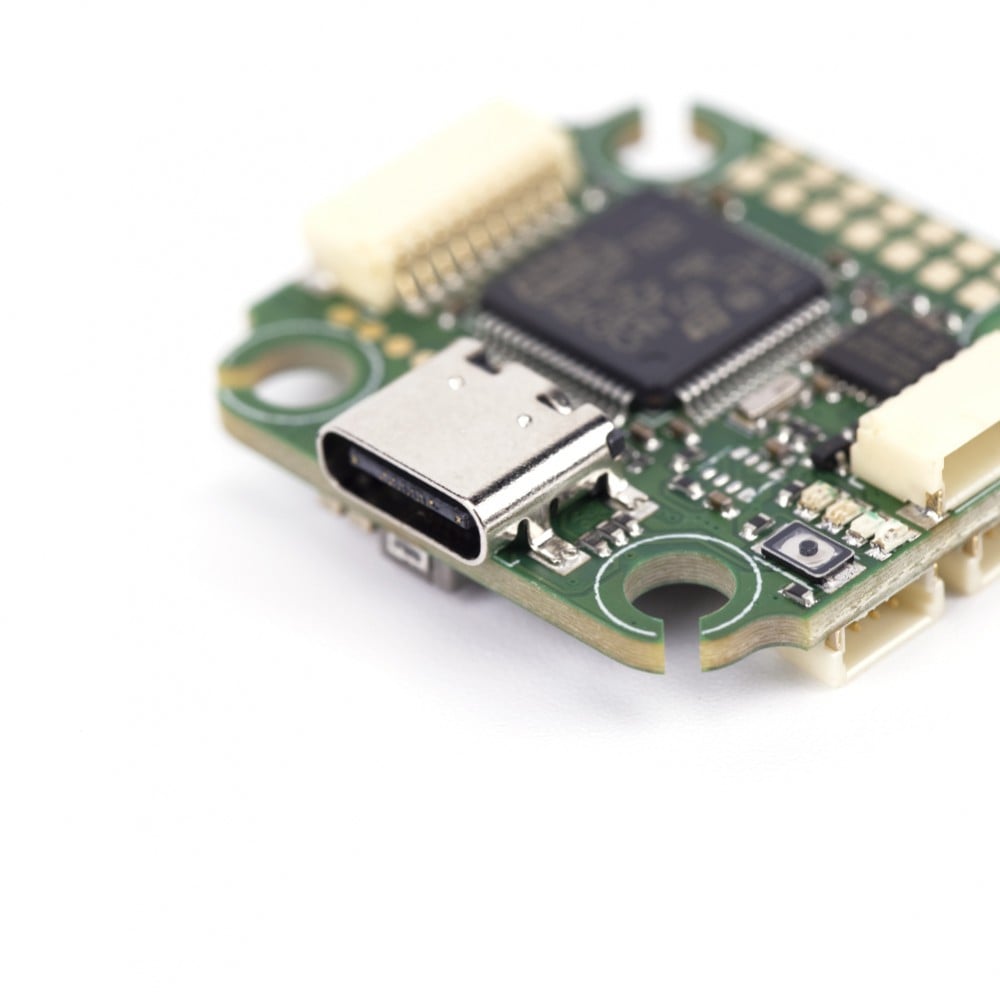

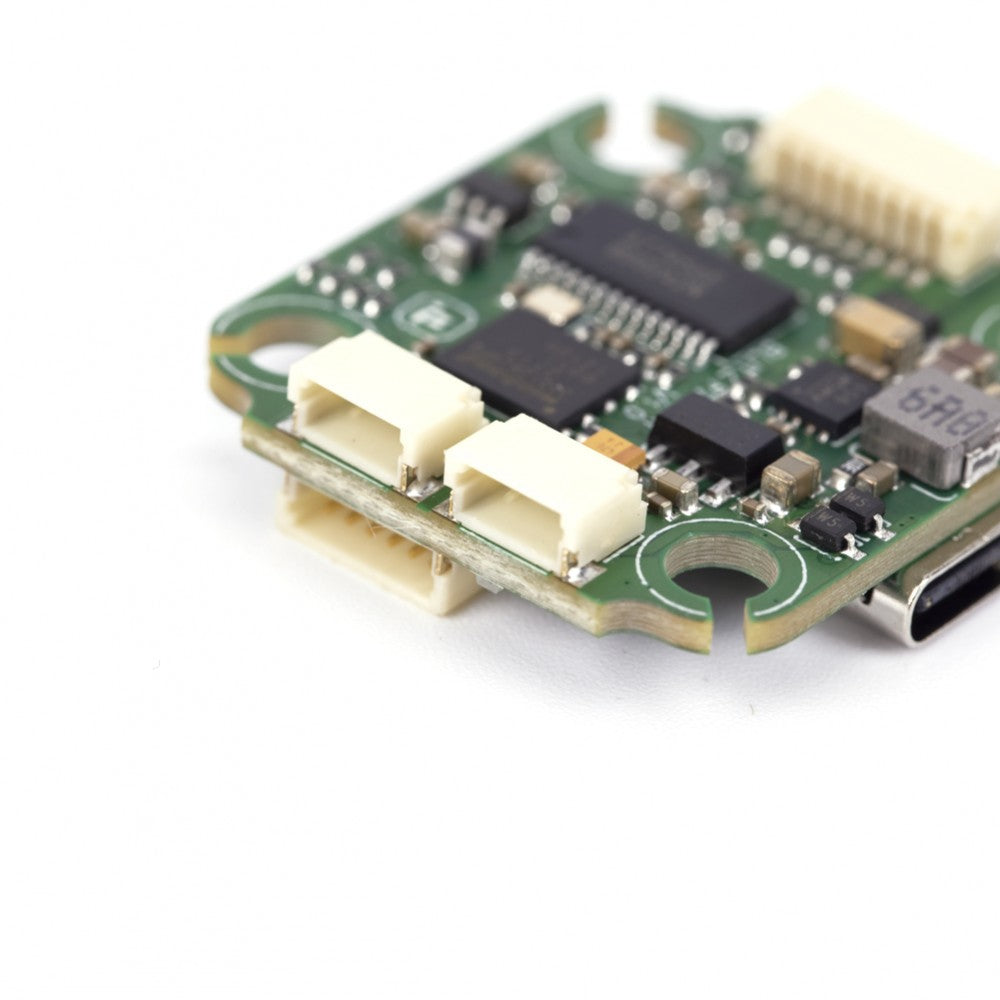

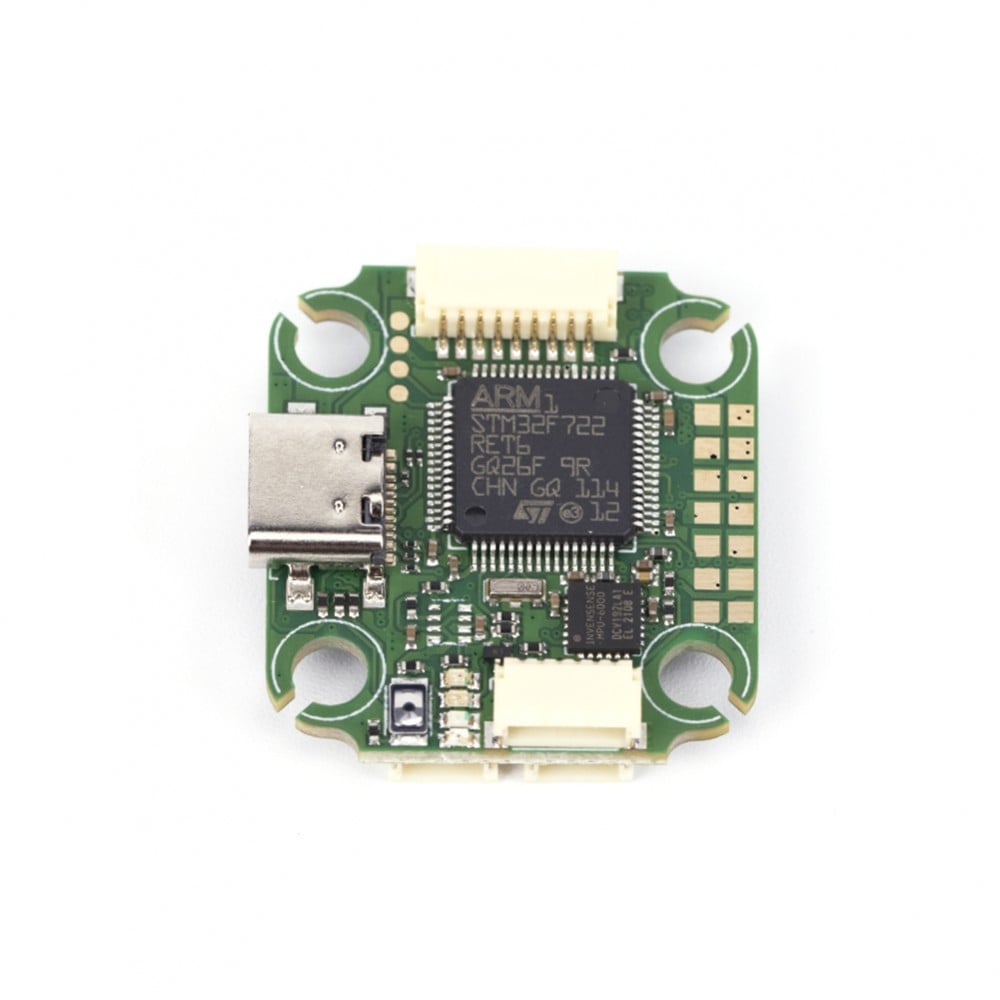

FC Specifications

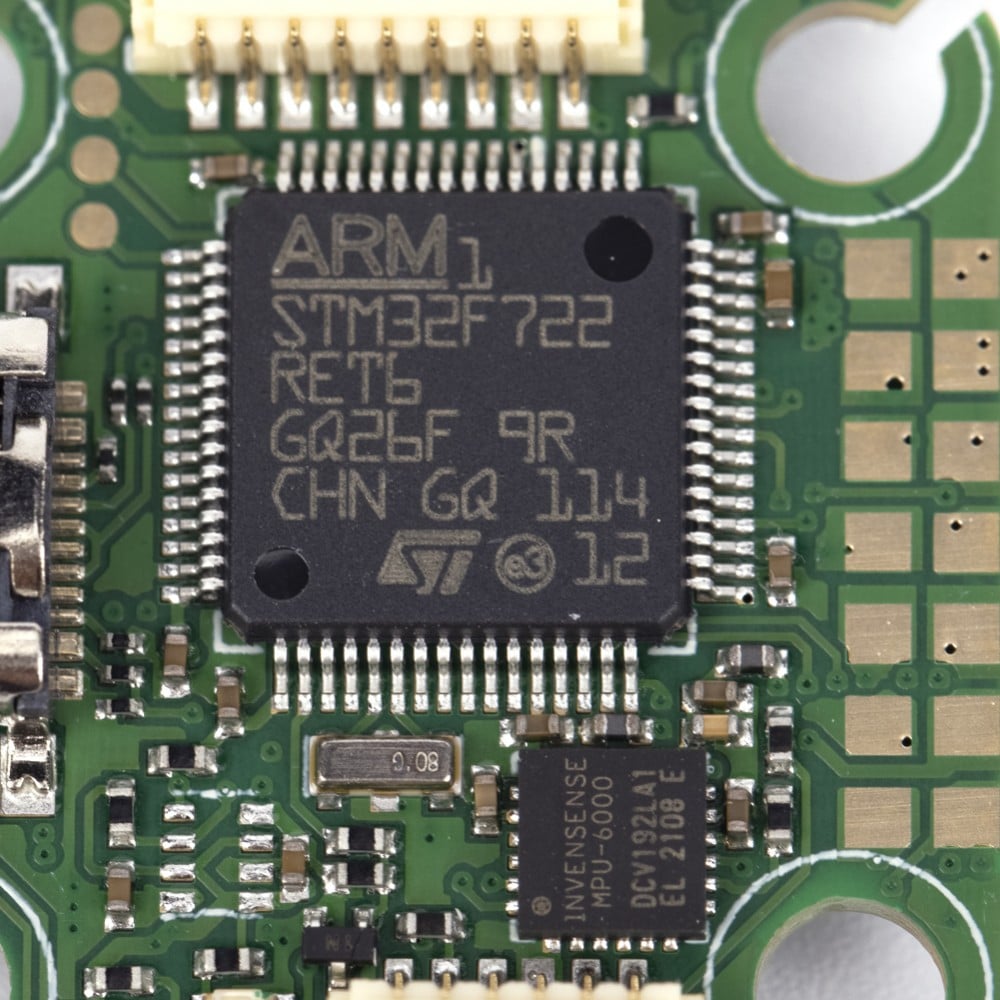

- MCU: STM32 F722
- Gyro: MPU6000 / BMI270 (please note this IMU may change from batch to batch due to supply and pricing issues due to current chip shortages with MPU6000)
- Barometer: DPS310

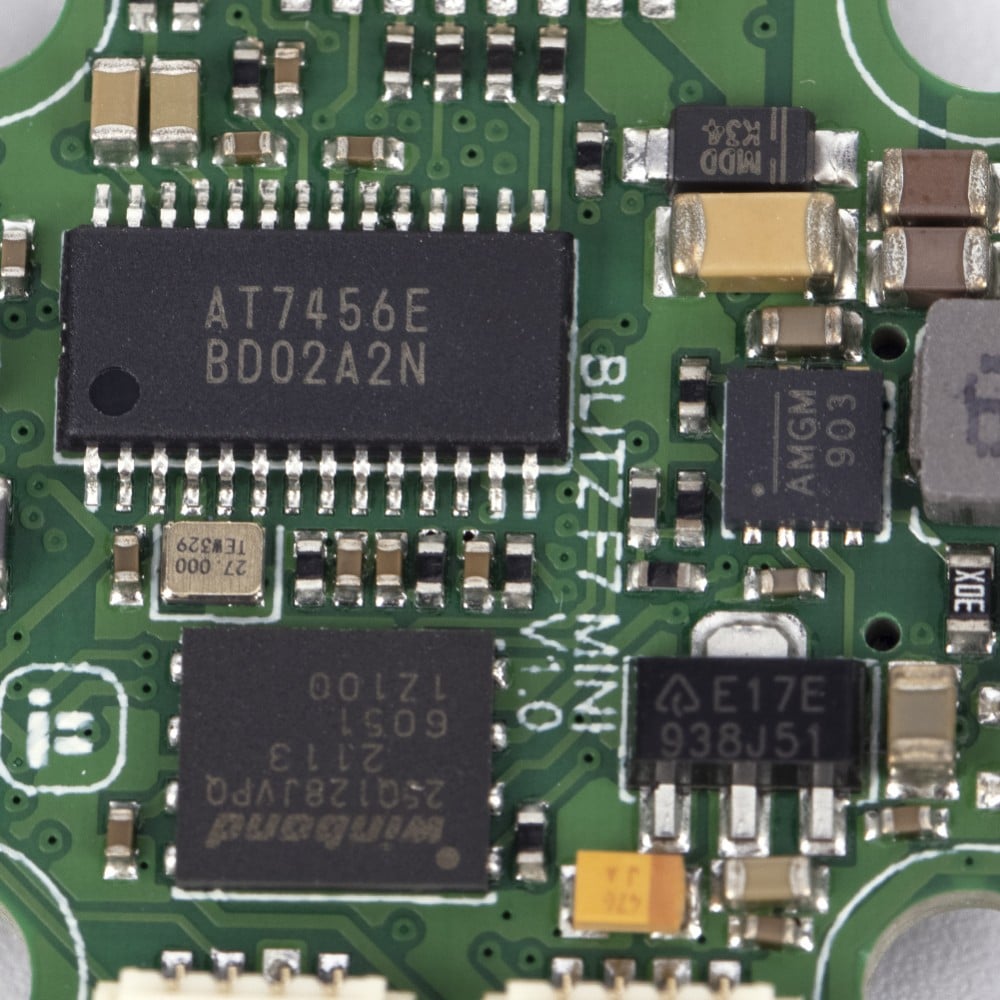

- OSD Chip: AT7456E
- Flash: 16MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFRC-IFLIGHT_BLITZ_F722
- Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws

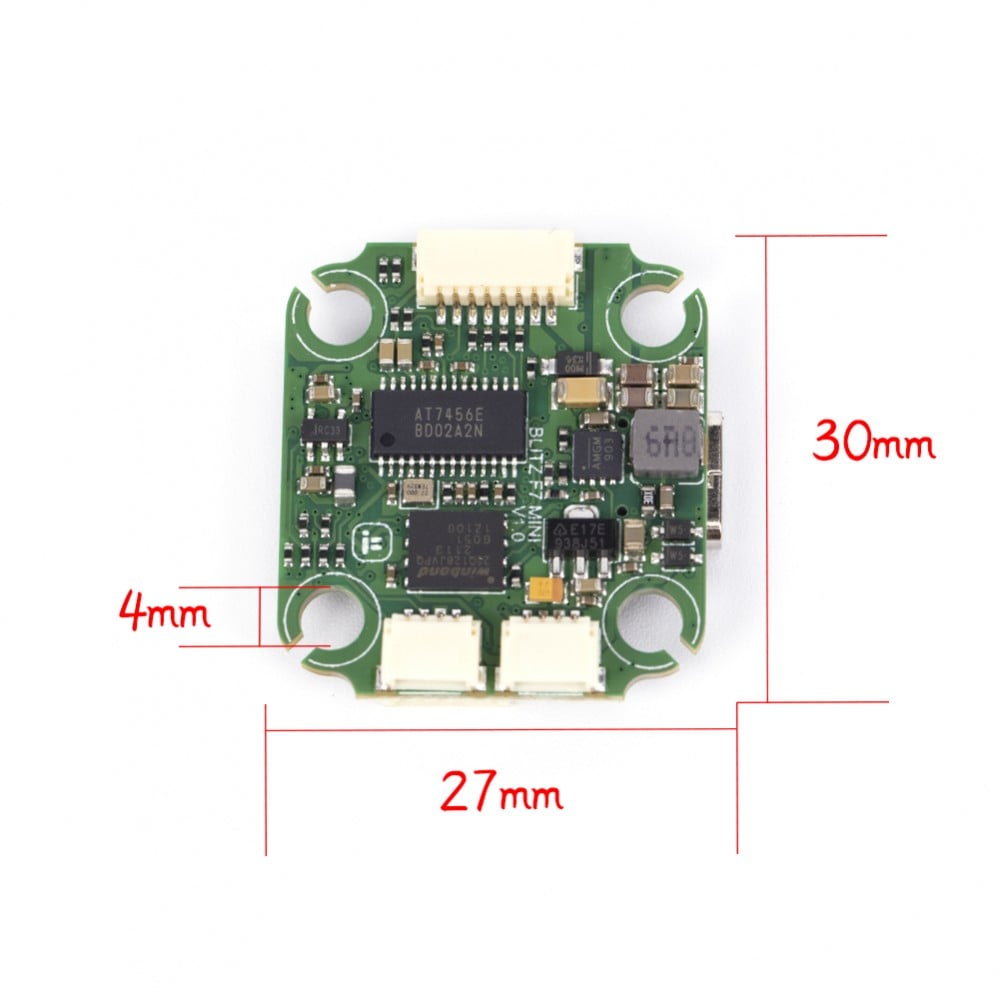

- Dimensions: 30.5×27 mm
- Weight: 5g

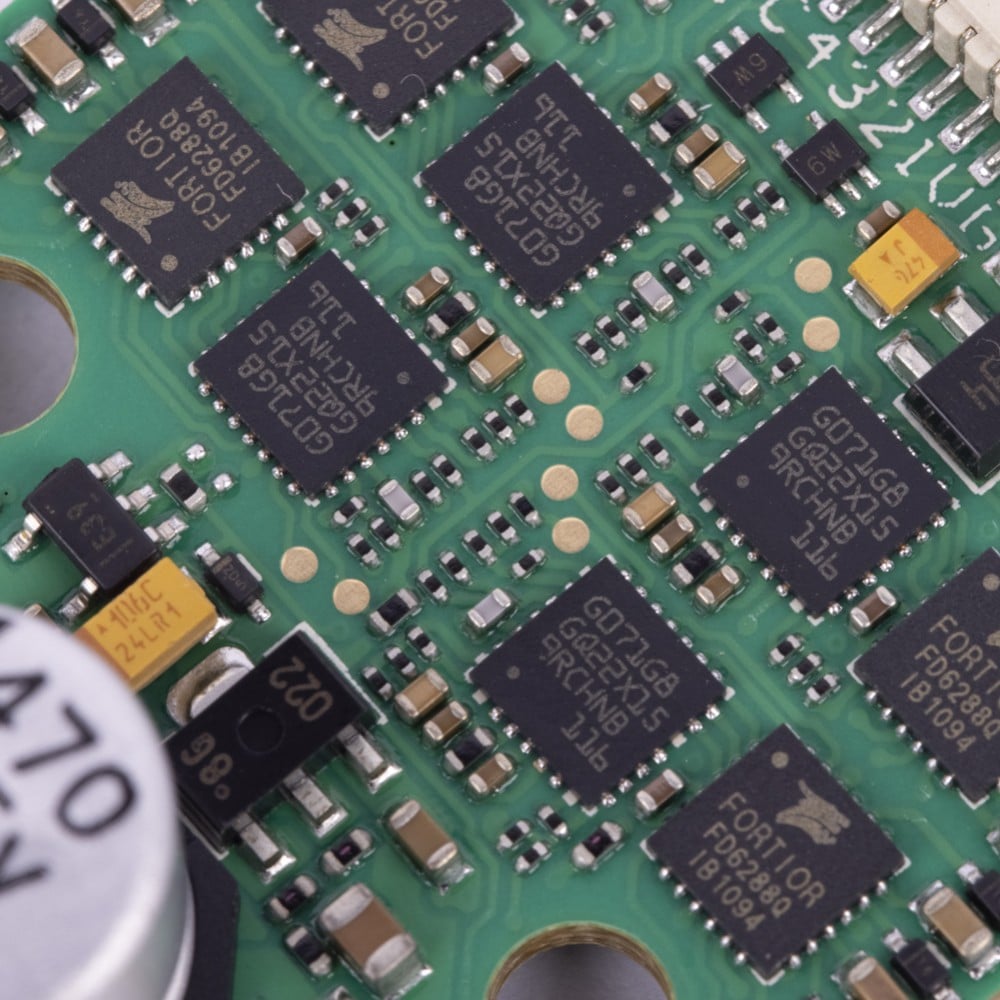

ESC Specification

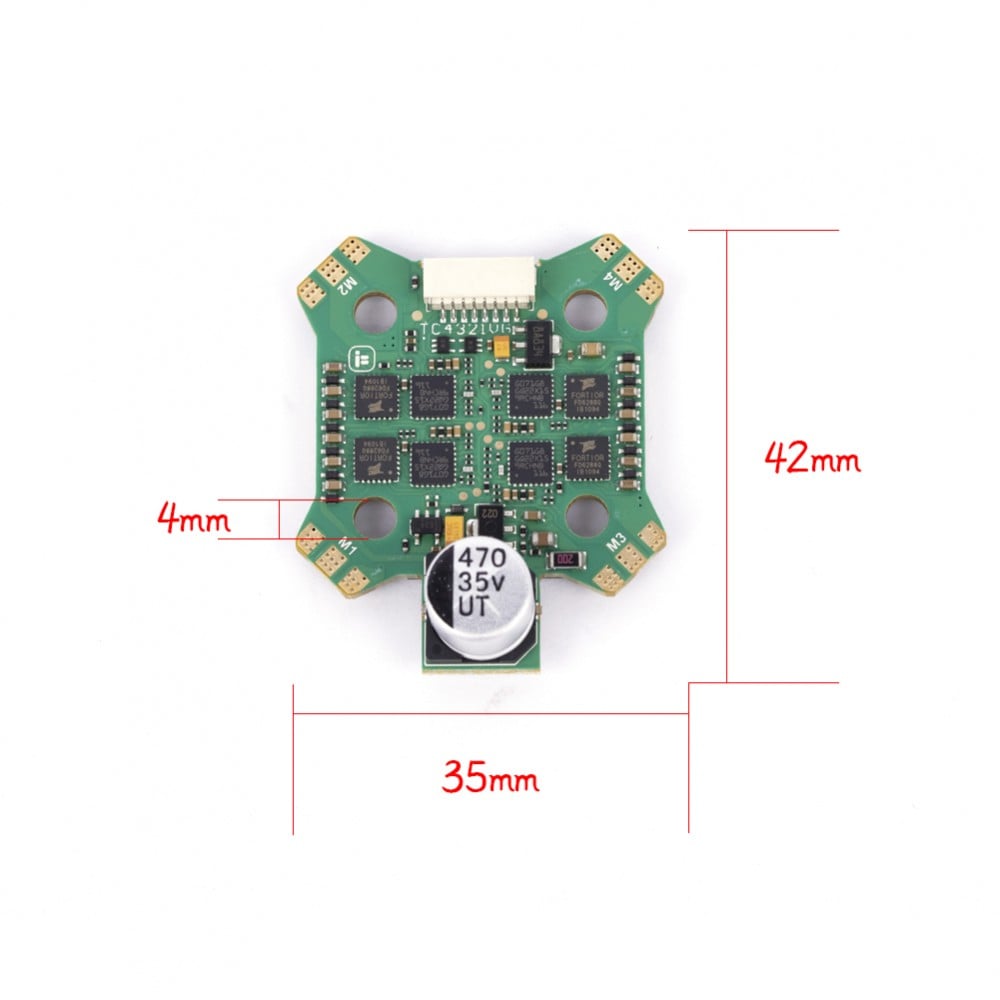

- Dimension: 35*42mm
- Mounting Holes: 20*20mm/Φ4mm

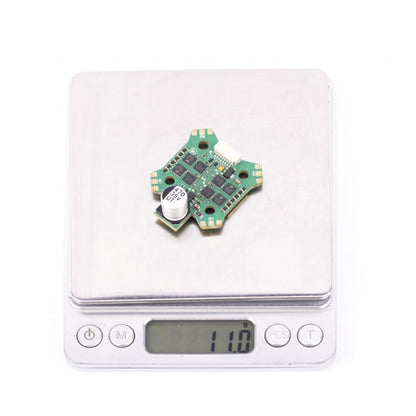

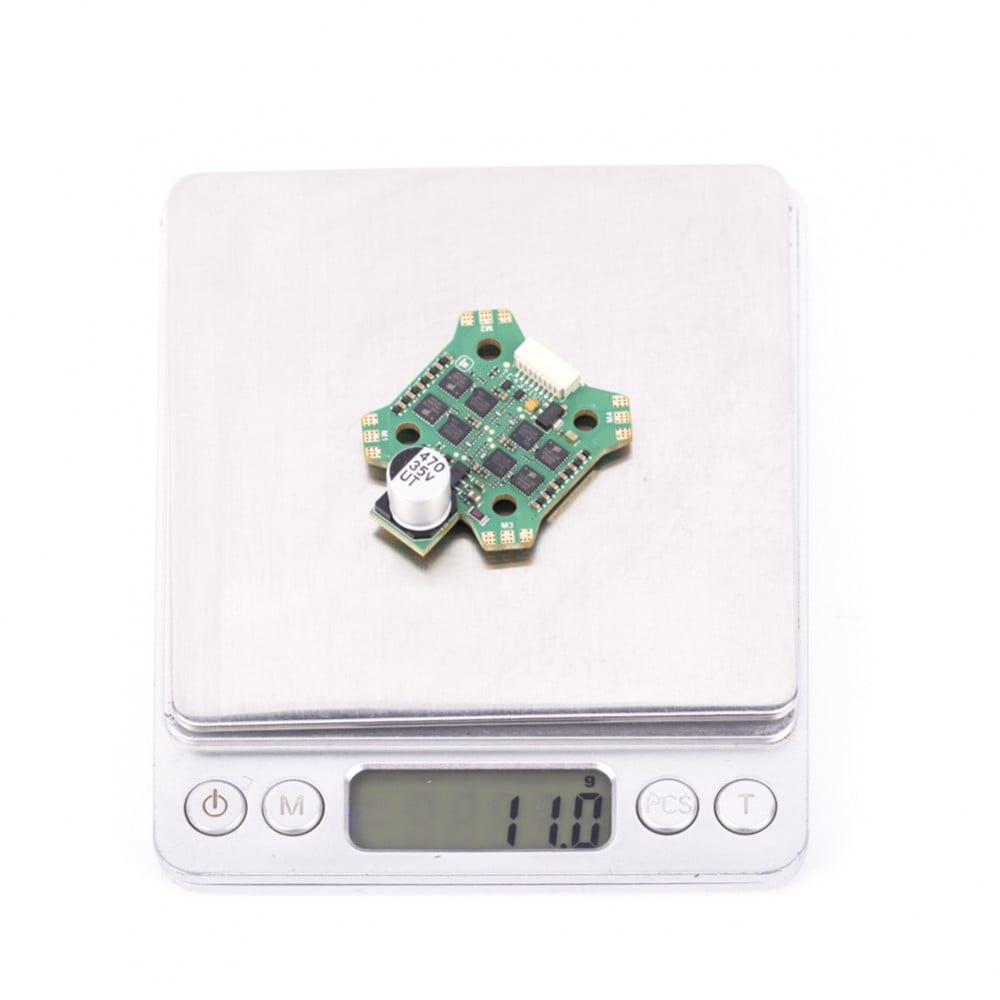

- Weight: 11.3g
- Supports 2-6S lipo input
- MCU：G071
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 100
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Firmware: BLHeli 32
- Target: IFLIGHT_BLITZ_G1
Included

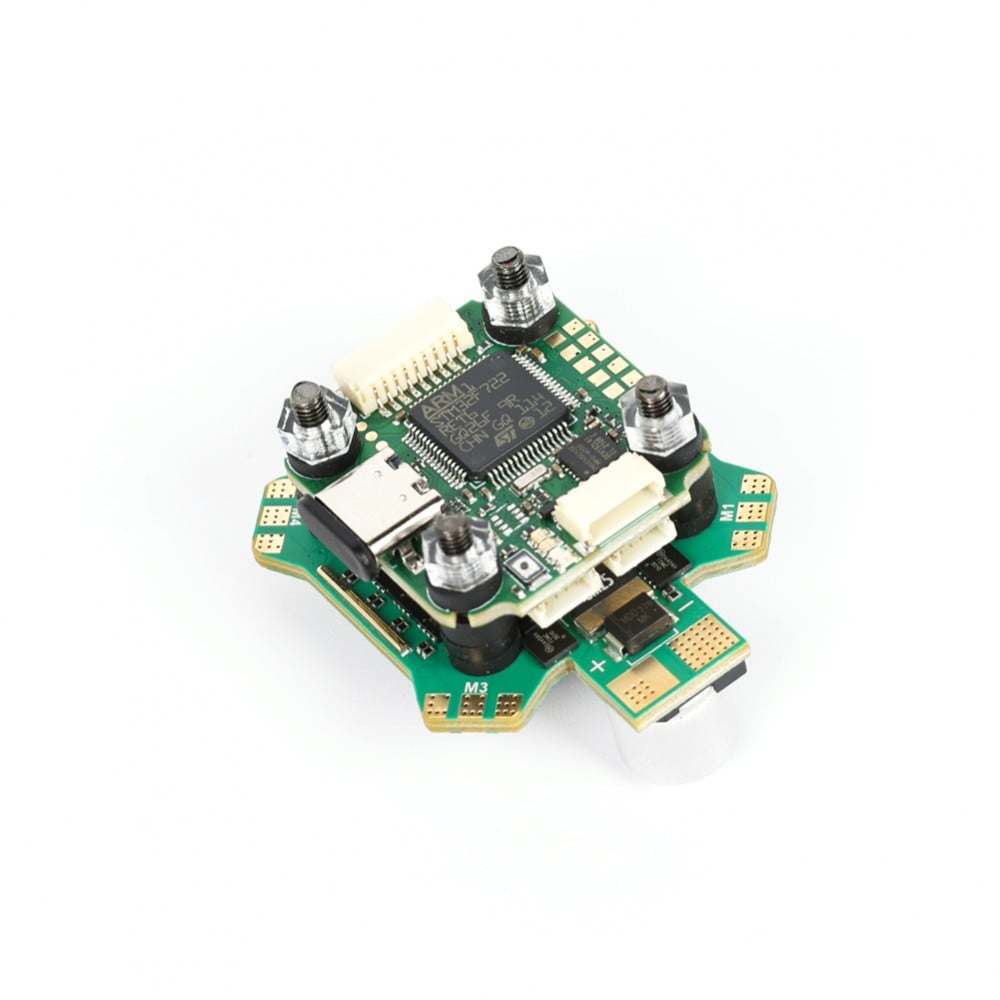

- 1pc BLITZ Mini F7 Flight Controller
- 1pc BLITZ Mini E55 4-IN-1 2-6S ESC
- 1 set SILICON GROMMETS
- 1 set WIRE HARNESS FOR F7 FLIGHT CONTROLLER
