Product Details

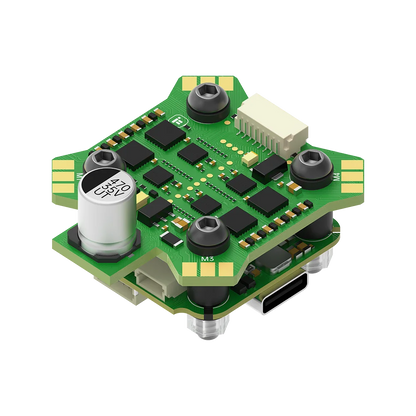

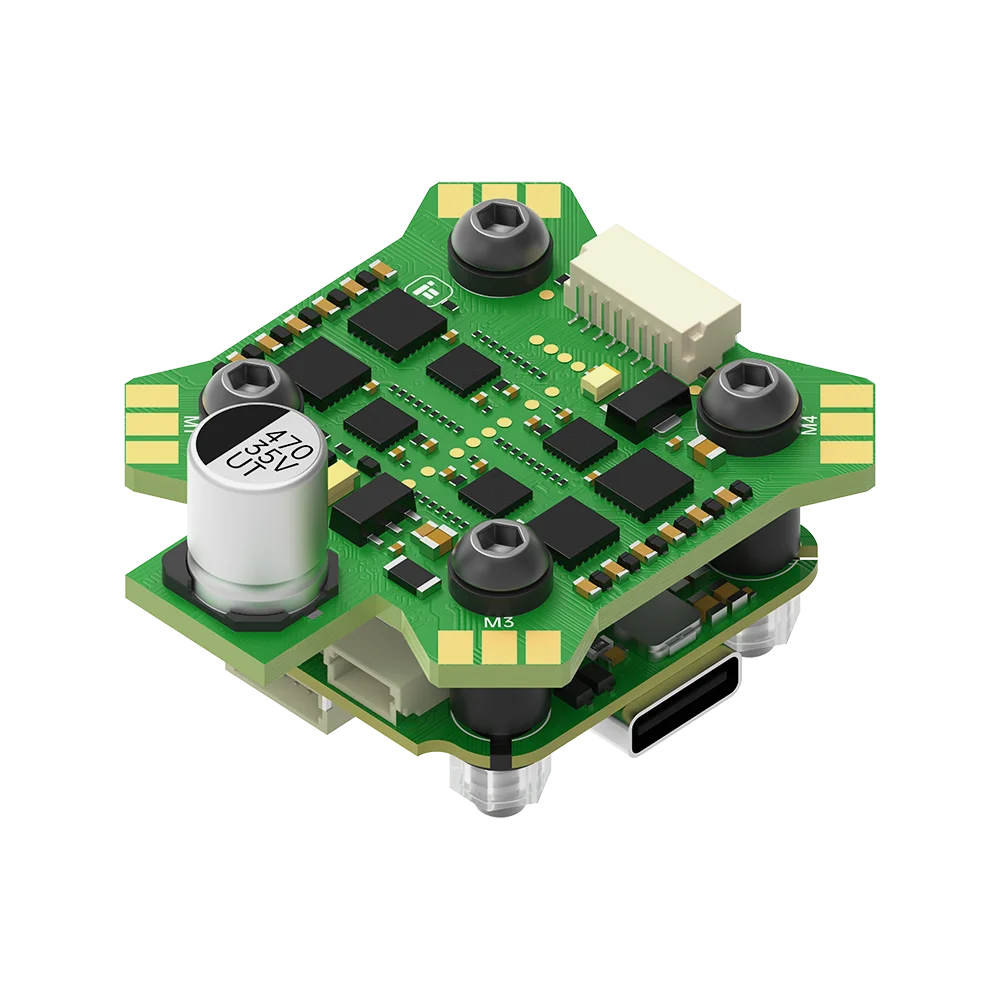

BLITZ Mini ATF435 Stack with E55S Mini 4-IN-1 ESC: The Brain and Brawn Combo Your Quad Deserves 🚀
Why Settle for Mediocre When You Can Blitz Through the Sky?
🔥Ever felt like your FPV quad's stack is the bottleneck, holding you back from unlocking those insane aerial moves? Not enough UARTS, sluggish Gyro or maybe ESCs that just can't handle the power?
🚀Imagine blasting through the gates at warp speed, pulling off dizzying flips, and impressively complex maneuvers, all while your flight controller and ESC work in sublime harmony. You need a stack that's not just powerful but smart, like the chess grandmaster of the skies.
👍Meet the BLITZ Mini ATF435 Stack featuring the E55S Mini 4-IN-1 ESC. Engineered for FPV enthusiasts who refuse to compromise, this is the duo that takes performance, durability, and customization to stratospheric levels.
🌟 Key Product Highlights:
- Mighty MCU : Powered by AT32F435RGT7, this is the Einstein of flight controllers.
- Stellar Gyro : With BMI270, expect ultra-smooth flights. The butter to your bread, pilots!
- Dynamic Duo : The stack pairs ATF435 FC with an E55S Mini 4-IN-1 ESC. Your perfect wingman!
- High Amp Game : 55A constant and 65A burst, for when you need to unleash the Kraken.
- Unmatched Customization : 6 UARTs, Smartaudio, IRC Tramp VTX, you name it!
Specs That Make You Go "Whoa" 🤩

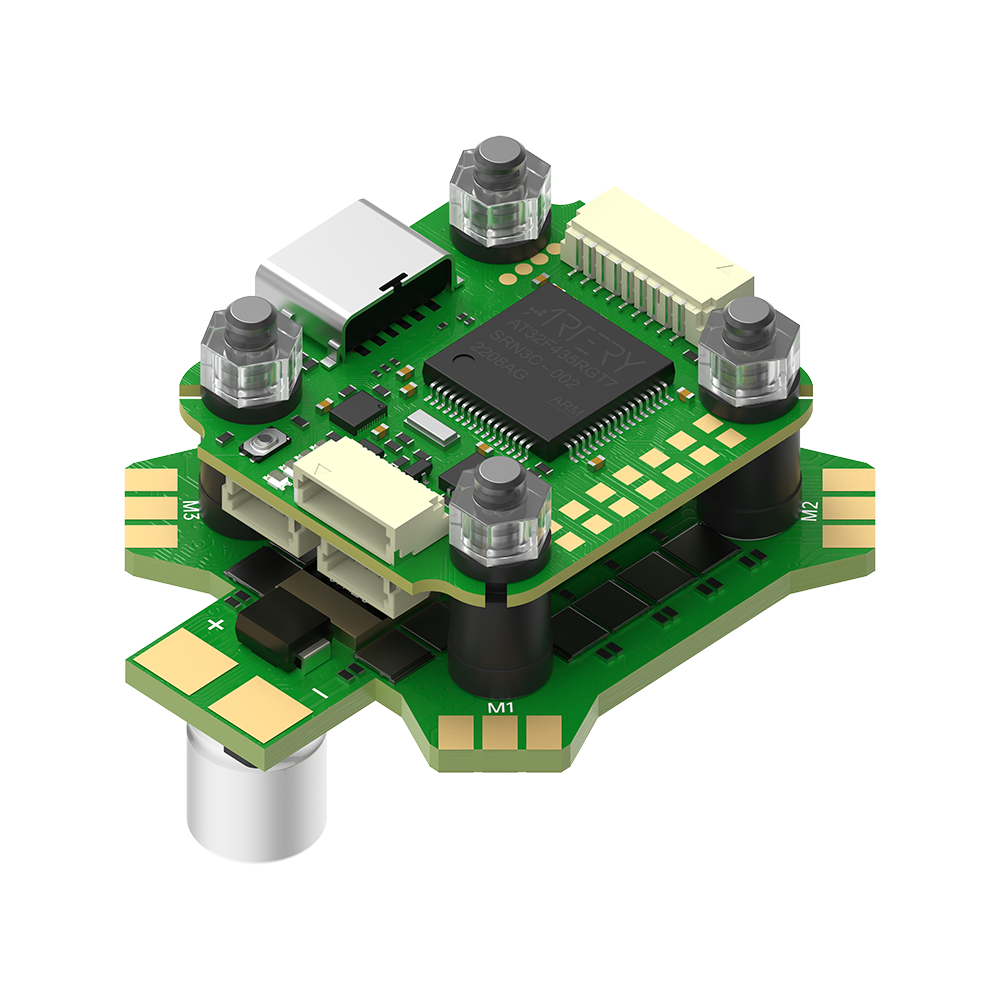

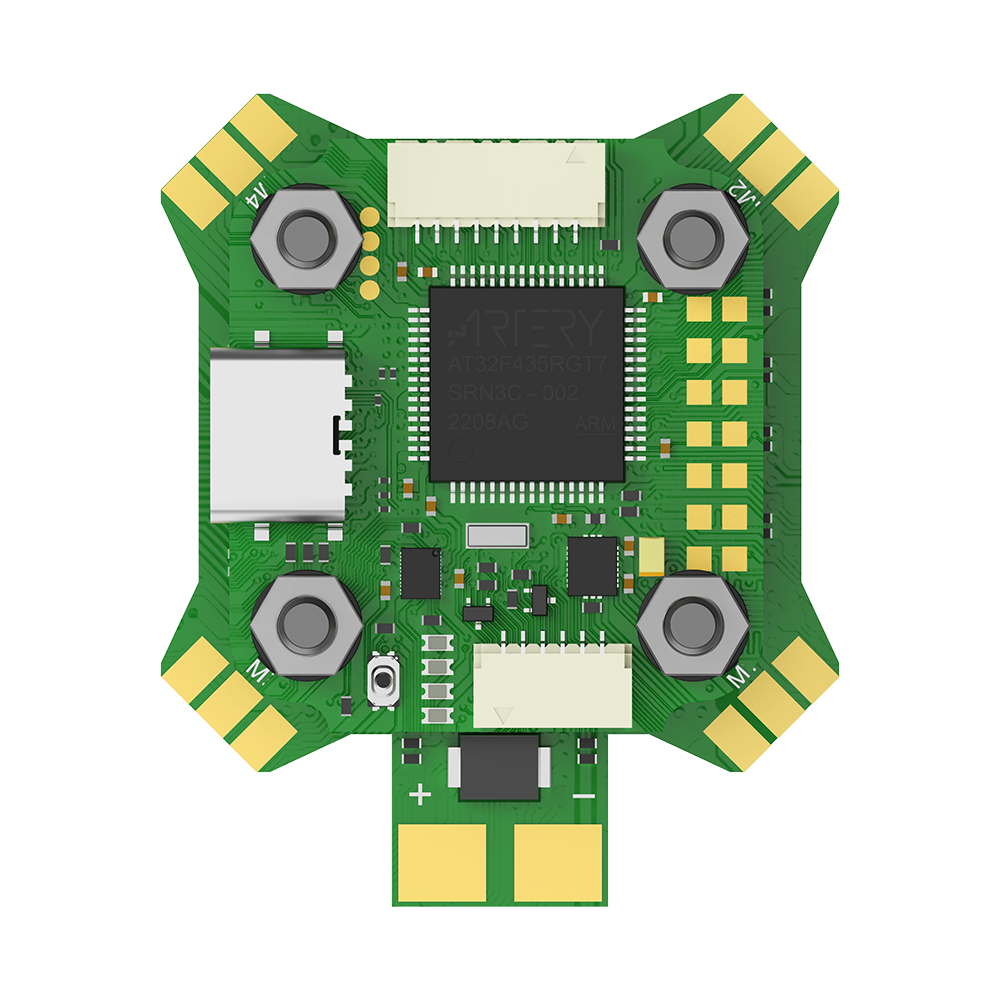

🧠 Flight Controller (FC) Details:
- MCU : AT32F435RGT7
- Gyro : BMI270
- Barometer : DPS310
- OSD Chip : AT7456E
- Flash : 16MB (Blackbox)
- UARTs : 6, count ‘em!
- Motor Outputs : 4x (SH1.0 Connector)
- I2C Serial : SDA/SLA Pads
- Smartaudio / IRC Tramp VTX : Supported
- LED Controller & Beeper Pad : Yes
- Firmware Target : IFLIGHT_BLITZ_ATF435
- Dimensions : 30.5*27mm
- Weight : Feather-light at 5g
- BEC : 5V 2.5A

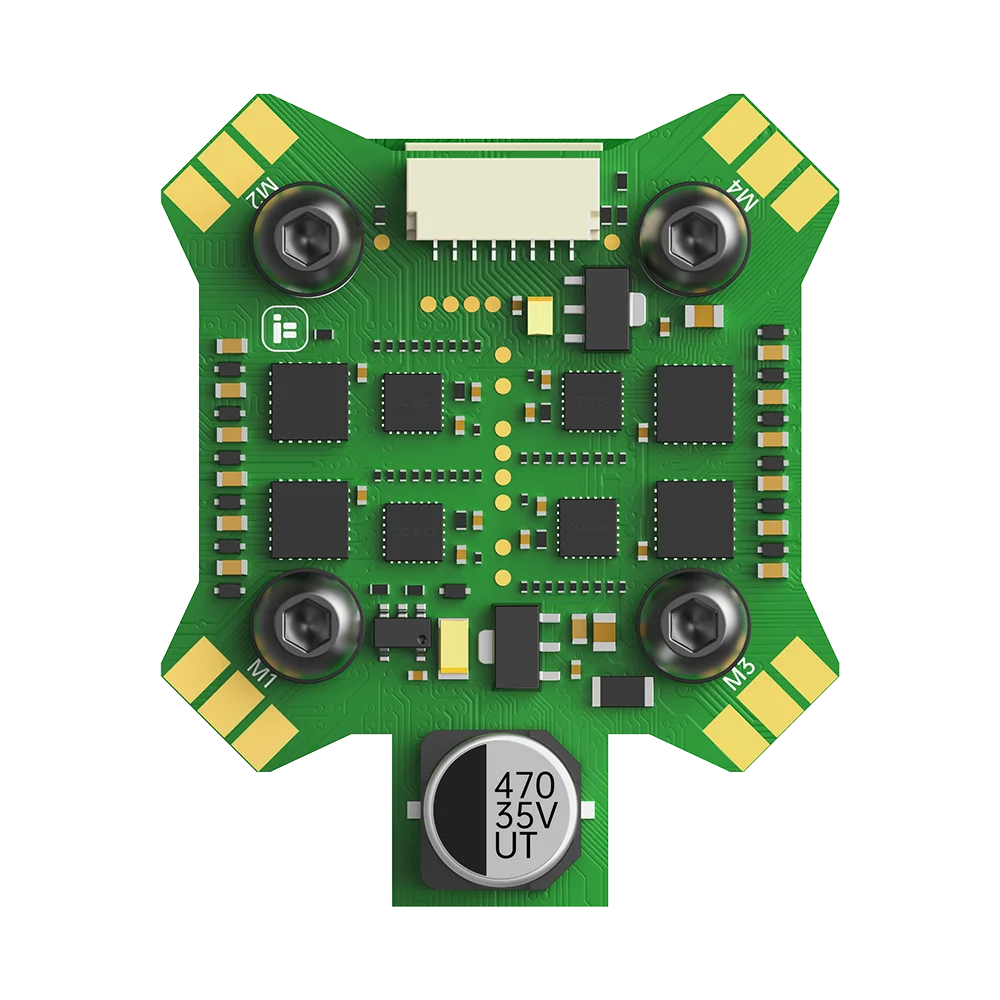

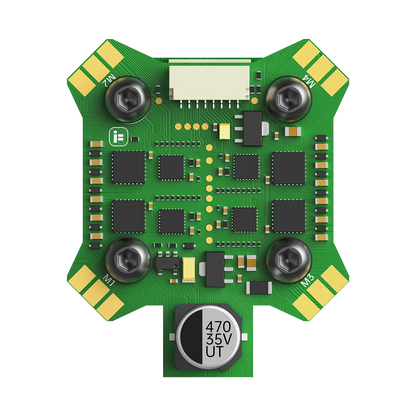

💪 ESC Specifications:
- Mounting Holes : 20*20mm/Φ4mm
- Weight : 11.3g
- Supports : 2-6S Lipo Input
- MCU : BB21
- Constant : 55A
- Burst : 65A
- Telemetry Output : Nope, we keep it simple.
- Current Sensor : Yep!
- Current Rate : 300
- BEC : Nada
- Protocols : DShot150/300/600/MultiShot/ OneShot etc.
📦 What's in the Box:
- 1 x BLITZ Mini ATF435 Flight Controller
- 1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
- 1 x Power cables & ESC signal wires
Why Choose This Stack? 🤔
For FPV pilots who thirst for superior performance, your search ends here. Built to outperform and engineered to impress, the BLITZ Mini ATF435 Stack is the FPV game-changer you've been waiting for.
