Product Details

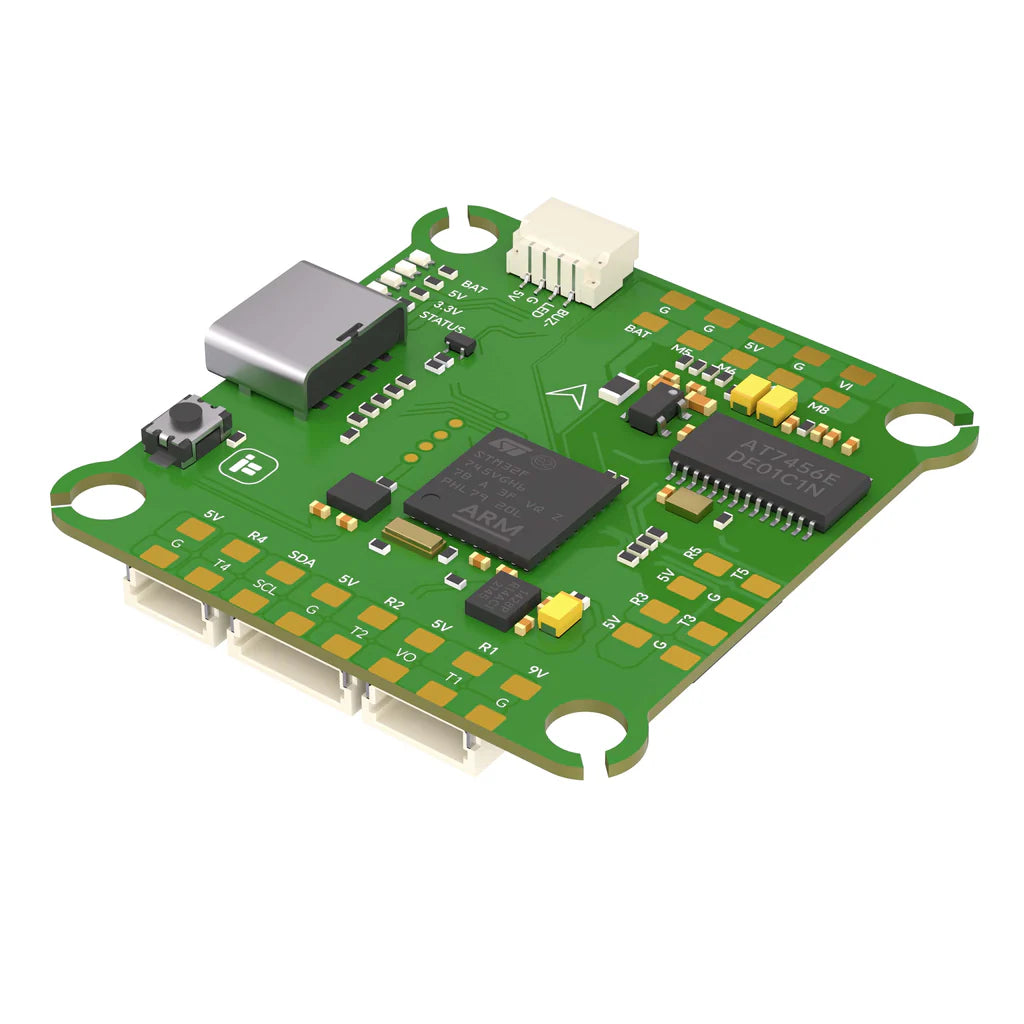

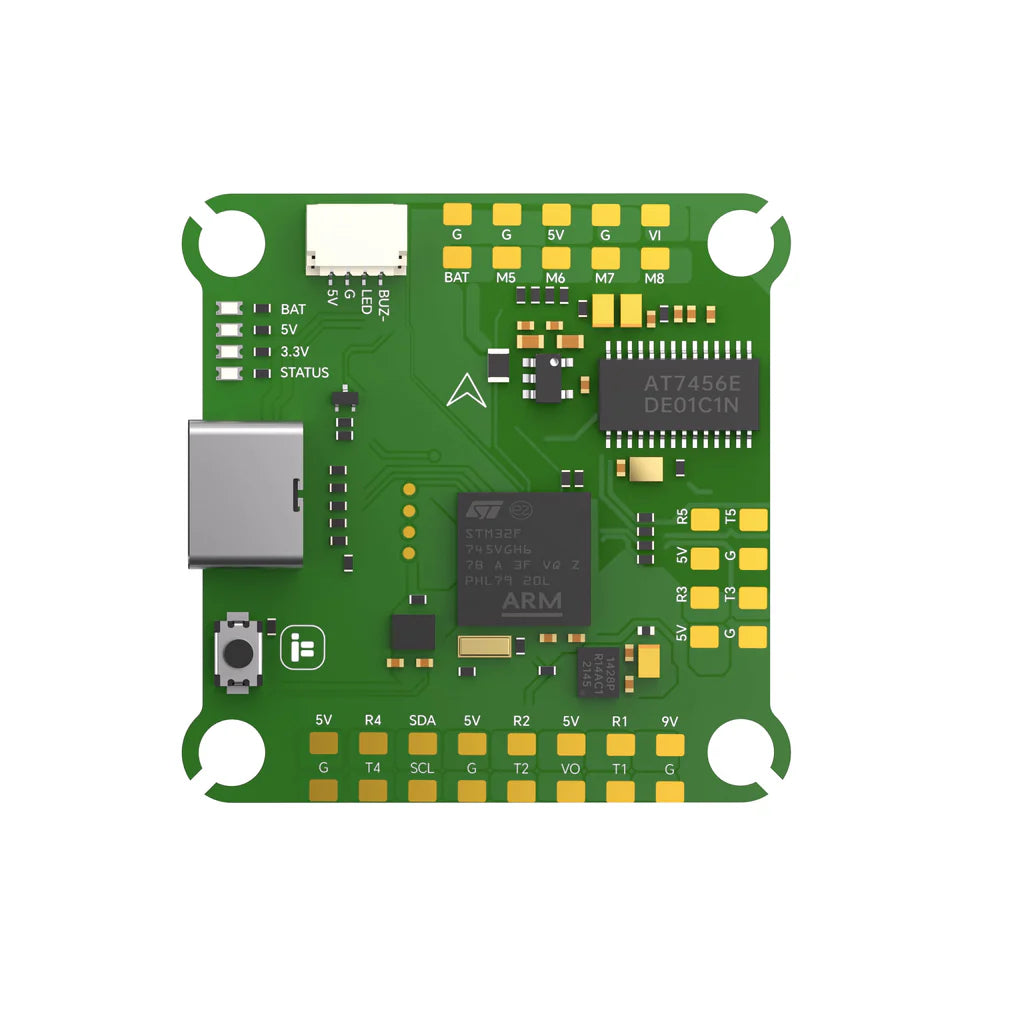

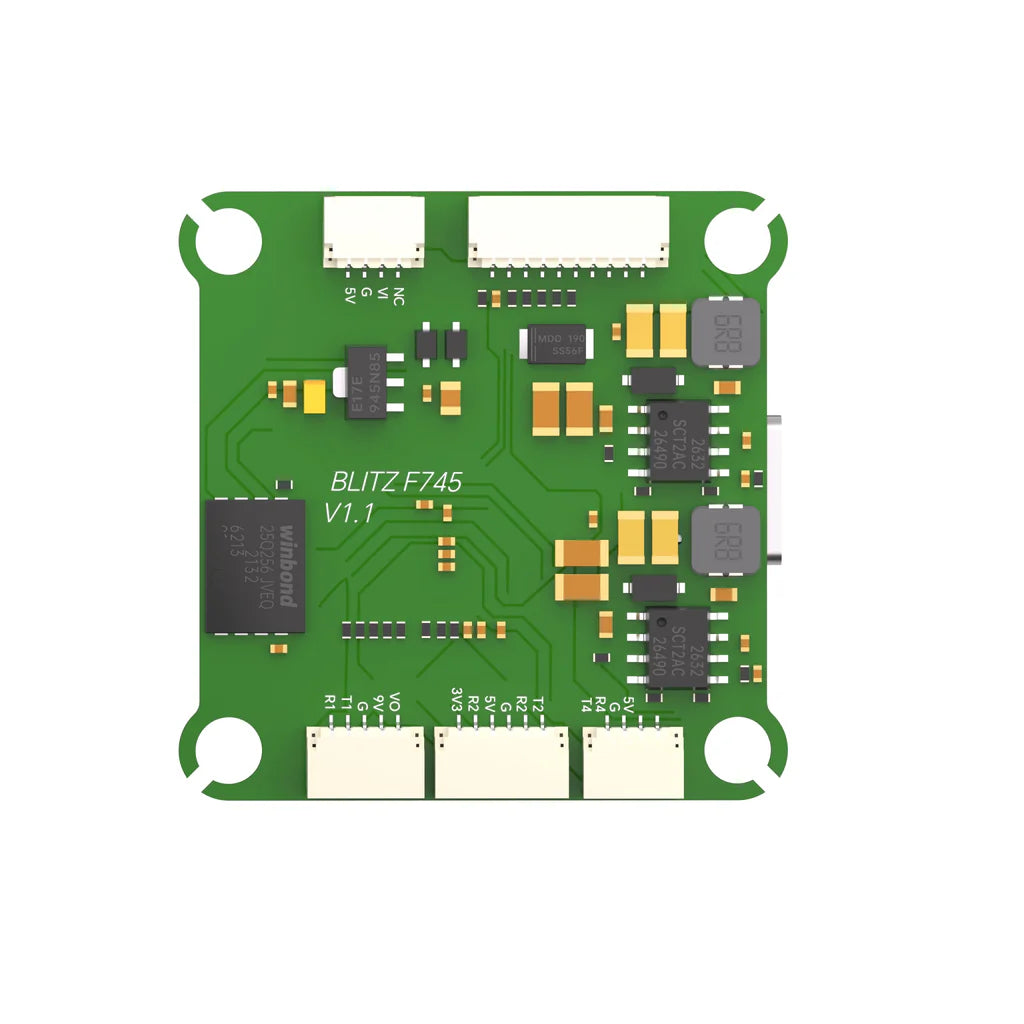

Are you tired of fiddling with soldering irons and tangled wires every time you upgrade your quad? Say hello to the next-gen iFlight Blitz F745 Flight Controller, where sophistication meets simplicity, and the only thing that's 'high' is your drone - not your stress levels.
Why It's Not Just Another Flight Controller:
- Improved Circuit Design: Because nobody likes a noisy neighbor, especially when it's your own quad buzzing with electrical noise.
- DJI HD VTX Connector: Plug-and-play because we're in 2024, not the Stone Age. Soldering? Please, that's so last decade.
- FC Indicator LEDs: It's like your quad is communicating with you through lights. "All systems go" or "Houston, we have a problem" - you'll know at a glance.
- Firmware Flexibility: Whether you're a Betaflight believer, an INAV enthusiast, or an Ardupilot aficionado, we've got you covered.
Spec-tacular Specifications:
- MCU: STM32F745
- Gyro: ICM42688
- Barometer: DPS310
- OSD Chip: AT7456E
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFLIGHT_BLITZ_F7_AIO
- Mount pattern: 30.5*30.5mm
- Dimensions: 36.5*35 mm
- Weight: 7.8g
- BEC: 5V 2.5A / 9V 2A
- UART 1 for VTX HD / Analog
- UART 2 for a Receiver
- UART 3/4/5 for GPS or other sensors that require a serial port
- UART 6 for ESC Telemetry

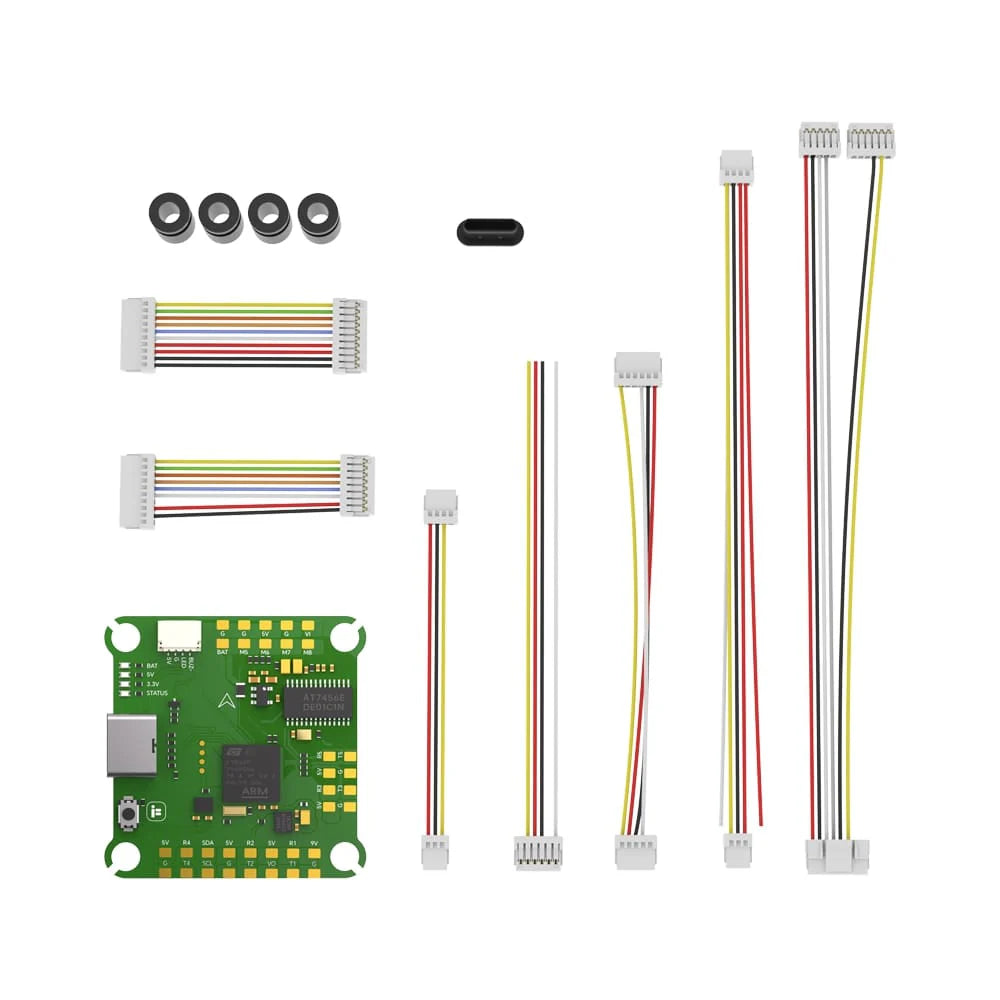

What's in the Box:
- 1x Blitz F745 Flight Controller (Yes, the star of the show!)
- 1x Hardware Set (Because we wouldn't leave you hanging!)
So, if you want to make your quad fly like it's got a degree in aerodynamics, the iFlight Blitz F745 Flight Controller is your ticket to the big leagues. It's not just an upgrade; it's an evolution. Get yours and let your quad soar like it's got a PhD in Awesome!
