Product Details

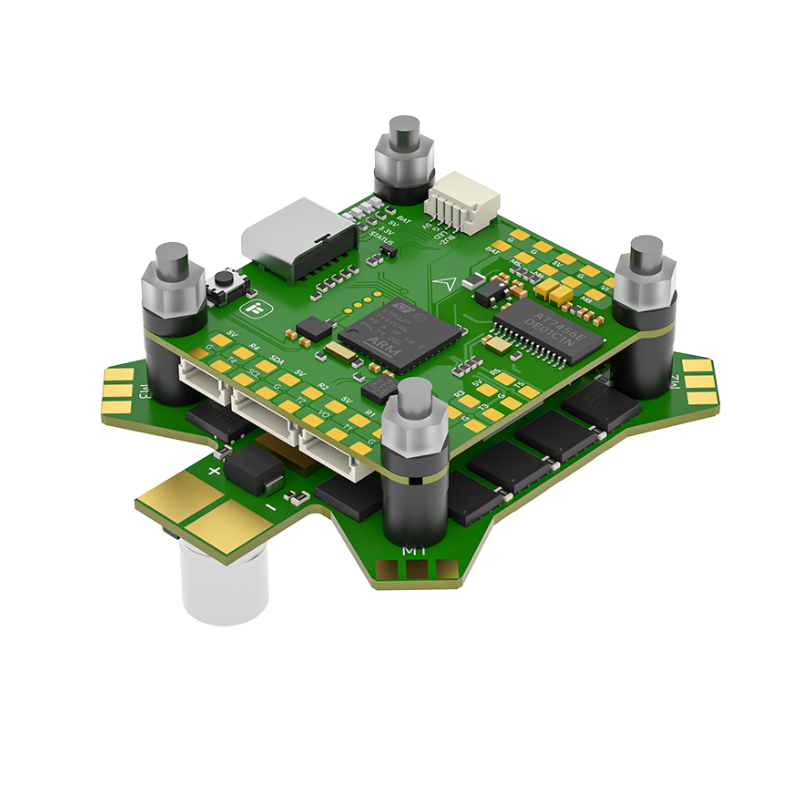

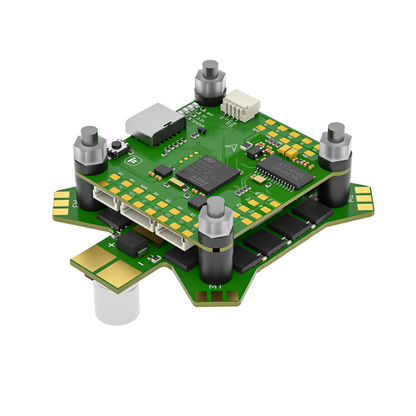

Unleash the Beast: BLITZ F745 E55 30x30 Stack by iFlight
Tired of the same old drab drone stacks that promise the world but deliver a globe? Look no further! iFlight's BLITZ F745 E55 Stack is here to redefine your flight experience, infusing it with an electrifying blend of technology and sheer power that's as subtle as a sledgehammer at a tea party.
Main Features:
- Flight Controller Extraordinaire: At the heart of this technological marvel is the Blitz F745 flight controller, a maestro conducting the symphony of your drone's components with the grace of a caffeinated ballerina. It's powered by an STM32F745 MCU, because, let's face it, using anything less would be like putting bicycle wheels on a sports car.
- Gyro & Barometer: With the ICM42688 gyro and DPS310 barometer, your drone will have more awareness of its surroundings than a cat in a room full of rocking chairs. Navigating the skies will be smoother than a pickpocket in a crowd.
- Seamless Connectivity: The DJI HD plug&play connector is the epitome of convenience, eliminating the need for soldering. It's like having a USB port in a world of floppy disks.
- Noise Reduction: Quality components that cut down on noise? Yes, please. Because the only thing we want to hear is the sound of awe from onlookers, not electrical buzz.
ESC Details:
- Power Handling: The E55 4in1 ESC doesn't just handle power; it tames it. With a constant of 55 Amps and a burst of 60, it's like having a pet dragon under the hood - all the fire, none of the risk.
- Compatibility: Supports a buffet of protocols including DShot150/300/600 and MultiShot. It's like being fluent in every language at the United Nations of Drones.
Specifications

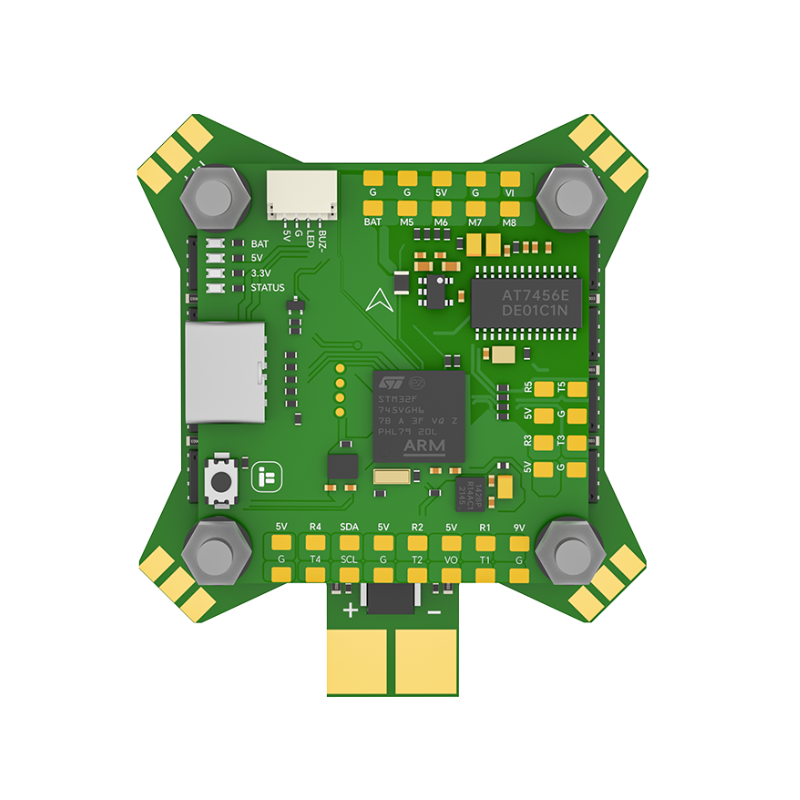

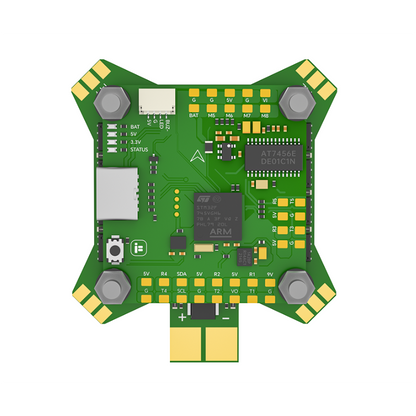

FC
- MCU: STM32F745
- Gyro: ICM42688
- Barometer: DPS310
- OSD Chip: AT7456E
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFLIGHT_BLITZ_F7_AIO

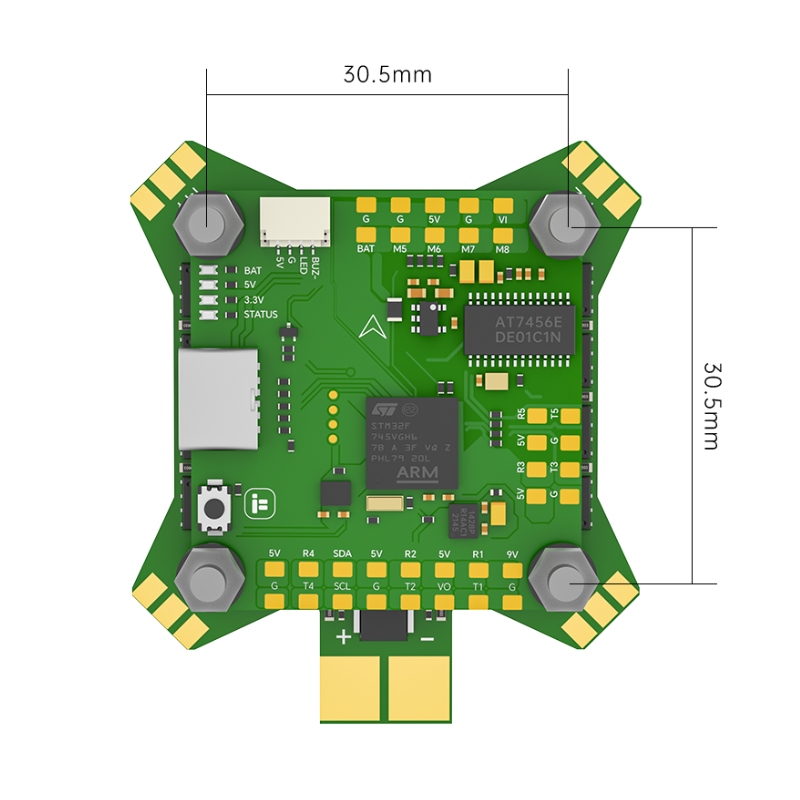

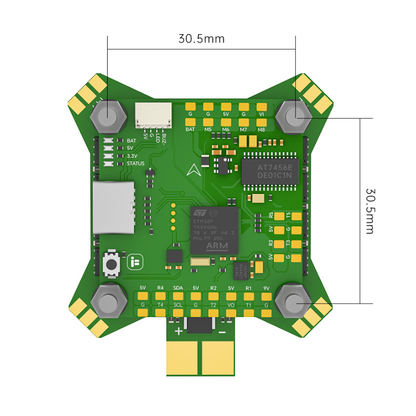

- Mount pattern: 30.5*30.5mm
- Dimensions: 36.5*35 mm
- Weight: 7.8g
- BEC: 5V 2.5A / 9V 2A
- UART 1 for VTX HD / Analog
- UART 2 for a Receiver
- UART 3/4/5 for GPS or other sensors that require a serial port
- UART 6 for ESC Telemet

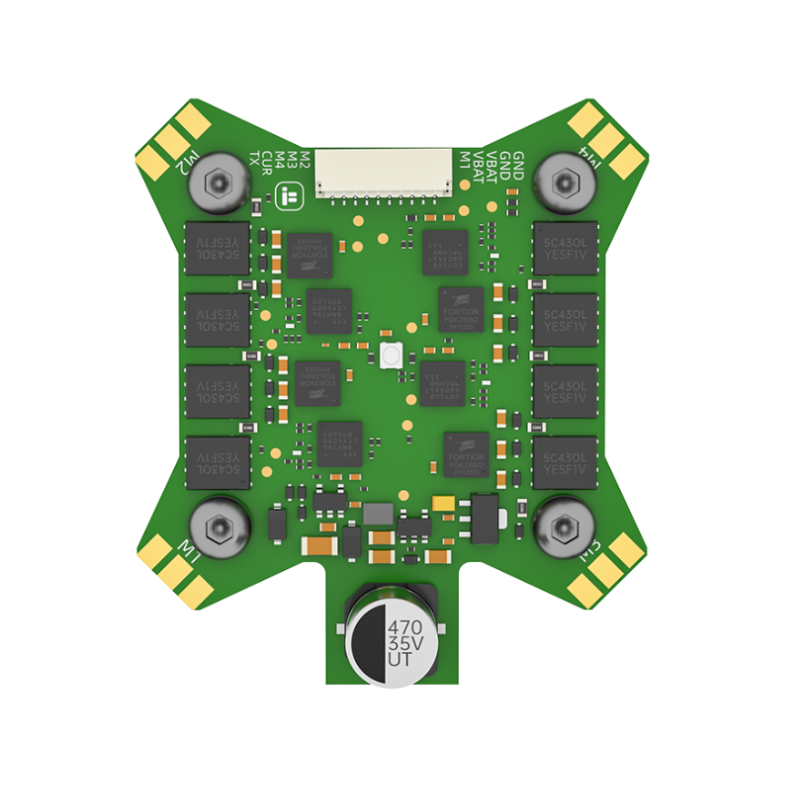

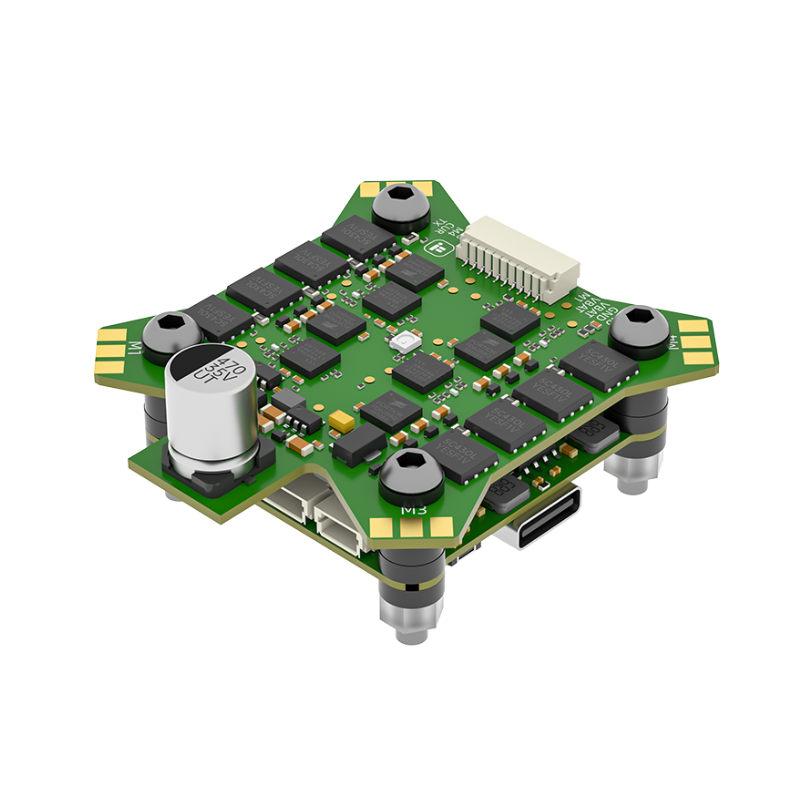

ESC
- Mounting Holes: 30.5*30.5mm/Φ4mm
- Weight: 15.3g
- Supports 2-6S Lipo input
- MCU： G071
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target : IFLIGHT_BILTZ_G3 32.9
What's in the Box:
- 1x BLITZ F745 Flight Controller: The brain that's more Einstein than Frankenstein.
- 1x BLITZ E55 4in1 2-6S ESC: The brawn that flexes without even trying.
- 1x Set of Dampers: Because your stack deserves a throne.
- 1x Set of Wires for FC: The essential arteries for your flying masterpiece.
Whether you're a seasoned pilot or a newbie with lofty ambitions, the BLITZ F745 E55 Stack by iFlight is your ticket to an elevated flying experience. Because flying a drone shouldn't just be about getting from point A to B; it should be an epic tale of power, precision, and a little bit of showing off.
