Product Details
Ever been lost in a maze of wiring, disorganized stacks, and bulky components, wondering if you'll ever soar in the FPV skies like a digital Icarus minus the meltdown? If that sounds like you, then read on, my skyward friend!

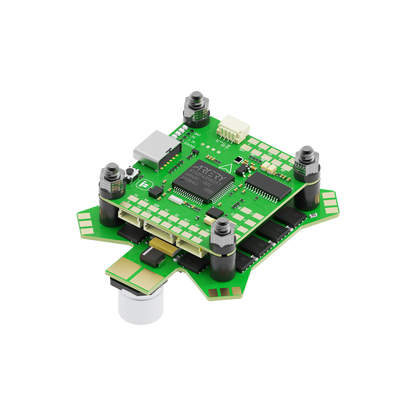

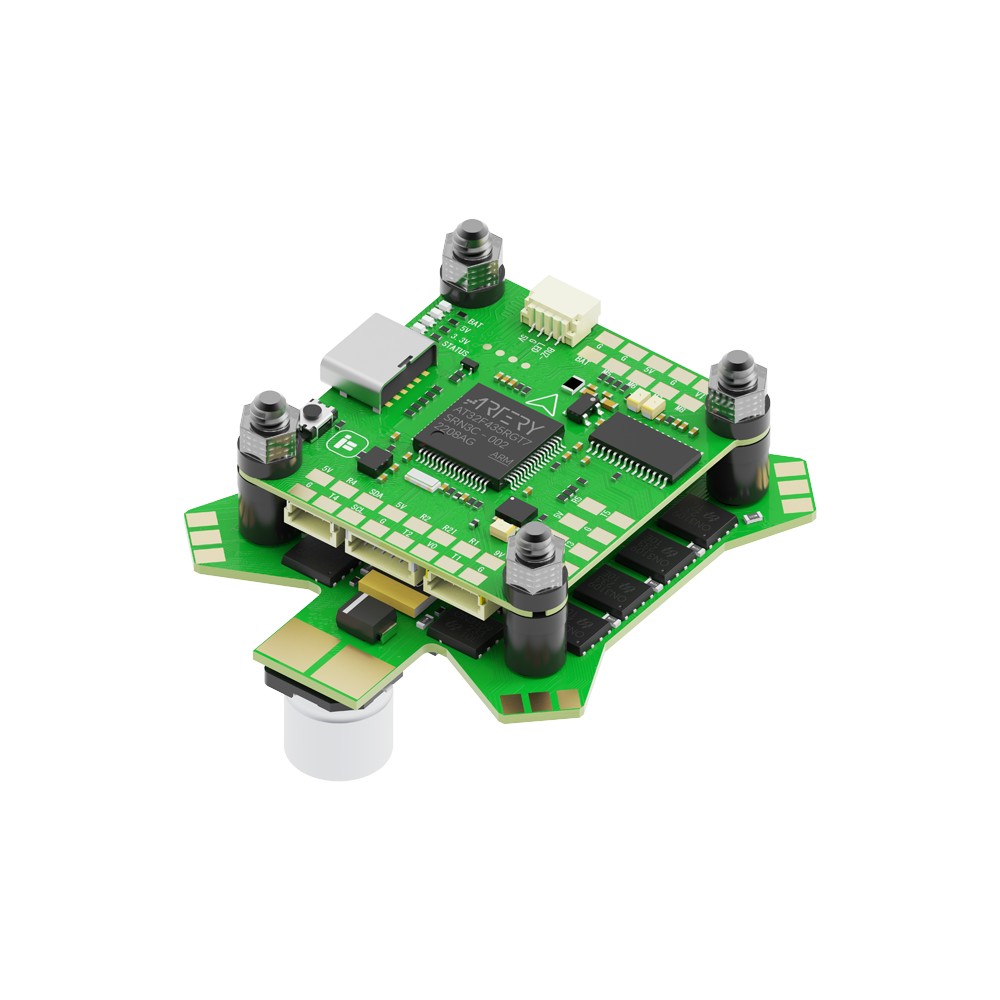

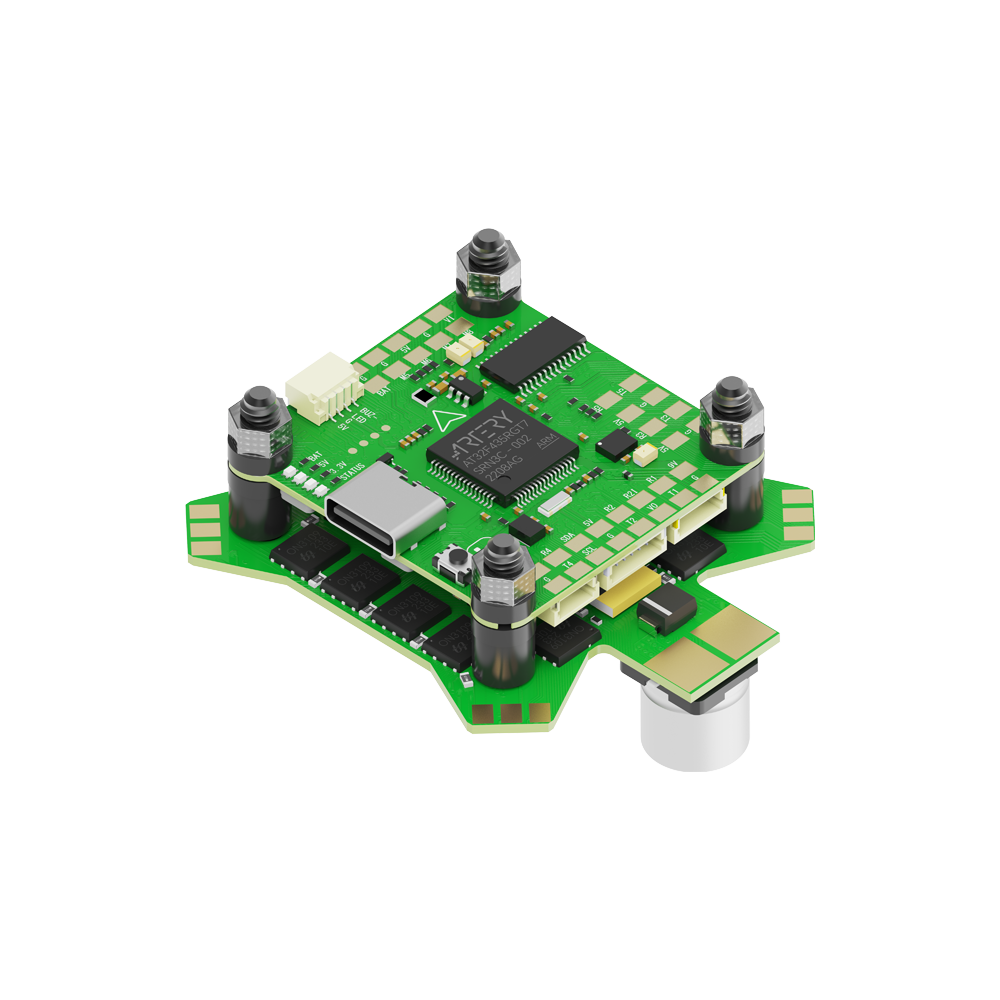

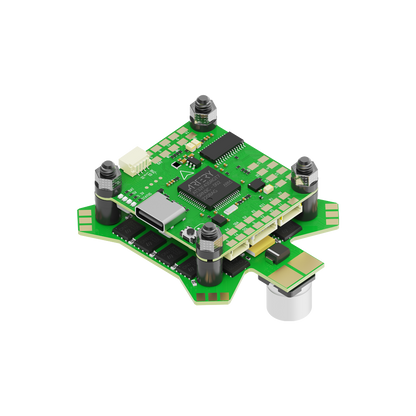

Introducing the BLITZ ATF435 Stack with E55S 4-IN-1 ESC —the stuff FPV dreams are made of! This is not your grandma's flight controller and ESC combo. This is a sleek, power-packed stack that you'll want to write home about—if you ever land, that is!
Product Highlights 🌟
- So Light, It's Like It's Not Even There : With a total weight of just 22.5g for both the FC and ESC, you'll be soaring higher and faster than ever.
- Be a Brainiac in the Skies : Equipped with AT32F435CGU7 MCU and BMI270 Gyro, this stack is like having Einstein and an Olympic gymnast in your quad.
- Electrifying Performance : Sporting a monstrous 55 Amps constant and 65 Amps burst, the E55S is ready to feed your motors like a Thanksgiving turkey.
- So Versatile, It's Practically a Swiss Army Knife : 6 UARTs, Smartaudio / IRC Tramp VTX protocol, LED controller and more!
- Future-Proof Firmware : With the IFLIGHT_BLITZ_ATF435 target, this stack is future-proofed for high-flying awesomeness.
Detailed Specifications 📝
Flight Controller
- MCU : AT32F435CGU7
- Gyro : BMI270
- Barometer : DPS310
- OSD Chip : AT7456E
- Flash : 32MB (Blackbox flash)
- UARTS : 6
- Motor Outputs : 4x (SH1.0 connector)
- Smartaudio/IRC Tramp VTX Protocol Supported : Yep!
- LED Controller : Of course!
- BEC : 5V 2.5A / 9V 2A
Electronic Speed Controller (ESC)
- MCU : G071
- Constant : 55 Amps
- Burst : 65 Amps
- Supports : 2-6S Lipo input
- BEC : No, and you won't miss it!
- Supports : DShot DShot150/300/600/MultiShot/ OneShot etc.
What's in the Box? 📦
- 1 x BLITZ ATF435 Flight Controller
- 1 x BLITZ E55S 4-IN-1 2-6S ESC
Time to Get Blitzed!
Quit flying with Frankenstein's monster and start flying with a harmonious stack that's more in sync than a boy band from the '90s. Order your BLITZ ATF435 Stack with E55S 4-IN-1 ESC now and become the FPV pilot you were born to be.
