Product Details
🌟 Product Highlights
- 🎮 Insanely Responsive Gyro : Equipped with the top-tier BMI270 for those buttery smooth flips and rolls.
- 🌐 Highly Versatile UARTs : Comes with 6 UART ports to cover all your FPV bases. More UARTs than a Shakespearean drama!
- 💡 Integrated LED Controller : Because every awesome flight deserves a light show.
- 🎛 Smartaudio / IRC Tramp Supported : Customize your VTX on the fly. No PhD required.
- 🎈 Light as a Feather : Weighs in at only 7.8g. That's lighter than your chances of crashing!
Tired of flight controllers that turn your expertly designed FPV drone into a glorified paperweight? Yeah, we've all been there—stuttering through the air, GPS connectivity that's as reliable as British weather, and gyroscopes that think you're doing barrel rolls when you're just hovering.

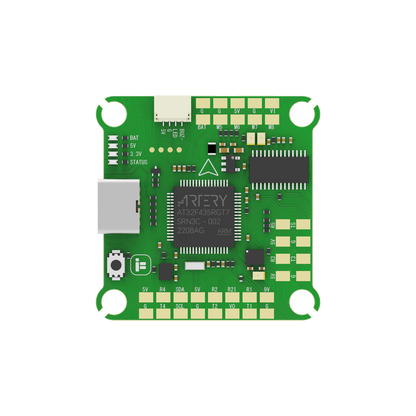

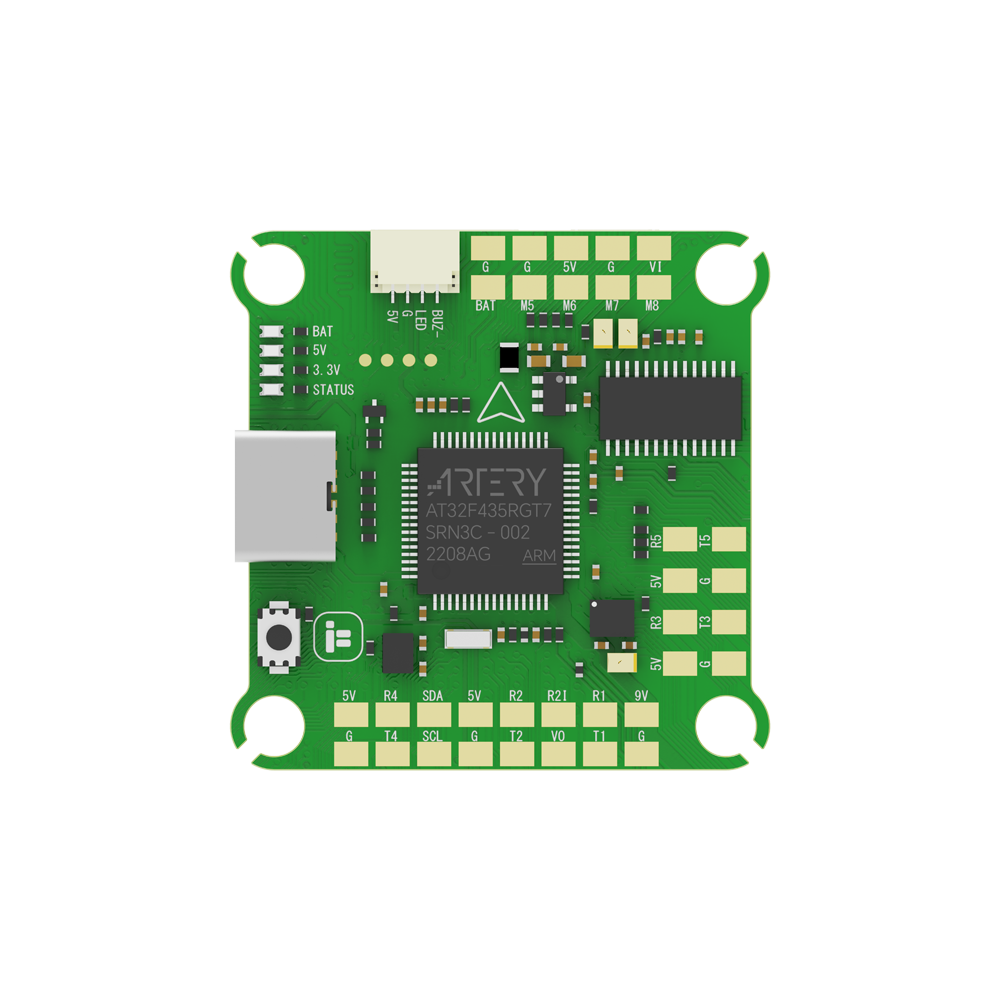

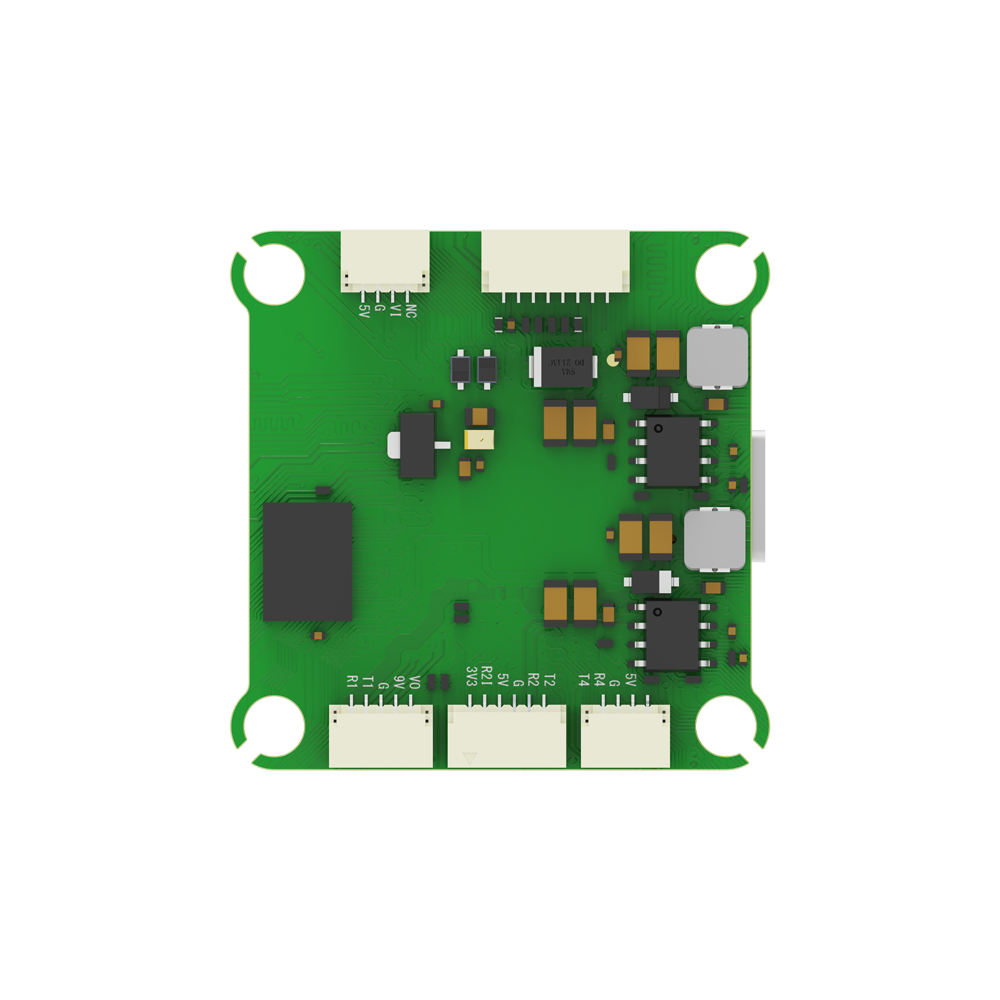

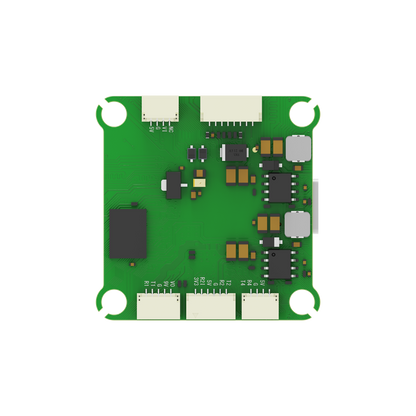

Meet the BLITZ ATF435 Flight Controller—the silicon savant your FPV drone has been begging for. With specs to die for and the kind of performance that makes other flight controllers look like they're still in flight school, your drone's performance is about to go stratospheric!
Ready to say goodbye to mid-air meltdowns and hello to aerobatic prowess? Here's why the BLITZ ATF435 is your dream flight controller:
💡 Features
Cutting-Edge MCU
- MCU: AT32F435CGU7
- Your drone deserves a brain that's as quick and efficient as yours—maybe even quicker (no offense).
Sensational Gyro
- Gyro: BMI270
- Say goodbye to jittery flights! Our gyro ensures your drone knows its backflips from its barrel rolls.
Atmospheric Barometer
- Barometer: DPS310
- Altitude schmaltitude. This barometer measures atmospheric pressure like a pro.
Crystal Clear OSD
- OSD Chip: AT7456E
- The kind of on-screen display that makes you wonder how you ever flew without it.
Expandable Storage
- Flash: 32MB Blackbox flash
- For the drone historians who want to record every millisecond of flight.
Connect Everything!
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Your choice of UARTs is no longer a game of musical chairs.
And so much more...
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFLIGHT_BLITZ_ATF435
- Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
- Dimensions: 36.5*35 mm
- Weight: 7.8g
- BEC: 5V 2.5A / 9V 2A
📦 Packing List
- 1 x BLITZ ATF435 Flight Controller
