Product Details

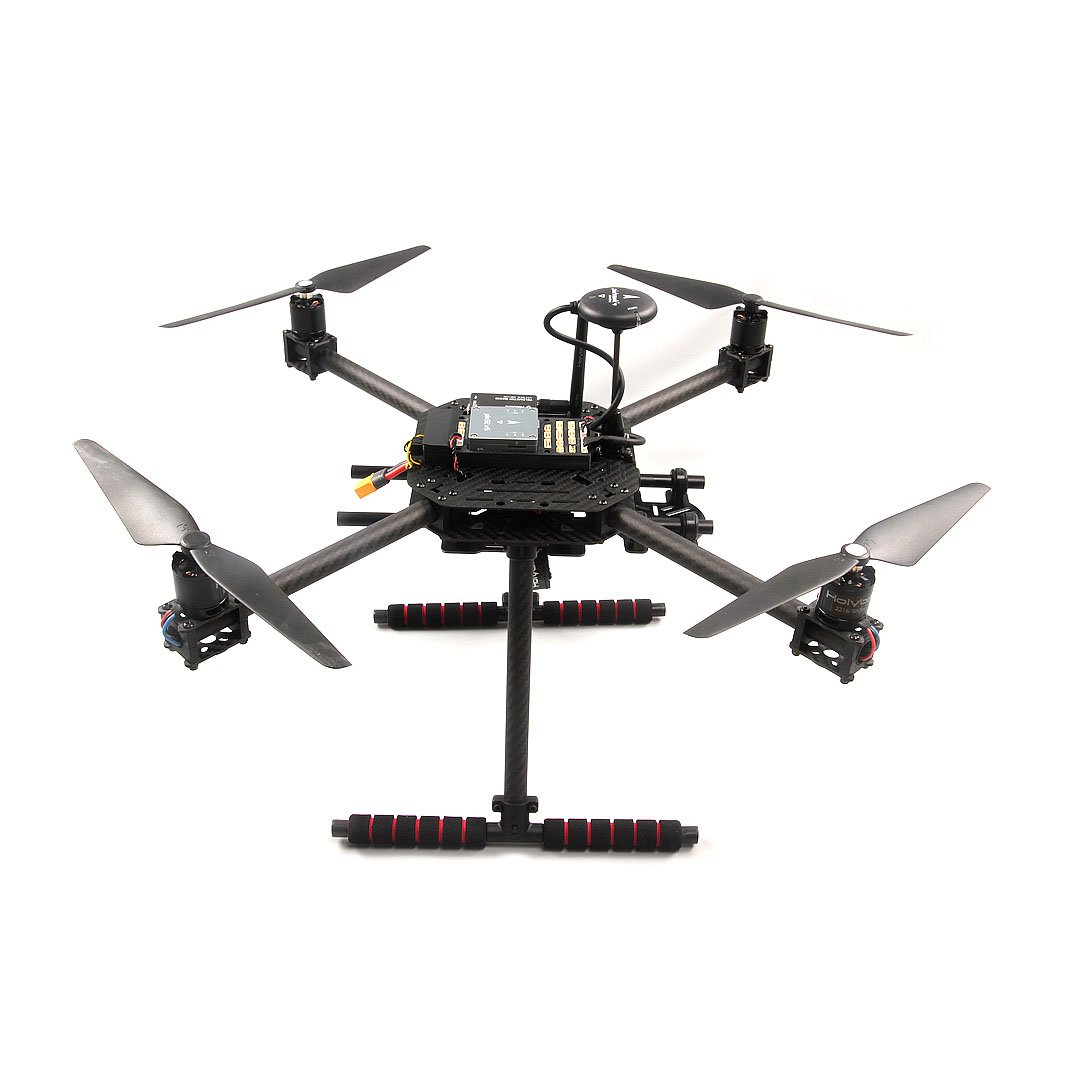

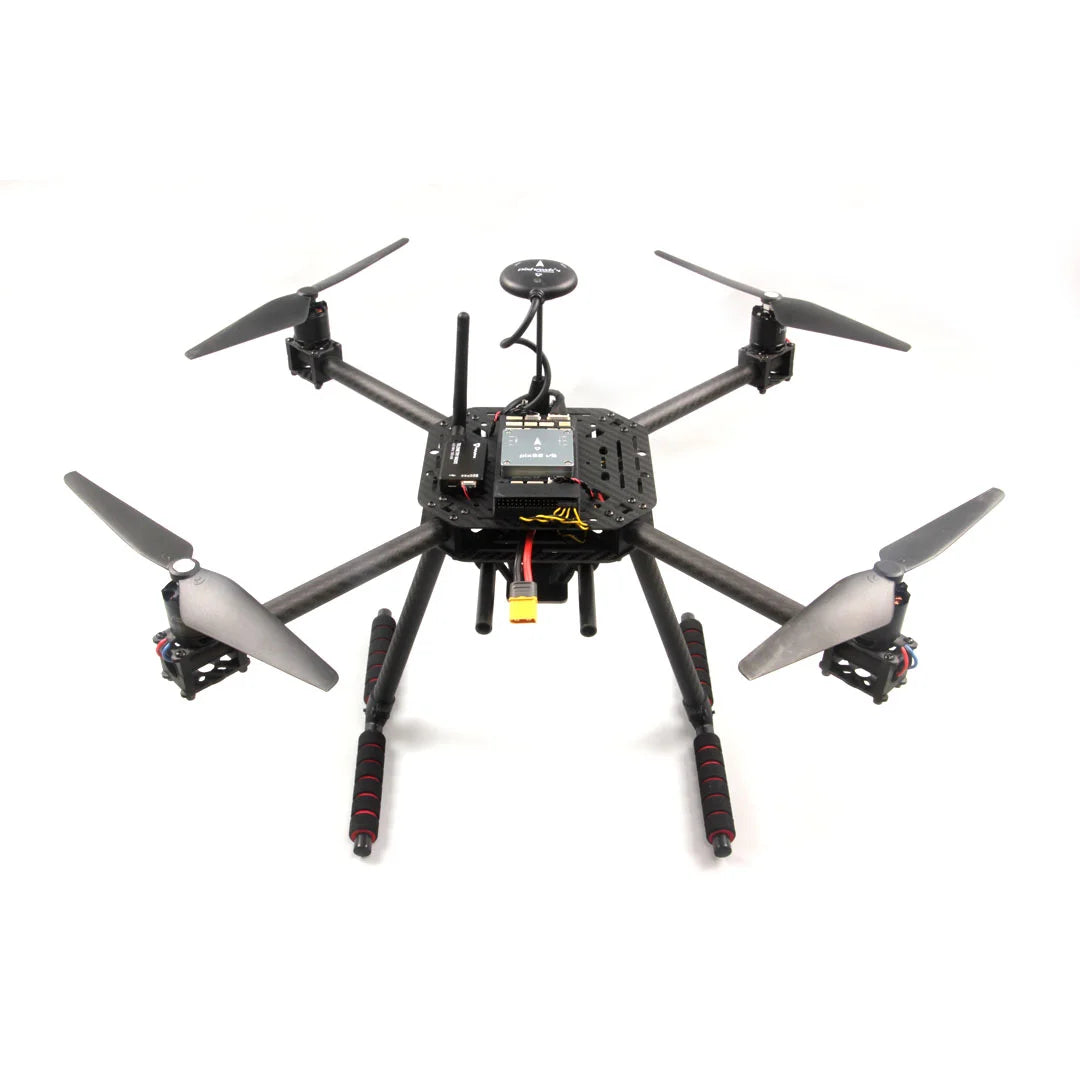

The X500 hacker drone kit consists of all the hardware for your own drone platform built around the Pix32 V5 autopilot. The 2mm thick carbon fiber bottom plate supports a number peripherals along with a 30.5 mm or 45 mm mounting holes. Included are also a 433Mhz telemetry kit, 2216 motors and props. Just add your own lipo, and R/C controller.
The kit is easy to assemble with No soldering needed.
Resources

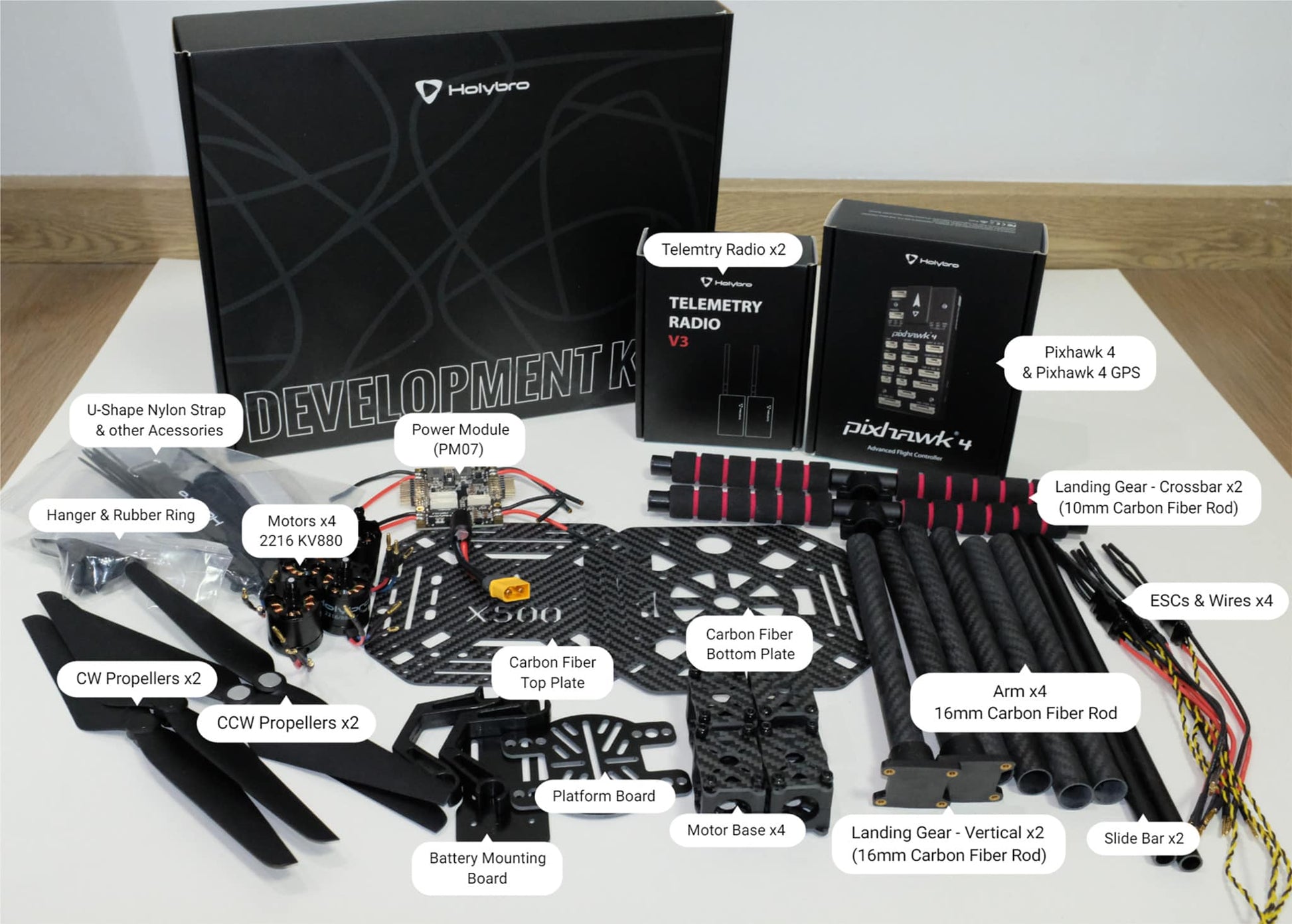

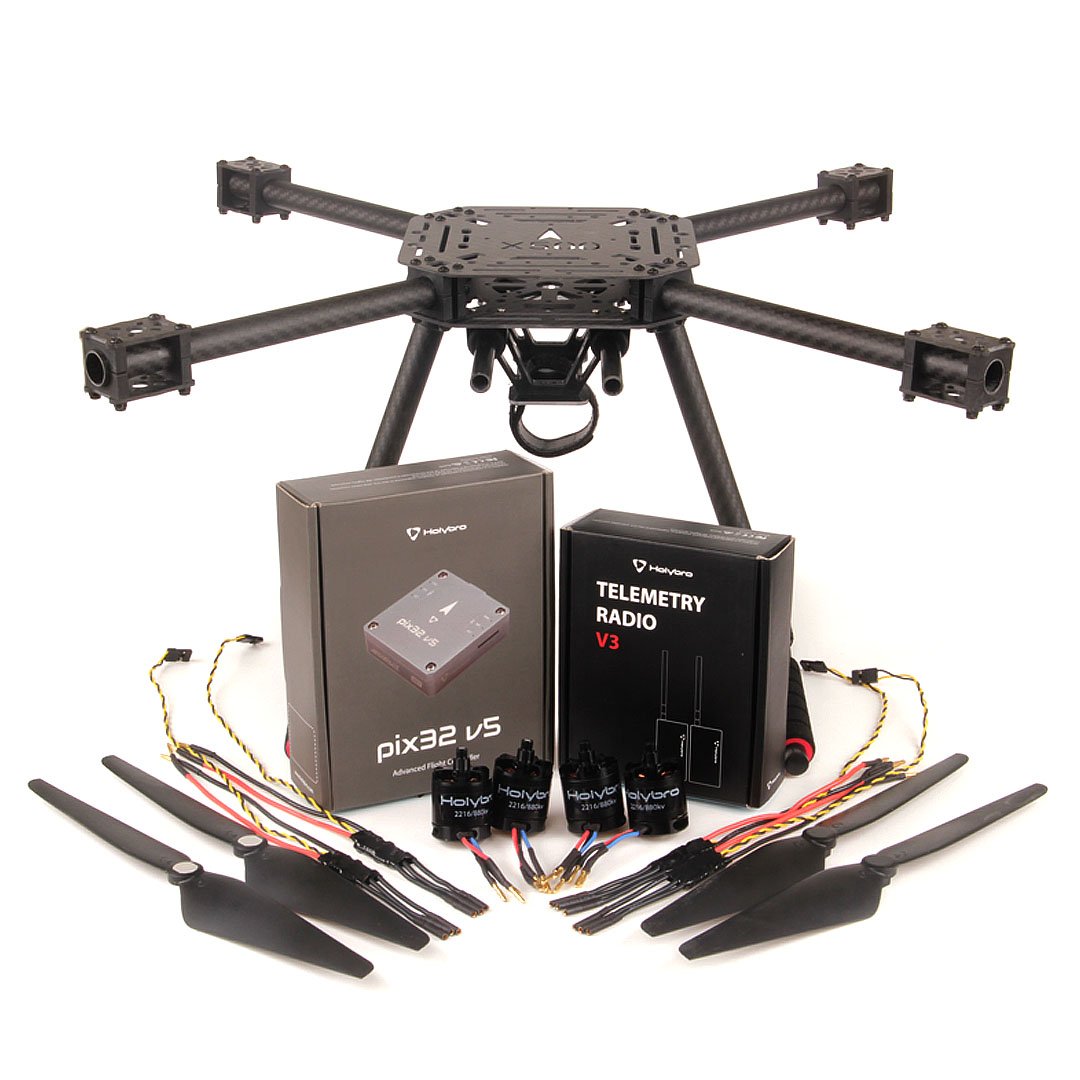

Included
- X500 Drone Frame

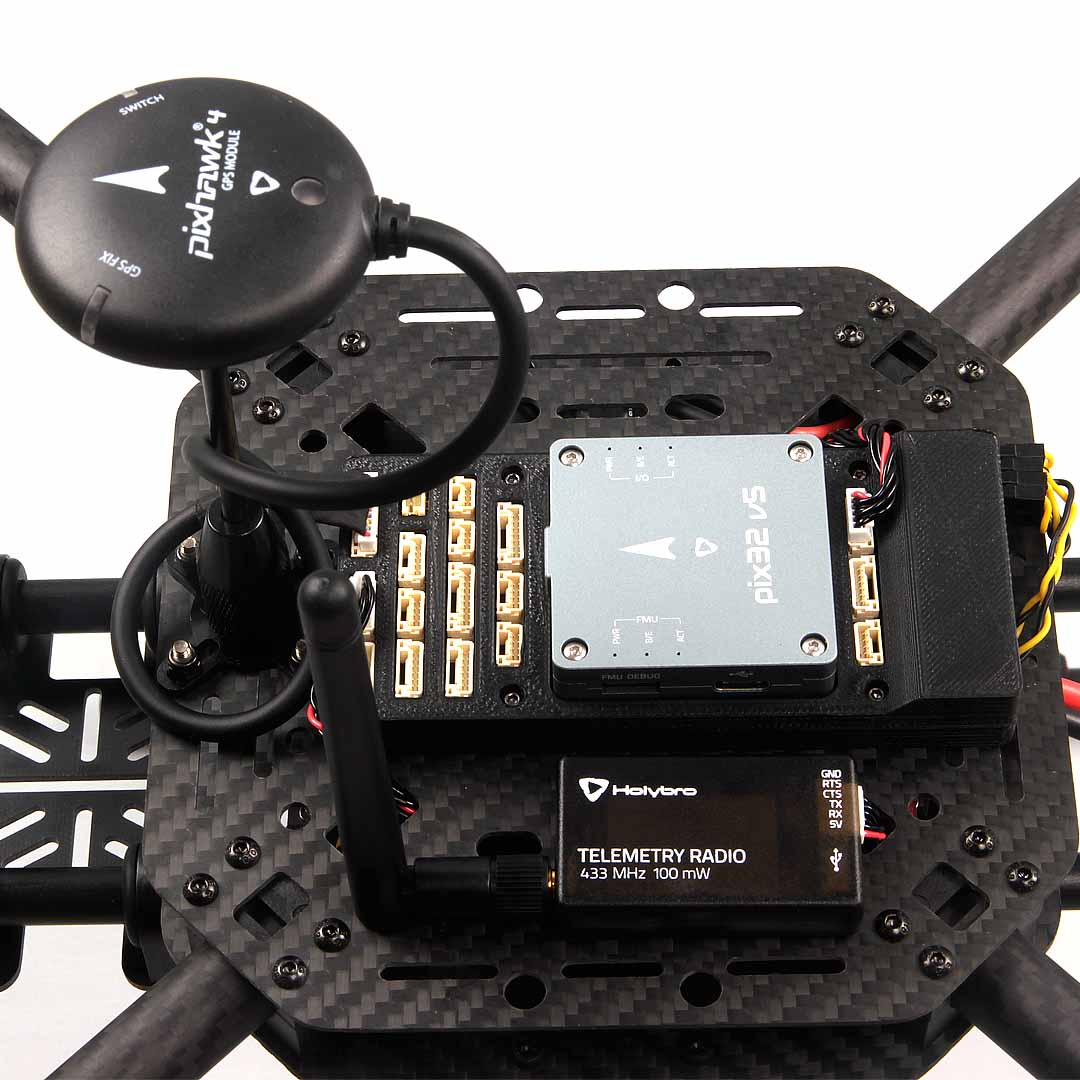

- Pix32 V5 ardupilot
- Pix32 v5-Base board (3D Print case)
- Power Management PM06
- Pixhawk4 GPS
- 4x 2216 880kV motors
- 4x 1045 propellers
- 4x 20A Blheli_S ESC
- 433MHz Telemetry Radio / 915MHz Telemetry Radio
- Power and Radio Cables
- Battery Straps
- Dimensions:410*410*300mm
- Wheelbase:500mm
- Weight:1028g
What you need
We have included optional extras to this product page should you want to buy it as a full drone kit, otherwise this is what you still need.
- Flight battery (3000-5000mAh 4S Lipo)
- R/C Controller
