Product Details
Features
- New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM output up to 96K (default 48K)
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Specification
- Continuous Current: 50A x4
- Burst Current: 60A x4
- Supports 4-6S battery
- Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- No output BEC
- BLHeli_32 firmware

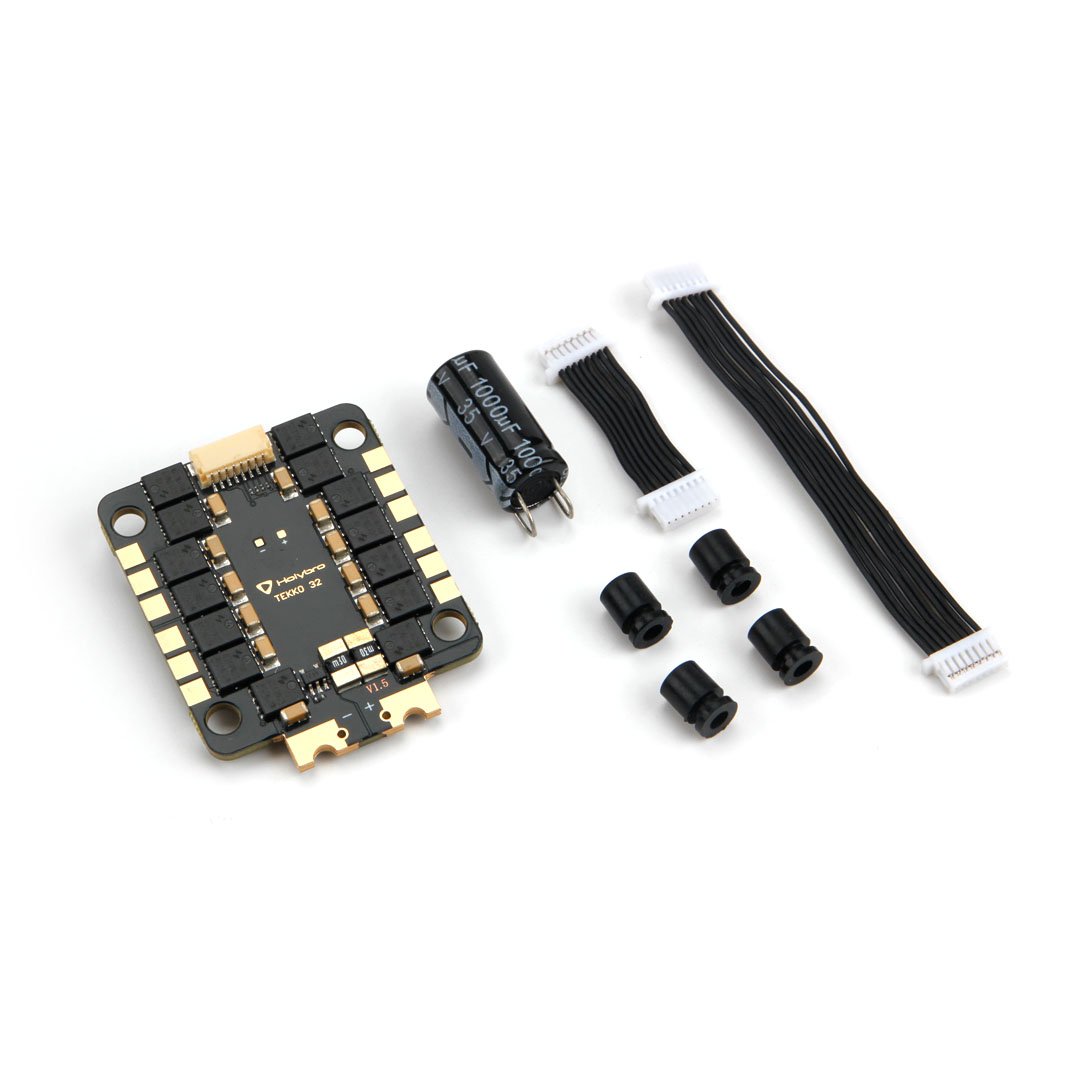

- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Amperage meter scale ratio: 168

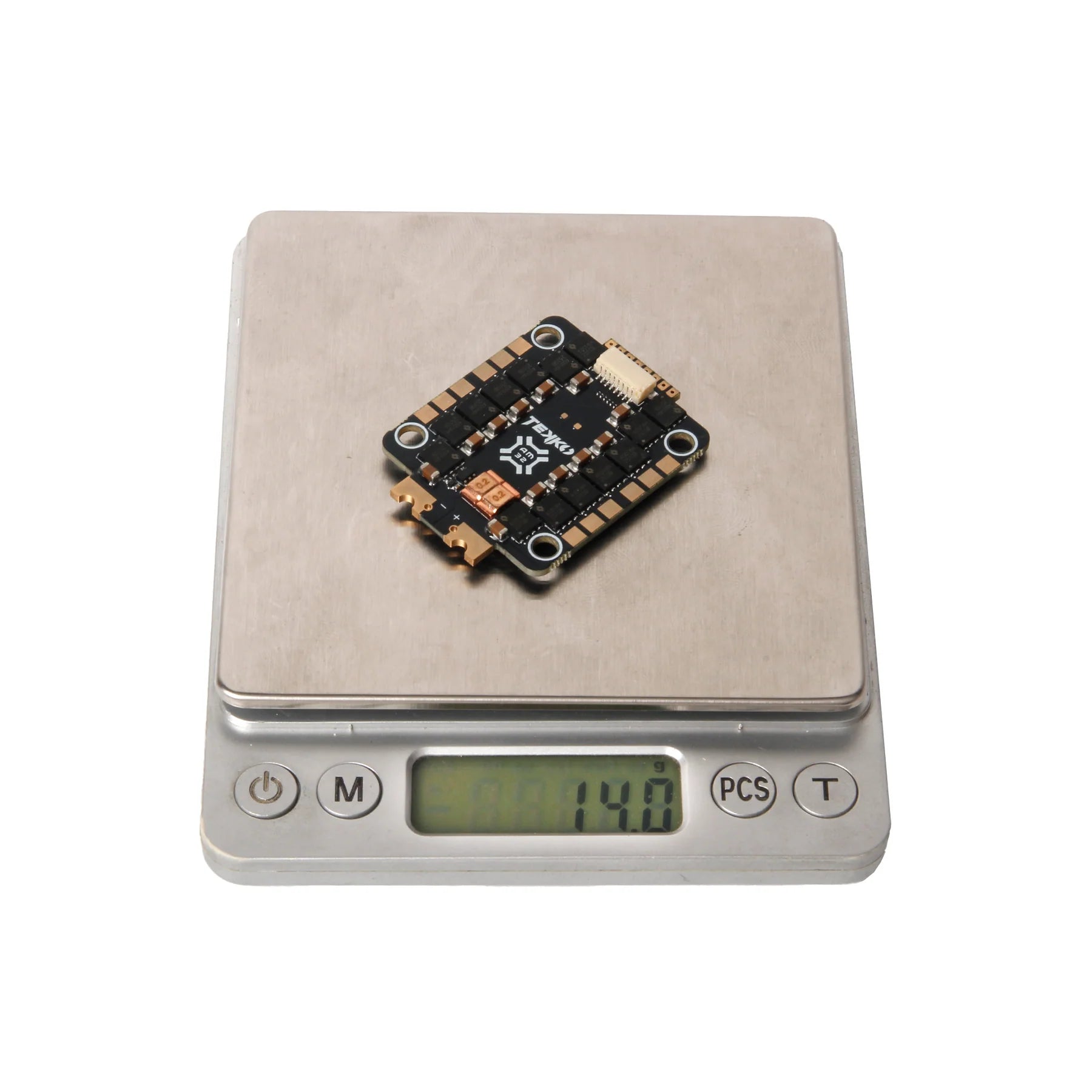

- Dimensions: 45x37x6mm / Weight: 13.8g
- Mounting holes: M4 30.5x30.5mm (M3 grommets included)

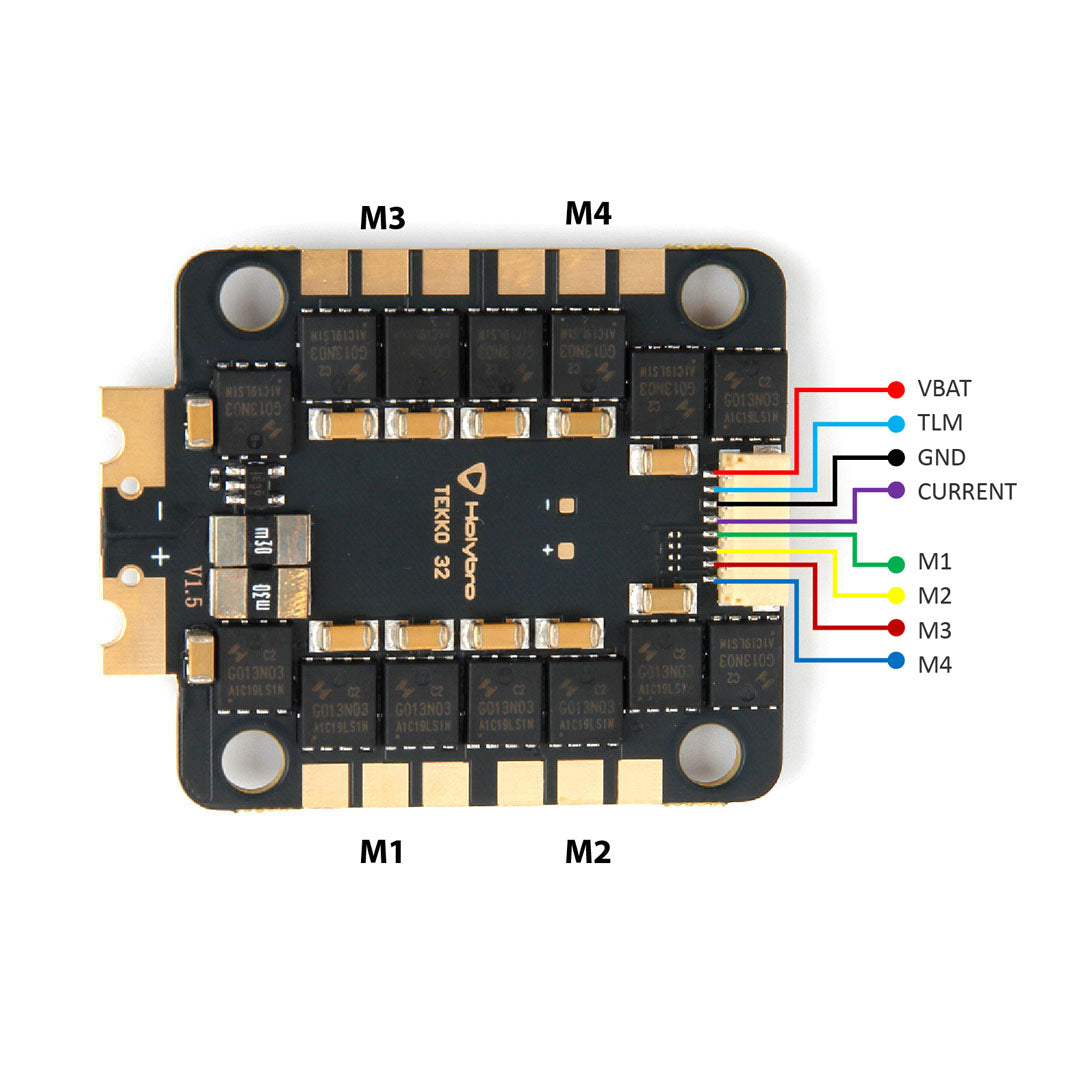

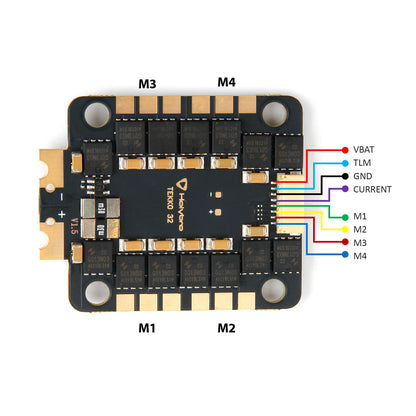

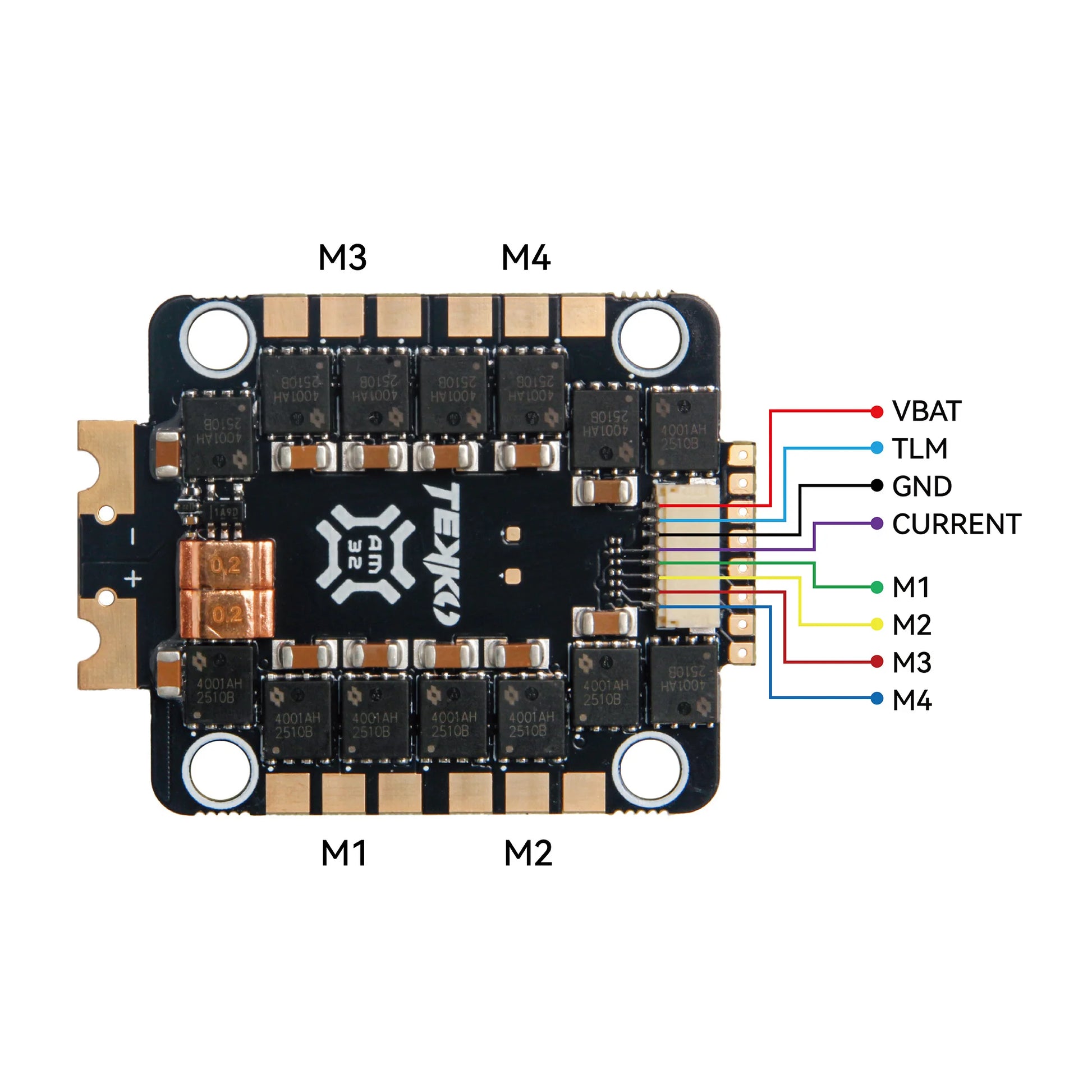

Pinout Diagram
