Holybro S500 V2 Quadcopter Frame Kit

Tired of burning through flimsy custom frames while trying to build a stable development rig? The Holybro S500 V2 ARF Drone Kit brings 10 years of UK flight-bench experience straight to your workshop. This 480mm wheelbase platform skips the soldering hassle with an integrated power distribution board and single-hex hardware. Purpose-built for Pixhawk flight controllers and payload testing, it offers standard 1045 props, 2216 KV920 motors, and carbon-fiber reinforced composite arms that can handle a soggy UK field landing without snapping.

Highlights

• Solder-Free Assembly: Pre-threaded frame sleeves and an integrated bottom plate PDB mean you only need one hex key to build the whole rig.
• Reinforced V2 Drivetrain: Equipped with updated 2216 KV920 motors and BLHeli_S 20A ESCs driving durable 1045 propellers.
• Carbon Composite Construction: High-strength polyamide-nylon arms with central carbon fiber rods prevent mid-air flex under heavy loads.
• Payload Ready Landing Gear: Thickened 16mm/10mm carbon fiber legs provide clearance for gimbals, mapping sensors, and up to 1.5kg payloads.
• Pixhawk Native Compatibility: Mounting points designed specifically for Holybro Pixhawk 6C, Pix32 v6, and standard stack architectures.

Why You Want It

If you are building an autonomous development platform, you need a high-clearance, 480mm workhorse that will not take four hours of bench time to re-arm. The S500 V2 delivers clean power routing via its built-in 60A continuous PDB, balanced battery placement, and 18-minute hover times on standard 4S packs. It is simple, rugged, and engineered for actual field testing rather than delicate shelf displays.

Specs

• Wheelbase: 480mm
• Frame Weight: 782g (ARF Kit)
• Dimensions: 383 x 385 x 240mm
• Frame Material: Polyamide-Nylon composite with carbon fiber reinforcement

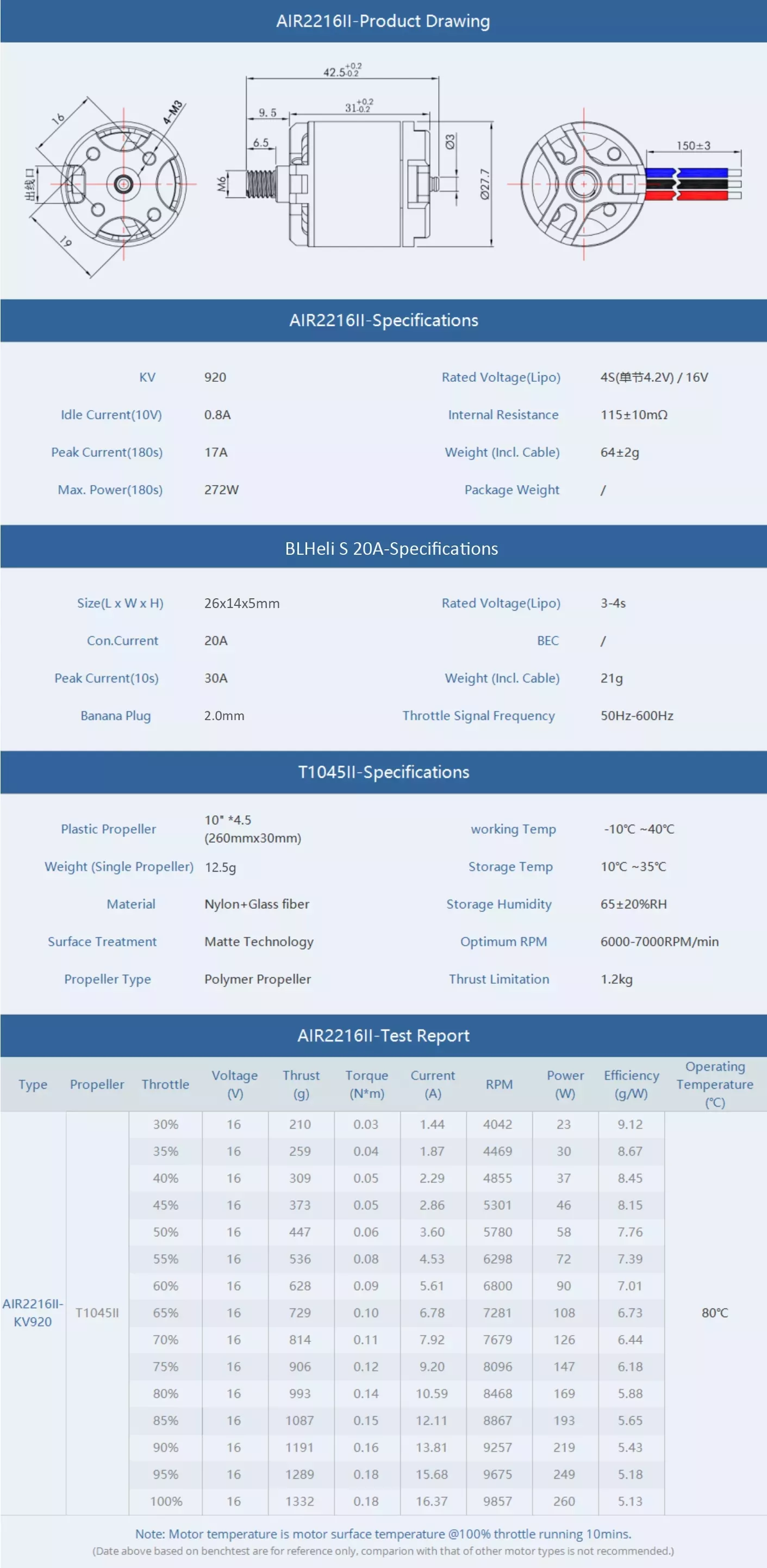

• Motors: 2216 KV920 (V2 Update)
• ESCs: BLHeli_S 20A
• Power Distribution Board: Built-in (60A Continuous, 100A Burst)
• Propellers: 1045 (V2 Update)
• Maximum Payload: 1500g (without battery, at 70% throttle)
• Hover Time: ~18 minutes (tested with 5000mAh 4S pack, zero extra payload)
• Recommended Battery: 4S 3000-5000mAh 20C+ LiPo with XT60
• SKU: 30062
• Product Type: Development Drone Kit

FAQ

What extra hardware is required to get flying?

You will need a flight controller (such as a Pixhawk 6C or Pix32), a GPS module, a 4S 3000-5000mAh LiPo battery with XT60 connector, and an RC transmitter/receiver setup.

Do I need to solder the ESCs and power lines?

No, the Holybro S500 V2 features an integrated PDB bottom plate with pre-wired connections designed for solderless, modular assembly.

In the Box

• 1x Holybro S500 V2 Frame with Carbon-Reinforced Arms
• 4x 2216 KV920 Motors
• 4x BLHeli_S 20A ESCs
• 4x 1045 Propellers (CW & CCW Pair Sets)
• 1x Integrated Power Distribution Bottom Plate
• 1x Carbon Fiber Landing Gear Assembly
• 2x Battery Straps
• 1x Complete Hardware Fastener Set

#Holybro #S500V2 #DevelopmentDrone #Pixhawk #QuadcopterKit
