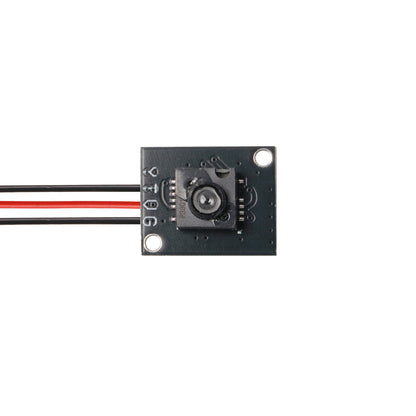

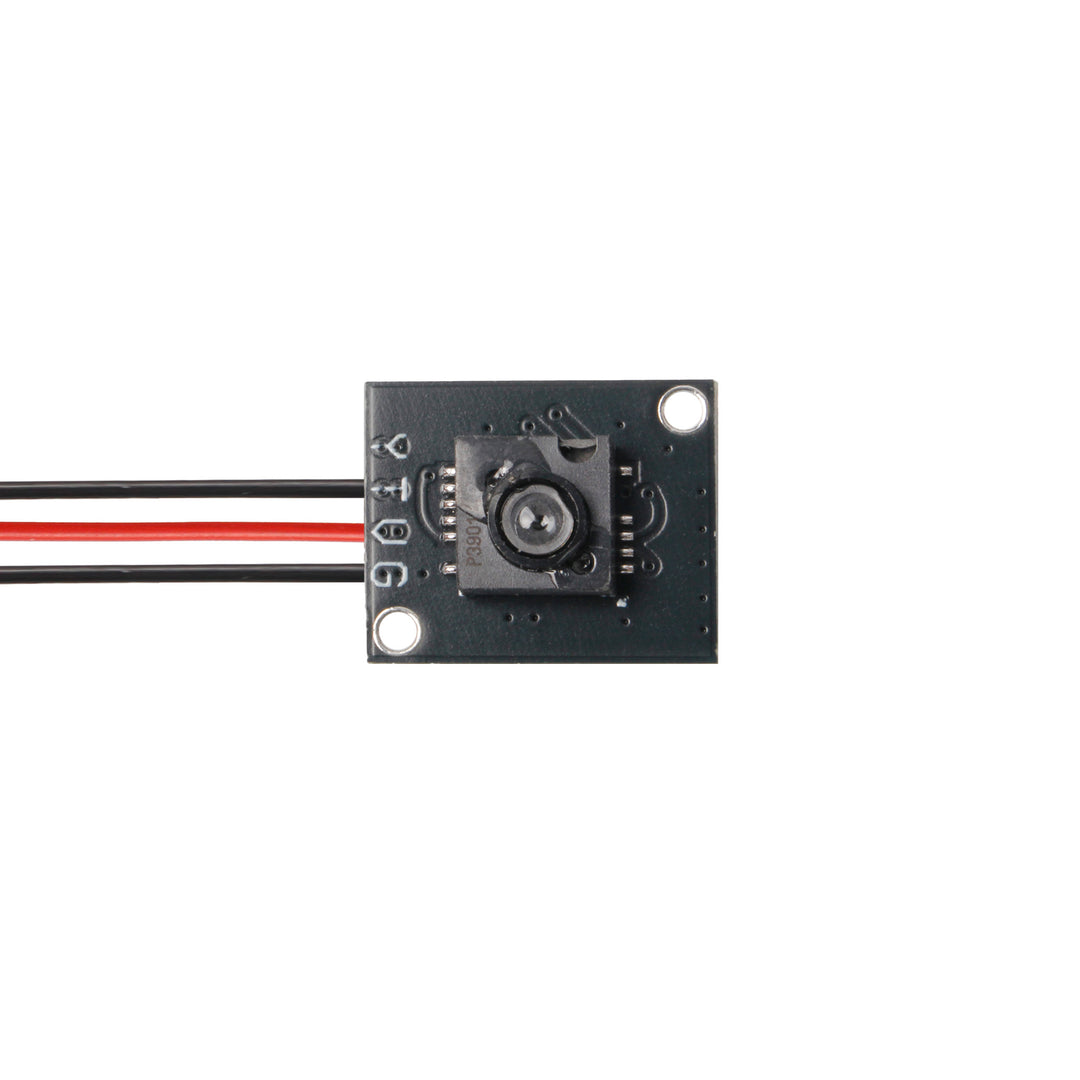

Holybro PMW3901

Look, we get it. You tried to fly your fancy drone inside your living room and immediately decorated your wallpaper with prop marks. GPS doesn't work through concrete, and unless you have the reflexes of a caffeinated ninja, you need help. Enter the Holybro PMW3901 Optical Flow Sensor—the little eye that tells your flight controller, "Hey, we're moving left, maybe stop that." It's essentially an optical mouse for the sky, but with fewer RGB lights and more utility.

Why You Want It

This isn't just a sensor; it's an insurance policy against your own lack of skill. By tracking ground patterns, it keeps your quad locked in place even when the satellites are hiding. This is the UART version, meaning we've skipped the SPI wiring headaches and included a built-in BEC. It’s basically the "Easy Mode" button for indoor flight and low-altitude precision. If you want to hover in a warehouse without sweating through your shirt, this is it.

Specs

• Dimension: 14x11x5mm
• Weight: 0.6g
• Interface: UART
• Baud rate: 19200
• FPS: 95hz
• Power: 3.3~5.2V
• Current: 10mA


PMW3901-Based Flow Sensors | PX4 Guide (main)

In the Box

• 1x PMW3901
• 1x GH6P 170mm Cable(installed)

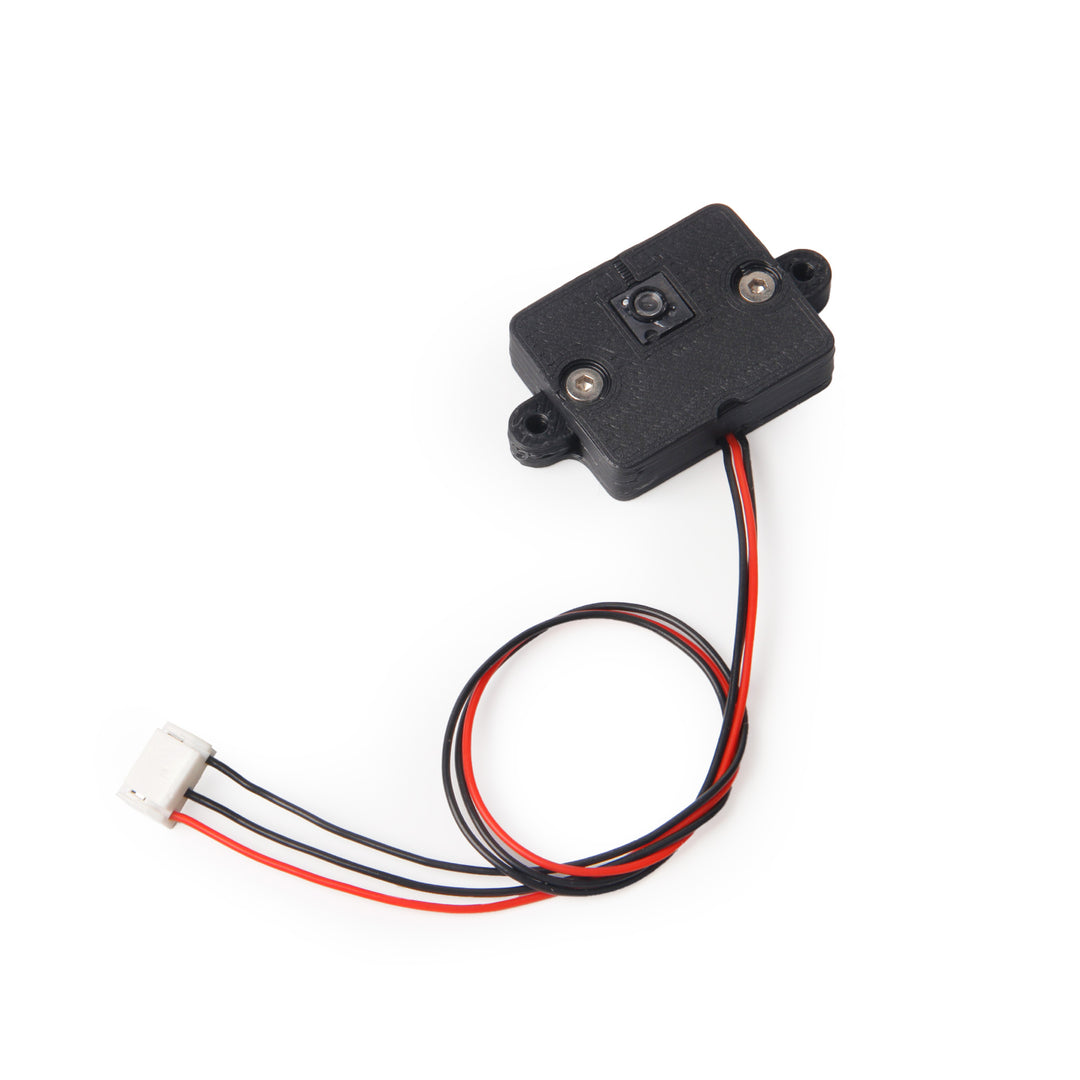

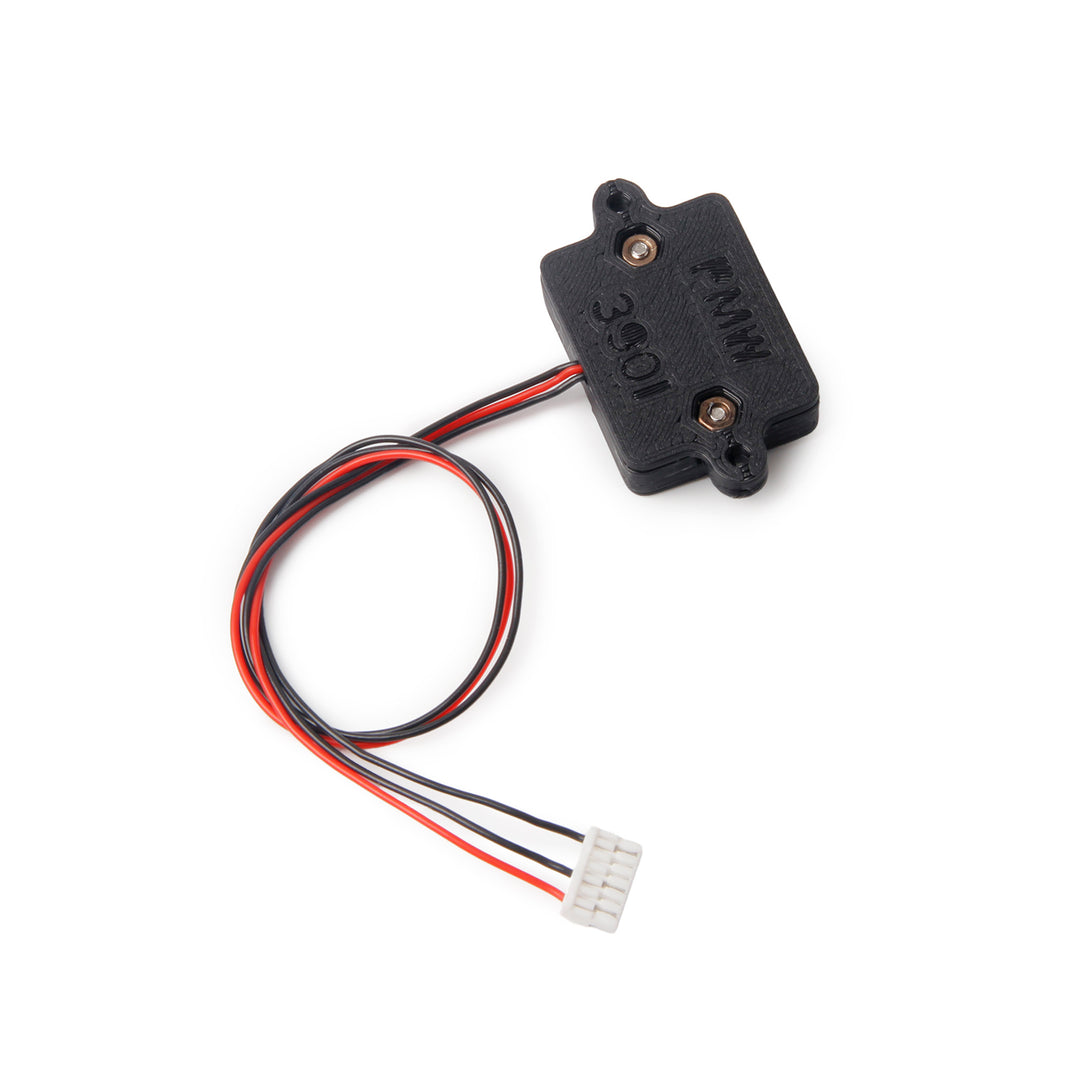

• 1x TPU Protective Case Shell


Compatibility

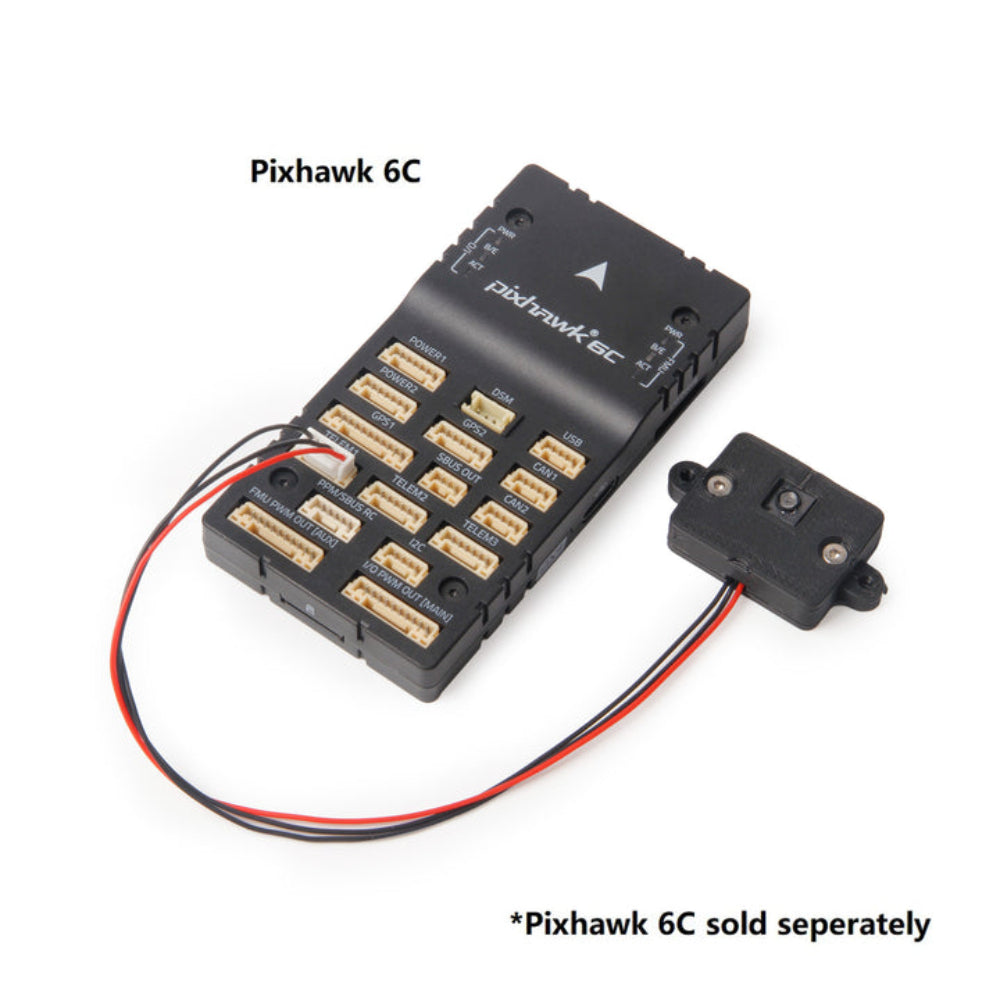

Designed for any flight controller with a spare TELEM port running Ardupilot or PX4. If you're trying to use this on a toaster, please film it and send us the link.

Highlights

• Plug & Play: Pre-soldered JST GH connector for the soldering-iron-averse.
• Weightless: It's so light your drone won't even know it's there. You'll know, though, because it won't be crashing.
• Indoor Champ: Perfect for when you need to fly where the satellites don't shine.

Notes

Requires a surface with texture. Flying over a pure white floor, a mirror, or the void of your own soul will result in a very confused drone. Avoid pitch black; it needs light to see, just like you.

Disclaimer

Will not fix bad PID tuning or poor life choices. Requires visible light to function. Don't be a hero.

Still Here?

You’re actually still reading about optical flow sensors? You must be a hit at parties. Stop procrastinating, buy the sensor, plug it into your TELEM port, and stop looking at the pixels. Your Ardupilot build isn't going to hover itself. #Holybro #OpticalFlow #DroneTech #Ardupilot #PX4
