Product Details

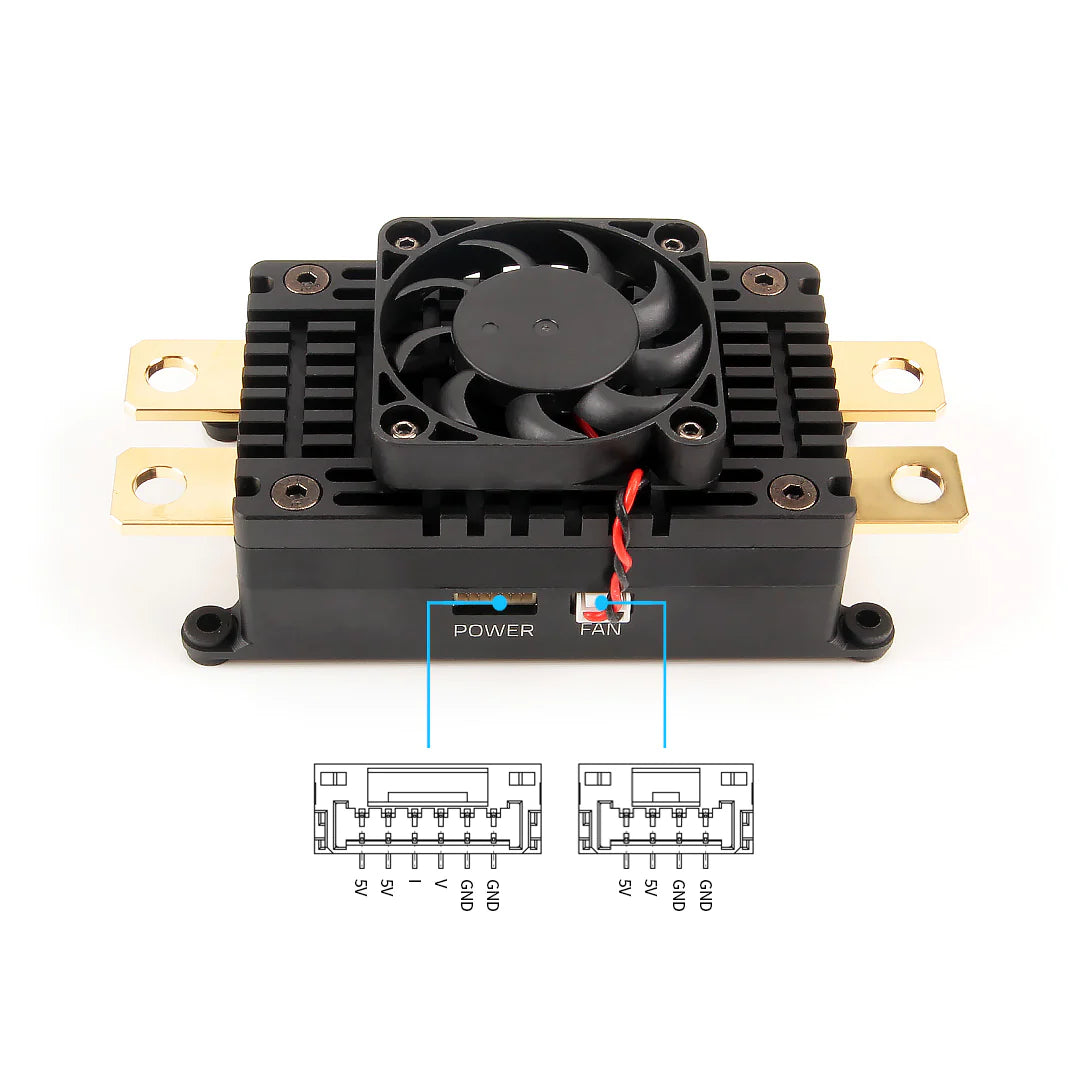

The PM08 Analog Power Module isn't just a regular power module; it's a knight in shining aluminium, here to escort your flight controller through the tempest of high power demands, all while keeping a cool exterior. This gallant module graciously offers a regulated 5.2V to the flight controller from the battery, as well as current consumption and battery voltage measurements via a melodious analog signal through a 6 Pin JST-GH cable to the Autopilot. Quite the courteous companion, isn't it?

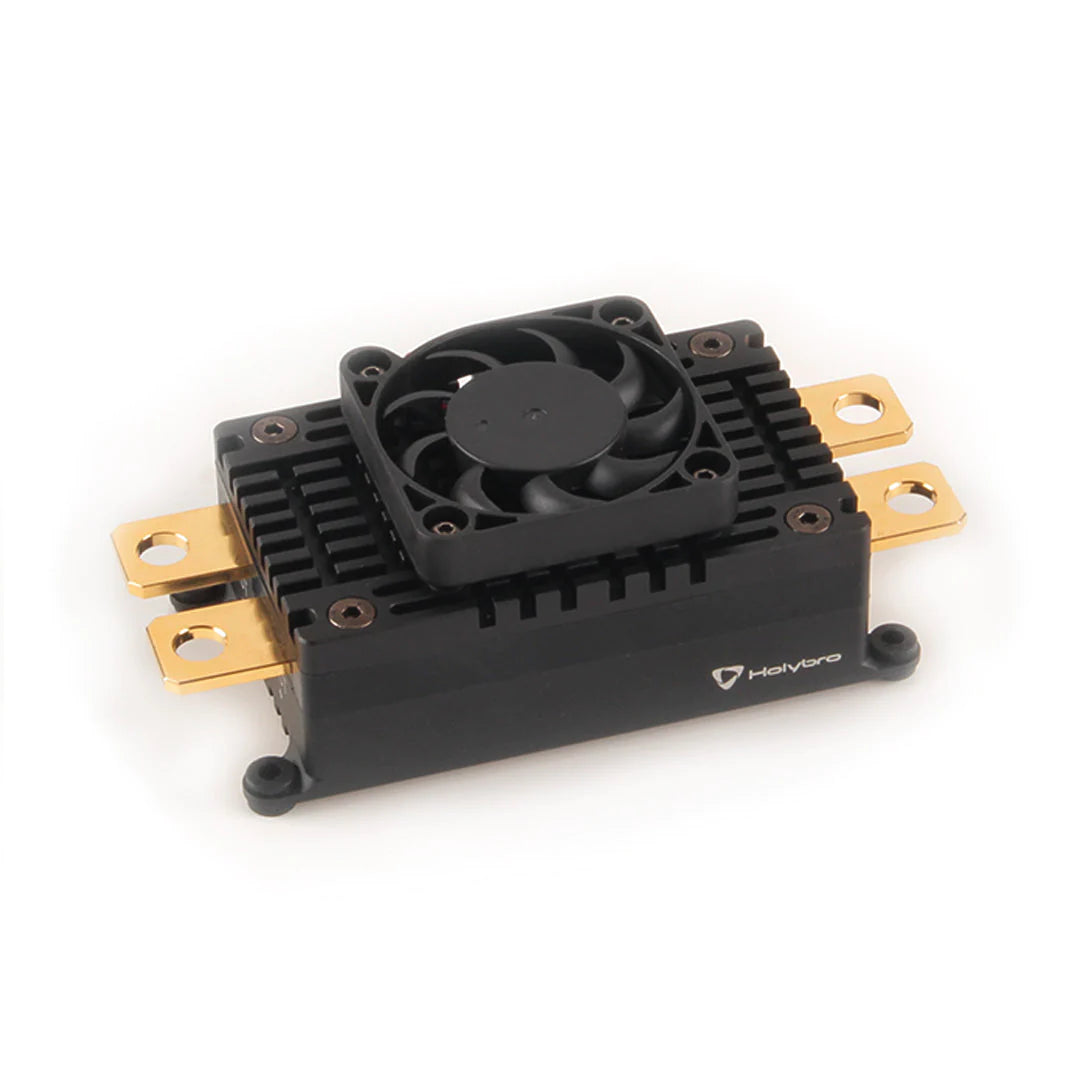

Now, let's address the elephant in the room or rather, the aluminium in the skies. Encased in a sleek aluminium heat sink case, with a fan that's ready to battle the fiery dragons (read: heat) that threaten your flight's realm. The PM08 doesn't just sit pretty; it actively dissipates the heat generated during operation, ensuring durability and optimal performance. When the going gets tough, the PM08 gets tougher!
Please Note:
- This analog power module is not compatible with Pixhawk 5X/6X. Please use digital power module PM08D that end with a "D" for the 5X/6X series Pixhawk boards.
- Wire & connector sold separately
Key Features
- Supports a royal entourage of 2S - 14S Batteries
- Boasts a robust 200A Continuous Current Rating
- Easy to set up, because nobody has time for a power struggle
- The aluminium case is your knight's shining armor against heat
Specifications
- Input Voltage: 2S-14S (Quite the voltage virtuoso!)
- PCB Continuous Current Rating: 200A
- PCB Burst Current Rating: 1000A (<1 Sec @25C)
- Max Current Sensing: 237.6A
- Output: DC 5.1-5.3V & 3A Max
- Voltage Divider: 18.182
- Amperes per Volt: 72

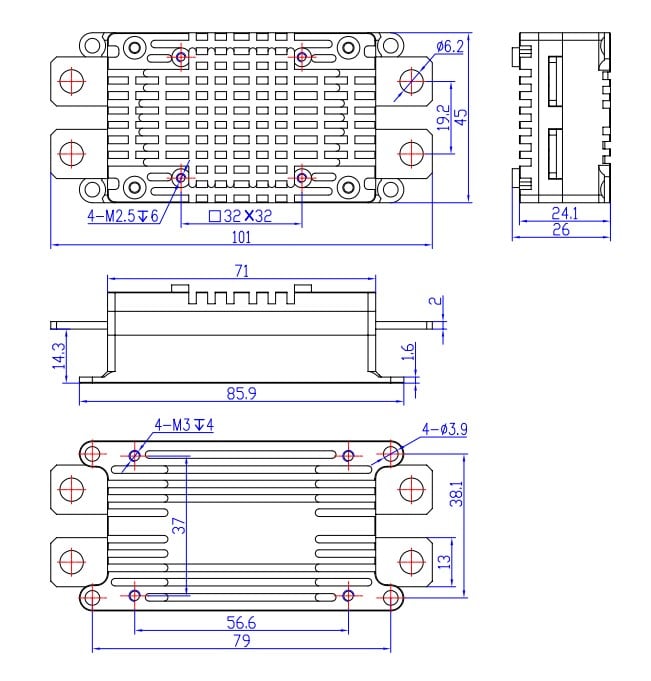

- Dimensions: 101 45 26mm (Compact yet potent)
- Mounting hole: 79mm*38.1mm

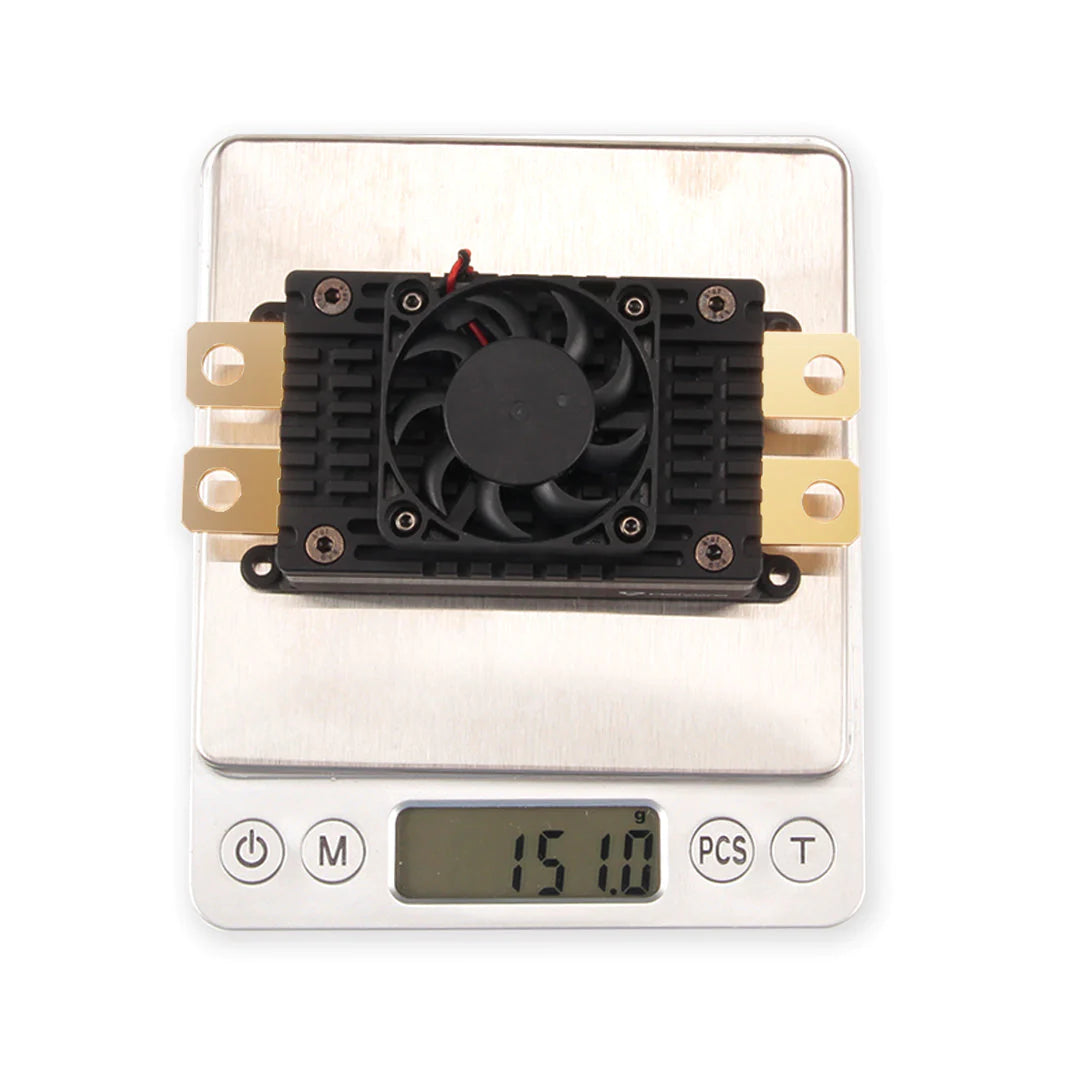

- Weight: 151g (A lightweight heavyweight!)

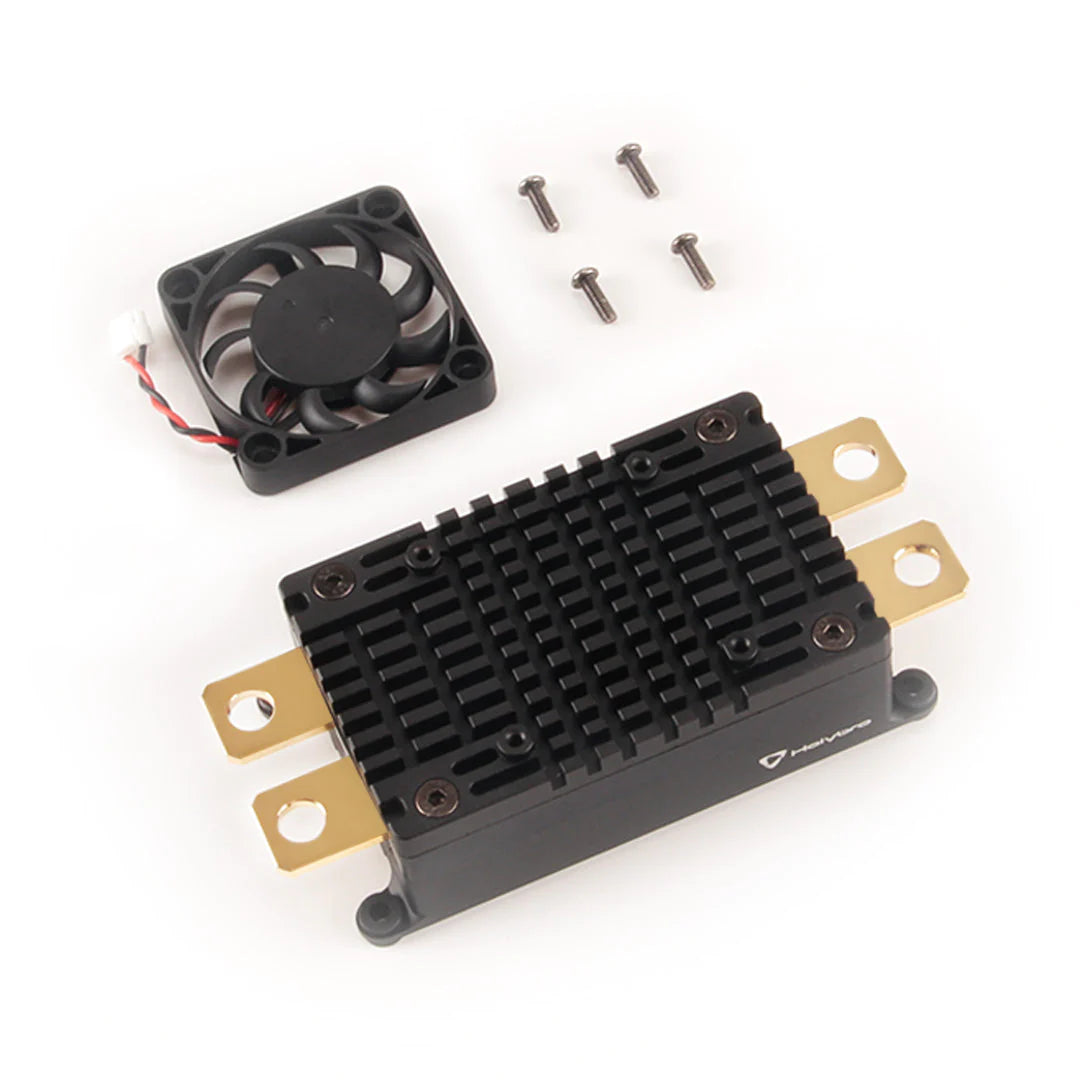

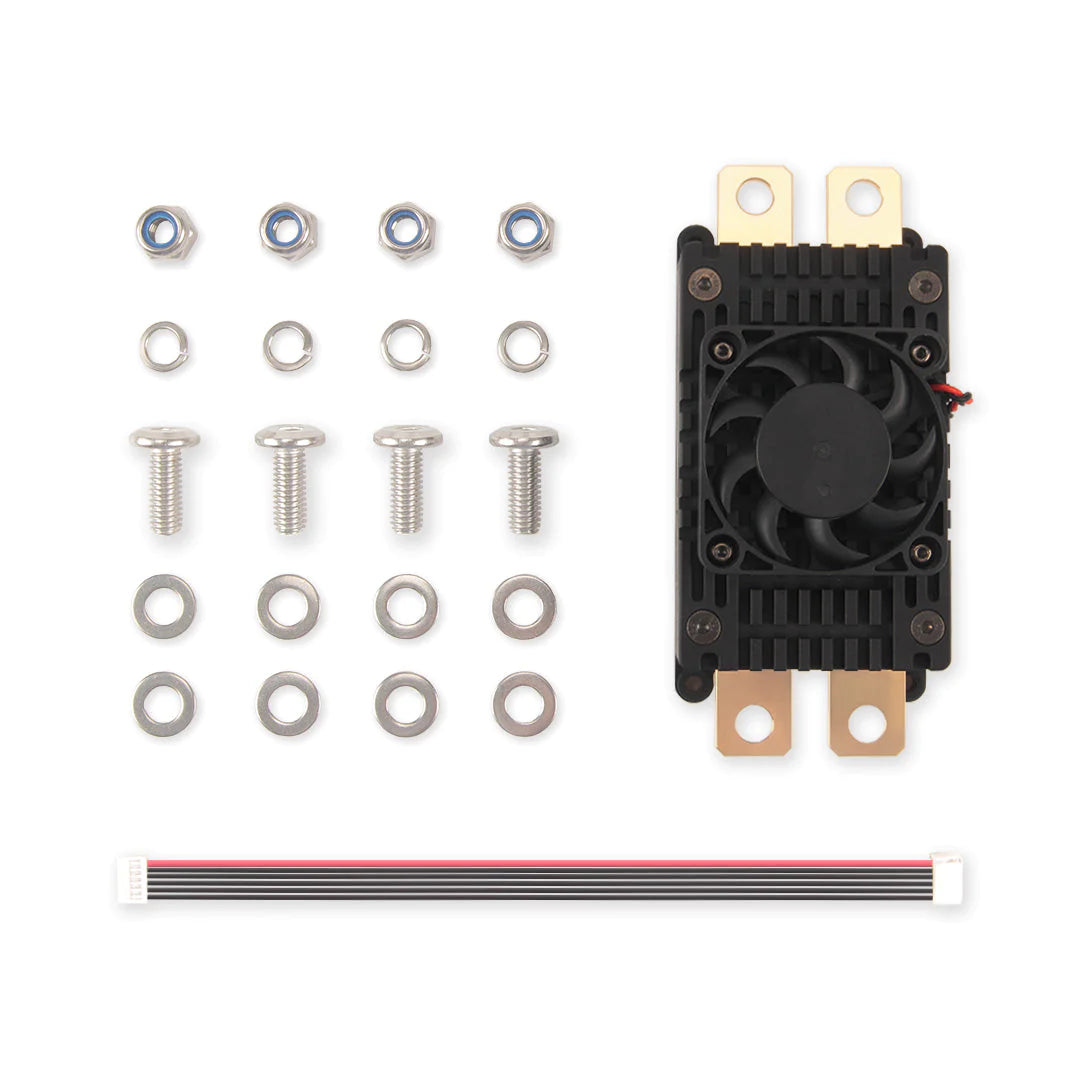

Package Includes
- 1x PM08 Power Module
- 1x 40x40mm Fan
- 1x JST GH 6 Position Connector 15 cm
- 4x Sets of Screws, Washers, and Nuts
Let the PM08 Analog Power Module take the reins of your flight controller, and ascend into a realm where power meets poise, and every flight is a knightly tale of aerial conquest!
