Product Details
Get ready to power up your skies with the PM02 Power Module! Say goodbye to complicated power supply and current measurement systems and hello to a simple, pre-soldered solution.
Key Highlights:
- Easy and efficient power supply: The PM02 provides regulated 5.2V power supply from your battery with current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable.
- High Current Handling: With a PCB continuous current rating of 60A and burst current rating of 100A (<60 Sec), the PM02 is capable of handling high current loads.

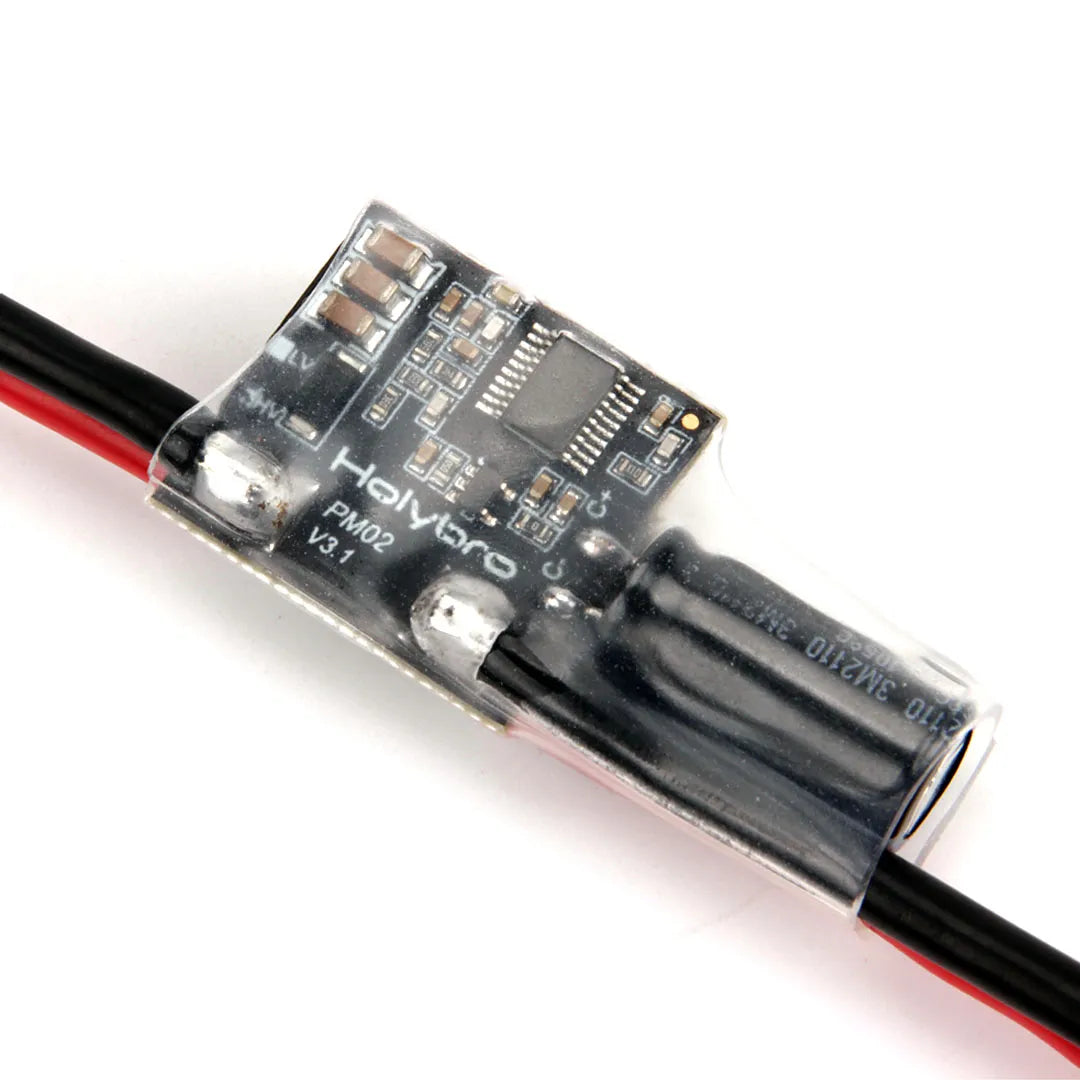

- Compact and lightweight: The PM02 weighs just 20g and comes with shrink tubing on the PCBA for physical protection, making it an ideal solution for drones and UAVs of all sizes.
So, if you're looking for a hassle-free power solution, the PM02 Power Module is the answer!
Specifications
- Input Voltage: 2S-12S
- PCB Cont. Current Rating: 60A
- PCB Burst Current Rating: 100A (<60 Sec)
- Max Current Sensing: 120A
- Output: DC 5.2V & 3A Max
- Voltage Divider: 18.182
- Amperes per Volt: 36.364
- Weight: 20g
Current Rating

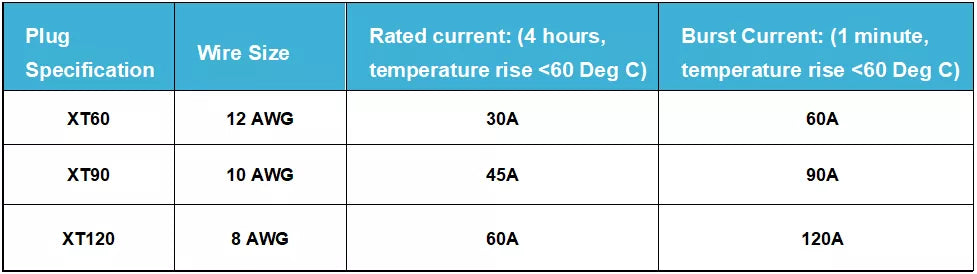

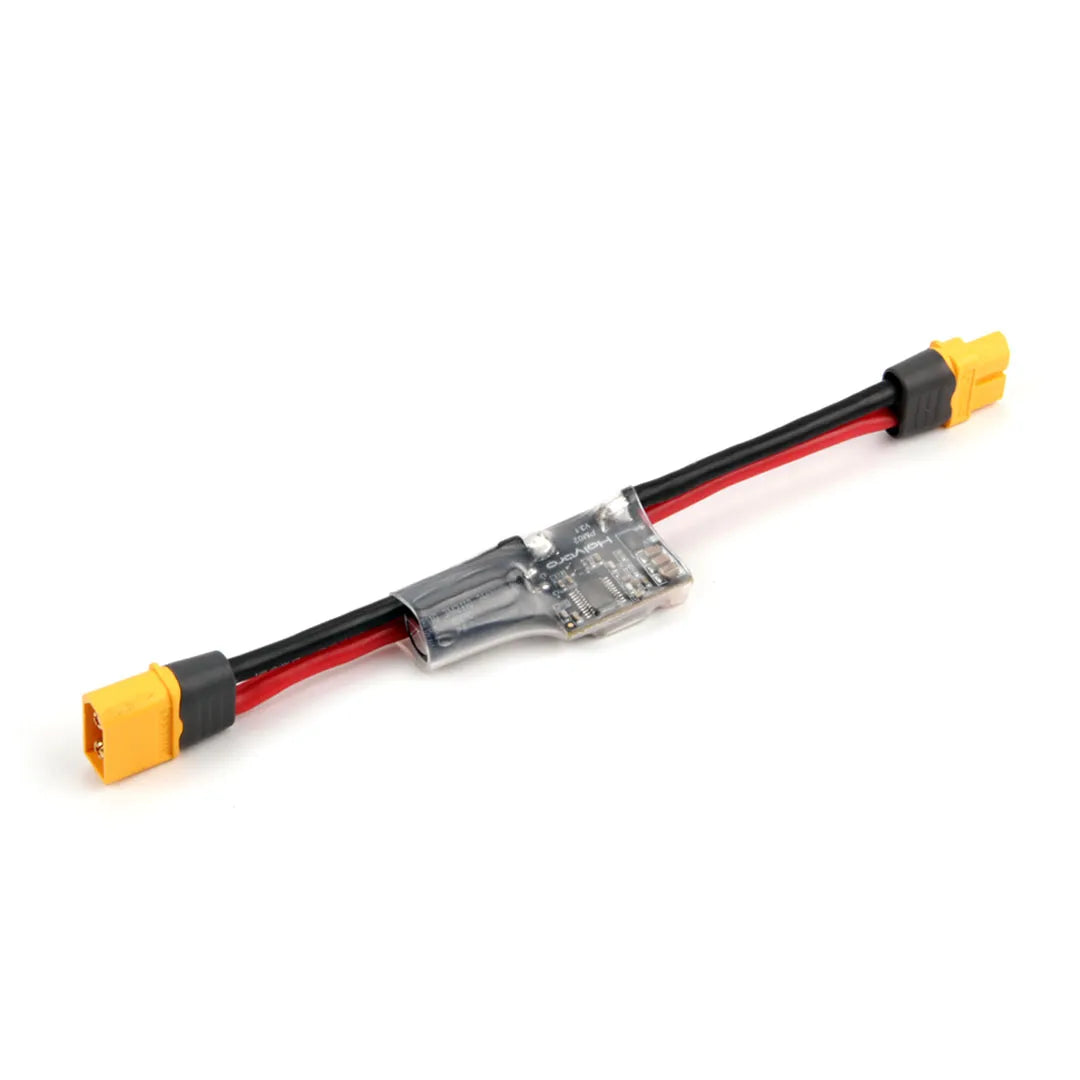

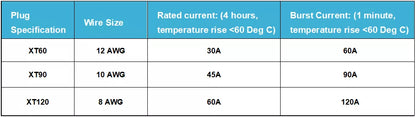

The PM02 V3 comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current (<1 minute). If a higher current is needed, the plug type and wire size should be changed accordingly. The specifications and models are as follow

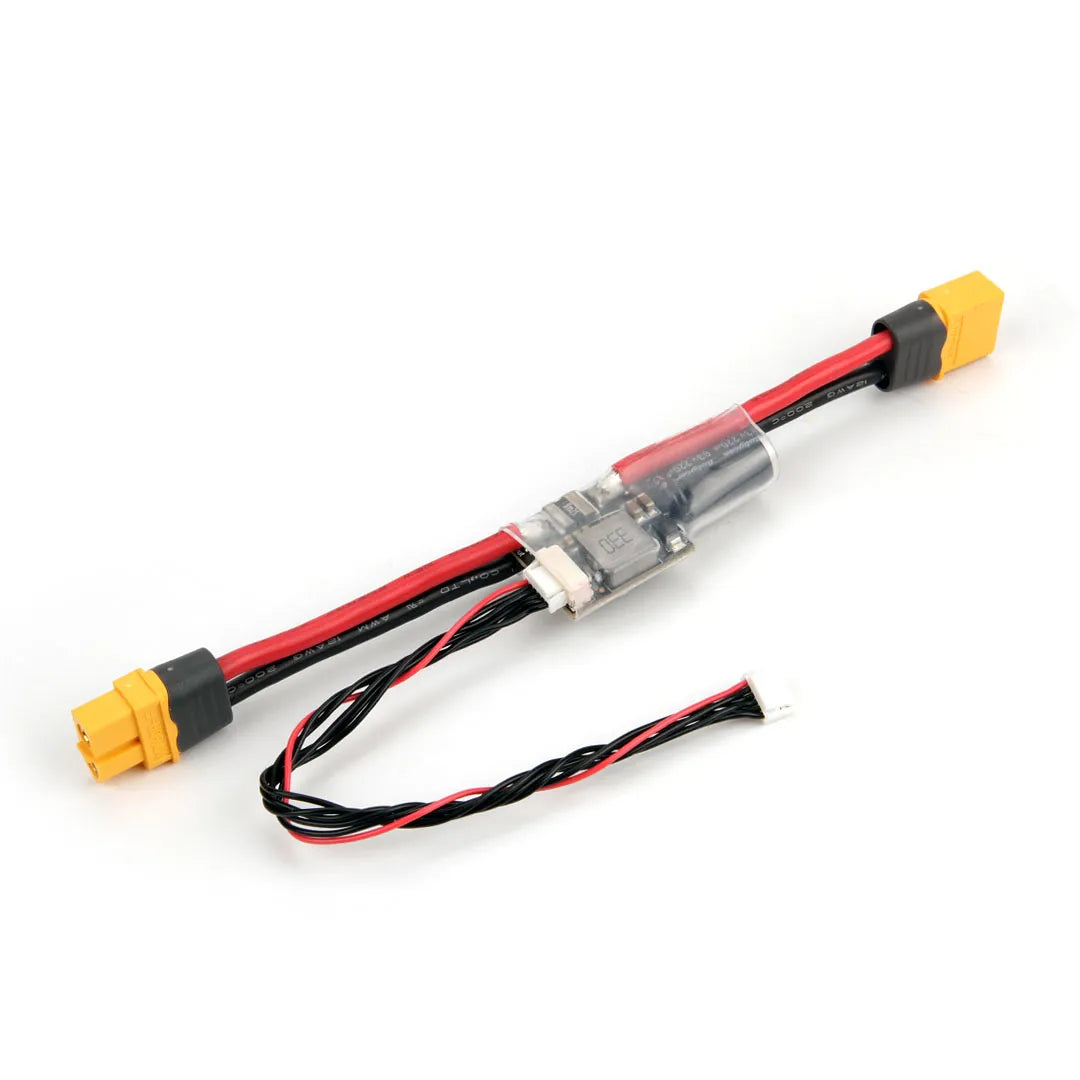

Included

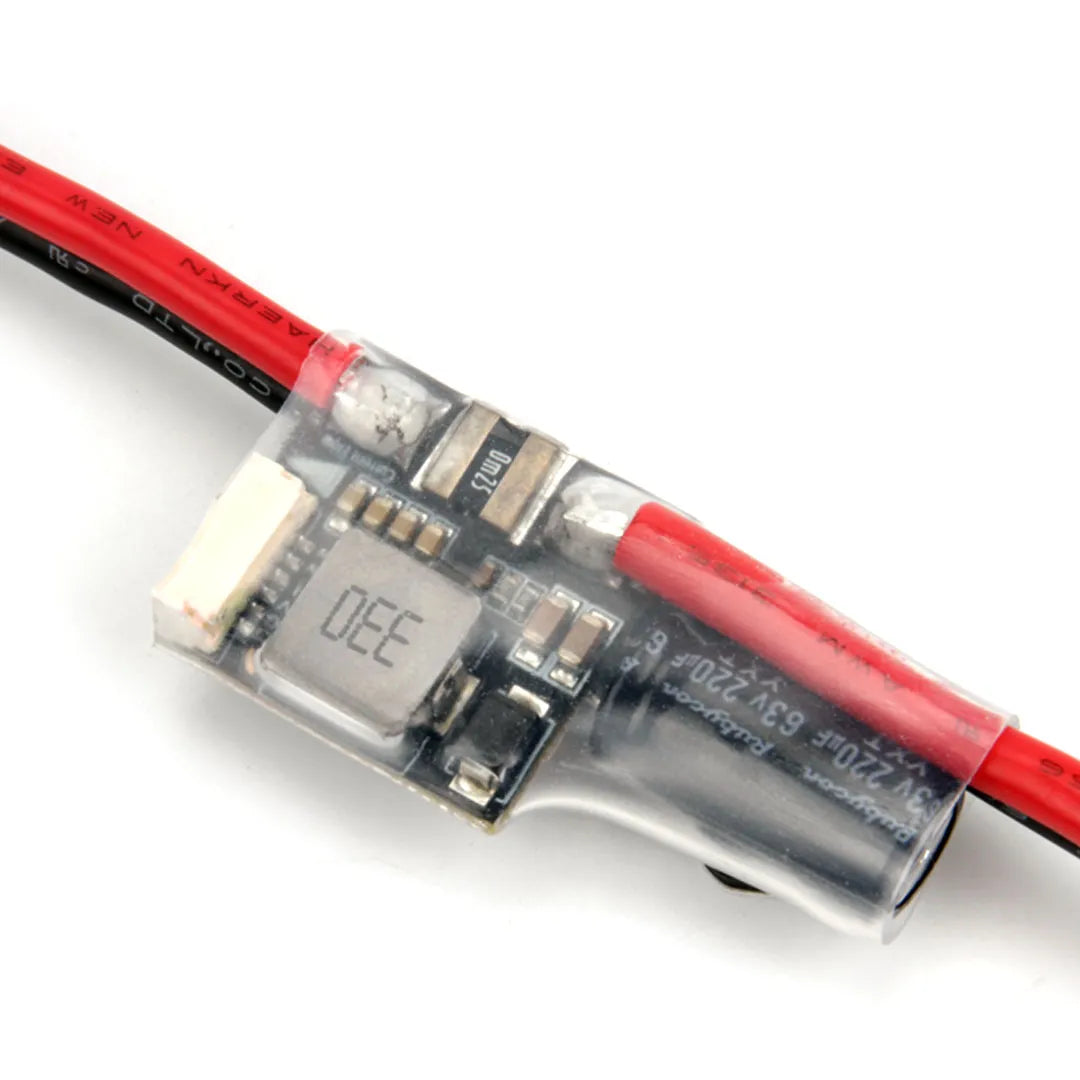

- 1x PM02 Power Module with 220uF 63V capacitor
- 1x Molex 6 Position Connector 15 cm
- 1x JST GH 6 Position Connector 15 cm
