Product Details

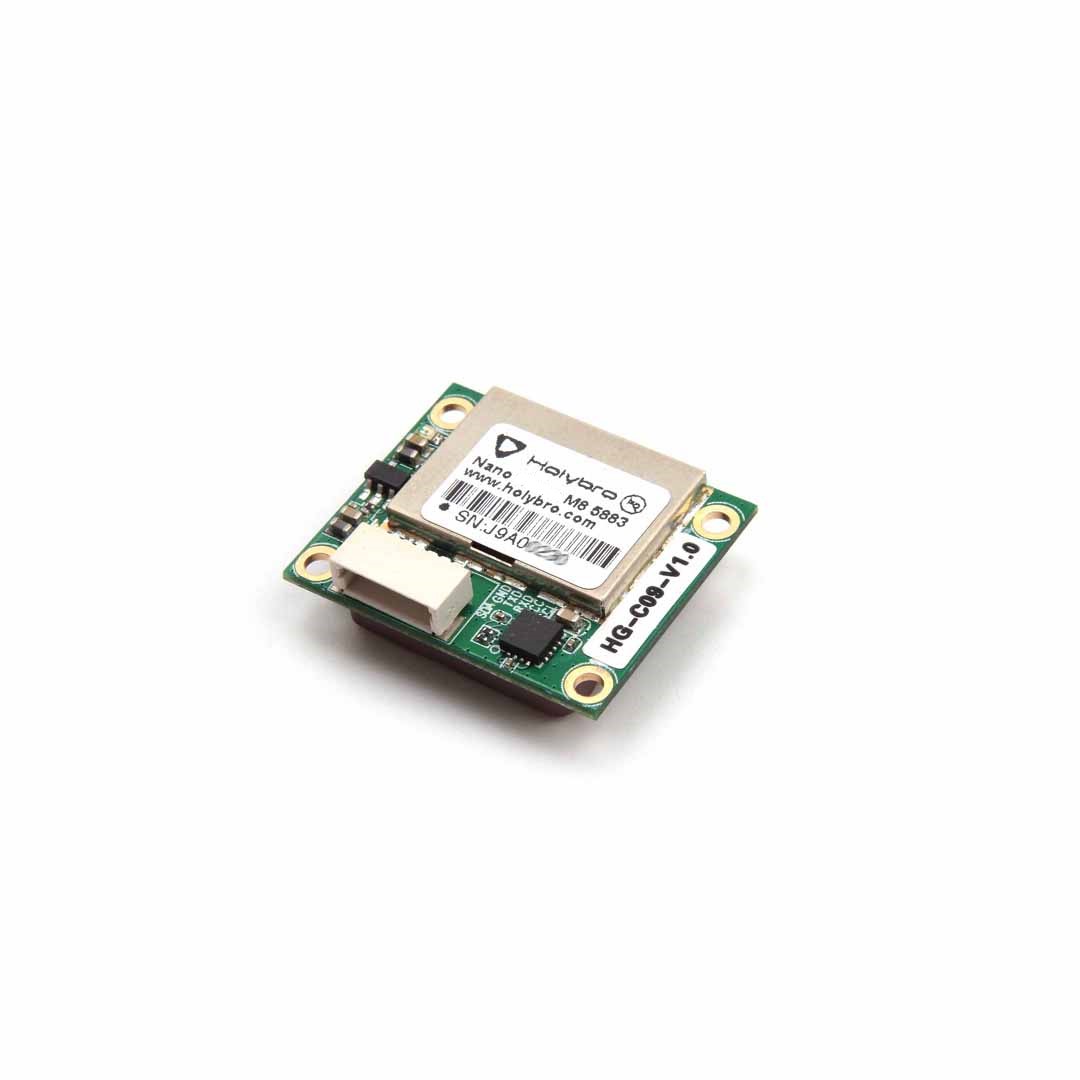

Featuring a single die solution, low power consumption and low costs, the Nano M8 5883_L are multi-GNSS (GPS BDS , GLONASS ,SBAS and QZSS) positioning Module developed to meet the requirements of an extensive range of applications and end-products. Based on the high performance M8030 position engine ,these receivers provide exceptional sensitivity and acquisition times and interference suppression measures enable reliable positioning even in difficult signal conditions.

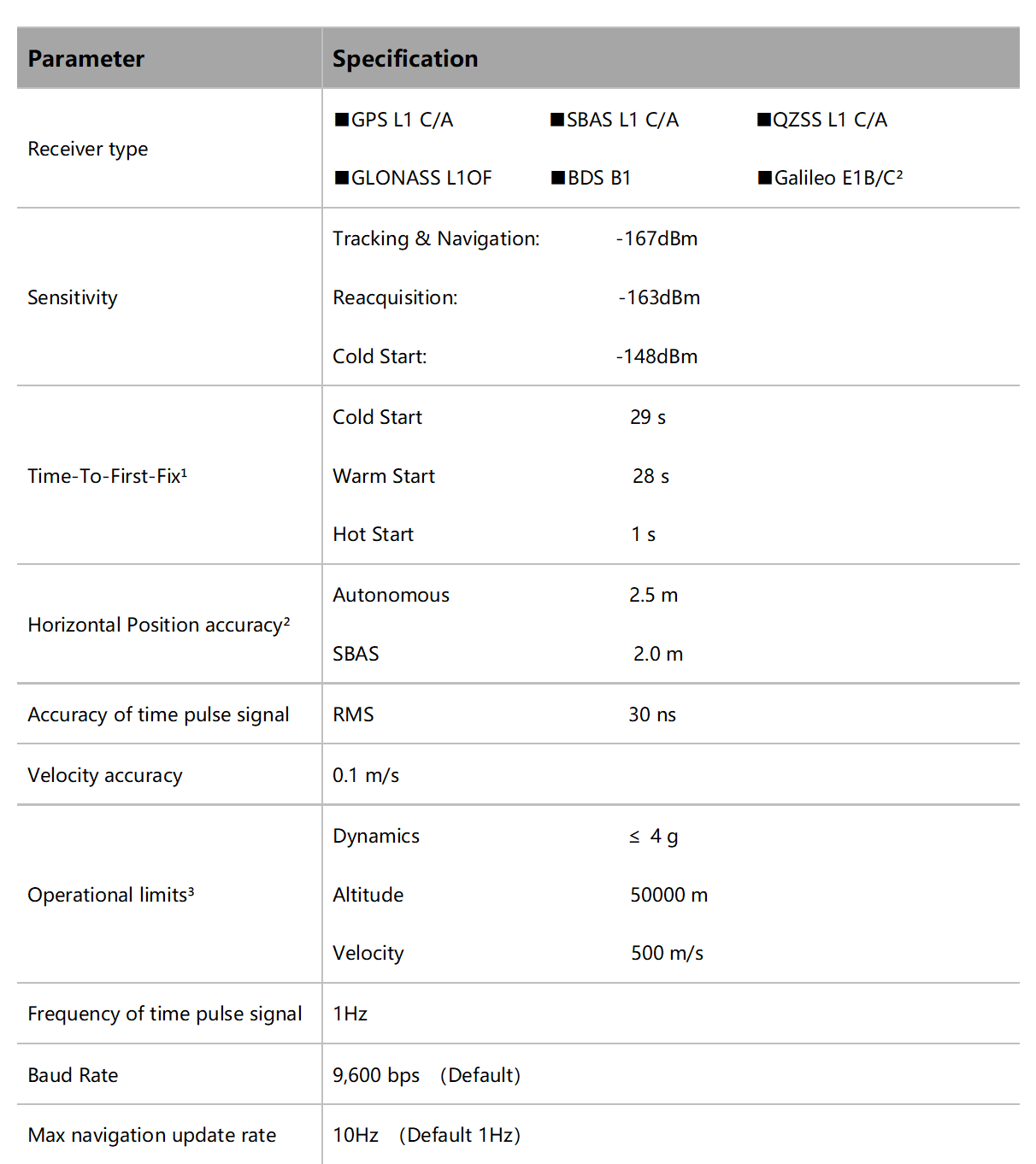

Features
- UBX-M8030 high performance GPS/GNSS Chips:
- Over 2 million effective correlators
- 72 channels in Search mode
- Cold start acquisition sensitivity of -148 dBm and -167 dBm tracking sensitivity
- Up to 10 Hz navigation update rate
- Supports GPS, QZSS, GLONASS , BDS and is ready for Galileo
- Supports AGPS
- Integrated TCXO,LNA,SAW,RTC
- Compact size (φ23.88mm x19.98mmx8.80mm±0.5mm ) suitable for space-sensitive application
- Weight 7.8 grams without TPU Protective Case Shell
- Support standard NMEA 0183,UBX
- This module is equipped with QMC5883 compass
Datasheet
Holybro_Nano_M8_5883_GPS_Datasheet

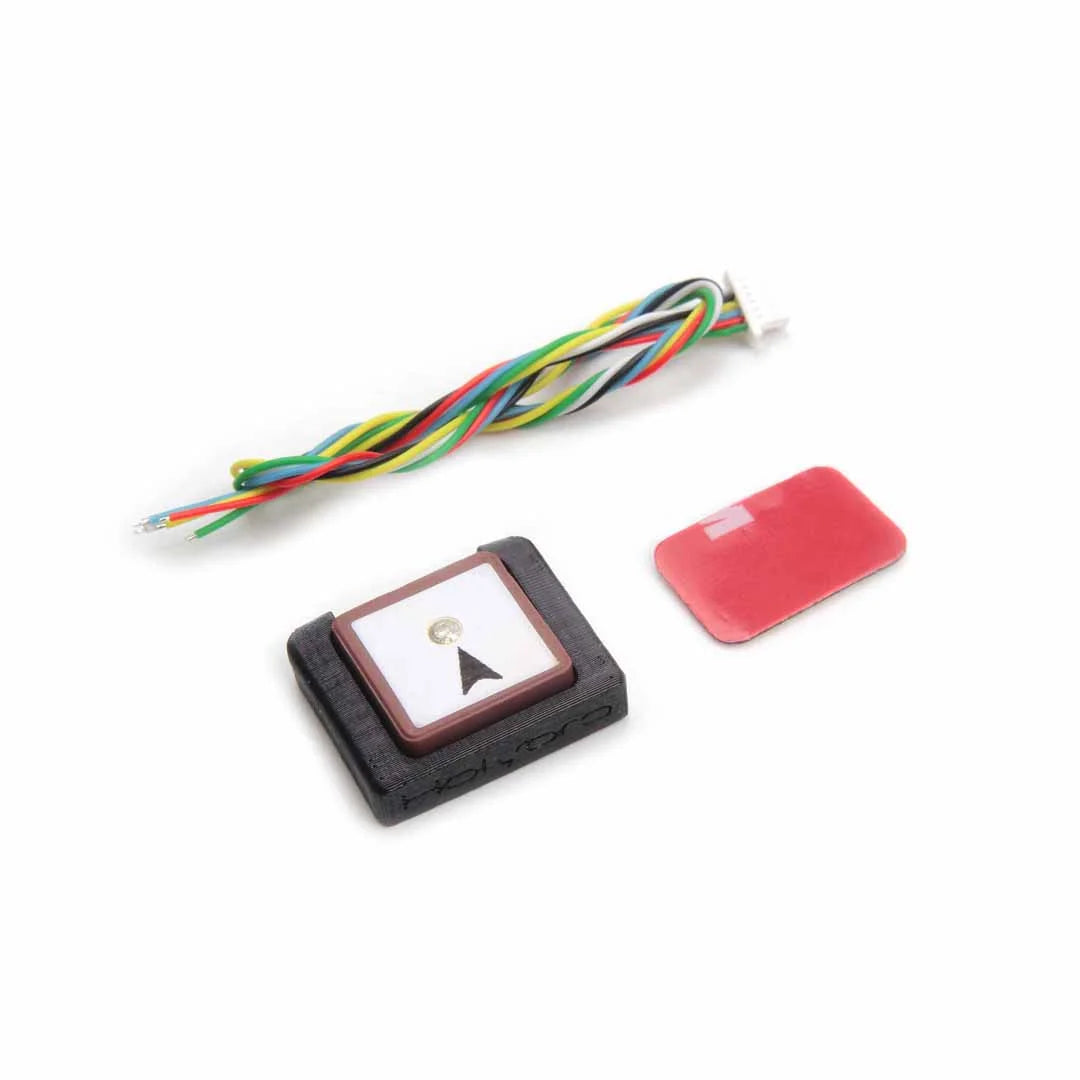

Included
- Nano M8 5883 GPS Module *1
- JST 6P Cable *1

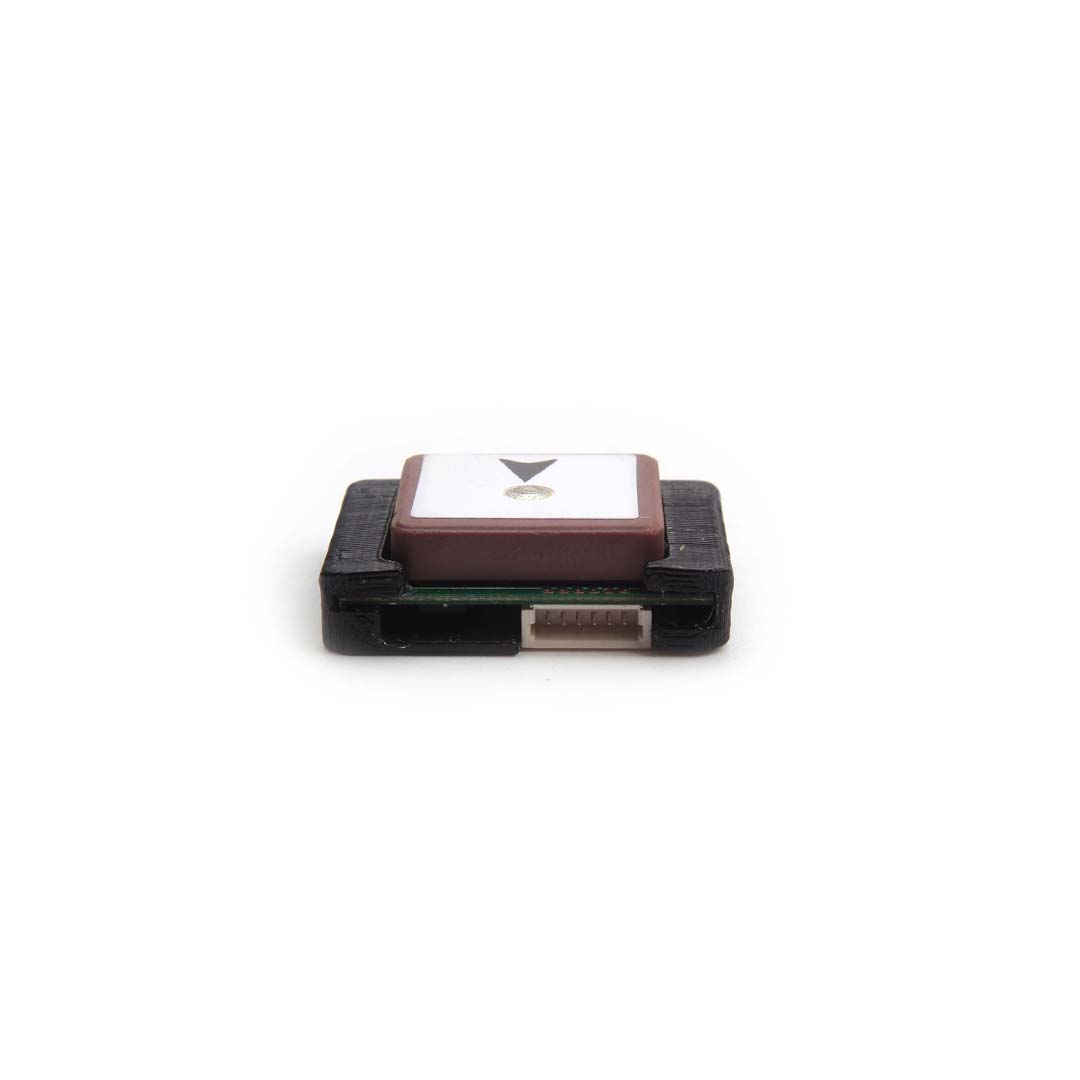

- TPU Protective Case Shell *1
