Holybro Micro OSD V2

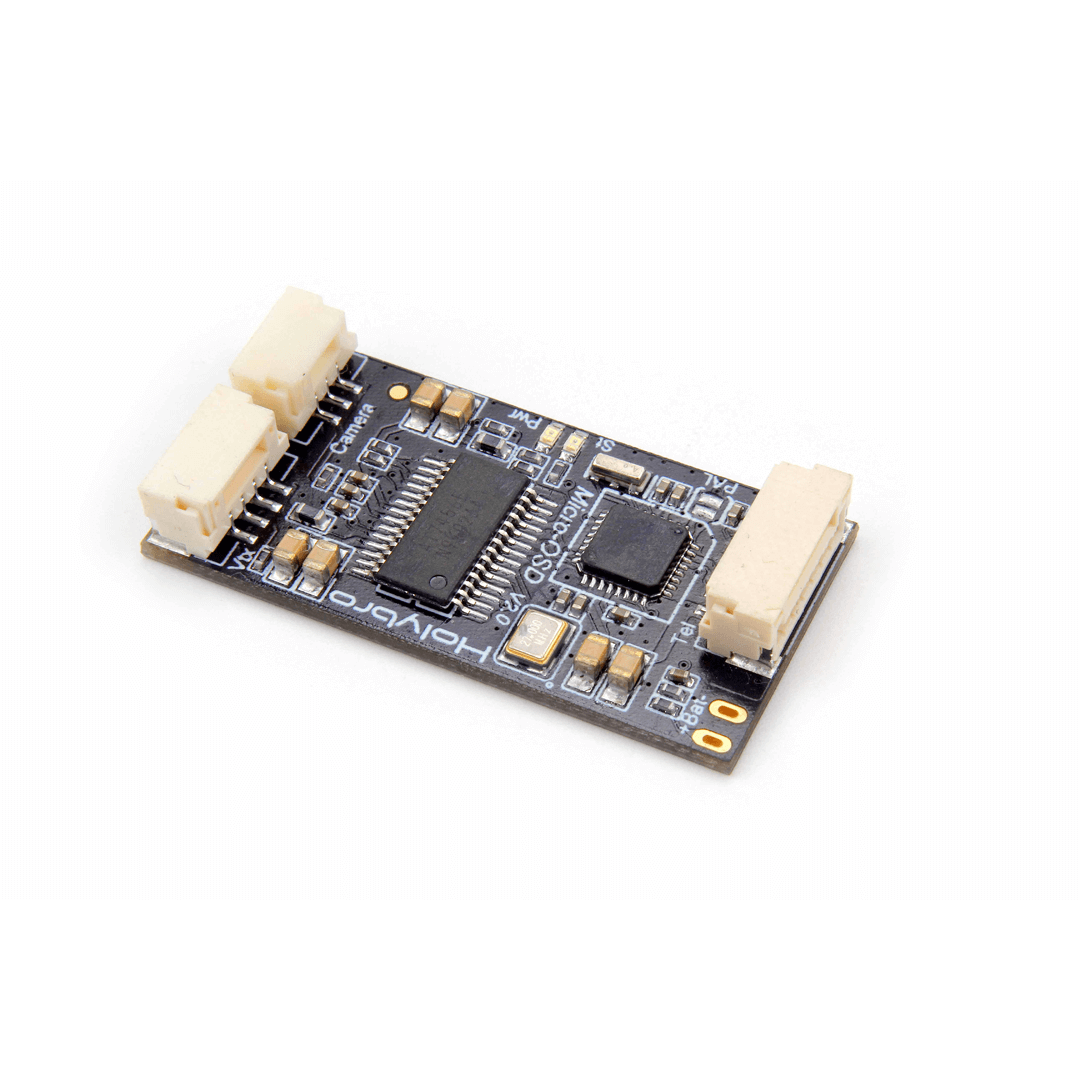

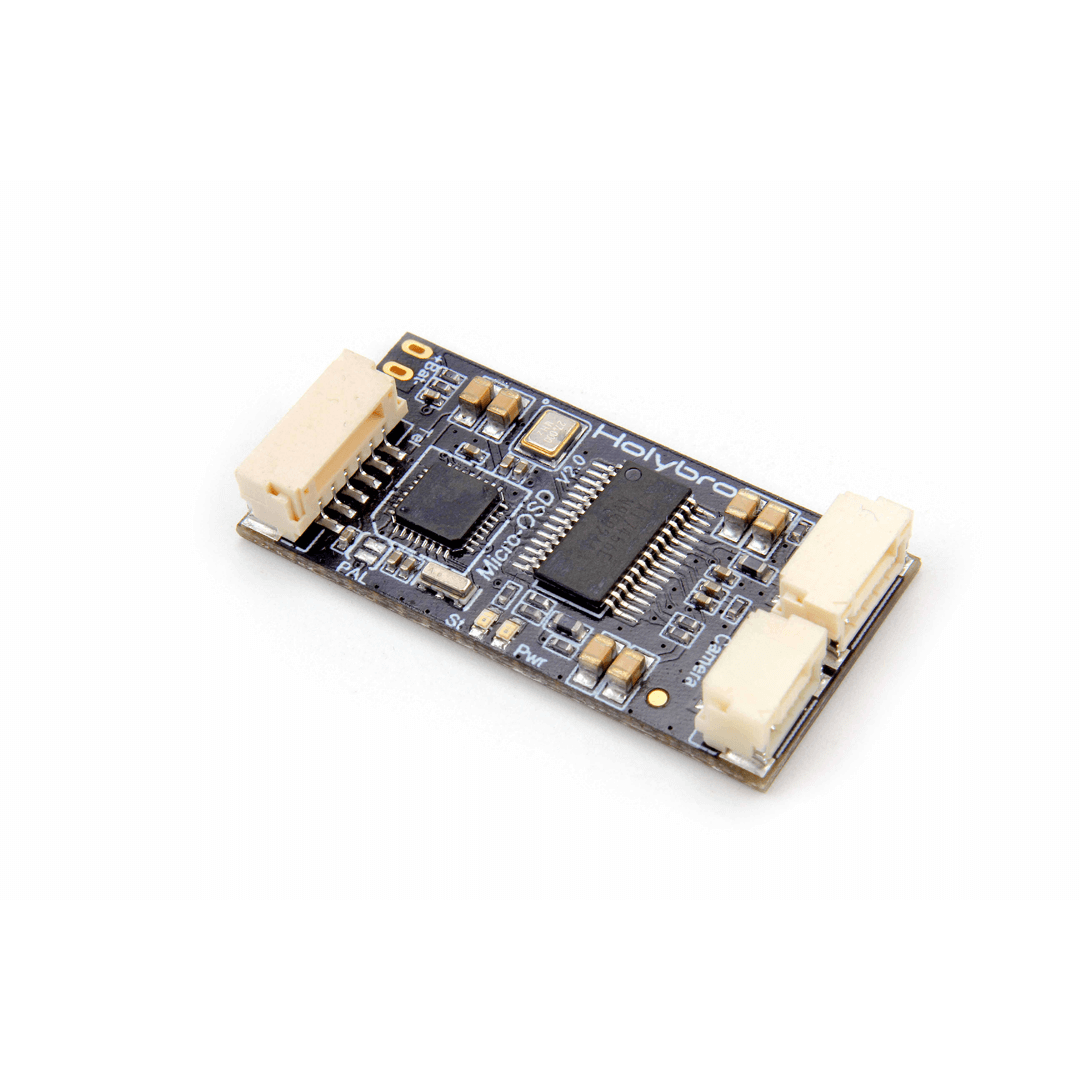

So, you’ve decided that guessing your battery voltage by the way your motors start screaming is no longer a viable flight plan? Welcome to the elite world of people who like to see numbers while they dodge trees. The Micro OSD V2 is a featherlight piece of tech that overlays crucial flight data onto your video feed, powered by the ATmega328P and the MAX7456 monochrome magic maker. It’s small, it’s smart, and it won’t judge you for how low your battery gets before you land.

Why You Want It

Let's be real: you’re only here because you’re tired of walking 500 meters into a field to find a quad that ‘randomly’ fell out of the sky. This OSD gives you the data you need to actually make it back to the pits. With GHR connectors that don't require the finger dexterity of a watchmaker and a footprint so small it makes a 20x20 stack look chunky, it’s the upgrade your analog rig deserves. We even included a PAL solder jumper, because we know some of you are still living in the 90s.

Specs

• Processor: ATmega328P with Arduino bootloader (Yes, you can tinker with it, nerd).
• Display Chip: MAX7456 monochrome on-screen display (Classically crisp).
• Connectors: GHR connectors (Plug and play, unless you mess it up).

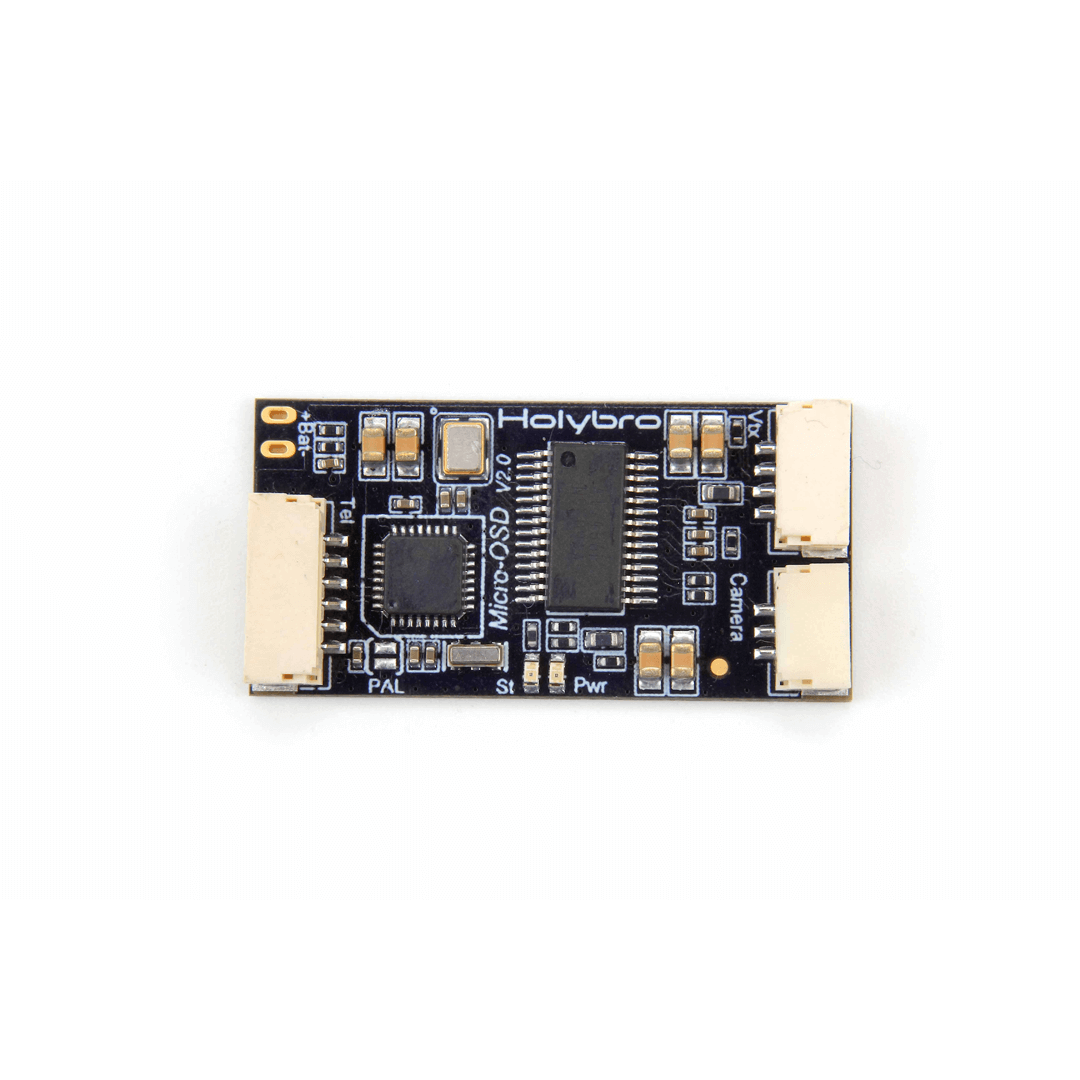

• Video Options: Solder jumper for PAL (NTSC is the default, obviously).

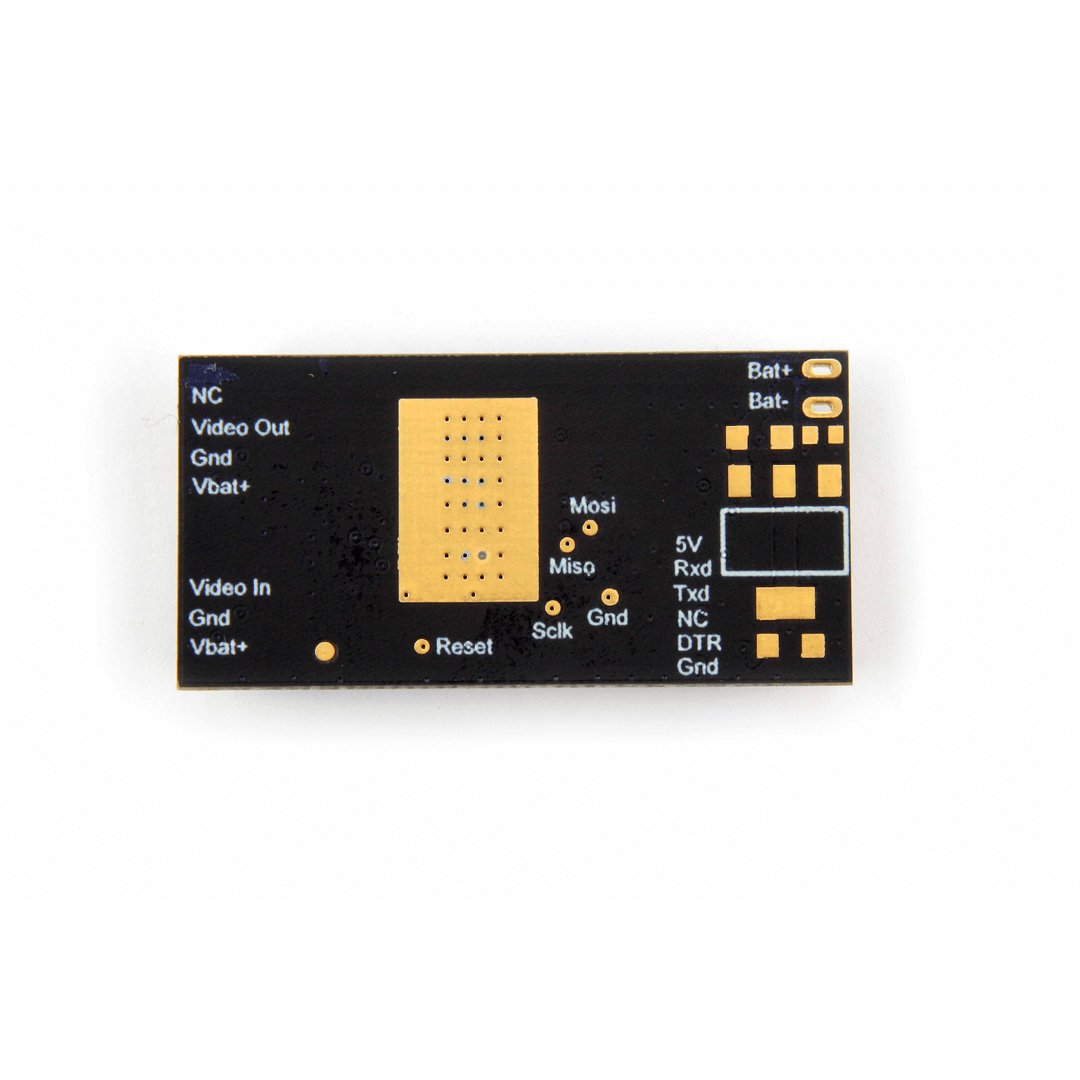

• Test Points: Exposed points for HSYNC and LOS (For the oscilloscope-wielding wizards).
• Dimensions: 17.5 x 35mm (Smaller than your thumb, unless you have weirdly small thumbs).
• Weight: 3g (Lighter than a single Haribo gummy).

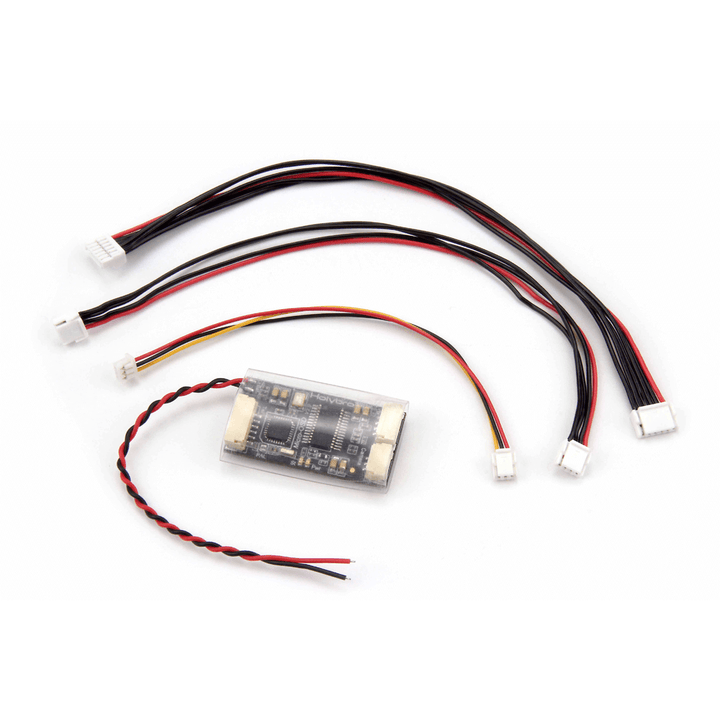

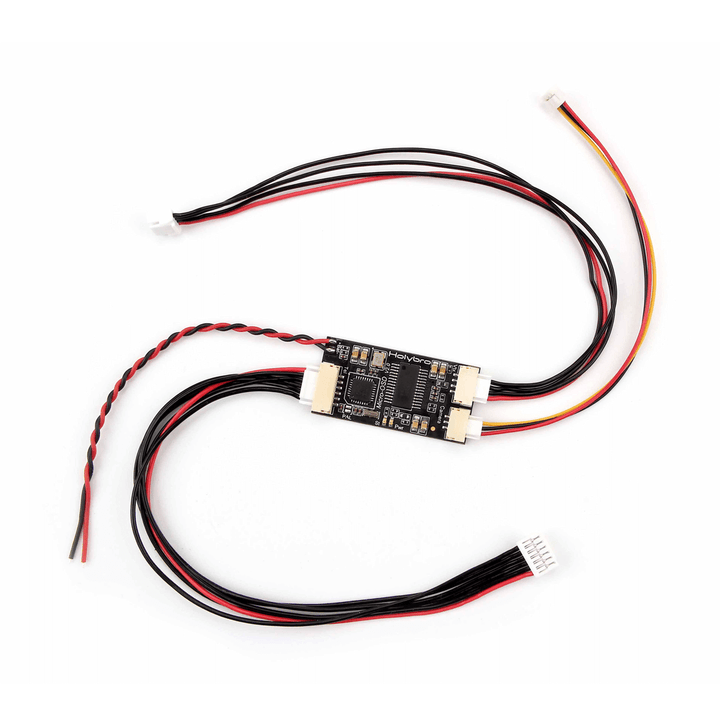

In the Box

• 1x Holybro Micro OSD V2 Module
• 1x GH 6P Cable
• 1x GH 4P Cable
• 1x GH 3P Cable

Compatibility

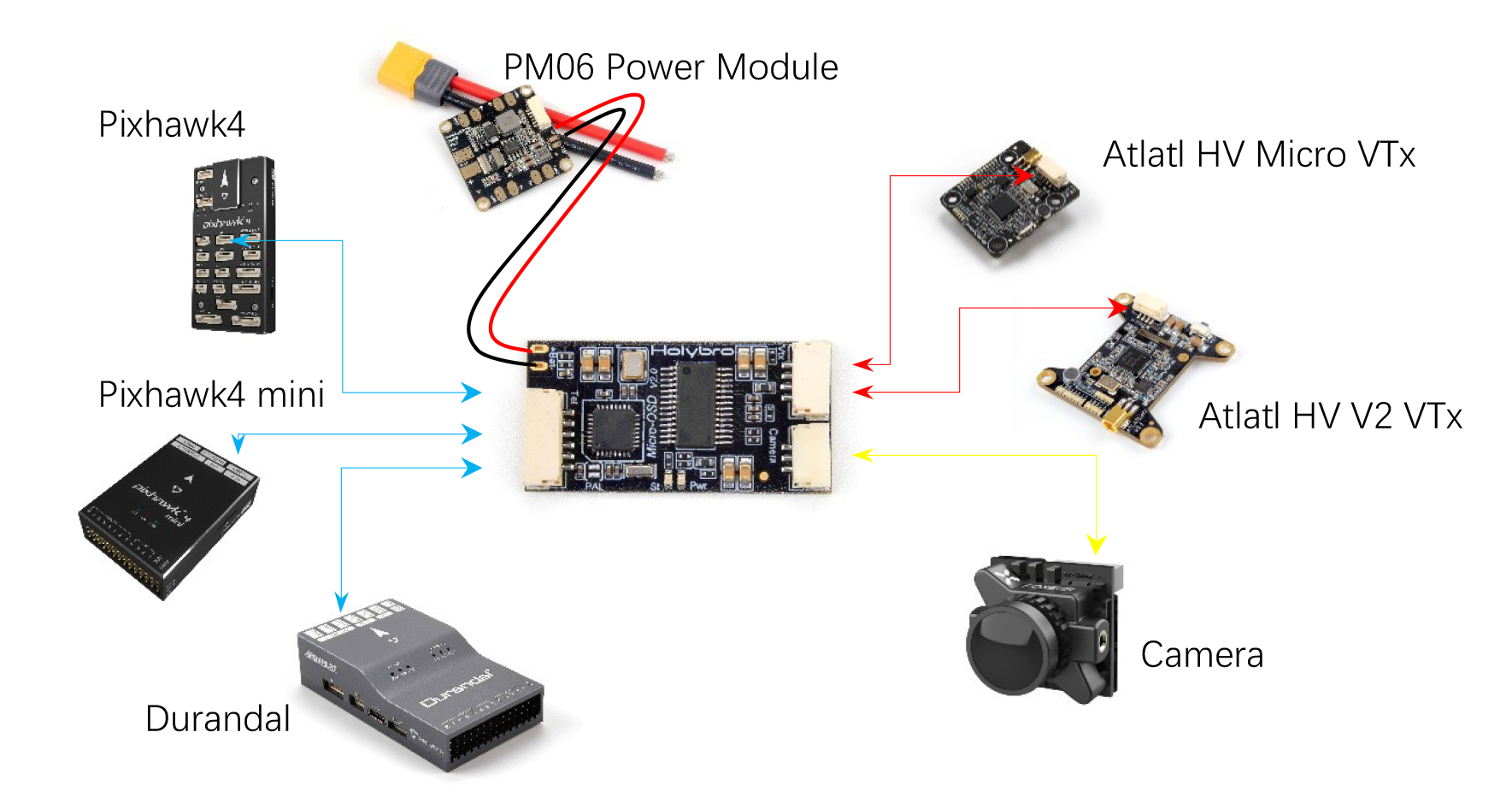

Works flawlessly with any analog FPV setup requiring a robust, Arduino-compatible OSD. It’s designed to play nice with standard flight controllers and VTX units that haven't been retired to a museum yet.

Highlights

• Ultra-Lightweight: 3 grams. If your drone can't carry this, you’re flying a paper plane.
• Arduino Bootloader: Customizable for those who think the factory settings are just 'suggestions'.
• GHR Connectors: Because soldering six tiny wires in a row is a form of torture banned by the Geneva Convention.

Notes

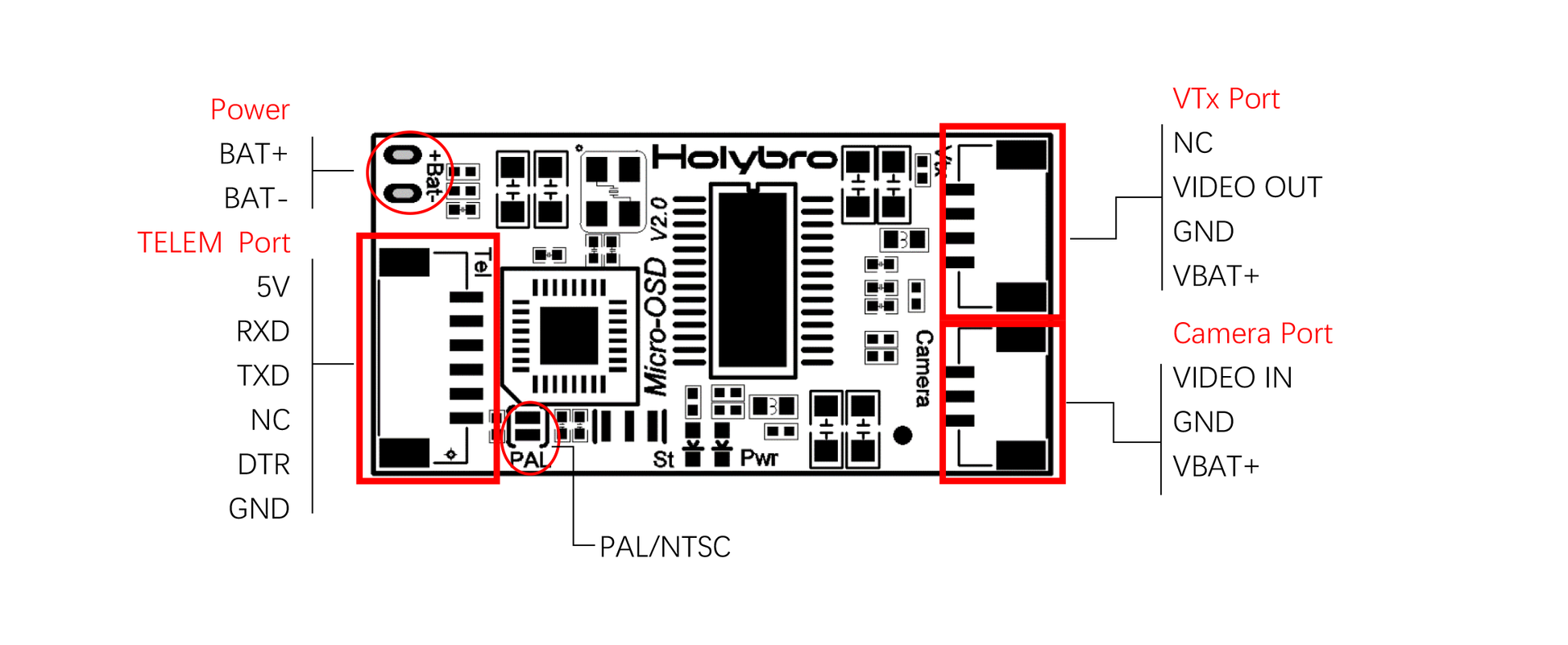

CRITICAL WARNING: BAT+ is directly connected to the VTx and Camera. If you pump 6S voltage into a 5V camera, you will be buying a new camera. Pay attention to your equipment’s maximum voltage ratings unless you enjoy the smell of magic smoke in the morning.

Disclaimer

Unmanned Tech is not responsible for any ‘spontaneous disassembly’ caused by ignoring voltage warnings or your questionable soldering skills.
