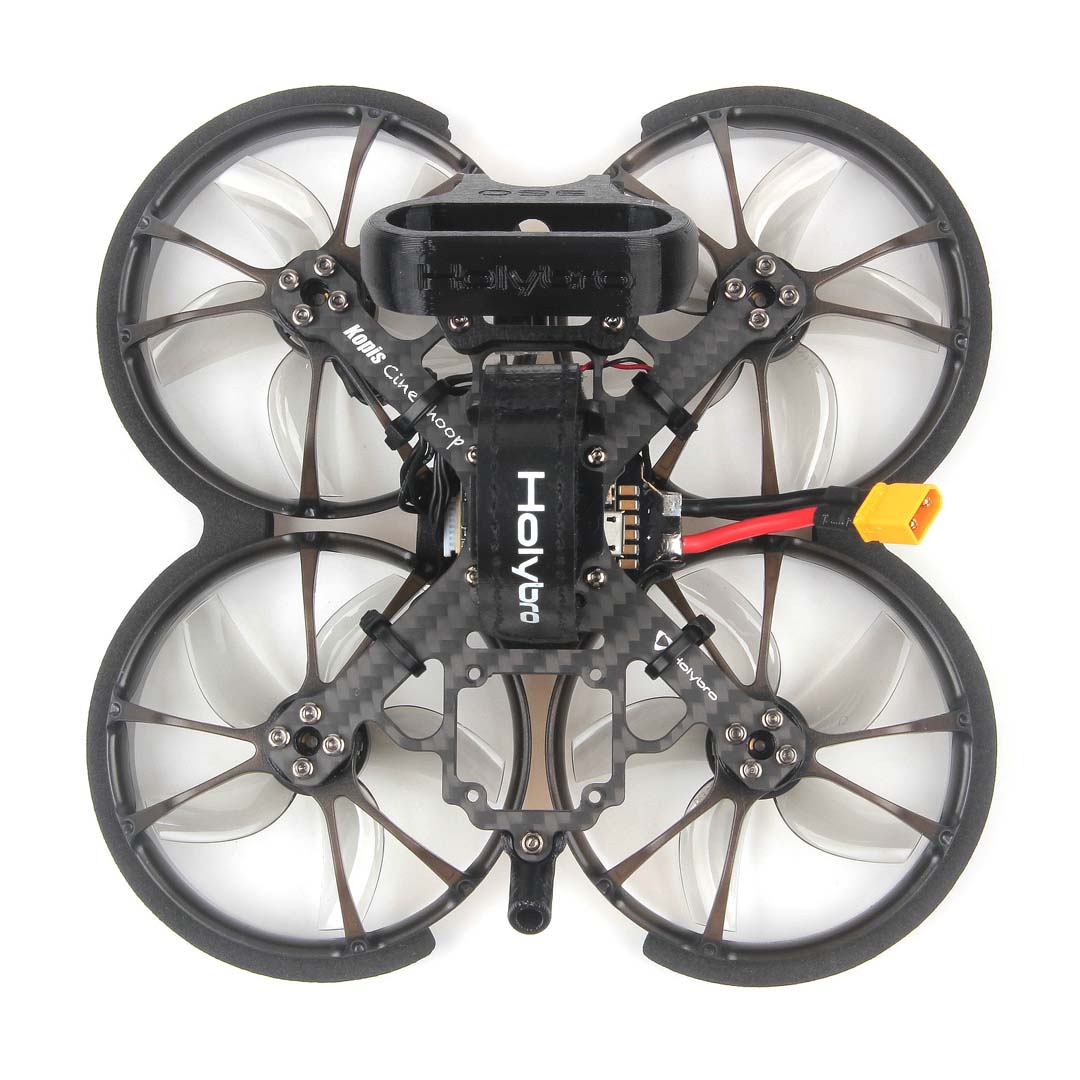

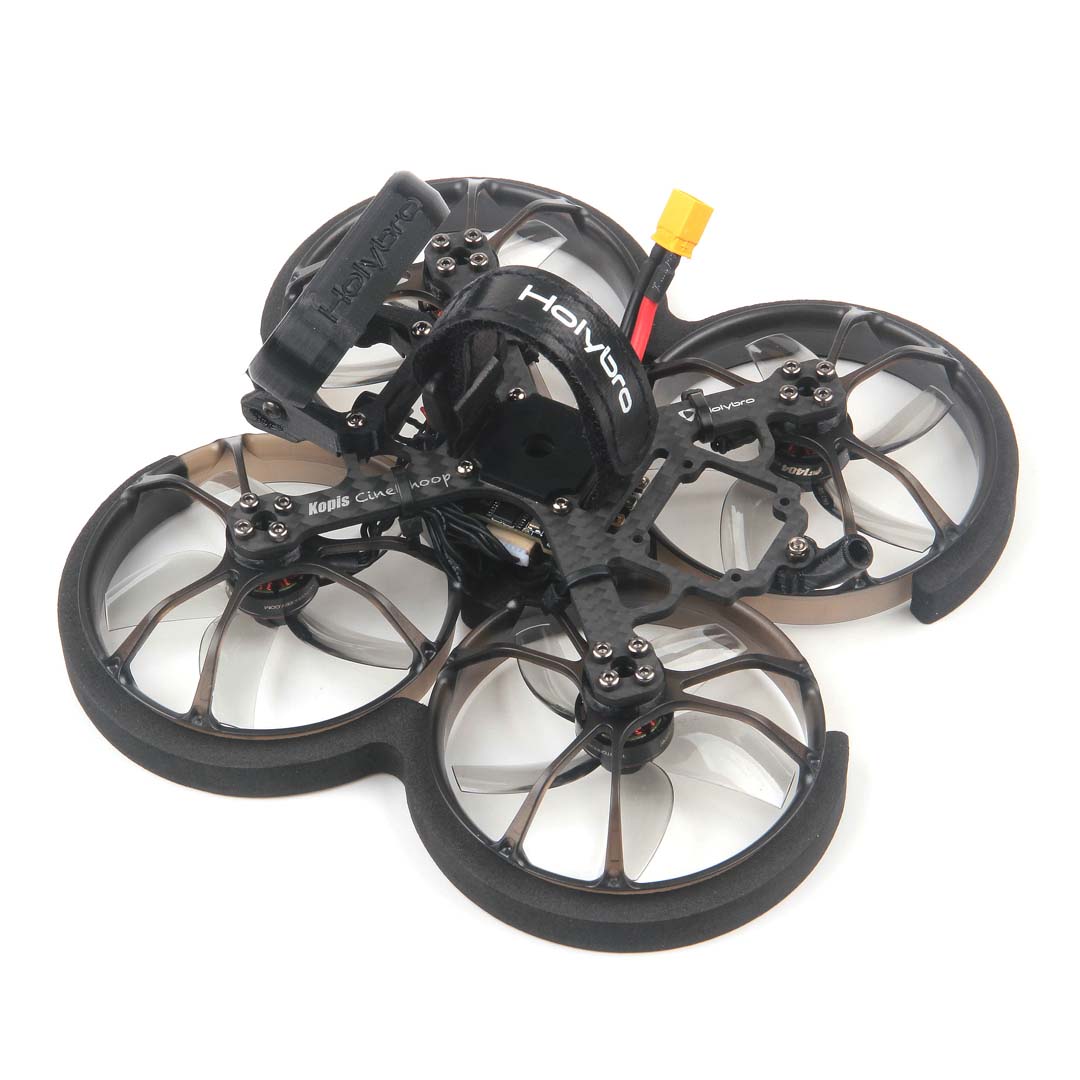

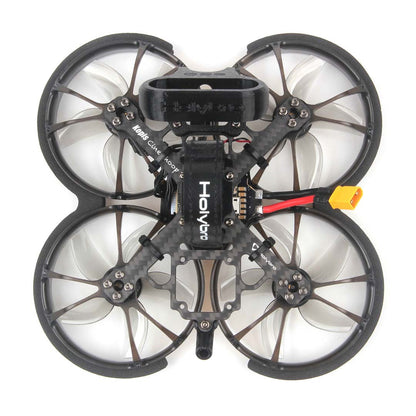

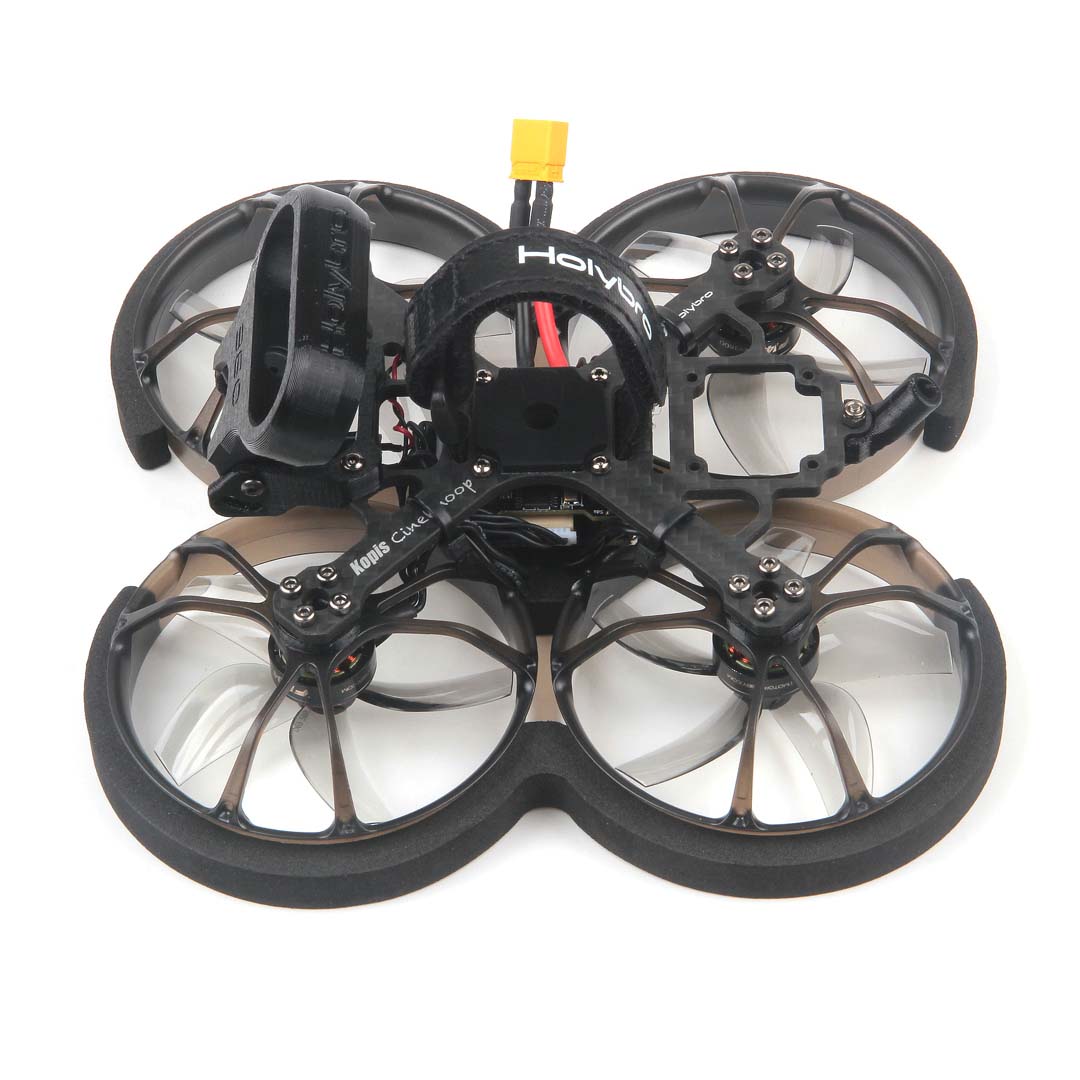

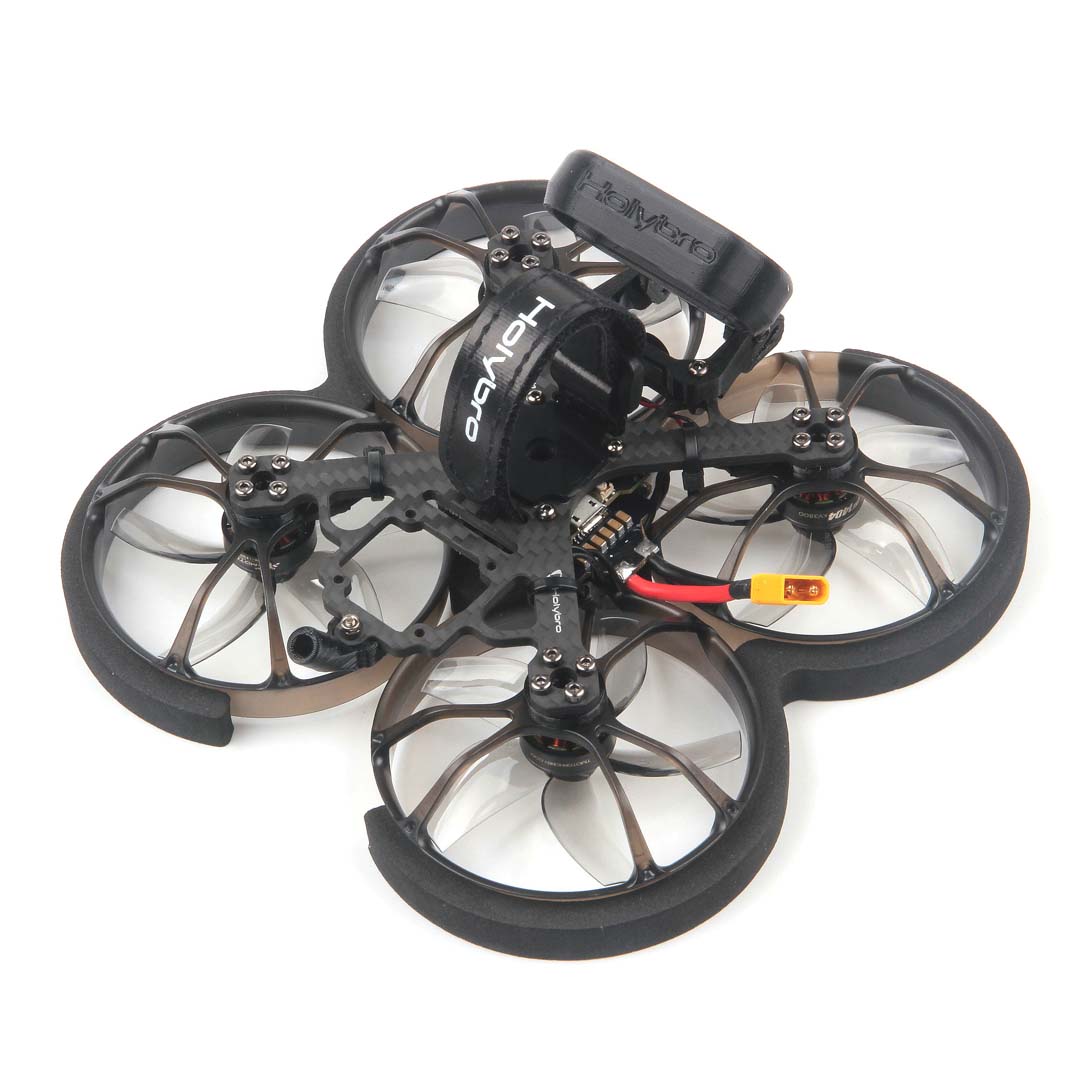

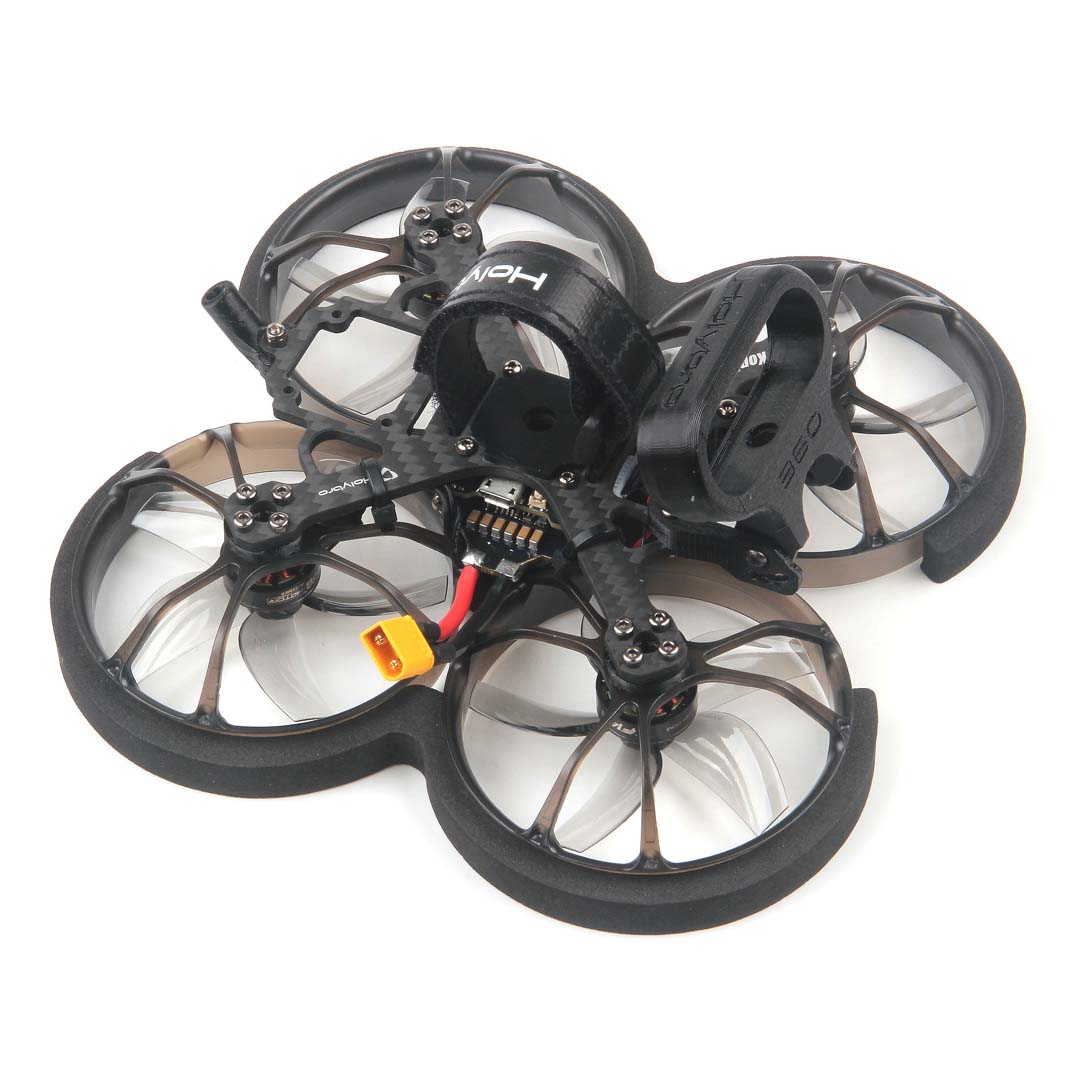

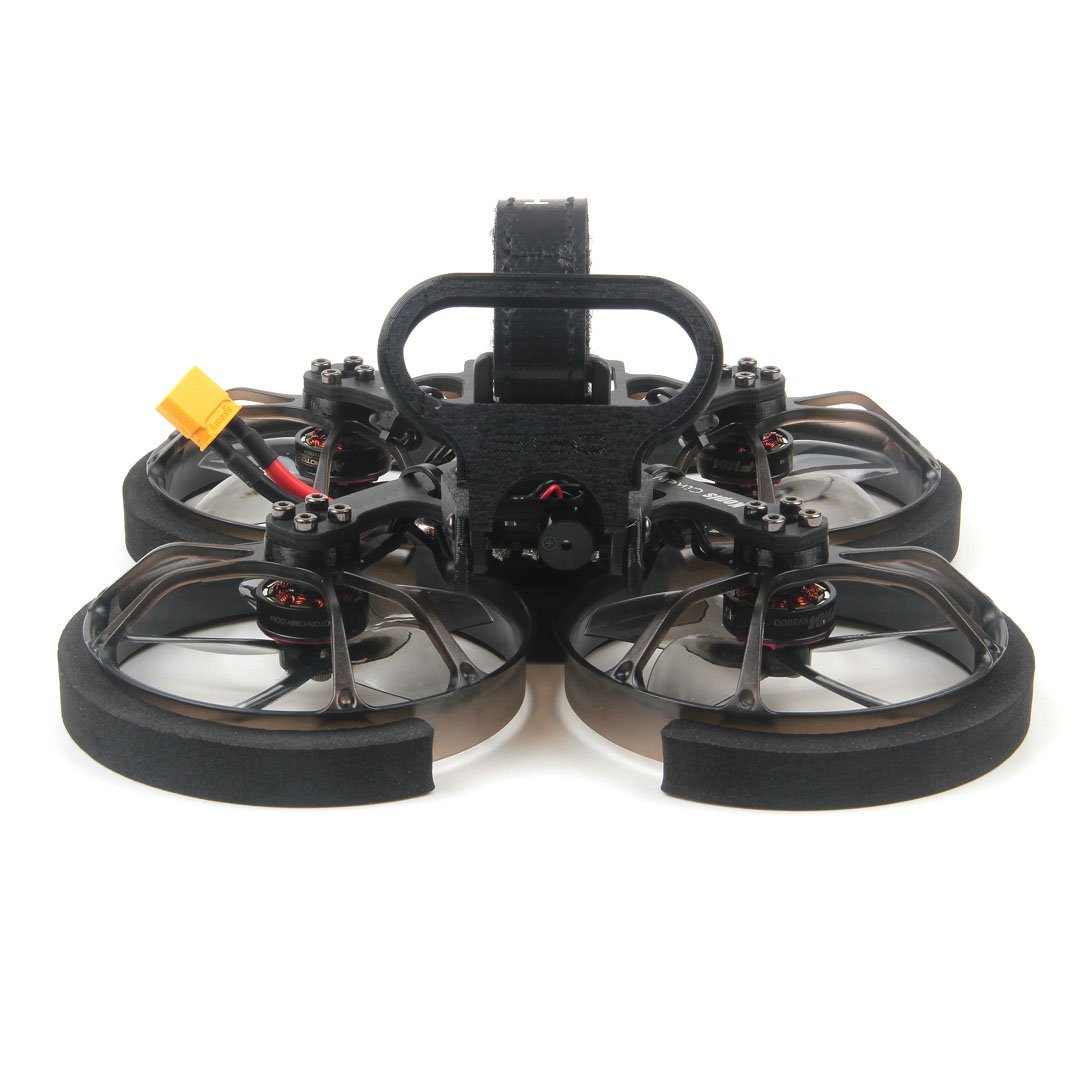

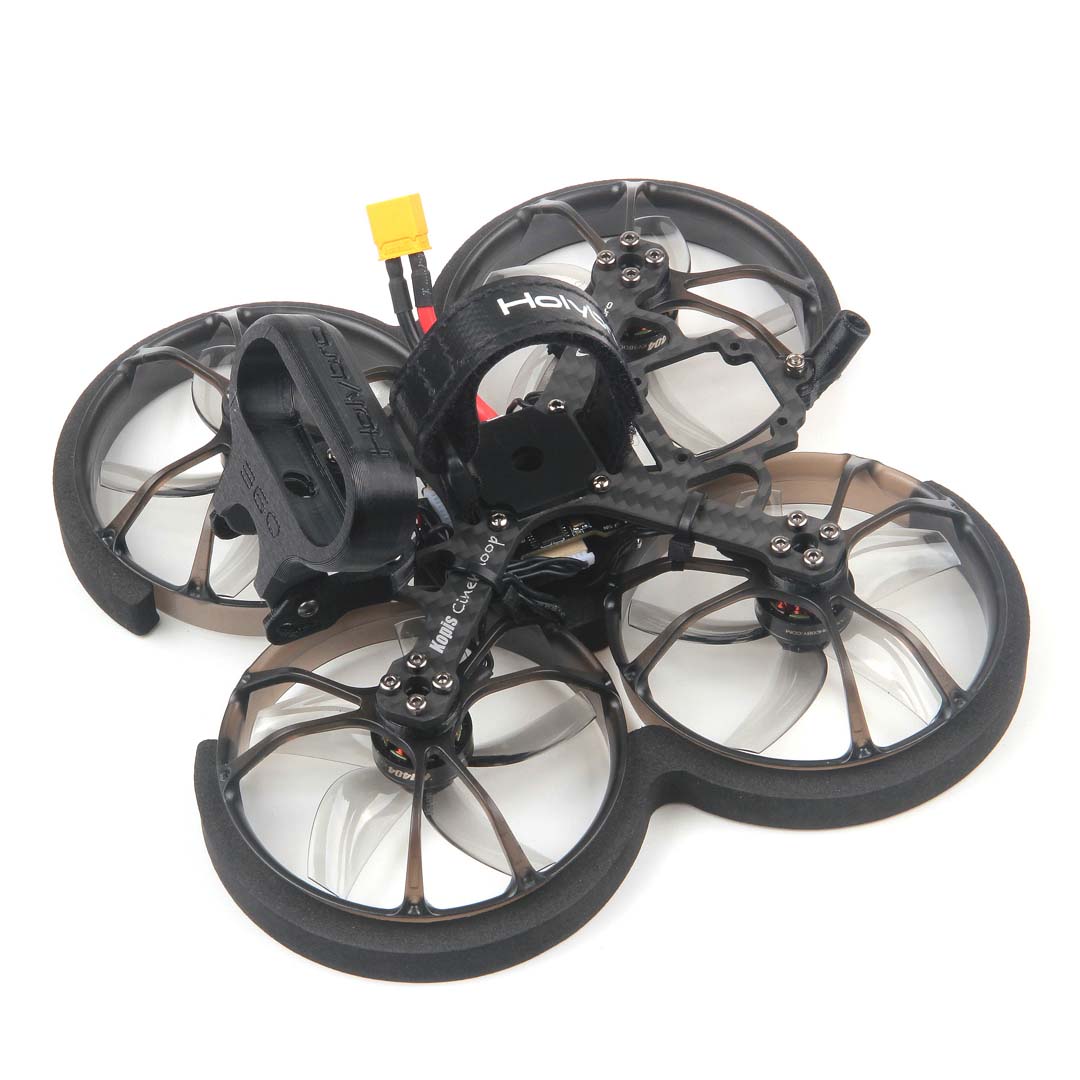

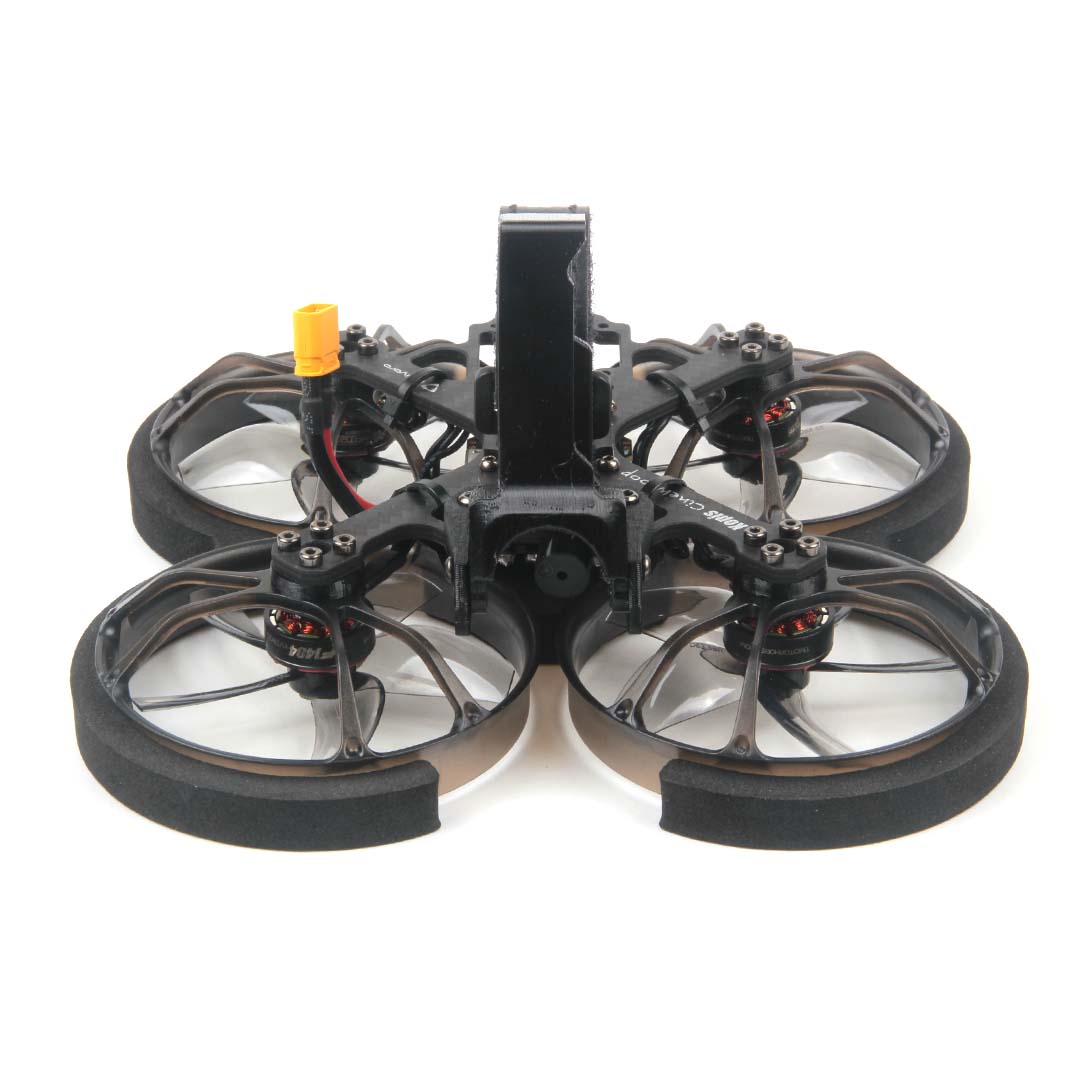

The Kopis CineWhoop 2.5" is a small sub 250g quadcopter designed to carry a HD camera to capture smooth cinematic quality footage. Build by Holybro, one of the best in the business this drone is based on a carbon frame with plastic prop guards, powered by Tmotor 1404 motors, and a Kakute F4 mini flight controller.
Please note that this version does not include the digital FPV system, we suggest you use either a Caddx Nebula Pro kit, or a Caddx Nebula Nano Kit. Alternatively, if you fly Analog you can retrofit your own VTX/Camera with some creativity.
&t=33s
Features
- Frame:3mm 3k carbon fiber
- Flight Controller: Kakute F4 V2 Mini
- ESC: Tekko32 F3 4in1 35A mini ESC
- VTx:CaddxFPV Digital HD Camera Nebula Nano Kit
- Motor: F1404 KV3800
- Propeller: D63-5B
- Buzzer included.
- Battery plug: XT30
- Wheelbase: 105.5mm
- Weight:159g（Without Battery）
- Take-off Weight:250g (4s 850mah Lipo )
- Recommend battery (Not Included): 550~850mah 4s
Specifications
- MCU: STM32F405RGT6 32-bit processor
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 5 hardware UARTS (UART1,3,4, 5, 6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
- 128 Mbit Dataflash chip for Blackbox logging
Manual
3D print files
If you don't have your own 3D printer, we offer an affordable printing service her e
- Kopis_Cinewhoop2.5"(CaddxVistaDigitalHDSystem)-3D_Print_STL_Files
- Kopis_Cinewhoop2.5"(CaddxNebulaPro&NanoKit)-3D_Print_STL_Files
We currently sell the version with the mount to fit the Caddx Nebula Pro and Nebula Nano cameras
Features
- Frame:4mm 3k carbon fiber
- Flight Controller: Kakute F7 mini V3
- ESC: Tekko32 F3 4in1 35A mini ESC
- 5.8G VTx: Atlatl HV Micro
- Motor: F1507 KV3800
- Propeller: T3140
- FPV camera: RunCam Racer Nano 2
- Adjustable camera uptilt from 10 degrees to 90 degrees
- Buzzer included.
- Battery plug: XT30
- Wheelbase: 137mm
- Weight:145g
- Recommend battery: 850mAh 4s
Specifications
- MCU: STM32F722RET6 32-bit processor
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 5hardware UARTS (UART1,2,3,4,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
- Onboard 16Mbytes for Blackbox logging
Includes:
- 1x Kopis cinewhoop2.5" FPV racing drone
- 1x Naked GoPro camera mount
- 4x D63-5B Propeller
- 2x Propeller guard
- 1x Carrying case
Package does not include Insta360 GO, the Insta360 GO on the pictures for reference only
Still Required
- R/C Transmitter / Receiver
- FPV System (camera and VTX)
- FPV Goggles
- 850mAh 4S Lipo (at least 60C)
