Product Details

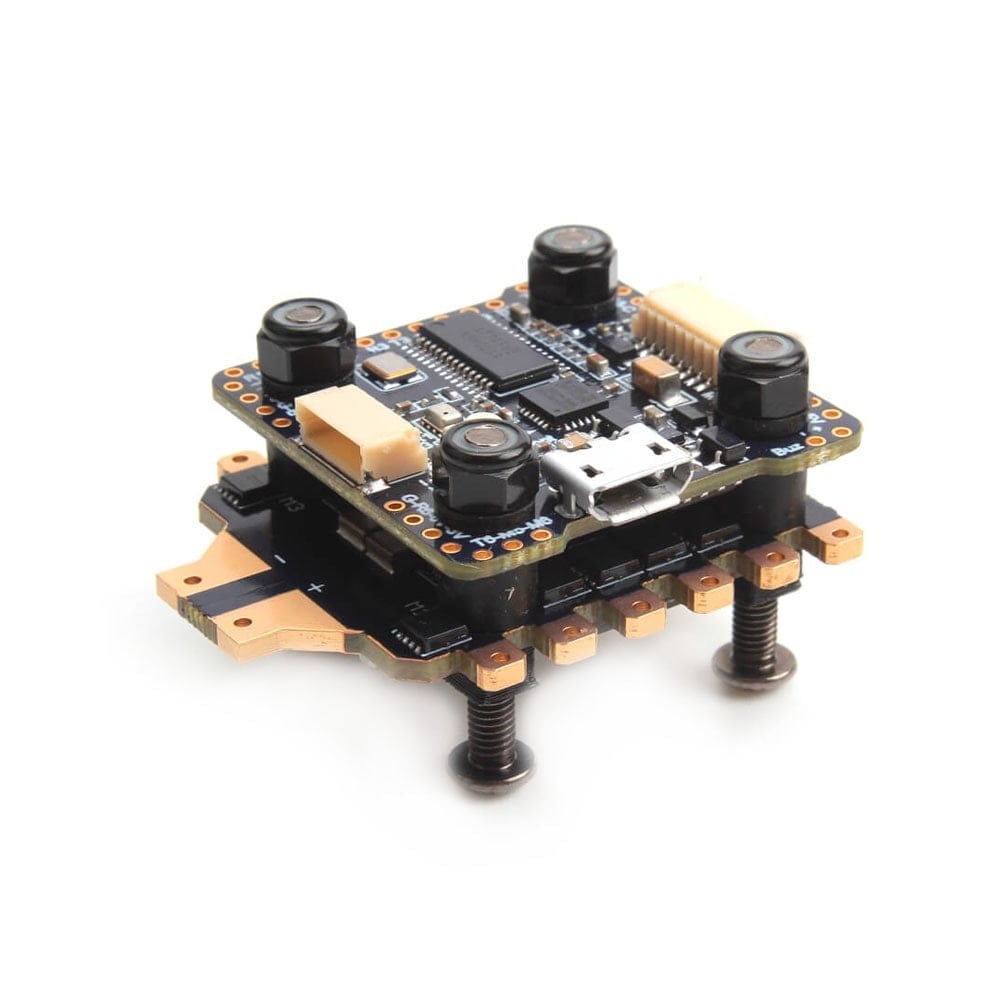

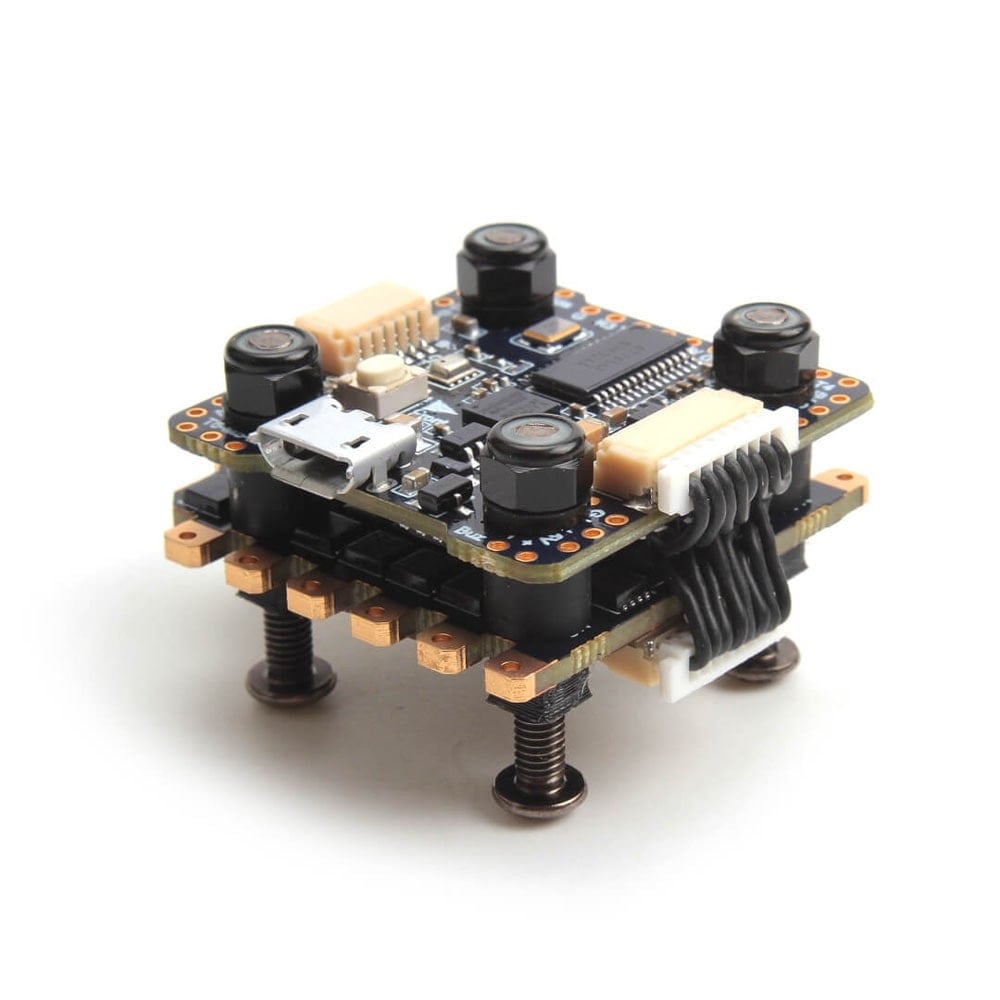

The Mini Kakute F7 V3 Combo by Holybro comes with the Kakute F7 Mini V3, and the Tekko32 F4 45A 4-in-1 Mini ESC. Holybro is saving you time and guesswork by making this powerful stack that will give you max performance!
Specifications

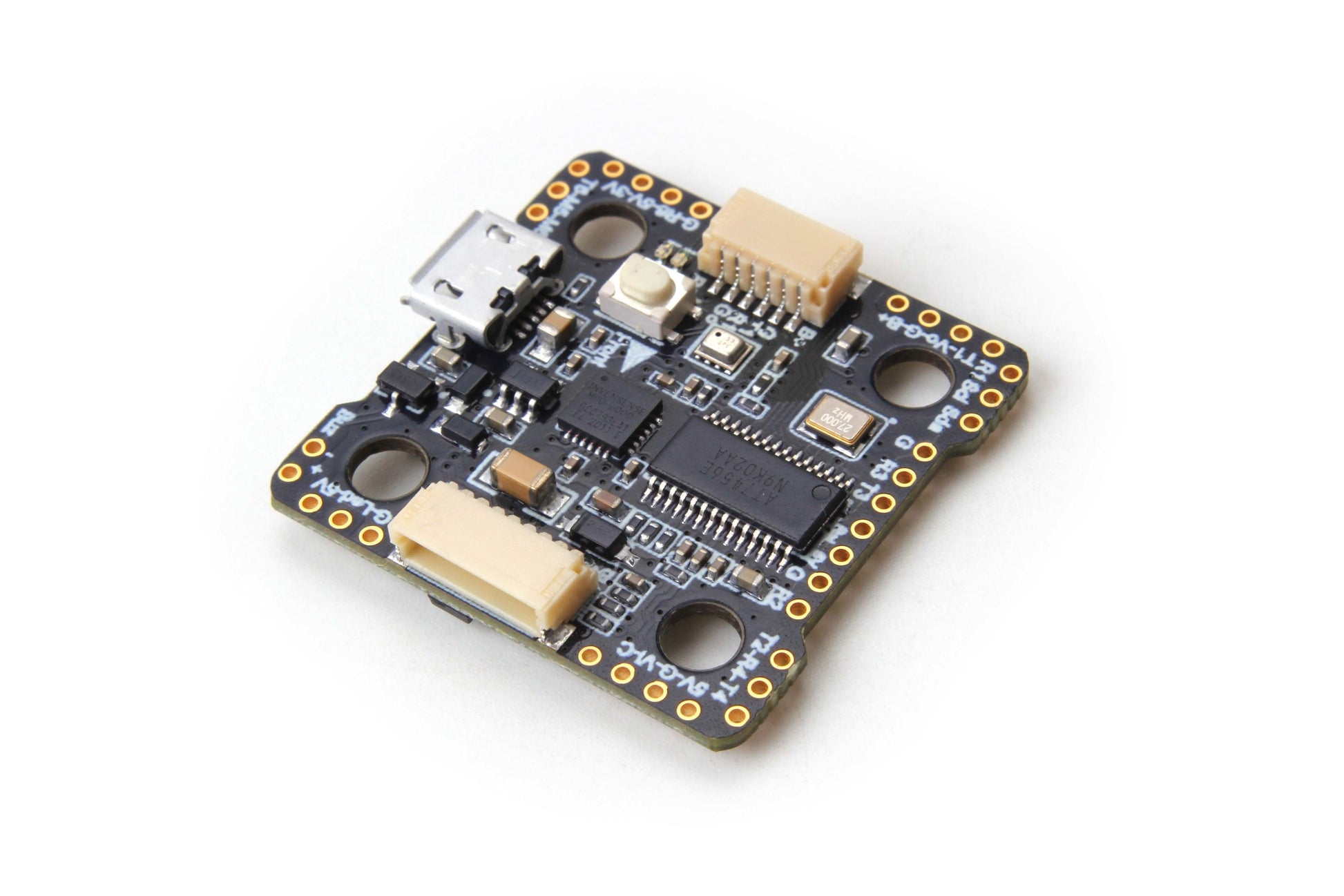

Kakute F7 mini V3
- MCU: STM32F722RET6 32-bit processor,216MHz, 256Kbytes RAM, 512Kbytes Flash
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 5hardware UARTS (UART1,2,3,4,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
- Onboard 16Mbytes for Blackbox logging
- 5V Power Out: 1.0A max
- 3.3V Power Out: 0.2A max

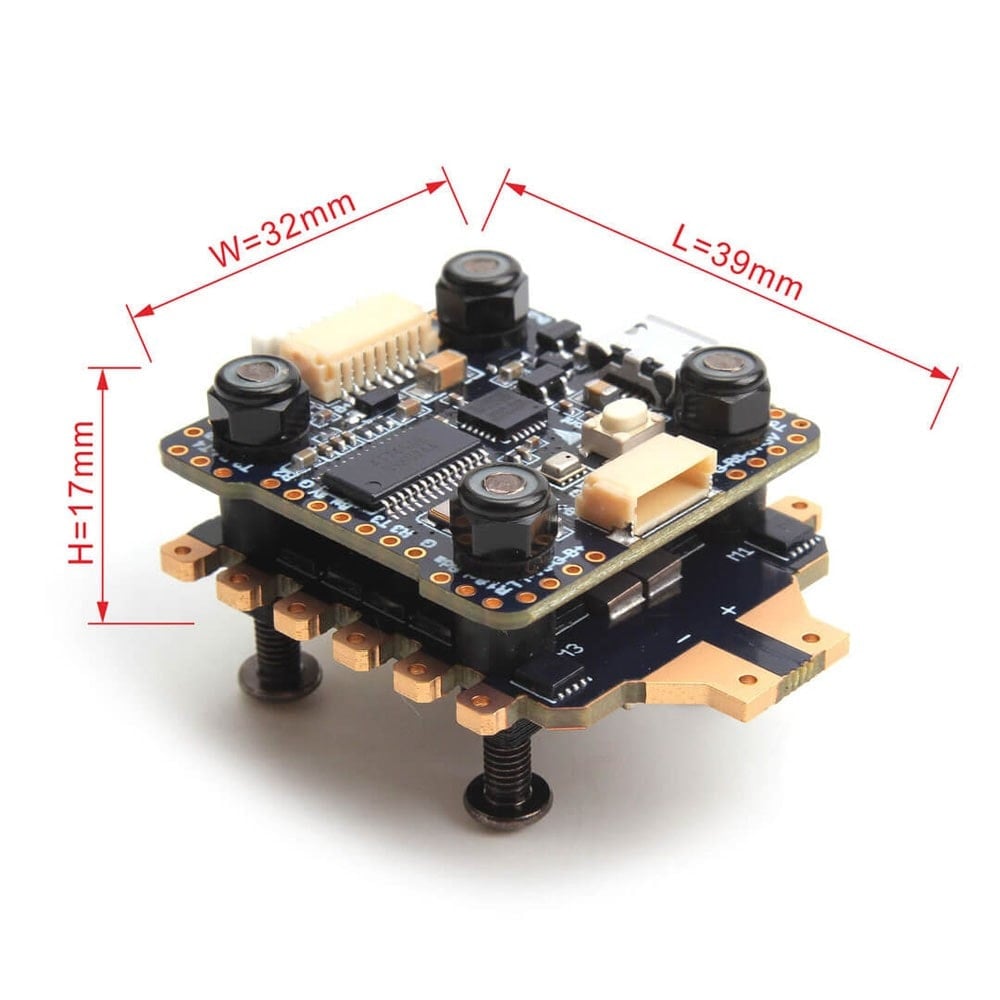

- Dimensions: 30x30mm
- Mounting Holes: Standard 20mm square to the center of holes
- Weight: 4g

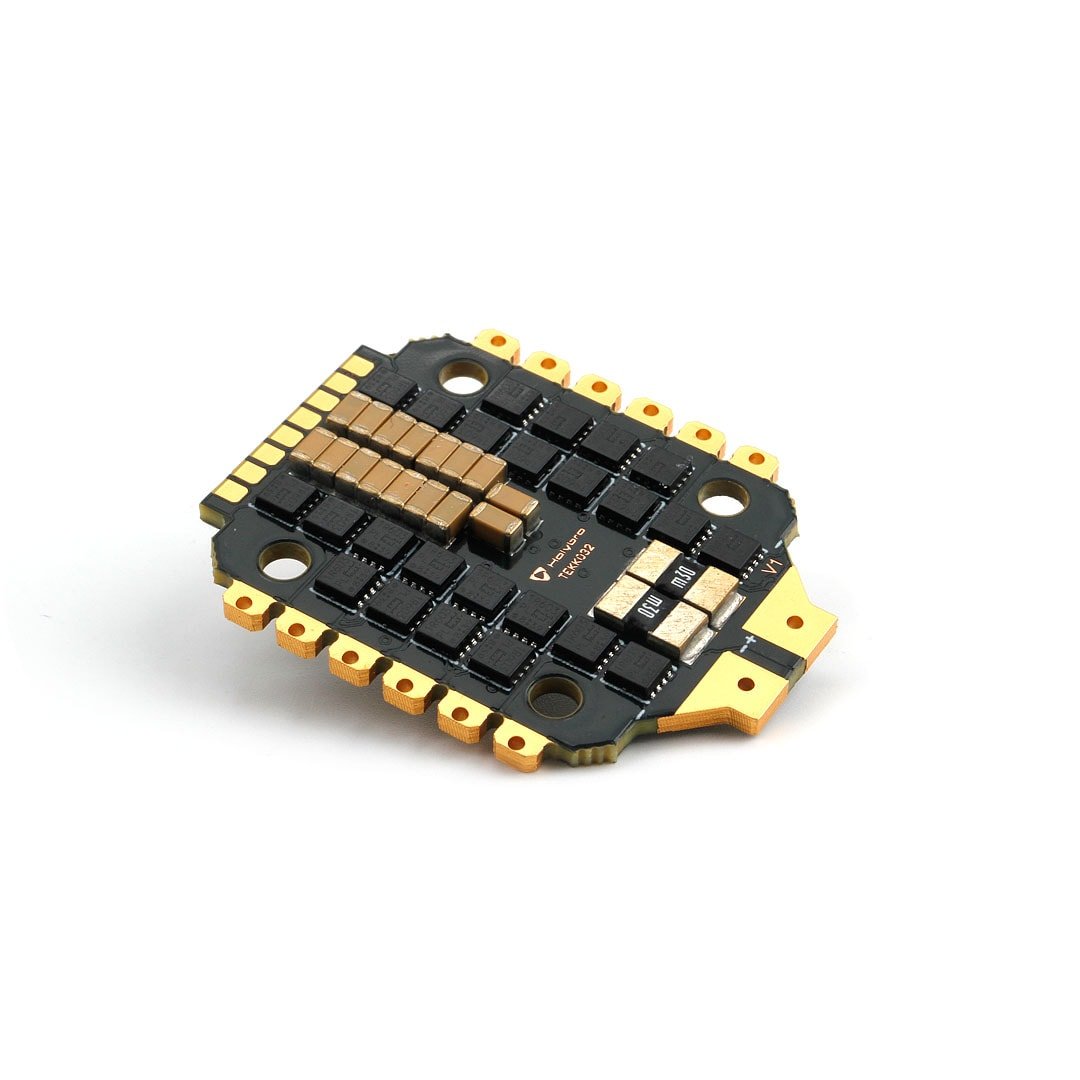

Tekko32 F4 4in1 mini ESC (45A)
- F4 MCU with BLHELI32 firmware
- Maximum PWM output upto 96K (default 48K)
- Amperage meter scale ratio has been adjusted to 168.
- PWM input, TLM supported
- Voltage output (VBAT)
- NO output BEC
- Supports oneshot / Multishot / Dshot PWM
- Supports damped light
- Supports 3-6S lipo input
- Ext. cap needed for 6s (1000uf 35v for 6s usage.)
- Mounting holes: 20x20mm(M3)
- Size:30 x 39 mm
- Weight: 7.2g

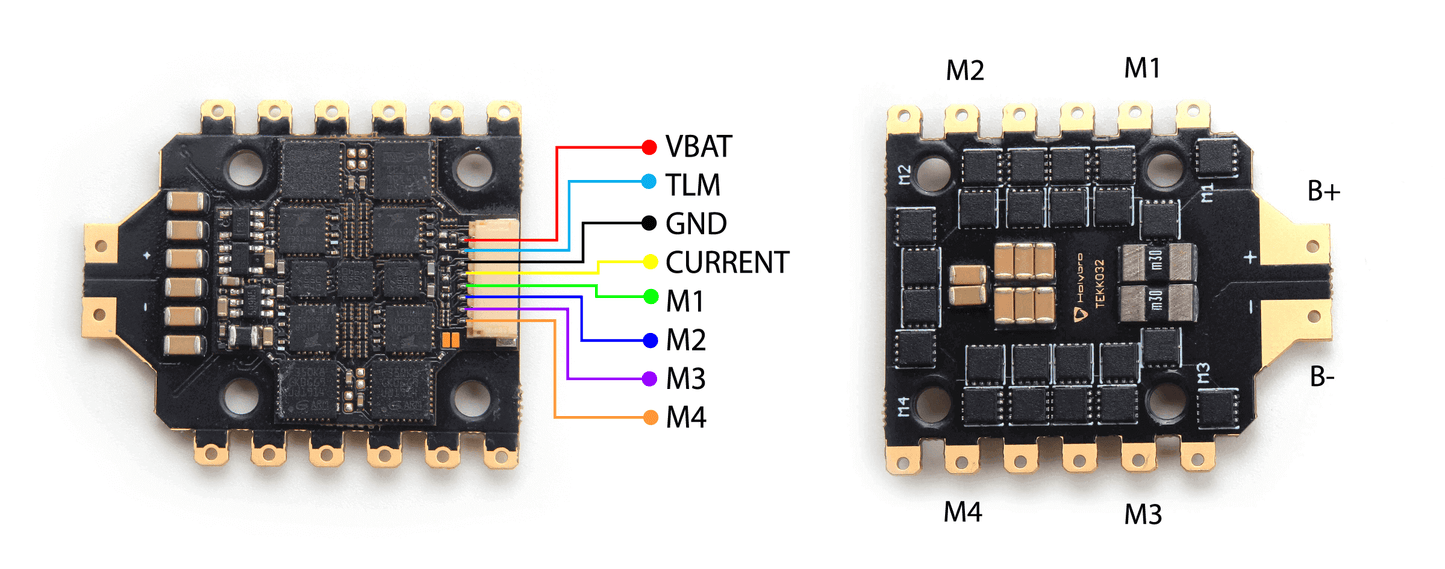

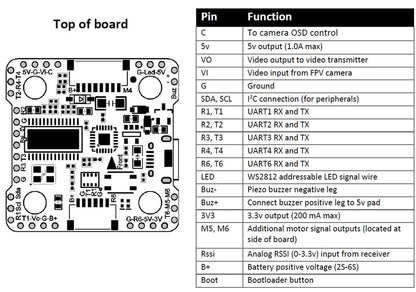

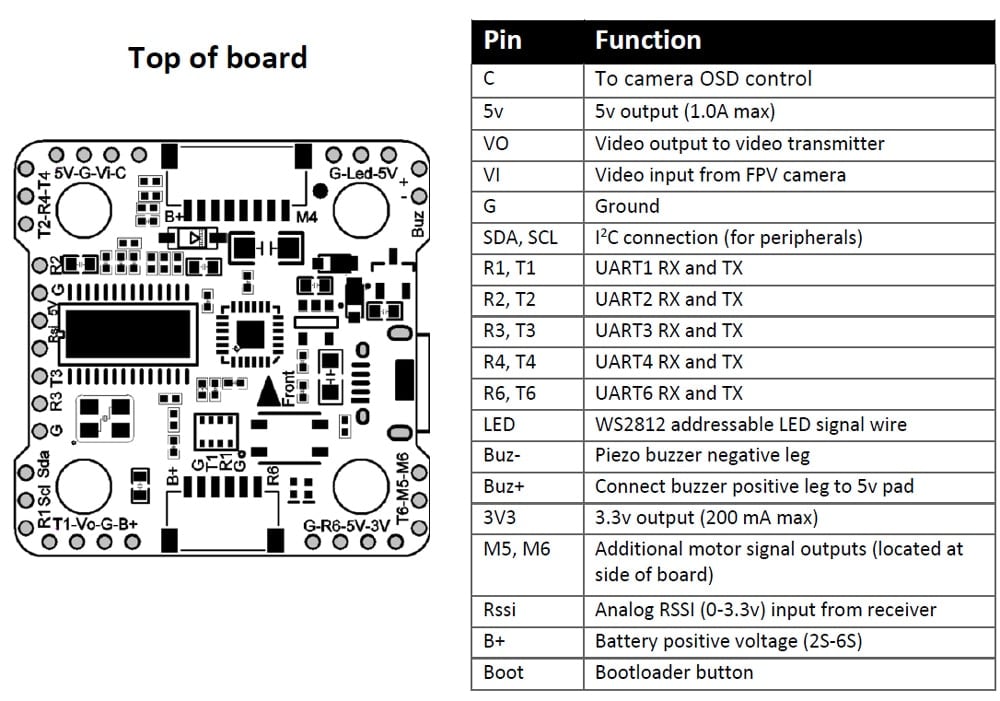

PIN MAP

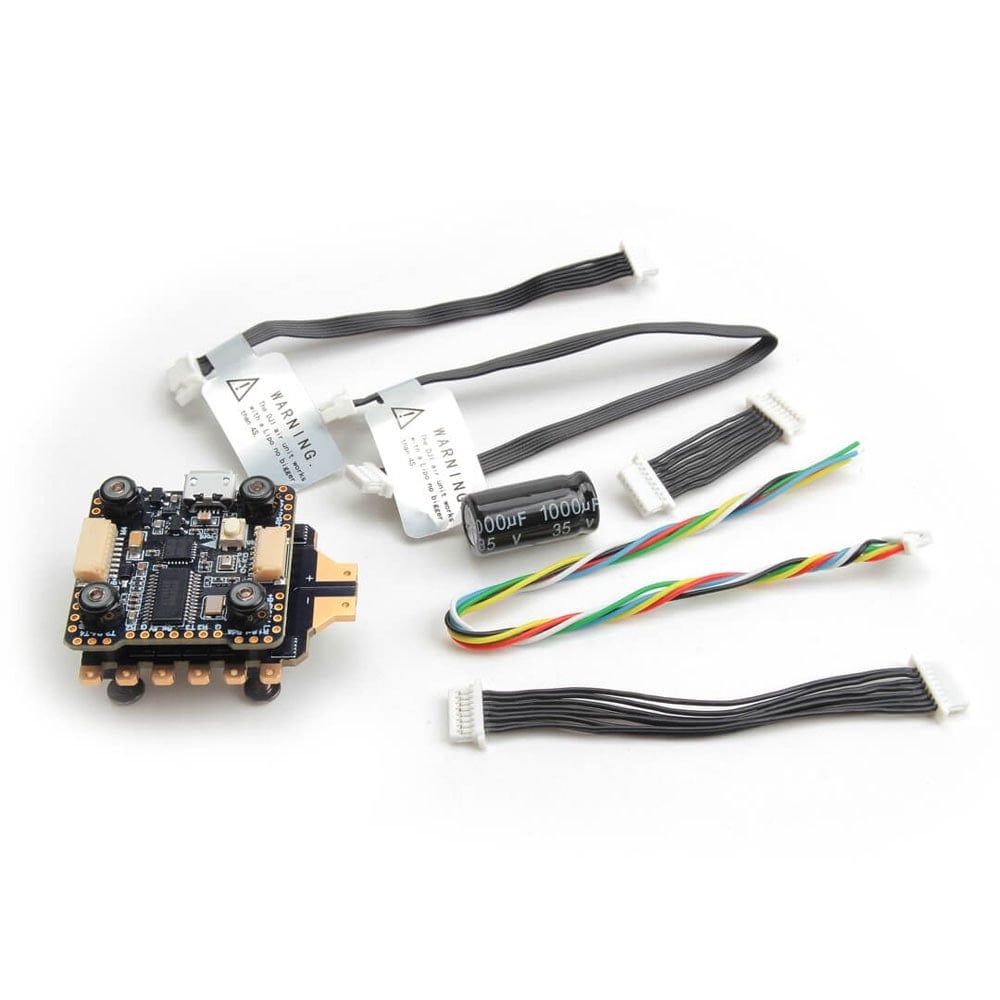

Included
- Kakute F7 mini V3 STACK *1
- Electrolytic capacitor: 1000uF 35v *1
- 8pin to 8pin 1mm pitch 65mm cable *1
- 8pin to 8pin 1mm pitch 25mm cable *1
- JST SH 6pin 150mm cable*1 ( The cable that goes to the CADDX Vista Air Unit is included.)
- JST GHR 8pin to JST GHR 6pin 80mm cable*1 ( The cable that goes to the DJI Air Unit is included.)
- JST GHR 8pin to JST GHR 6pin 150mm cable*1 ( The cable that goes to the DJI Air Unit is included.)
