H-RTK NEO-F9P

Look, we know the feeling. You’re flying a £1,000+ rig and your legacy GPS is telling you that you’re currently three streets over in Mrs. Higgins' koi pond. The H-RTK NEO-F9P is here to end the existential dread of "estimated" positioning. Using the industry-leading u-blox NEO-F9P, this isn't just a GPS; it's a "I know exactly which blade of grass I'm hovering over" sensor. If you're still using a standard M8N, you're basically navigating by the stars and a damp finger in the wind.

Why You Want It

Because you’ve outgrown the L1-only life. This module juggles L1 and L5 bands like a circus performer on caffeine, giving you RTK fixes faster than you can say "where did my signal go?". It’s got a PNI RM3100 compass inside too, because why settle for a "meh" compass when you can have the industry gold standard that doesn't get confused by a stray paperclip or your motor's magnetic field.

Specs

• GNSS Receiver: u-blox NEO-F9P (The brainy one).
• Compass: PNI RM3100 (High resolution, zero offset drift, basically magic).
• Concurrent Reception: GPS (L1 & L5), GLONASS, Galileo, BeiDou, and QZSS.
• Indicators: Tri-color LED (Pretty lights that actually mean something).
• Connectivity: UART or DroneCAN options (DroneCAN includes MCU, IMU, and Barometer).
• Convergence Time: Rapid RTK Fix (Less waiting, more flying).
• Filtering: Integrated SAW filter and LNA for maximum noise immunity.

In the Box

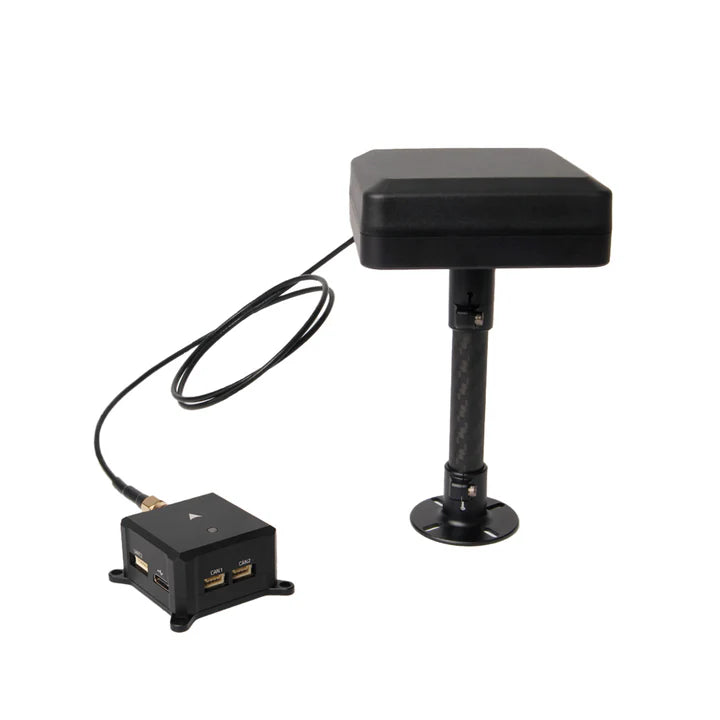

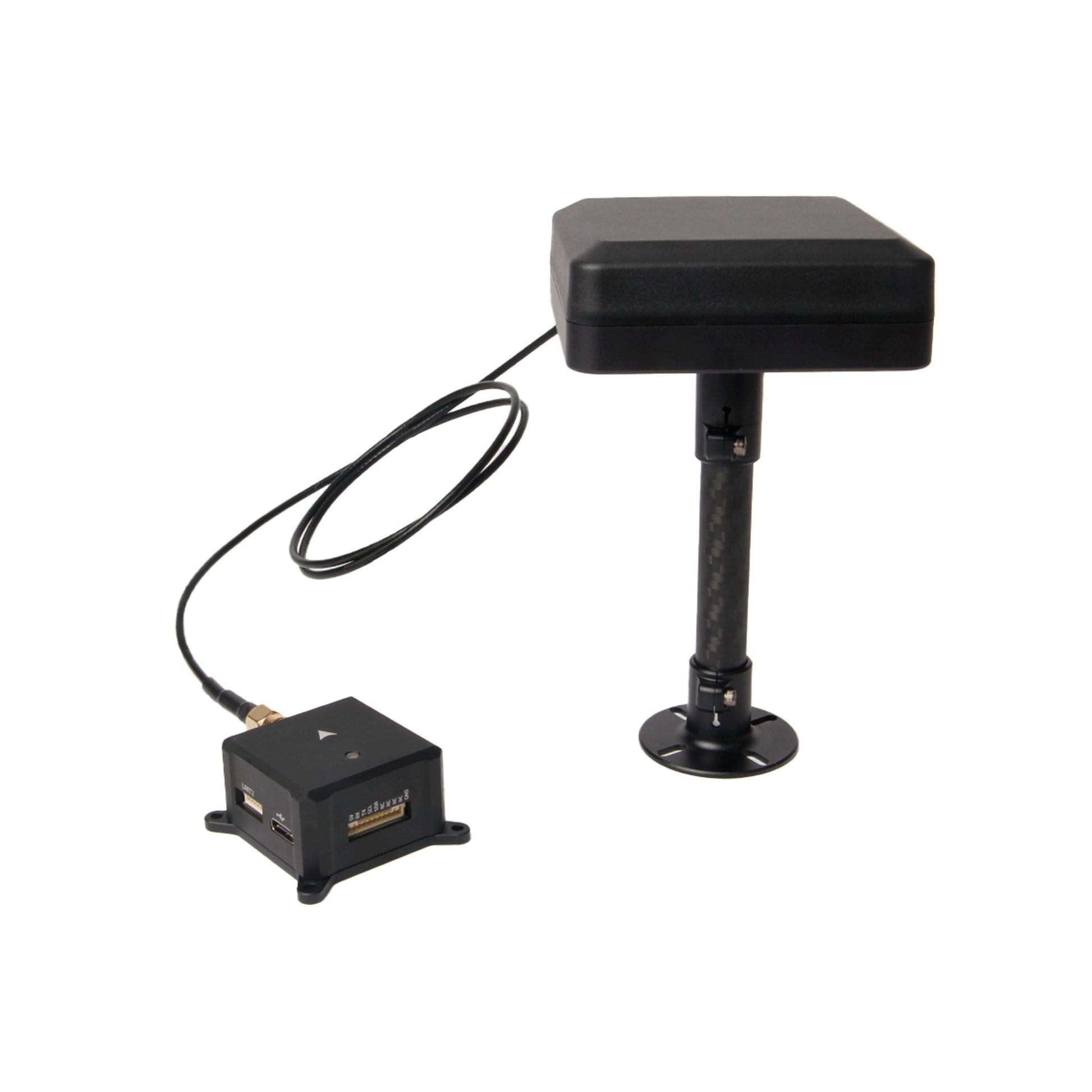

• 1x H-RTK NEO-F9P Module (40cm cable)
• 1x High-Gain Antenna (Variety depends on selection)
• Necessary GH1.25/DroneCAN Cables (So you don't have to break out the soldering iron immediately)

Compatibility

Plugs straight into your Pixhawk, Orange Cube, or any flight controller running ArduPilot or PX4. If you're trying to wire this into a toaster, we can't help you, but it would be very accurately positioned toast.

Highlights

• Multi-Band RTK: Centimetre-level accuracy for high-volume, dynamic applications.
• RM3100 Magnetic Sensor: Exceptional noise immunity and stability across temperature shifts.
• DroneCAN Ready: The DroneCAN version acts as a full sensor hub with its own IMU and Baro.

Notes

Requires an RTK Base Station or NTRIP correction service to achieve that sweet, sweet centimetre accuracy. Without it, it's just a very, very expensive, very good GPS. Also, don't bury it under a carbon fibre plate and wonder why it can't see the sky.

Disclaimer

Centimetre accuracy does not make you a better pilot. You can still hit a tree with 0.01m precision.
