Product Details

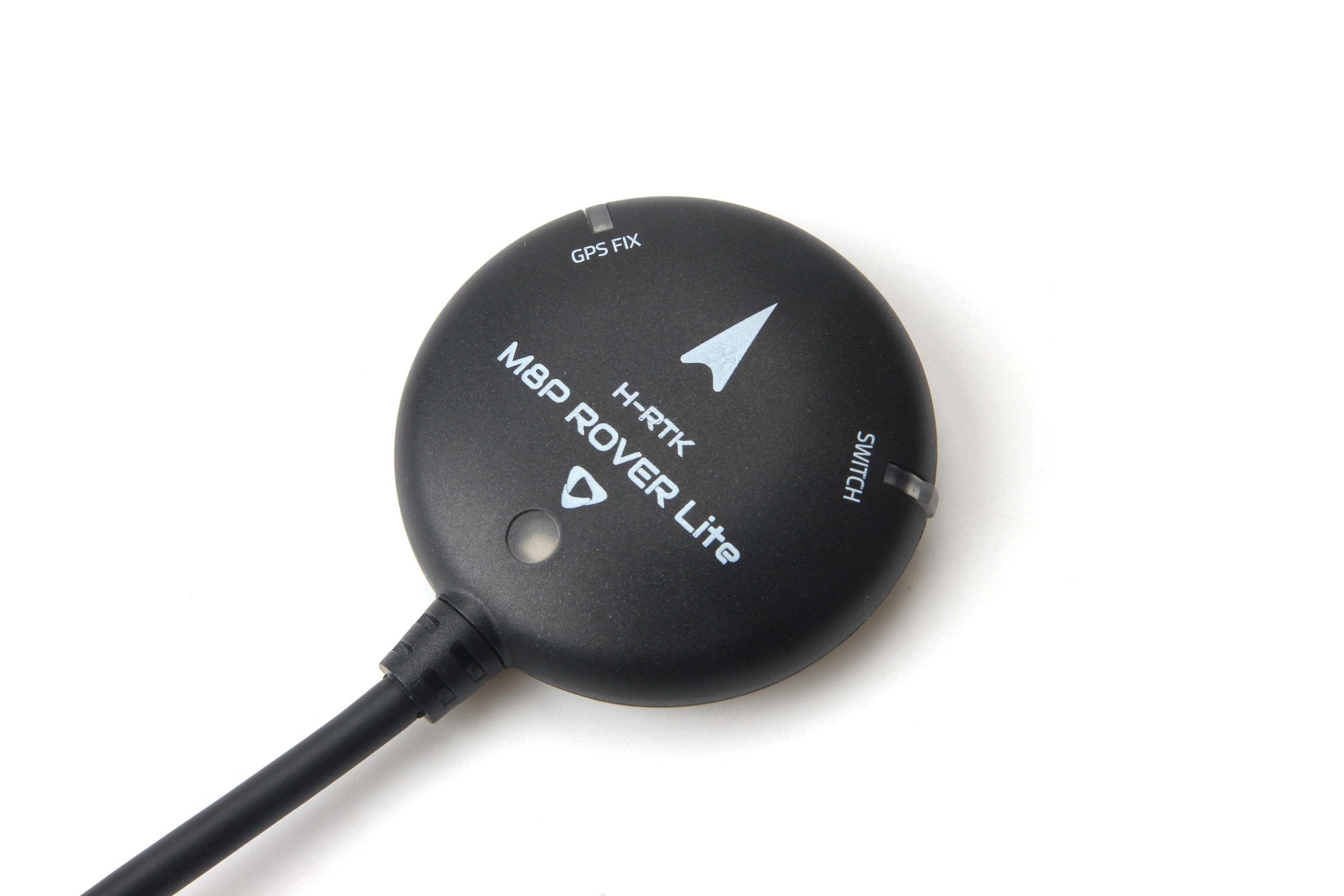

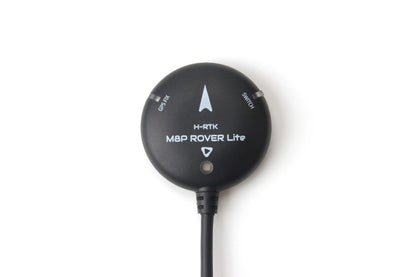

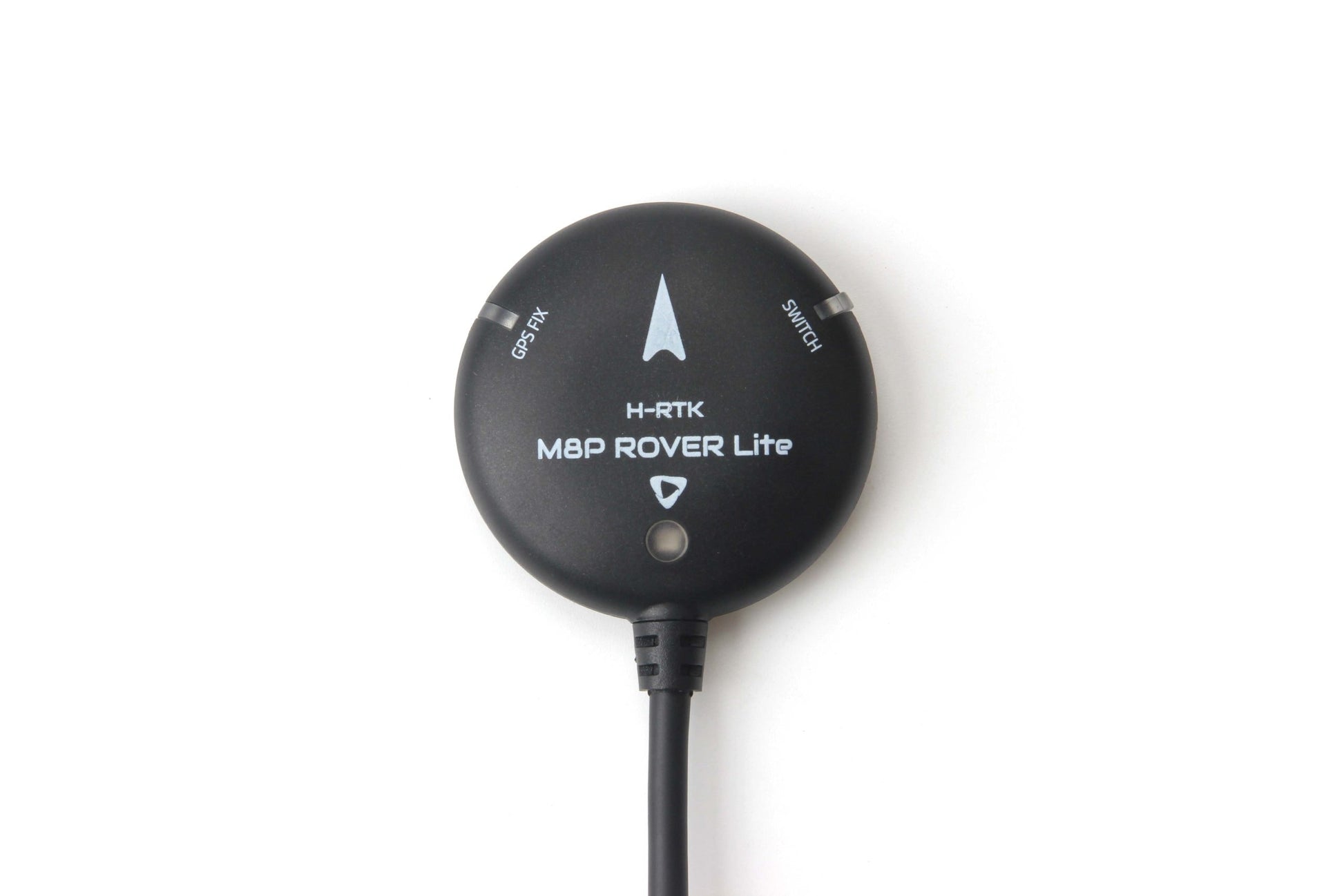

The H-RTK M8P rover modules is the smallest module in the H-RTK series. It can meet the needs of general DIY users. Due to the lower cost and size, this model can also greatly minimise the cost of large swarm drone projects such as swarm light shows. It has a integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk series flight controller.
Holybro_H-RTK_M8P_GNSS_Spec_V1.2
Specification
- Name: H-RTK M8P Rover Lite
- Application: Rover Use Only (Aircraft, UAV, Ground Vehicle)
- GNSS: GPS L1, GLONASS L1, BeiDou L1
- Antenna Peak Gain (Max): 1.5dBi
- LNA Gain (typical): 25.5 (+- 1dB)
-
Time to first Fix:
- Cold Start 35s
- Hot Start 1s
- RTK Survey In Time: n/a (rover use only)
-
Data update rate:
- Raw - 10Hz Max
- RTK 5Hz Max

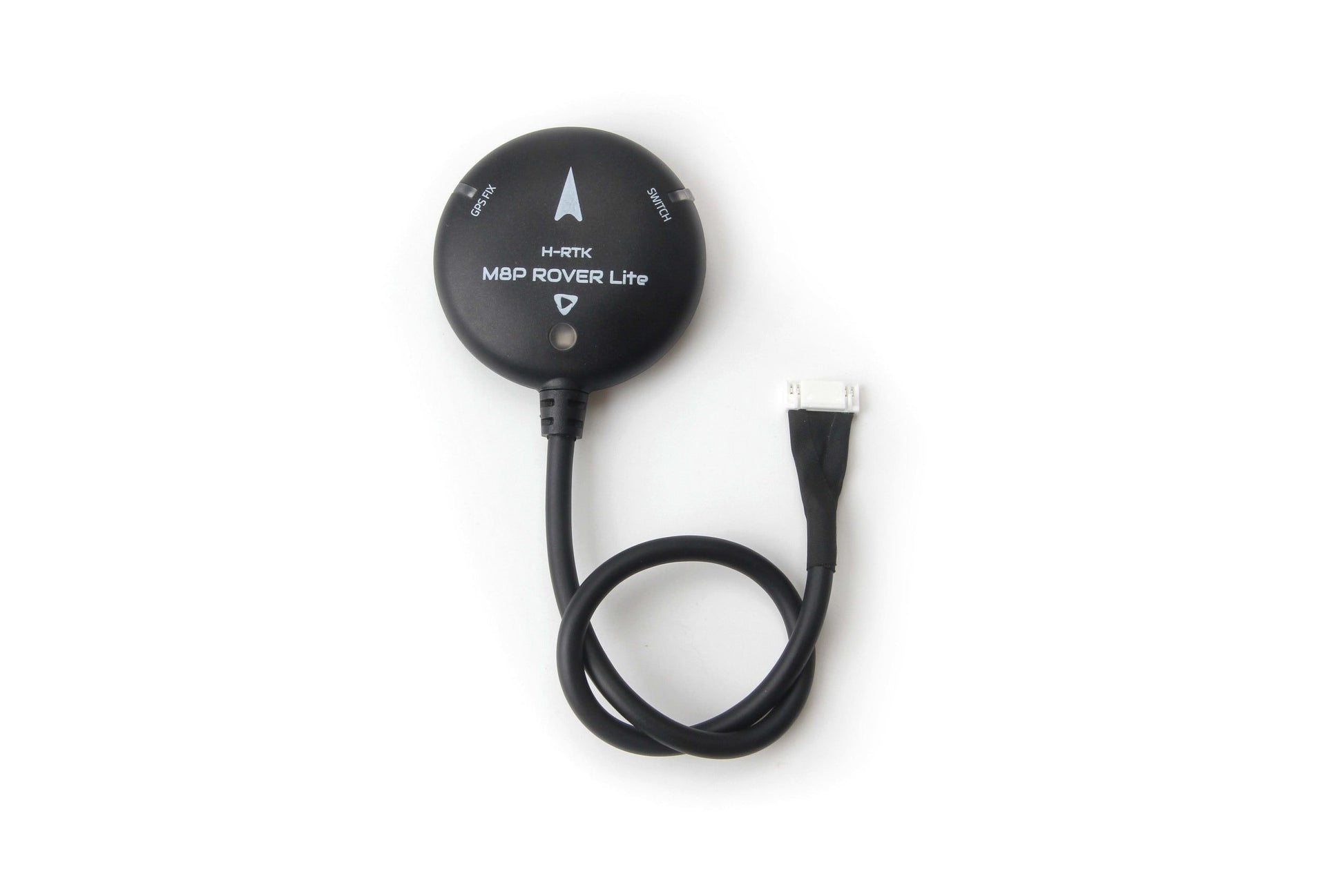

- Ports: 26cm Pixhawk 4 compatible GH1.25 10 pin cable included
- Antenna connection type: Internal built in
- Baud Rate: 38400 5Hz Default, can be changed
- Working Voltage: 4.75V - 5.25V
- Dimension 50x14.5mm
- Weight: 32g

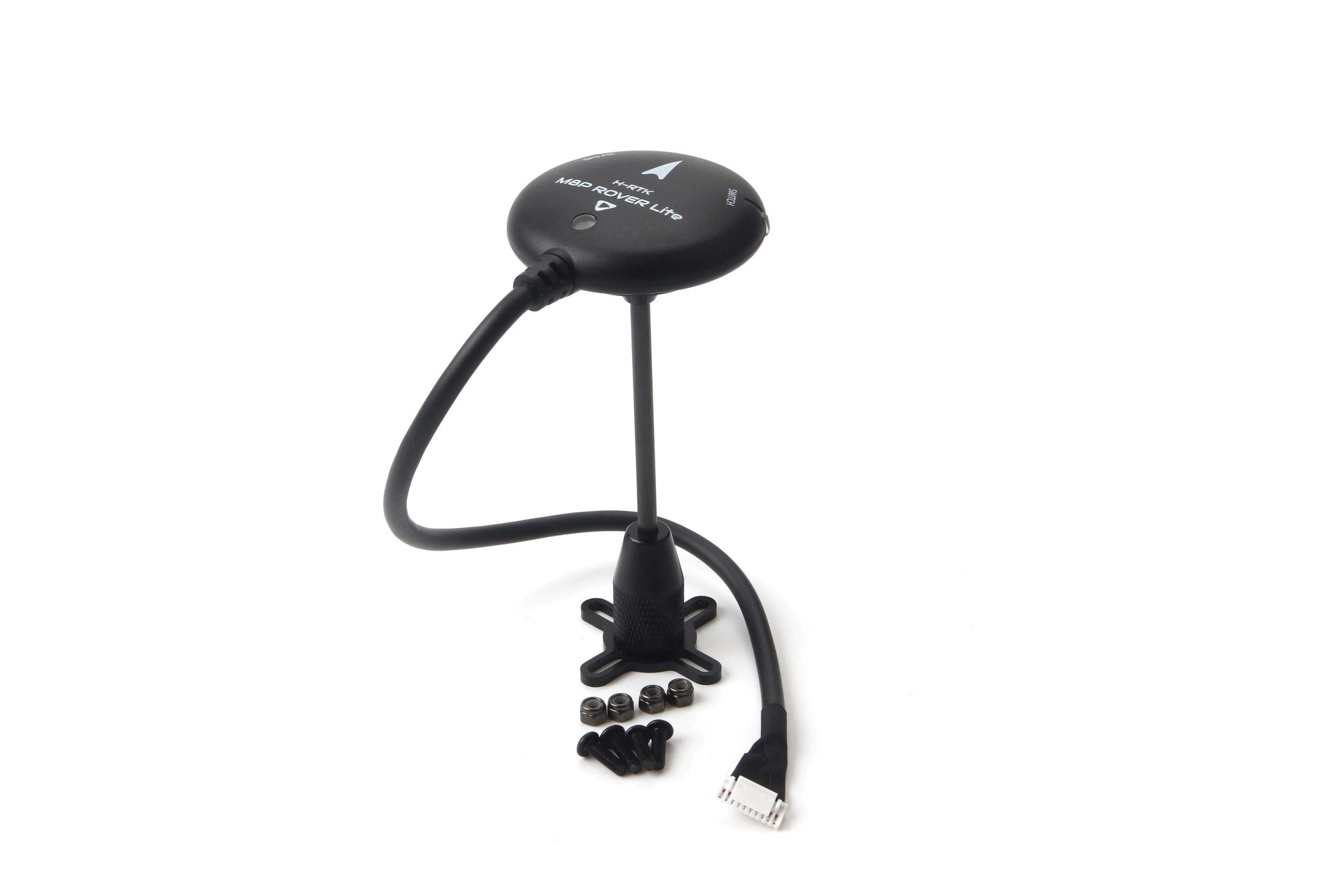

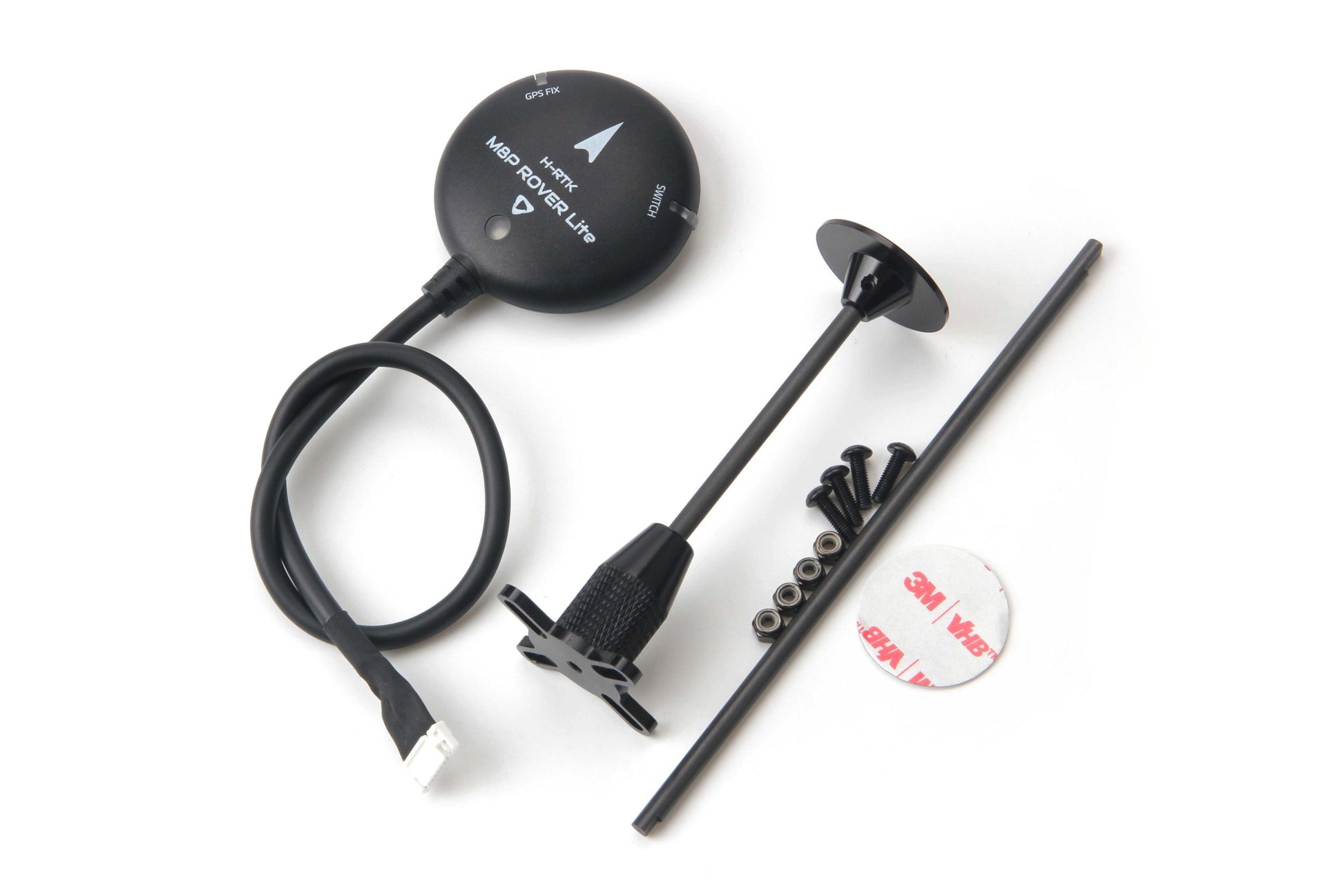

Included
- H-RTK M8P Rover Lite *1
- ‘X' type folding pedestal mount *1
- Carbon rod 70mm & 140mm *1

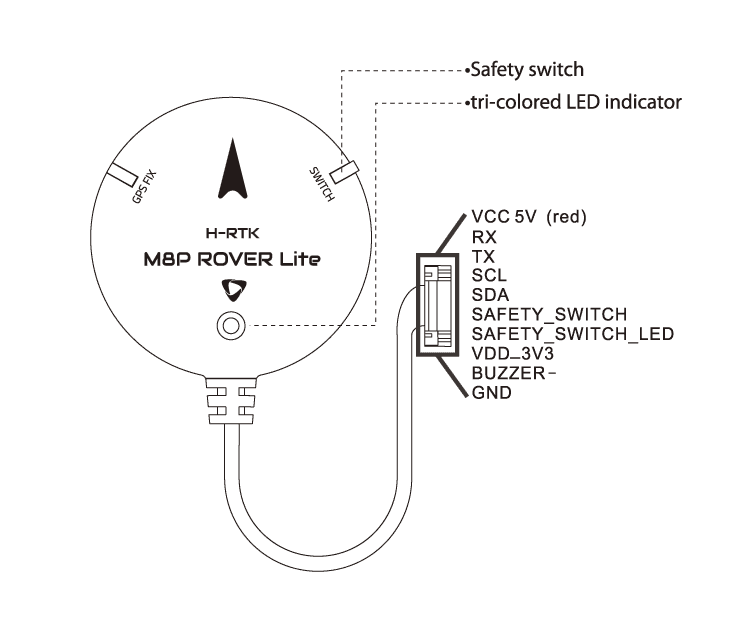

H-RTK Rover Pinout
