Product Details

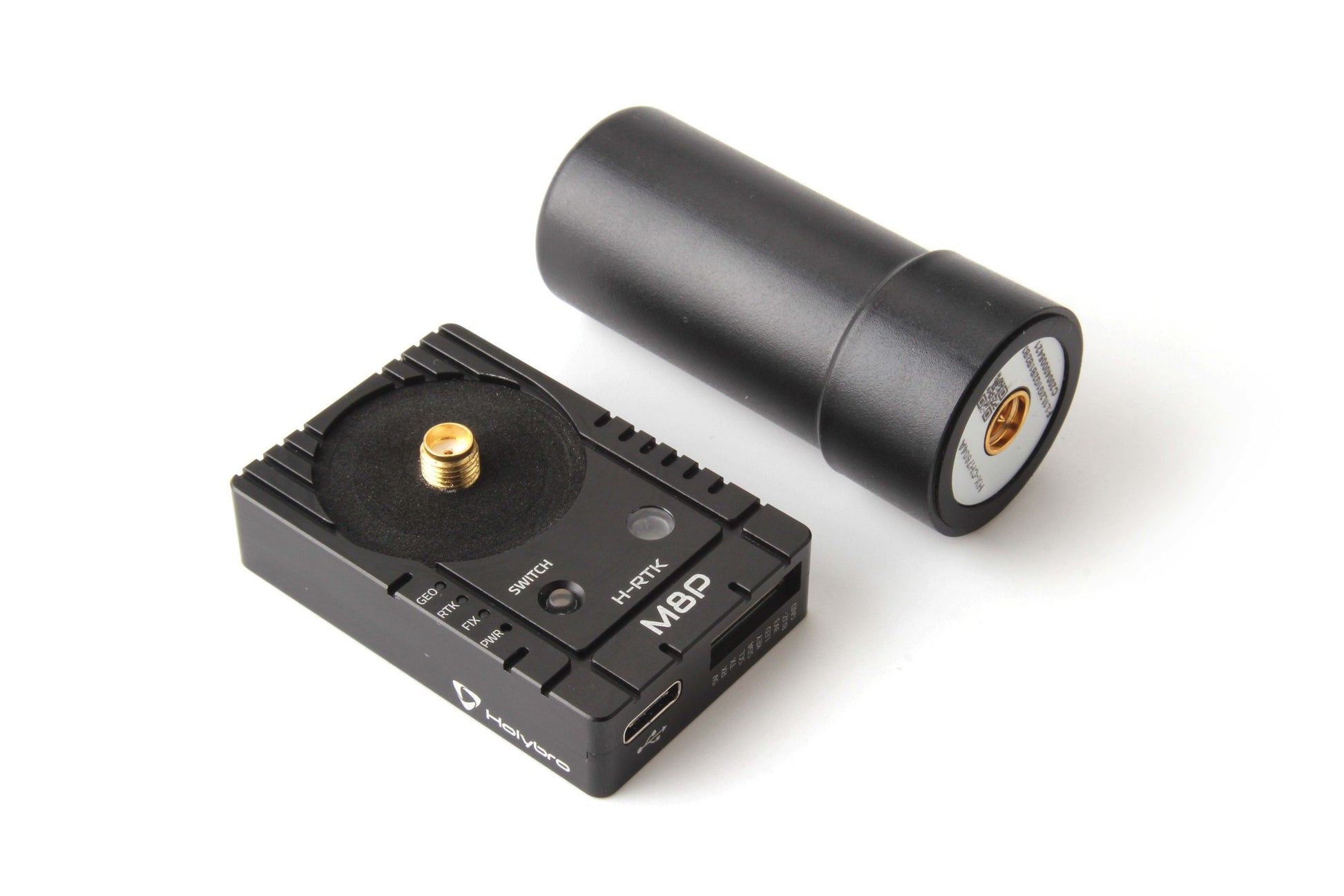

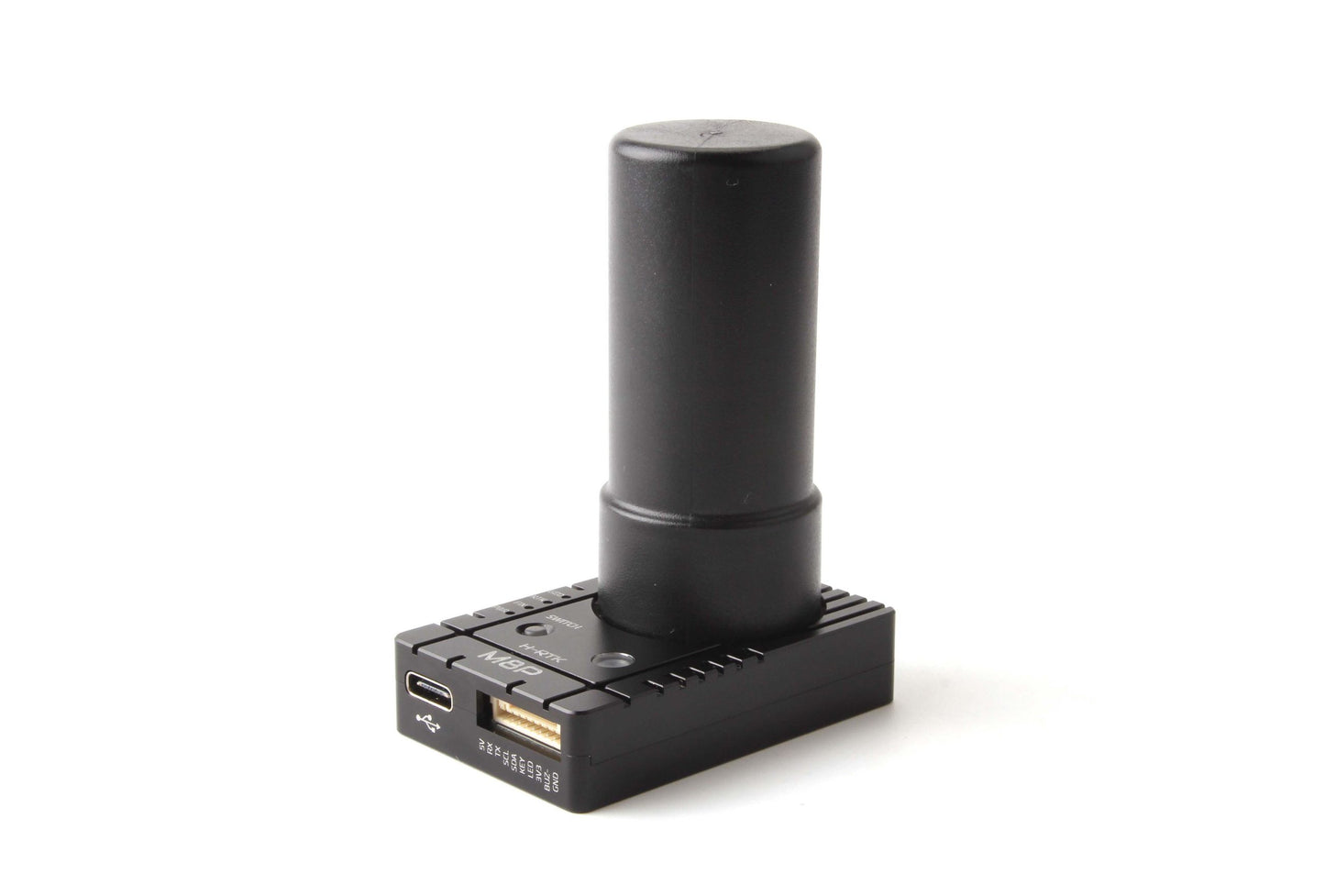

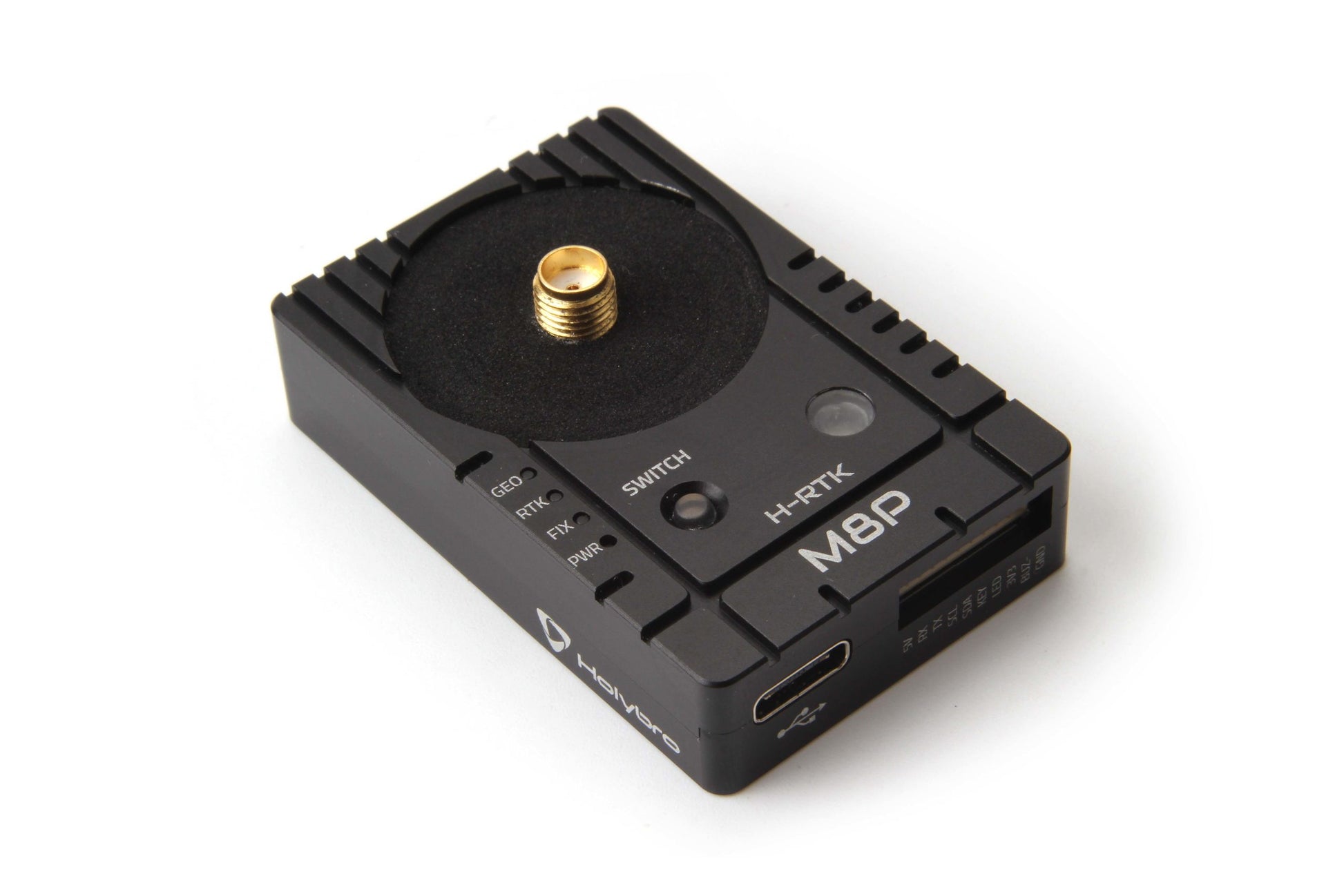

This H-RTK module uses a helical antenna that offers significantly better precision compared to the standard lite M8P antenna. This makes it possible to use this module as either a rover or base station module in your RTK setup. The enclosure is made from aluminum alloy and features an integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk series flight controller.
Holybro_H-RTK_M8P_GNSS_Spec_V1.2

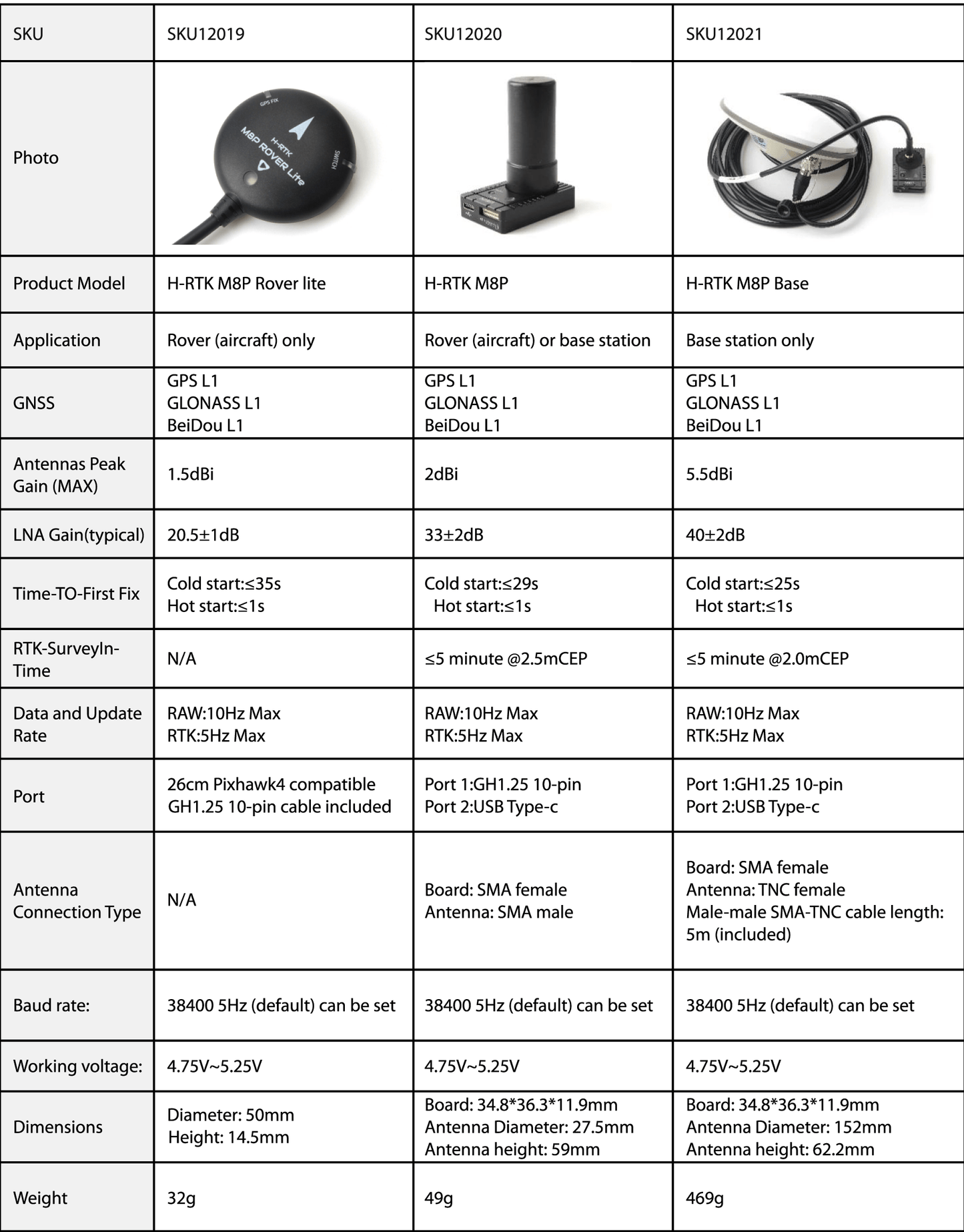

Specification
- Name: H-RTK M8P Helical
- Application: Rover (Aircraft, UAV, Ground Vehicle) or Base station
- GNSS: GPS L1, GLONASS L1, BeiDou L1
- Antenna Peak Gain (Max): 2dBi
- LNA Gain (typical): 33 (+- 2dB)
-
Time to first Fix:
- Cold Start 29s
- Hot Start 1s
- RTK Survey In Time: 5 minute at 2.5m CEP
-
Data update rate:
- Raw - 10Hz Max
- RTK 5Hz Max
-
Ports:
- Port 1: GH1.25 10 pin
- Port 2: USB Type C
- Antenna connection type: SMA Female (needs SMA male antenna)
- Baud Rate: 38400 5Hz Default, can be changed
- Working Voltage: 4.75V - 5.25V
- Dimension 43.8x36.3x11.9 (board only), Helical Antenna is 27.5x59mm
- Weight: 49g

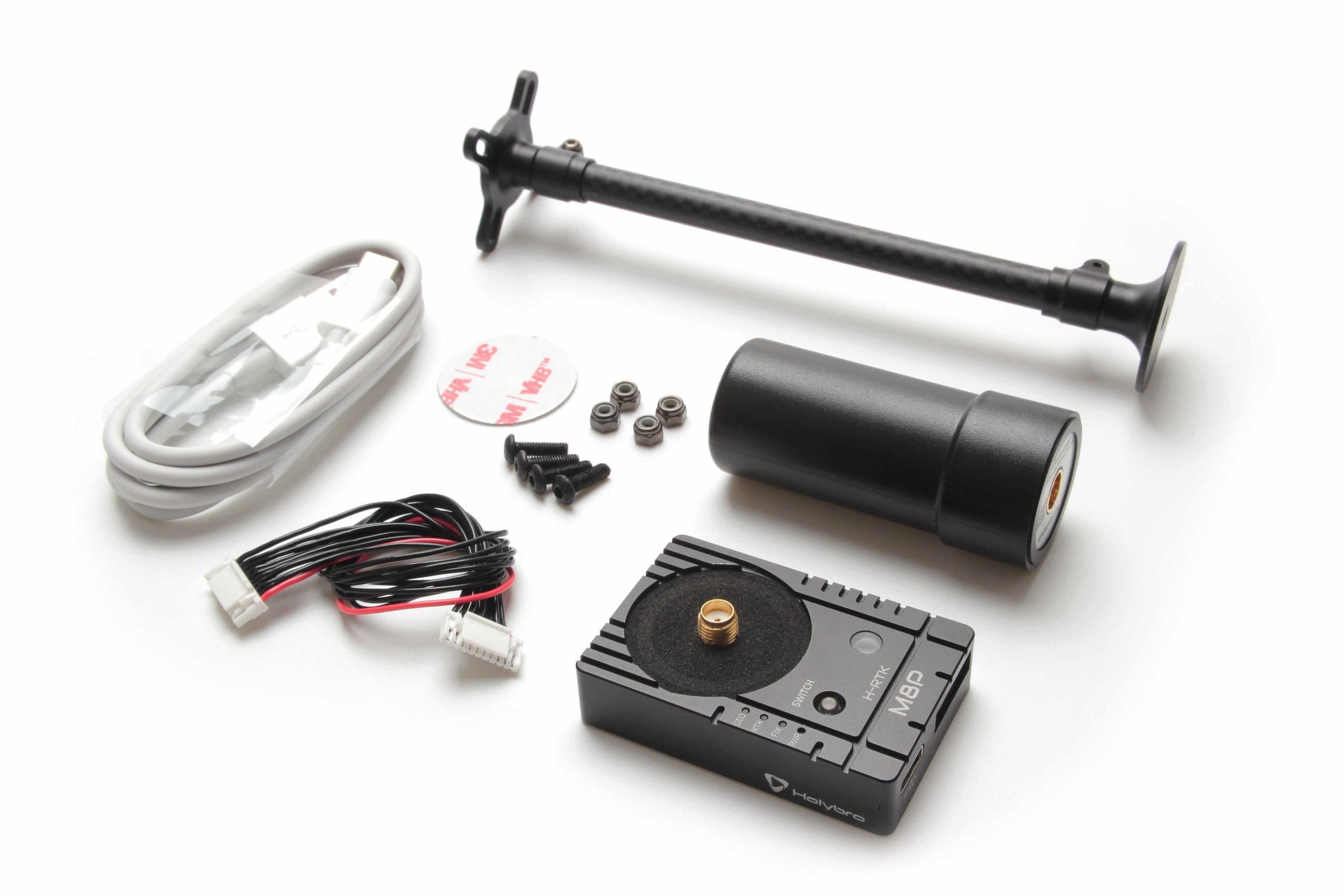

Included
- H-RTK M8P *1
- High Precision GNSS Antenna *1
- Fixed Carbon Fiber GPS mount(29mm) *1
- GH 10P cable 150mm *1
- GH 10P cable 400mm *1
- USB type-c cable *1

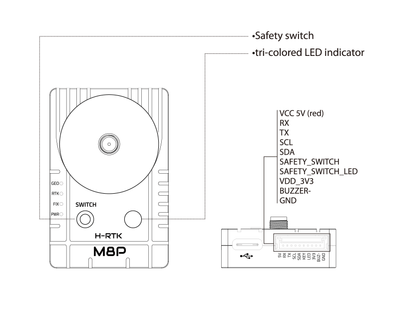

H-RTK Helical Pinout
