Product Details

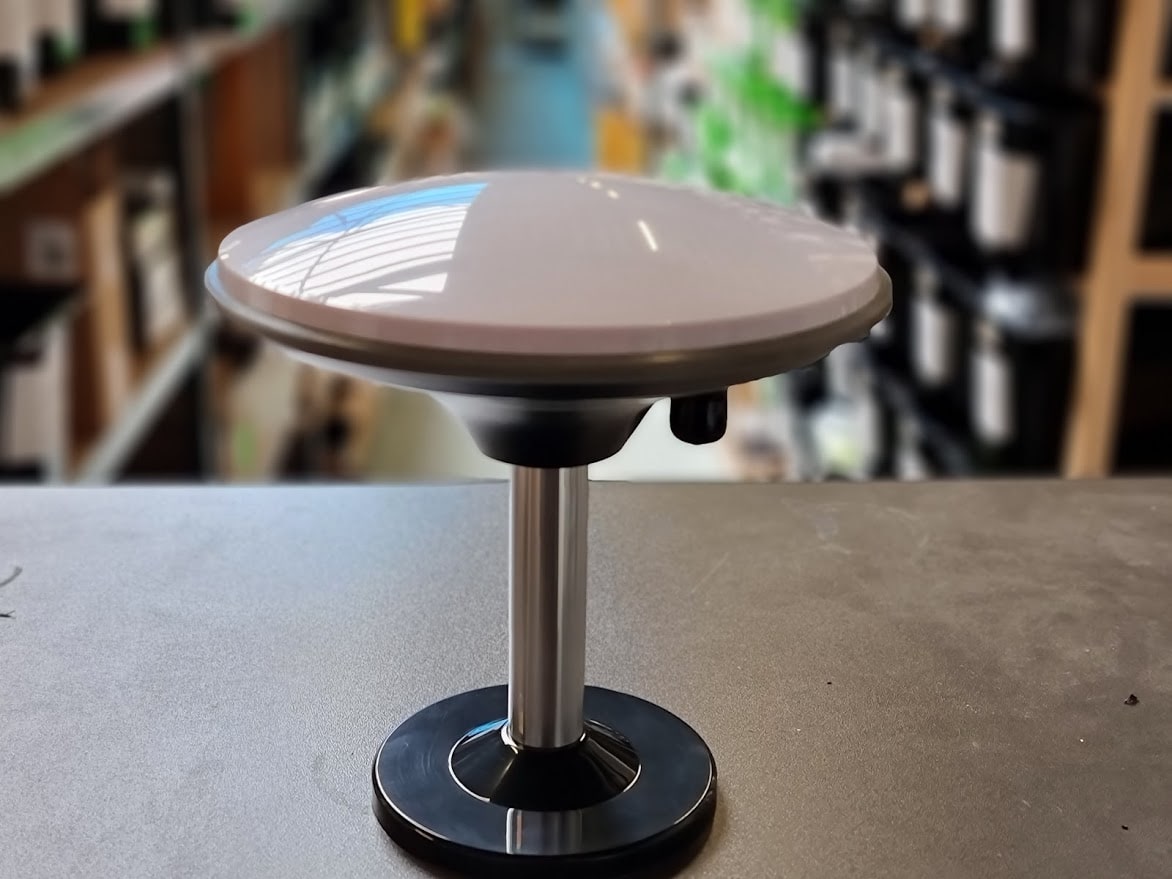

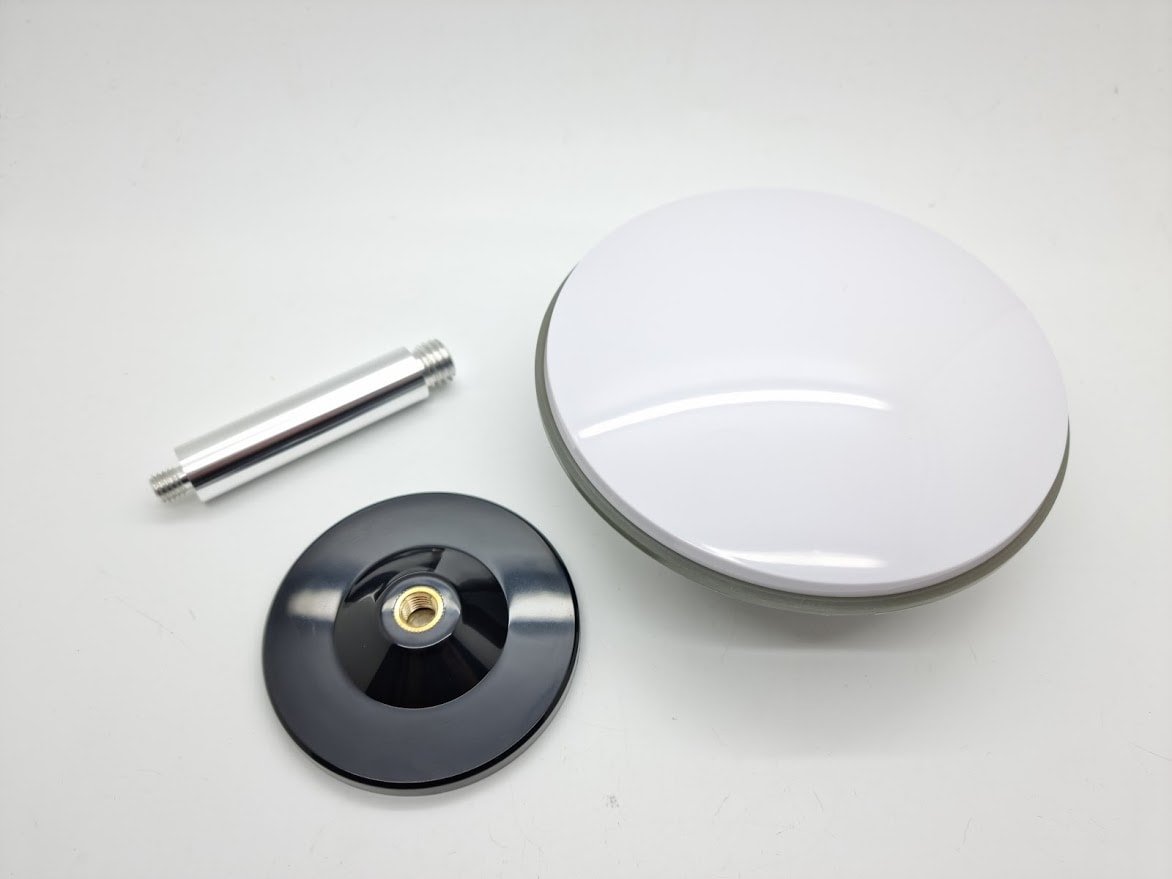

This is a high gain, high precision RTK GNSS surveying antenna that supports multiple bands making it an ideal option when you are looking for a good antenna for your survey needs. This antenna includes a magnetic mount, and a TNC connector.
Specifications:
| Antenna | Frequency |
GPS L1/L2
GLONASS G1/G2 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5b/E6 |
| Polarization | RHCP | |
| Axial Ratio | ≤3dB | |
| V.S.W.R | ≤1.5 | |
| Peak Gain | ≥5dBi | |
| Impedance | 50Ω | |
| Phase Center Error | ±2mm | |
| Horizontal coverage angle | 360° | |
| LNA | Gain | 40±2dB |
| Noise Figure | ≤1.5dB | |
| Passband fluctuation | ±1.5dB | |
| Supply Voltage | 3~12V DC | |
| Current Consumption | ≤50mA | |
| V.S.W.R | ≤2.0 | |

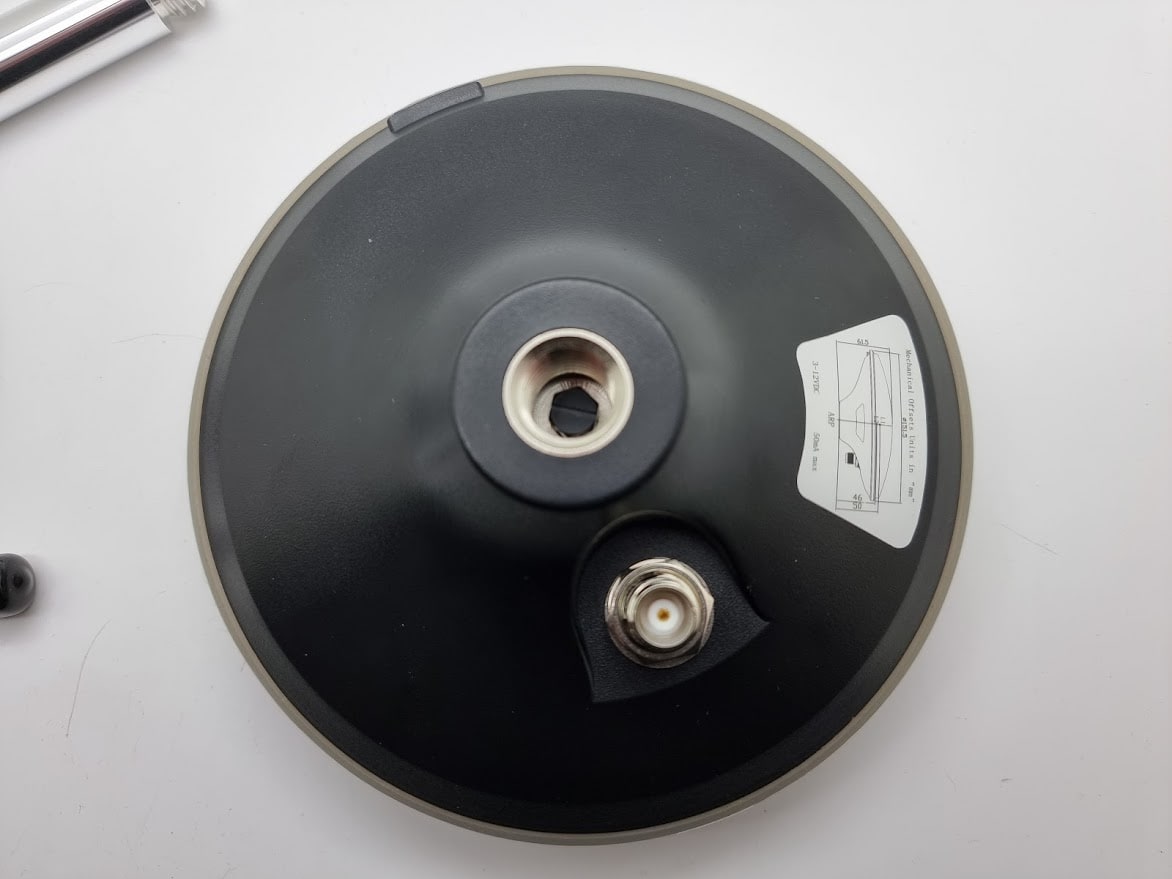

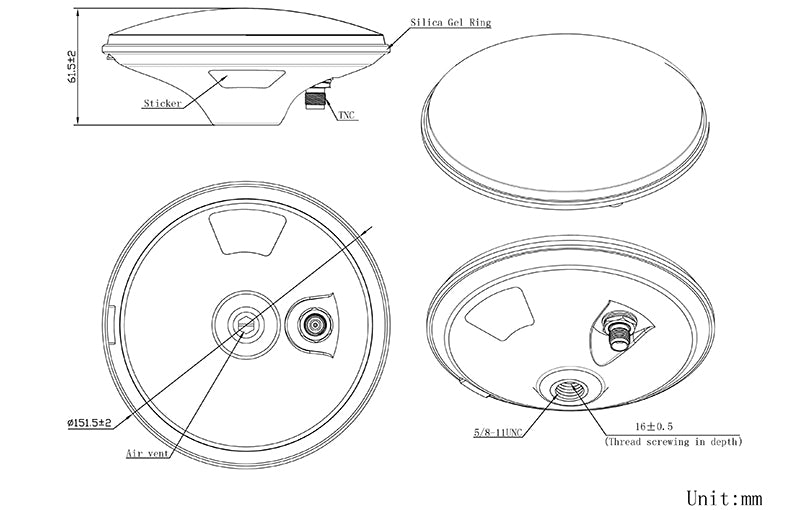

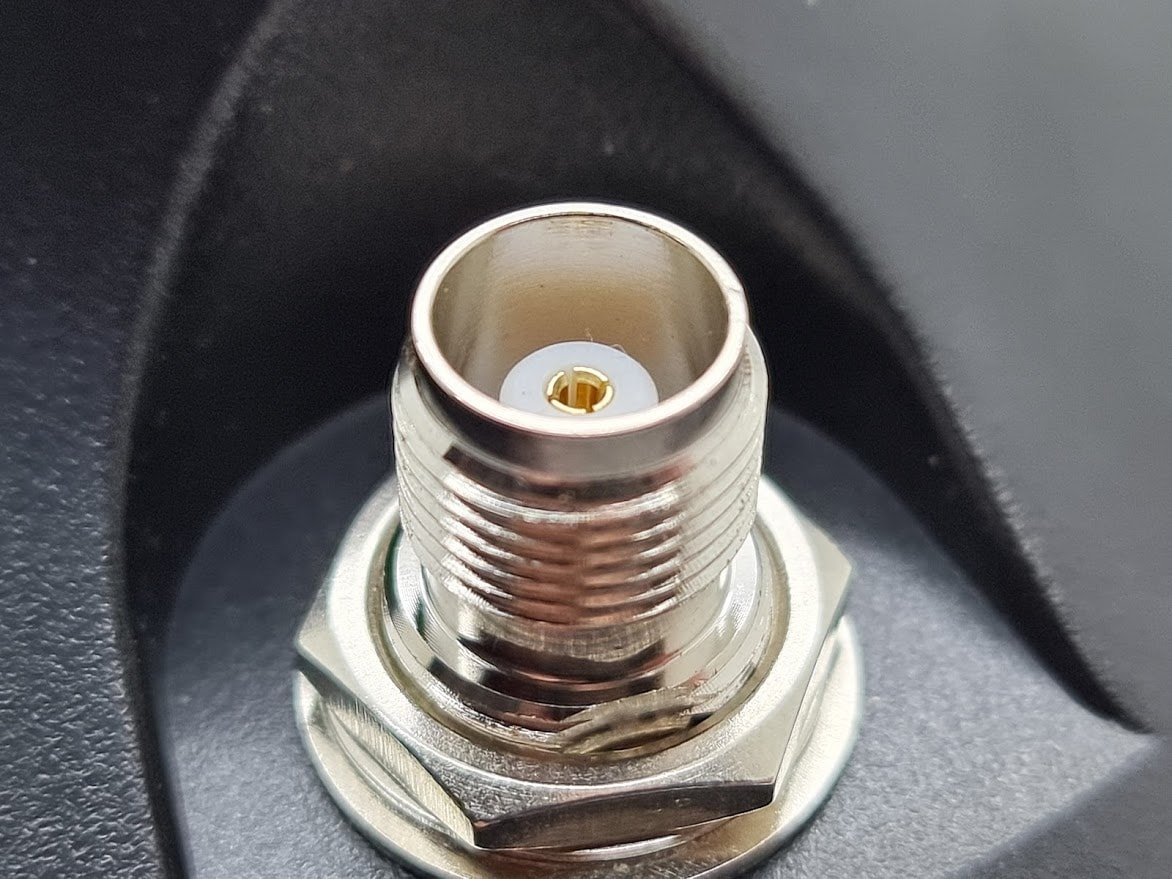

| Mechanical | Connector | TNC-K |
| Radome Material | ABS | |
| Mounting Method | Screw | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Ingress Protection | IP67 (exclude Air vent in screw hole) | |
| Environmentally Friendly | ROHS Compliant |
