Product Details

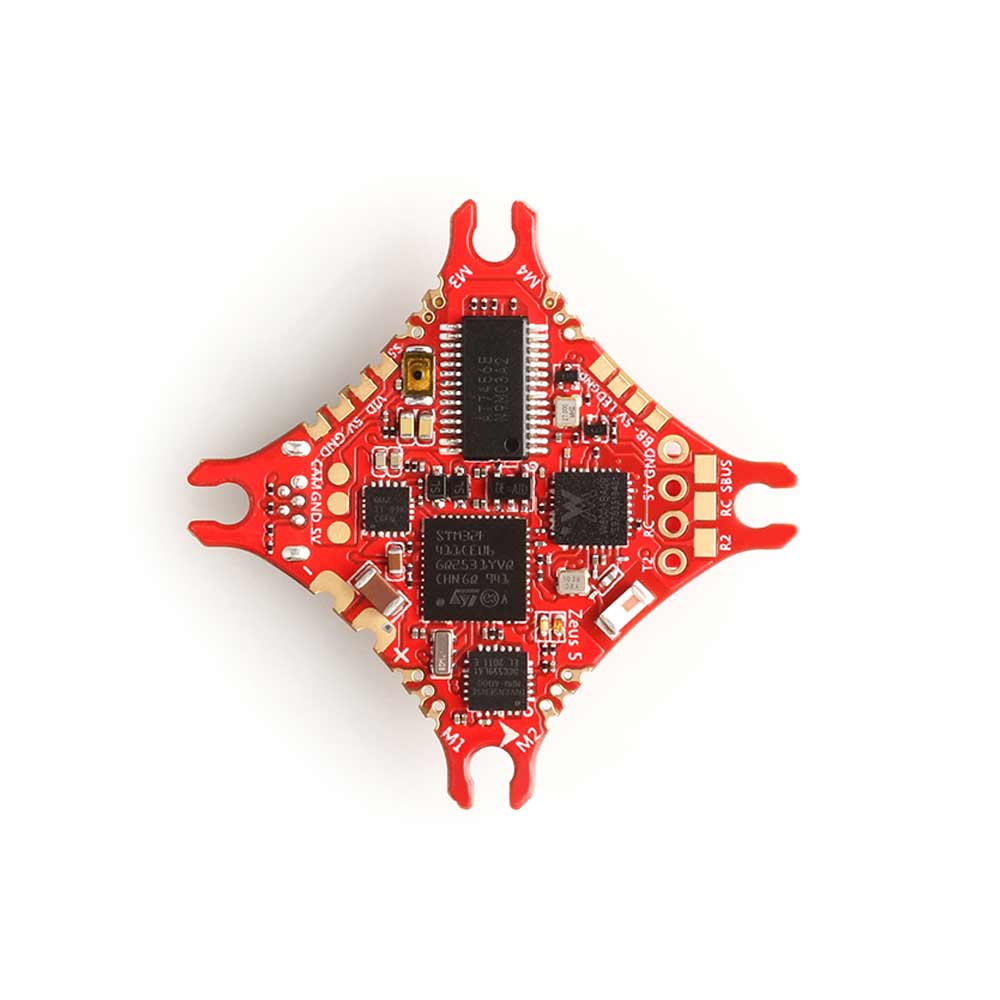

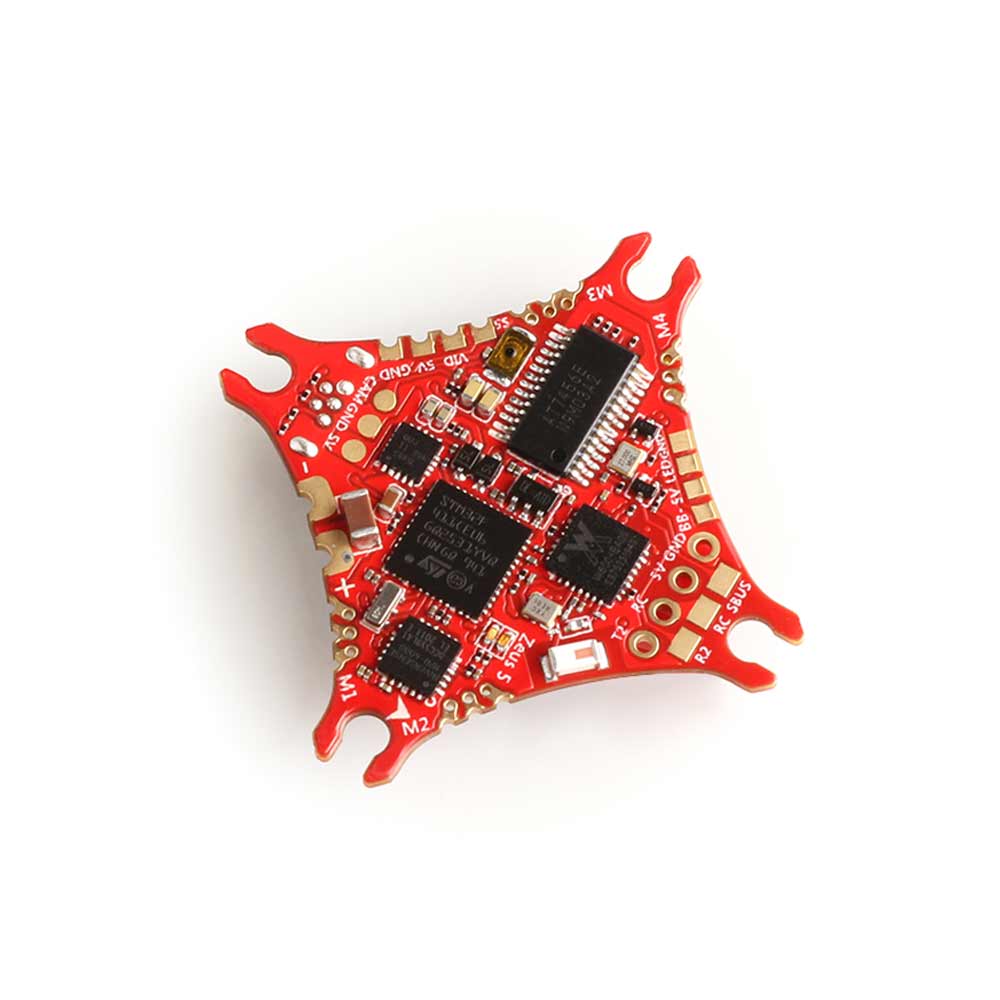

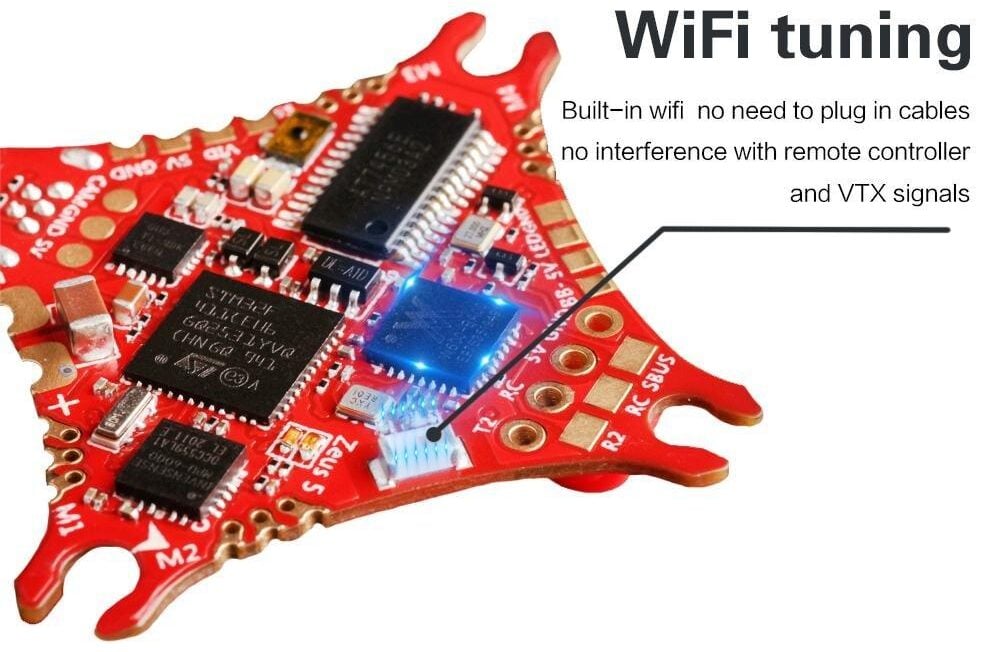

The Zeus5 AIO flight controller is designed for ultra light quadcopter builds, it is the flight controller used by the Rekon3 nano long range drone. It features an F411 FC, along with OSD and 4x 5A BLheli_S ESC, and WiFi functionality. All into a tiny package that weighs just 4.2g.
Zeus5 AIO Manual
Specification
- Usage:for 65mm-120mm Frame Kit
- FC Firmware:BF HGLRCF411(HGLR)
- Installing Hole:25.5X25.5mm.M2
F411 FC+5A BL_S ESC
- Input Voltage:1-2S
- FC Firmware:BF HGLRCF411(HGLR)
- ESC Firmware:BL_S
- Installing Hole:25.5X25.5mm.M2
- Dimensioms:41.5x41.5mm

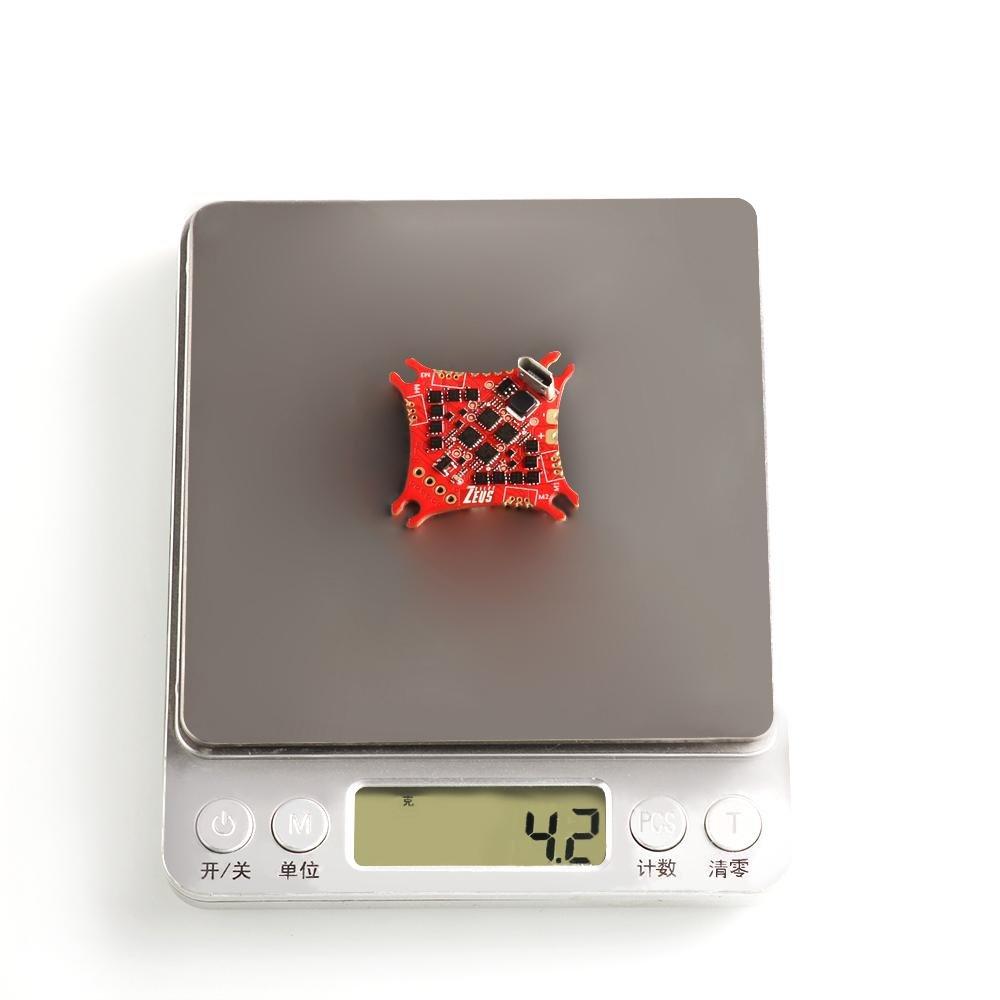

- Weight:4.2g
F411 Flight Controller
- CPU:STM32F411
- MPU:MPU6000
- OSD:Support
- BEC:5V/1A
- LED:Support
- BlackBox:NO
- UARTS:2

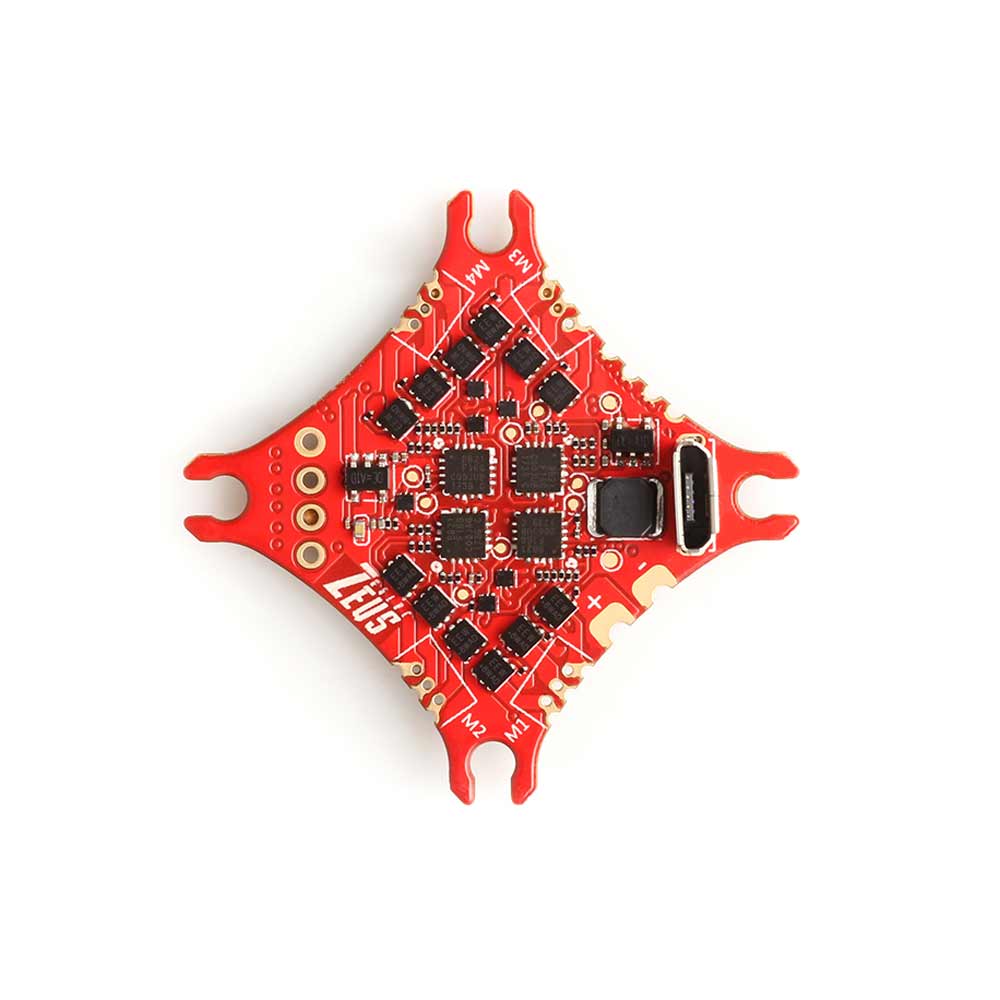

5A BL_S 4in1 ESC
- Constant Current:5A

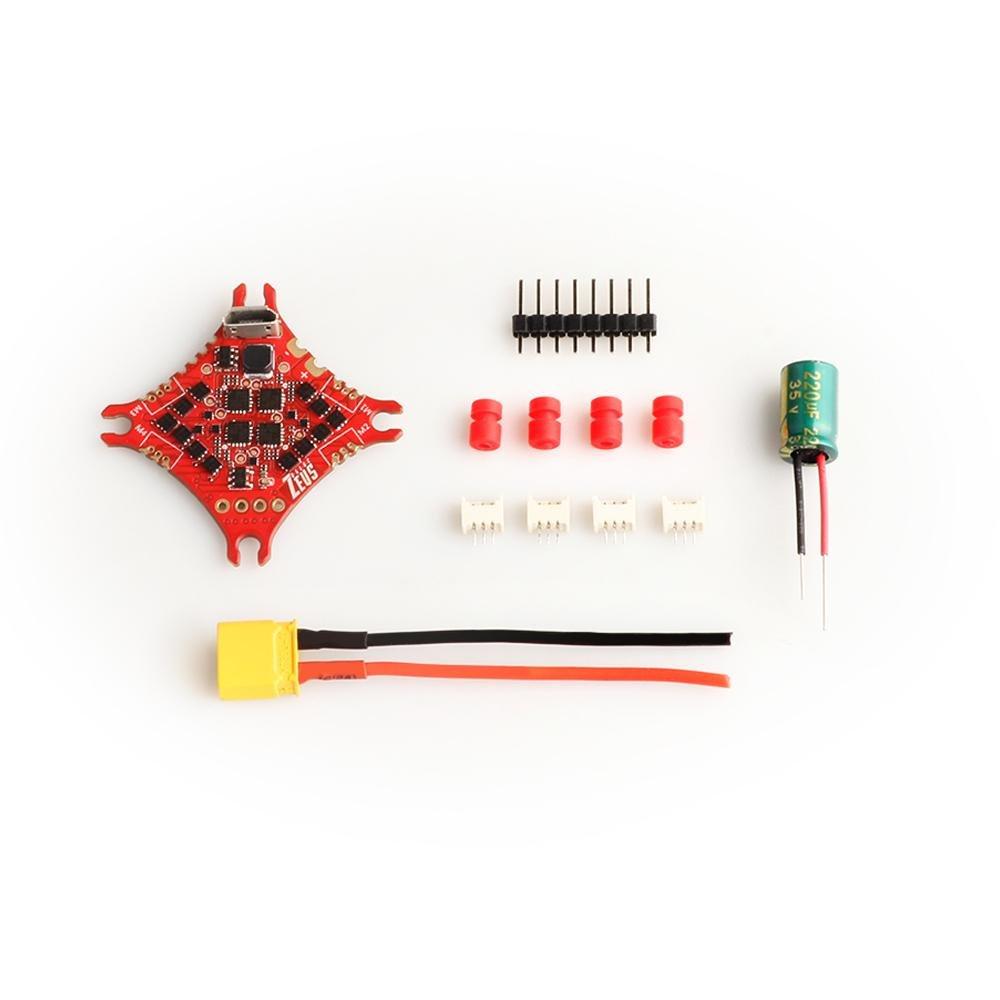

Included
- 1x Zeus5 AIO
Suggested Parts (not inlcuded)
- Motor:06xx/08xx/11xx
- Propeller:31mm-3 Inch
