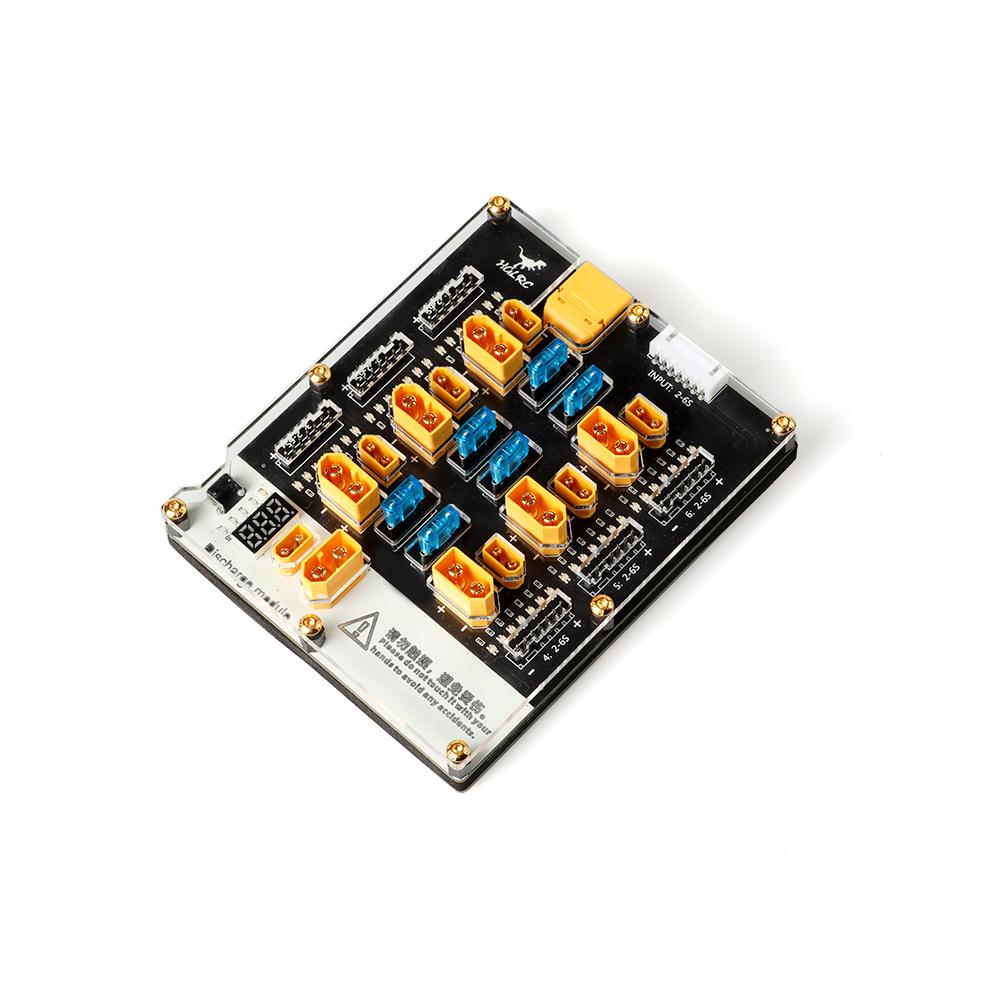

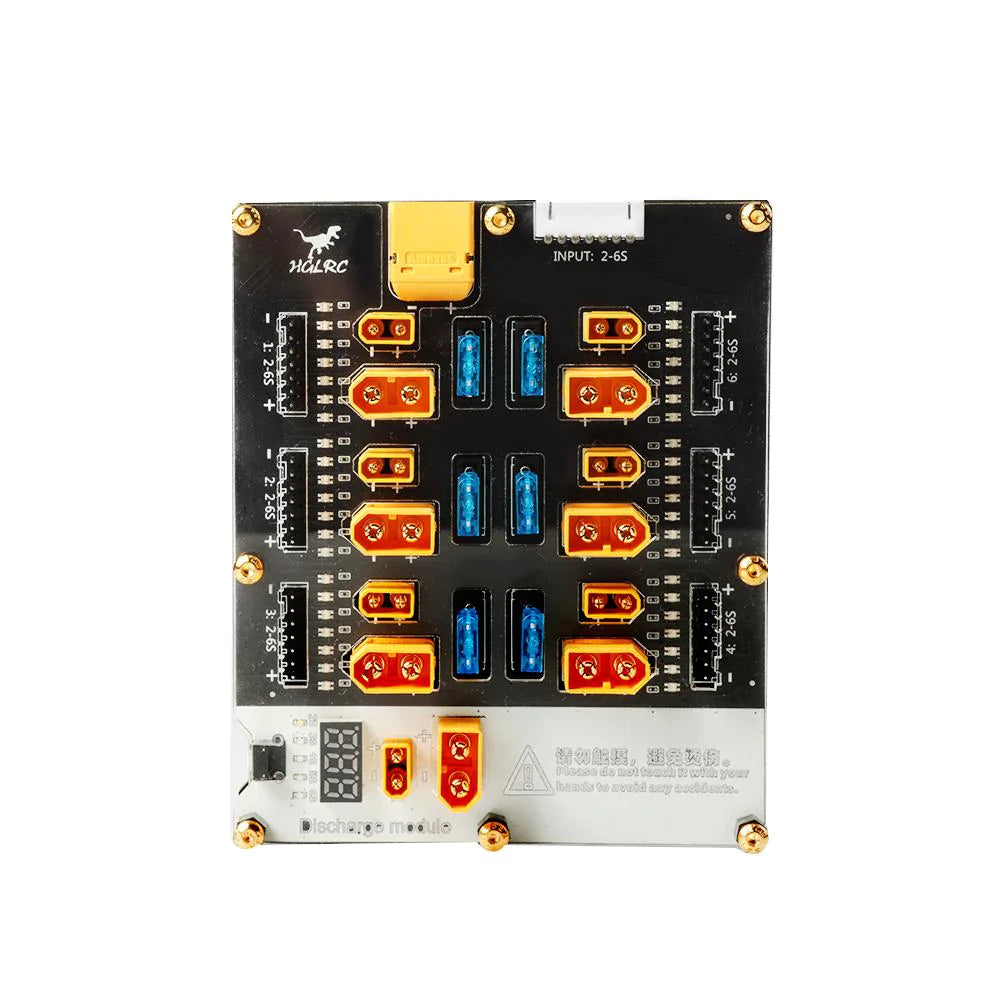

HGLRC Thor 6 Port Lipo Battery Balance Charger Board Pro 40A XT60 XT30 Plug 2-6S Integrated with Lipo Discharger for IMAX B6 ISDT Q6 Nano HOTA D6 Pro P6
Specifications
Lipo Battery Balance Charger Board:
Max Input Current:40A
Max Balance Current:2A
Support charging at the same time:6*XT60/XT30
Cell Count Support:2-6s
Charge Connector Protection:Each XT30/XT60 port has its own 15A Automotive fuse
Battery Balancing Connector Protection: There is an indication of LED when Self-resetting in short circuit situation in thermal fuses between every balancing pin.
Weight:180.6g
Lipo Battery Discharger：
Input voltage:2-6s
Cut-off voltage of discharging of Single-chip:3.8V
Battery type:LiPo battery
Battery interface:XT30/XT60
Included

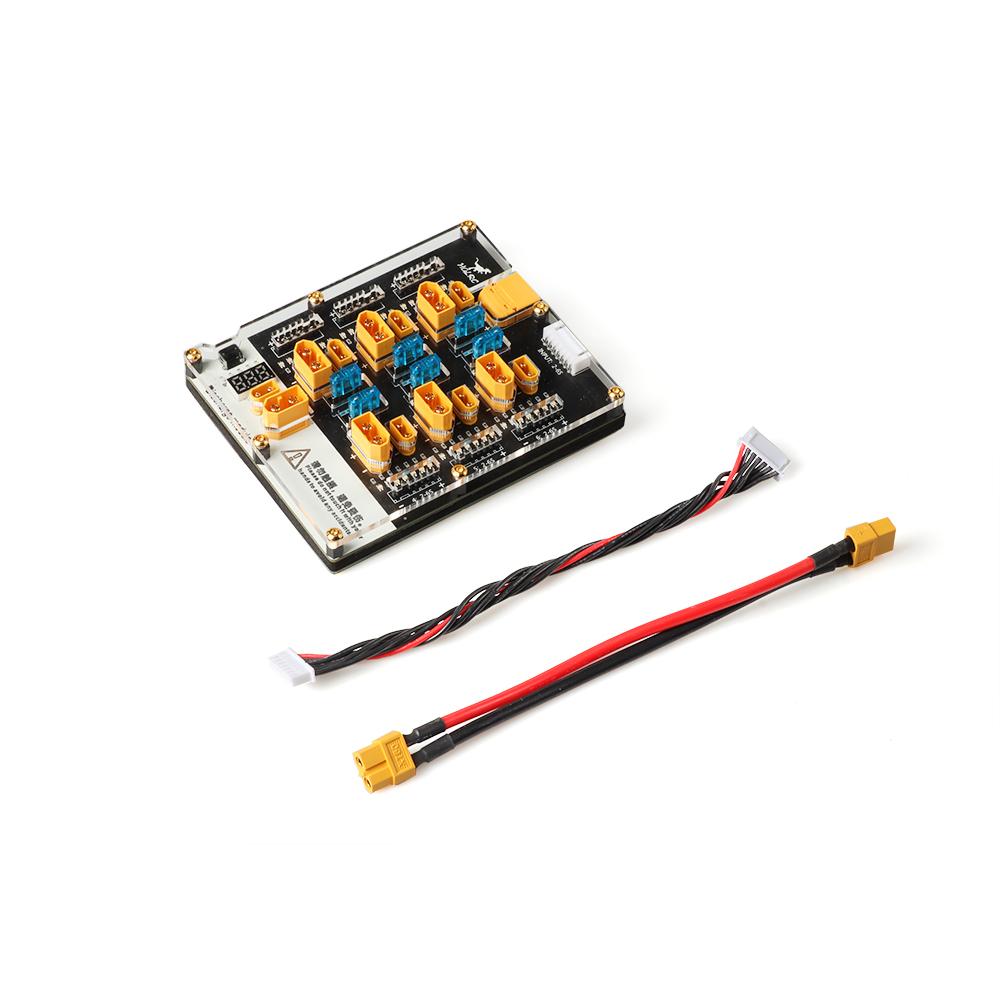

1x Thor 6 Port Lipo Battery Balance Charger Board Pro
1x Balance cable (200mm)
1x Balance XT60 cable (female to female cable)(200mm)
