Product Details
Specifications

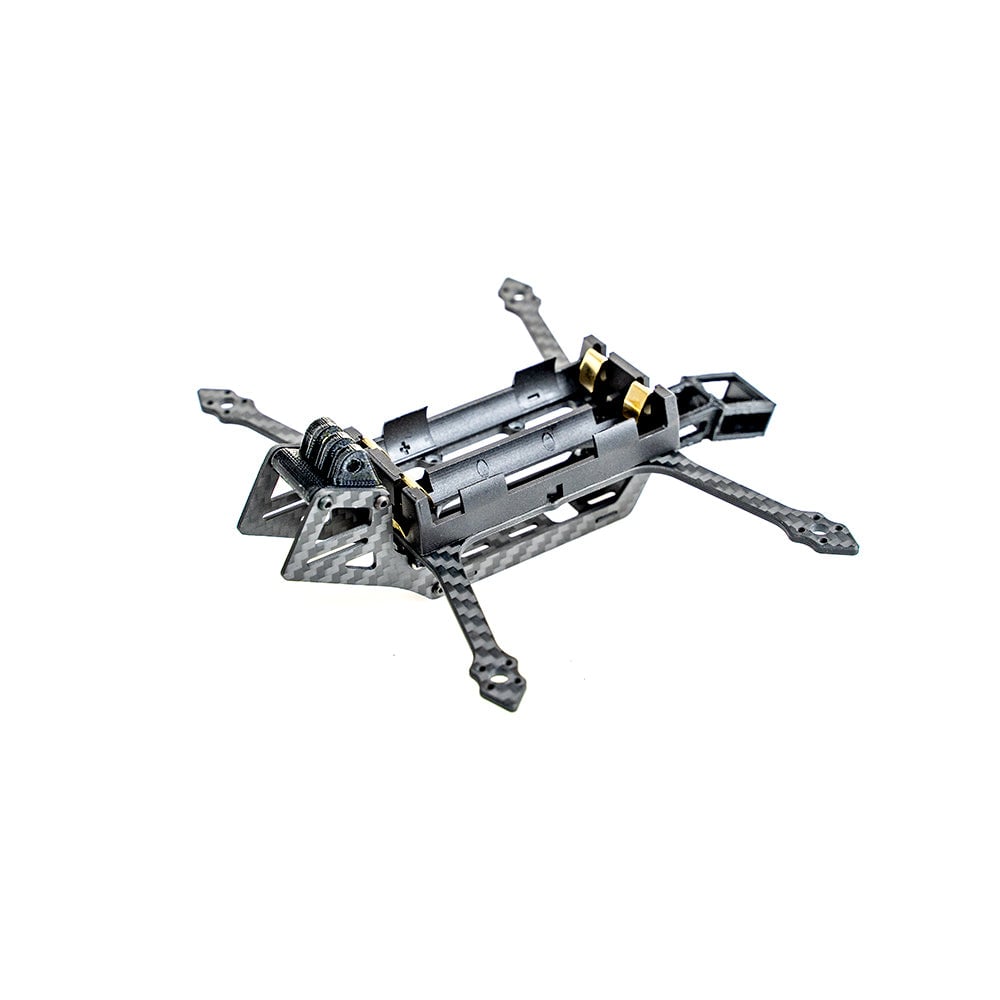

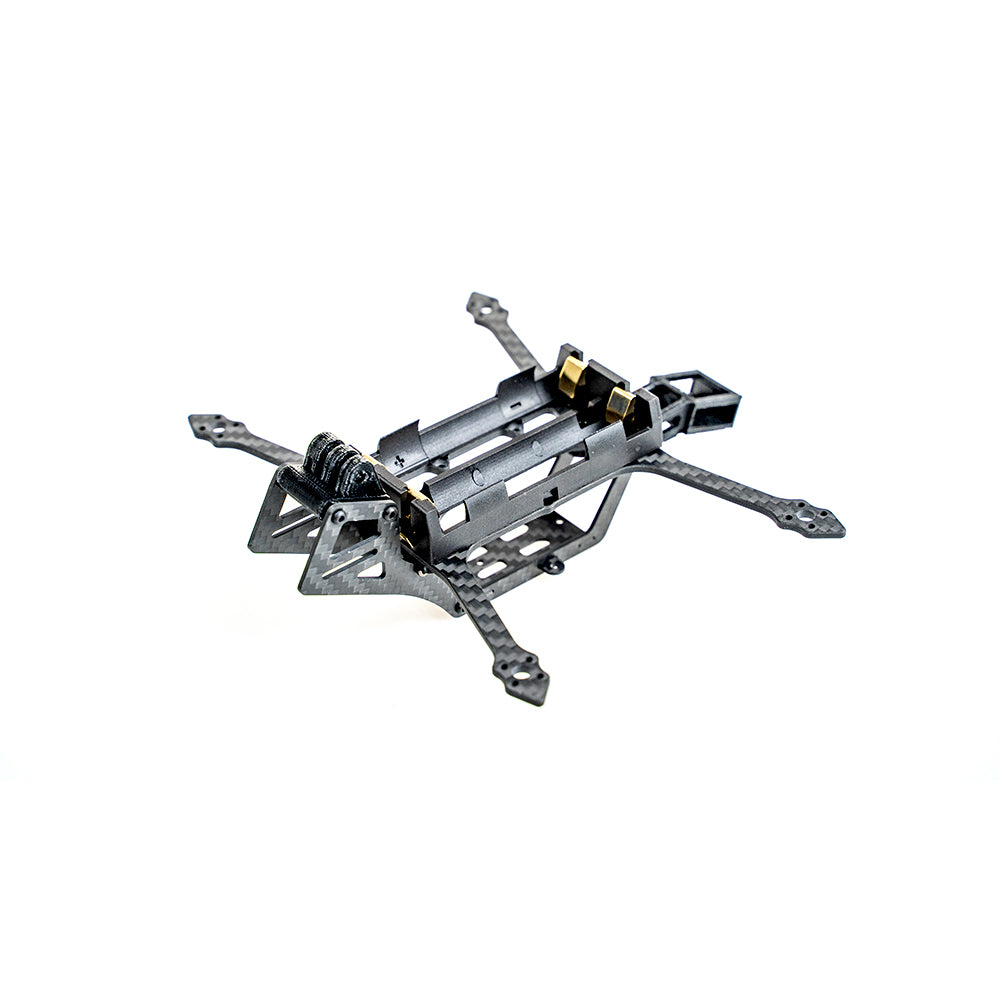

- Product name: Rekon 3.5 inch fpv frame kit
- Model: Rekon3.5 LR frame kit
- Material: 3K carbon fiber
- Type: 3.5 inch frame
- Wheelbase: 160mm
- Outer size: 150 * 150mm
- Middle plate arm: 2.5mm
- Side arm: 1.5mm
- Floor: 1mm
- Flight controller mounting hole: 25.5x25.5mm*M2
- Motor mounting hole: 9*4mm
- Support camera: 19mm
- 2S 18650 battery tray

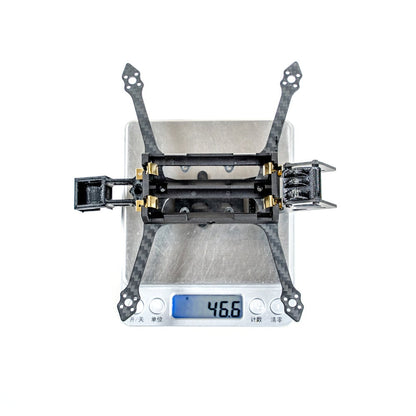

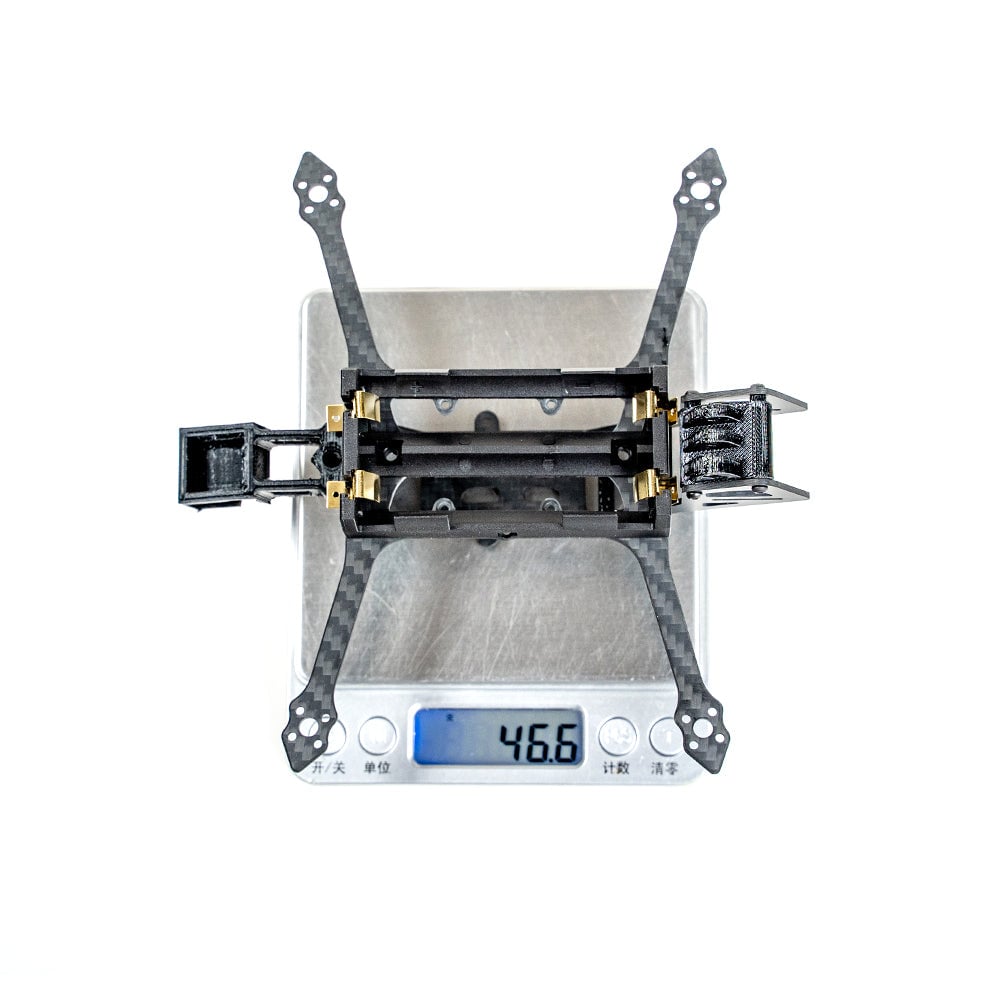

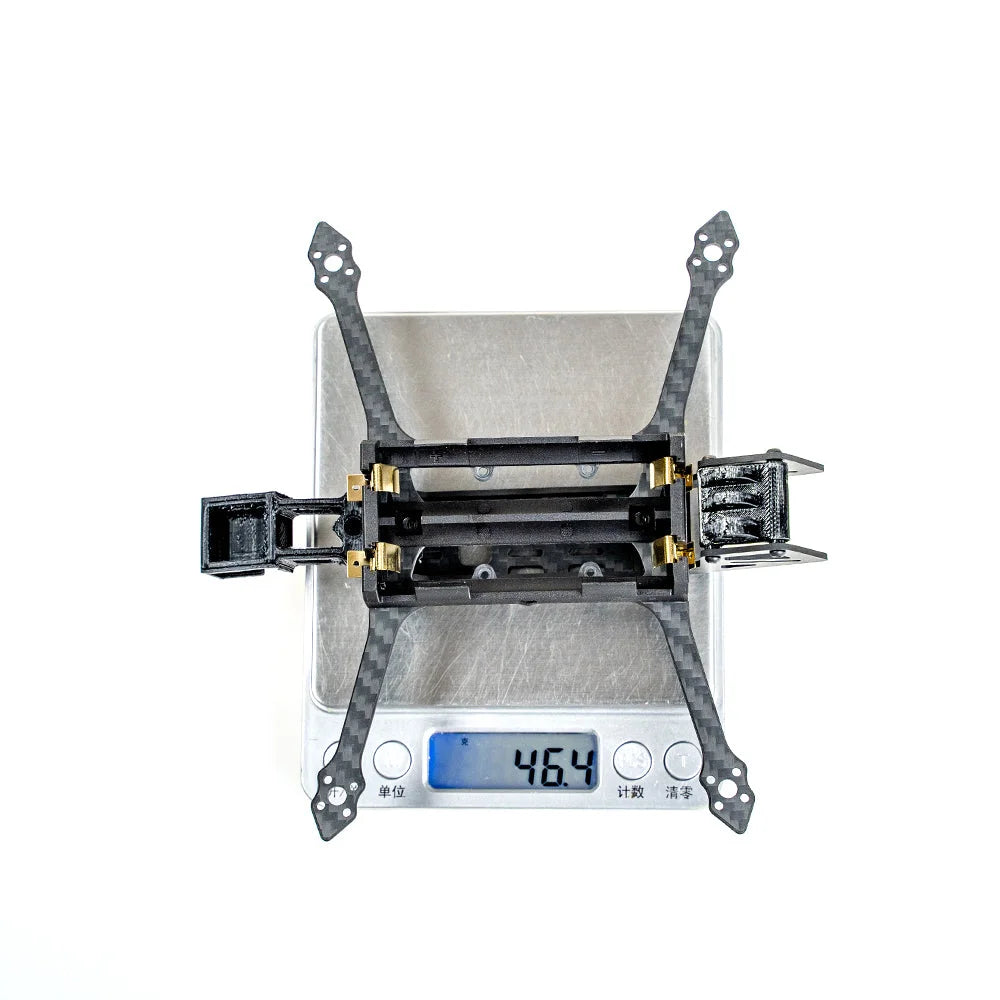

- Weight:46.4g
Recommended Parts
- Flight controller: 10A-25A_AIO
- Motor: 13xx/14xx
- Camera: 19X19mm
- Propeller: 3-3.5 inches
- Battery: 18650-3000mAh
Included

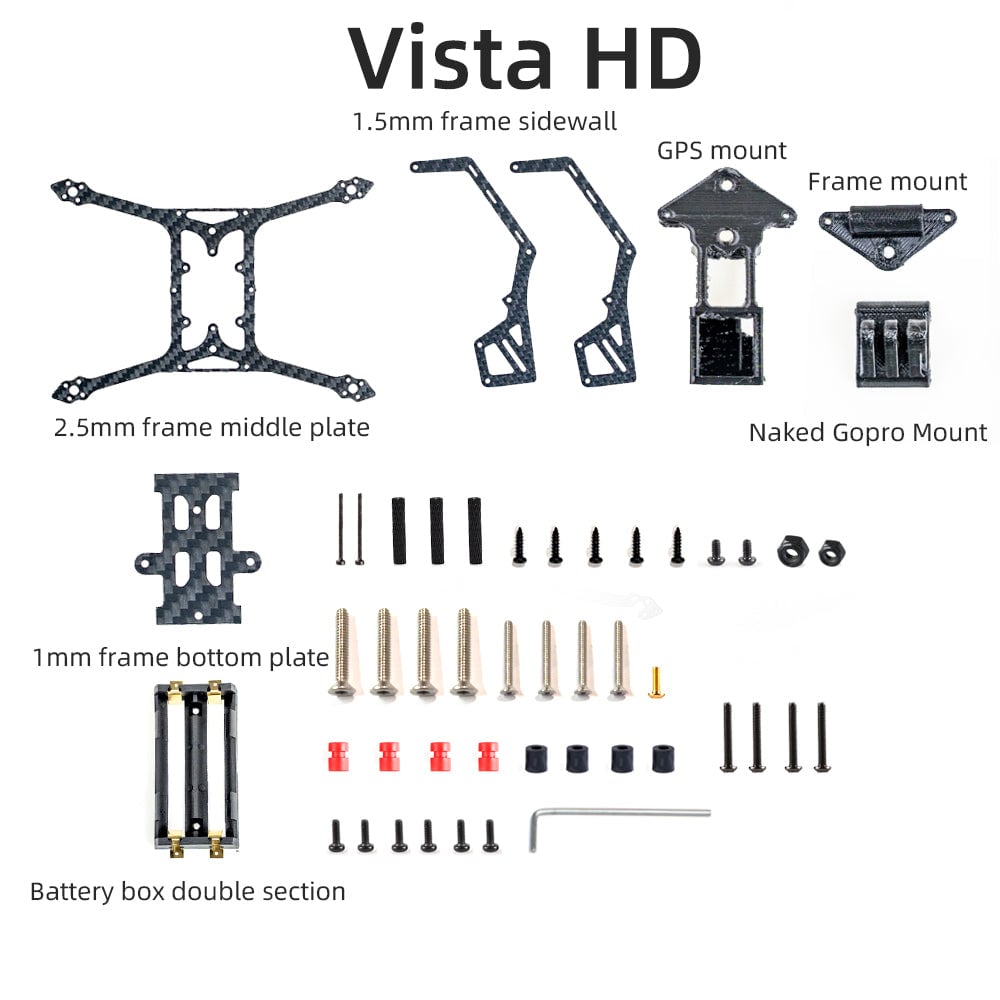

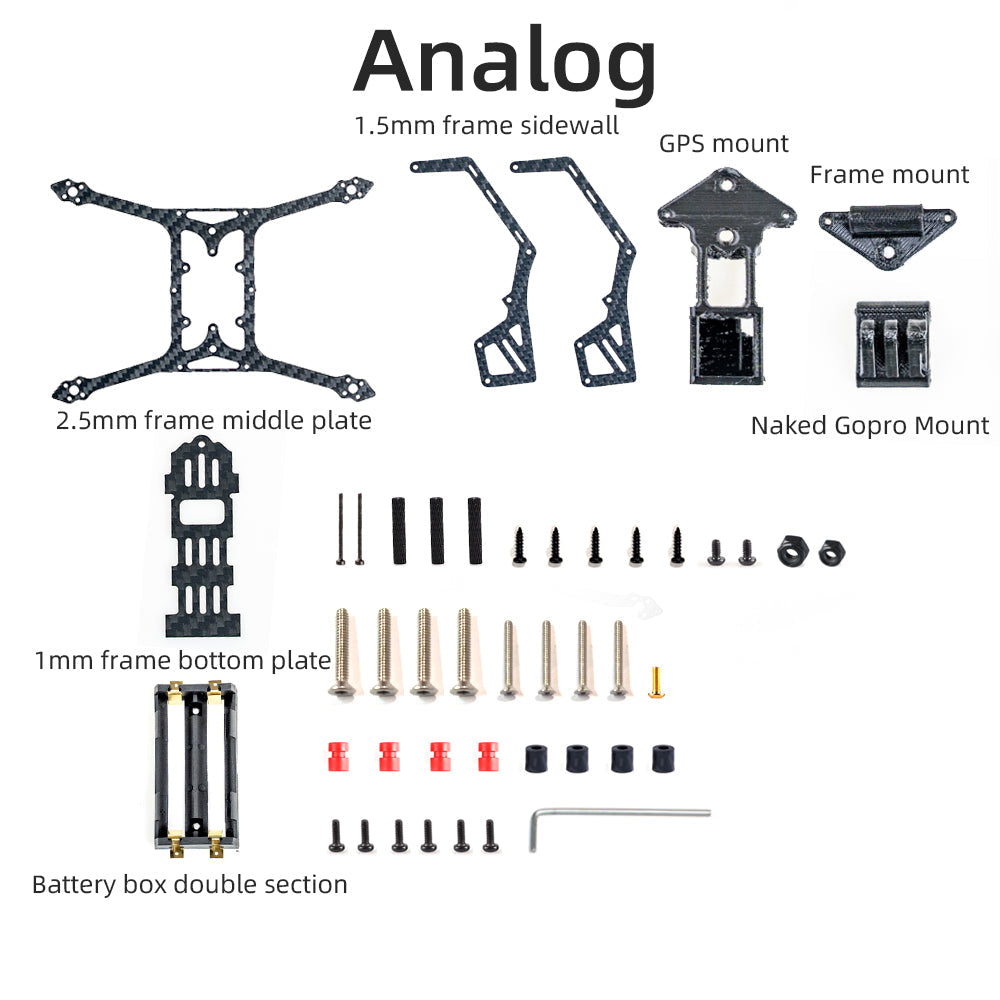

- 1x Rekon35 3.5inch Frame (analog or digital version depending on selection)

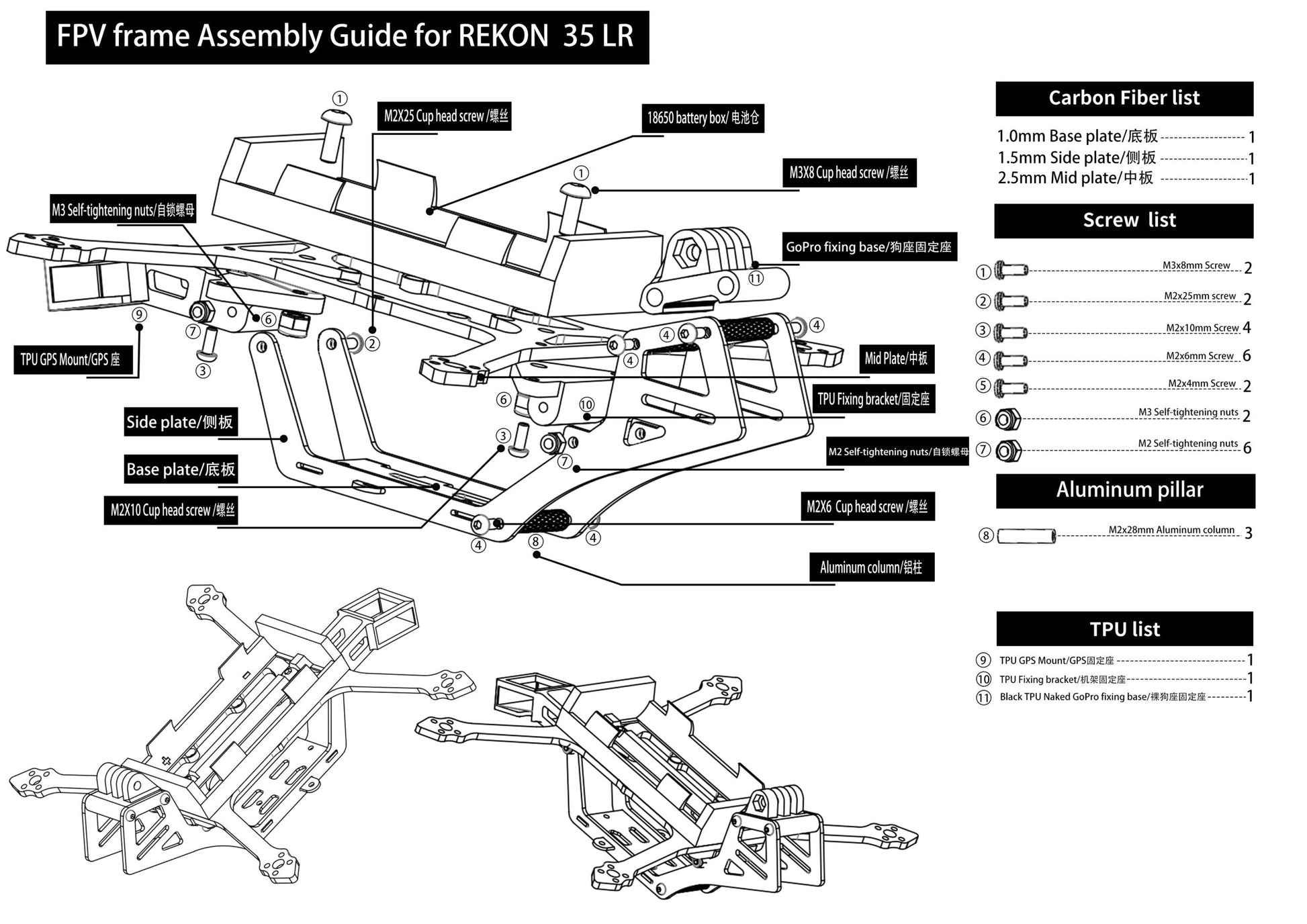

Assembly Guide
