Product Details

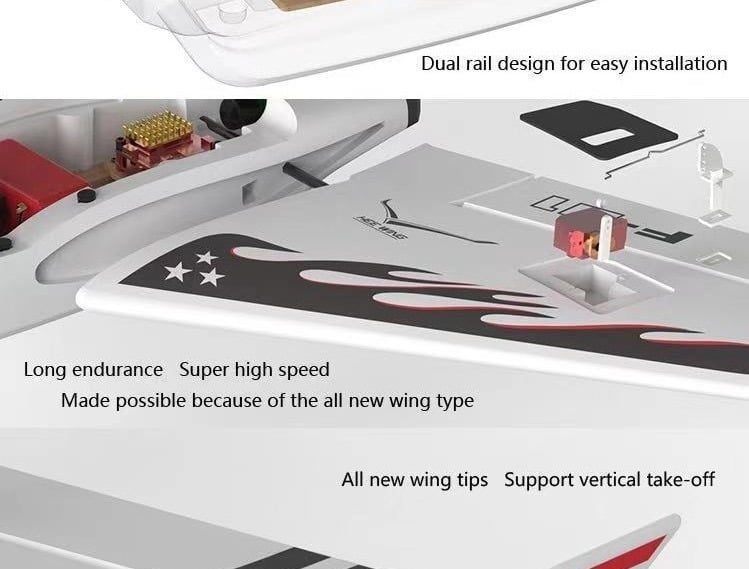

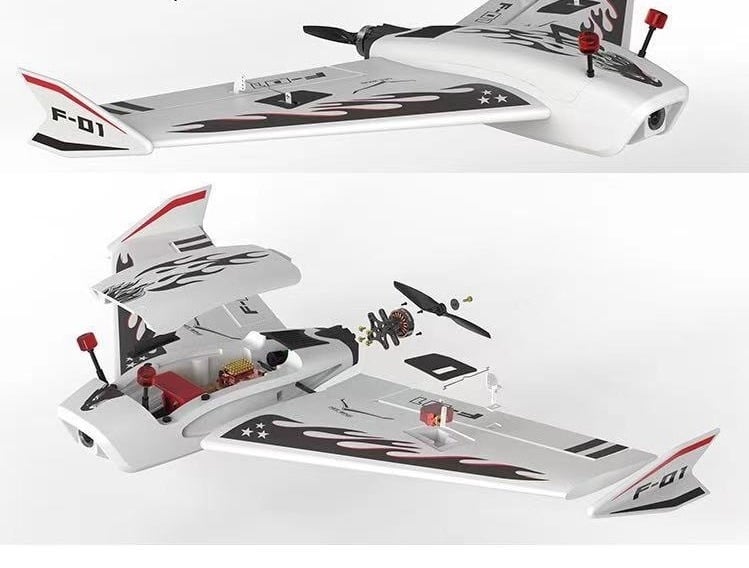

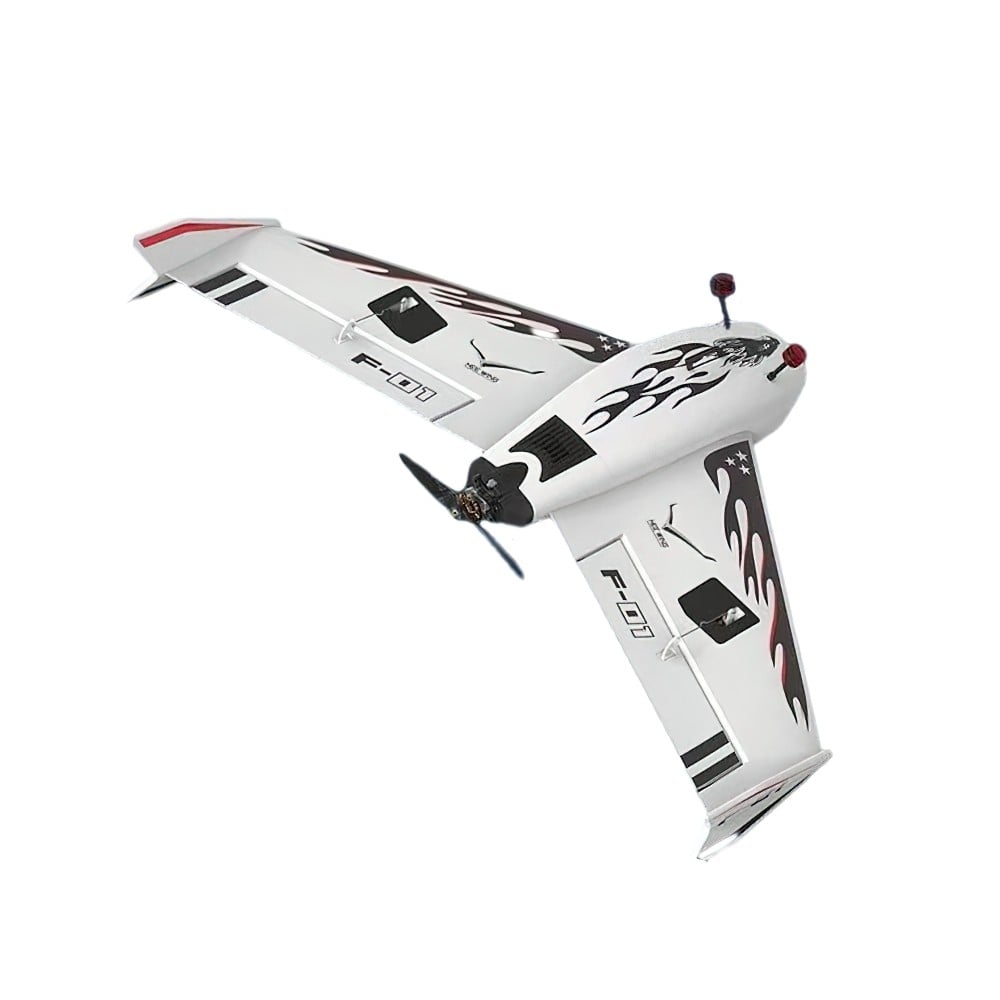

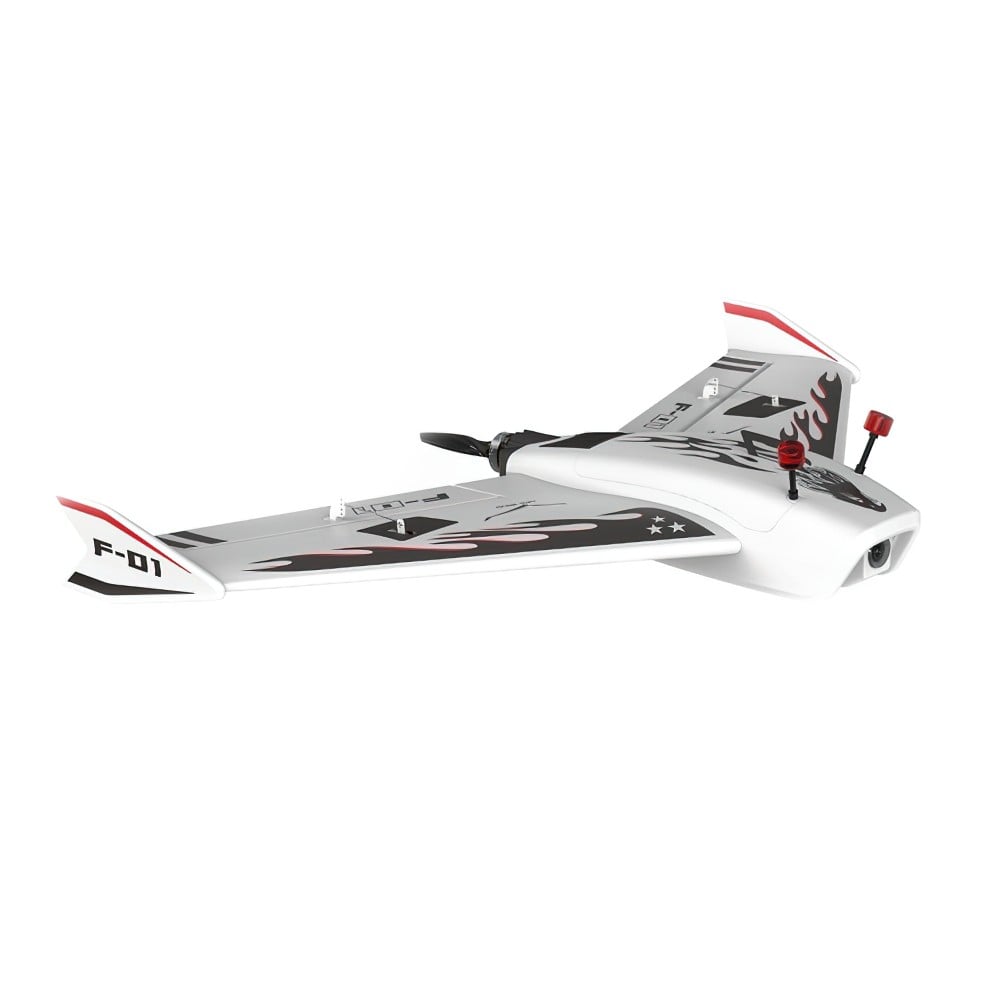

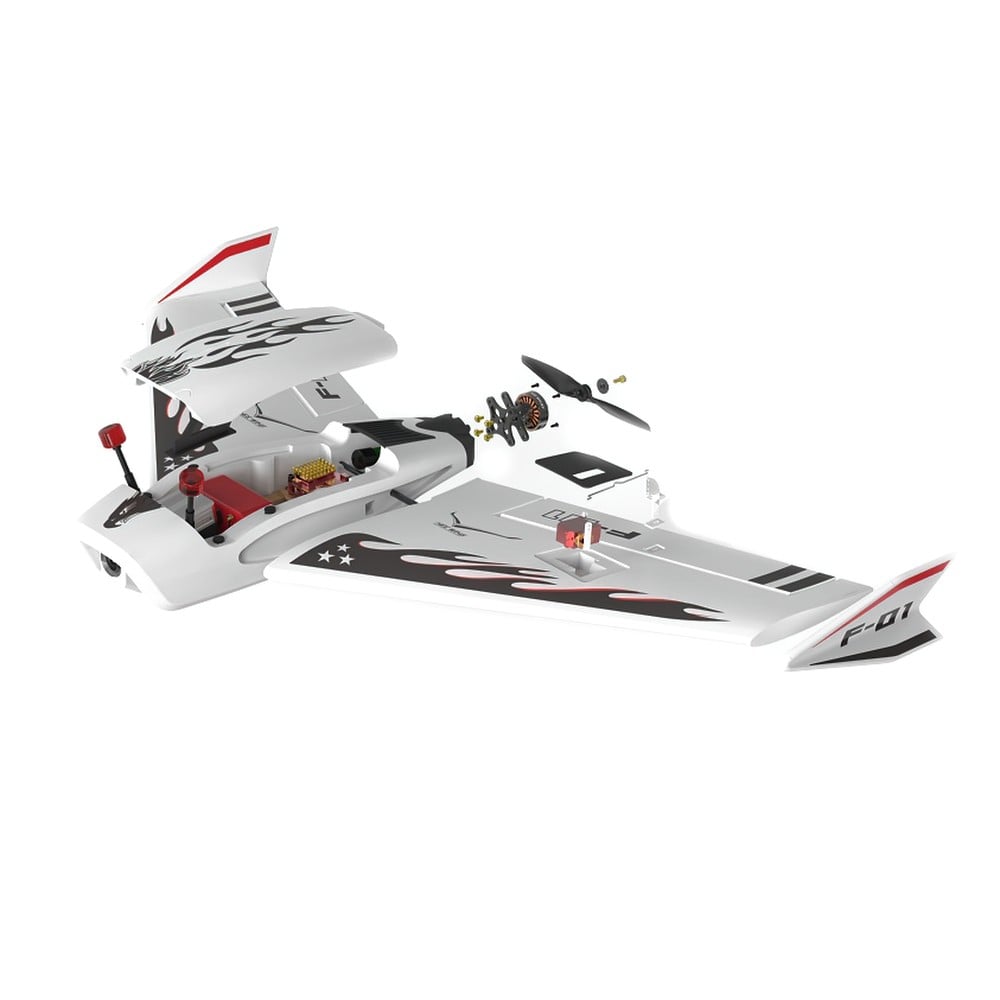

This Wing Kit is for the HEE WING F-01 Ultra Delta Wing RC Airplane, which has an unobstructed convection cabin design that ensures that the electronic equipment inside the cab is always cool and worry-free. This RC airplane adopts an asymmetric double convex airfoil design, which is good for both long-endurance flights and high-speed maneuvering. Equipped with a dedicated base for digital and analog versions, this plane has high strength while being lightweight. The dual-rail cabin design allows you to adjust the center of gravity with ease.
This wing is also known as the Diatone Ripper R690. The Diatone version has a black foam body and uses a different mamba toka motor, but is otherwise the same aircraft.
Features
- Independent detachable lens plug for both FPV and visual observation flights
- Wings have embedded carbon fiber rods with different angles
- Small wingspan with large space for electronics electronics
- Four magnets are applied to the hatch for better fastening
- The new wingtip design supports vertical take-off mode
- Supports horizontal and vertical battery mounting
- Tailored lens ring for better protection

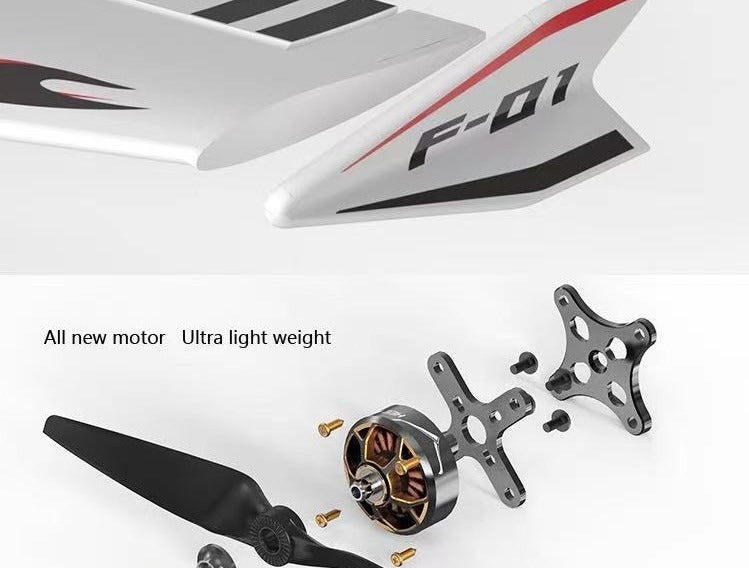

- All new propeller locking method

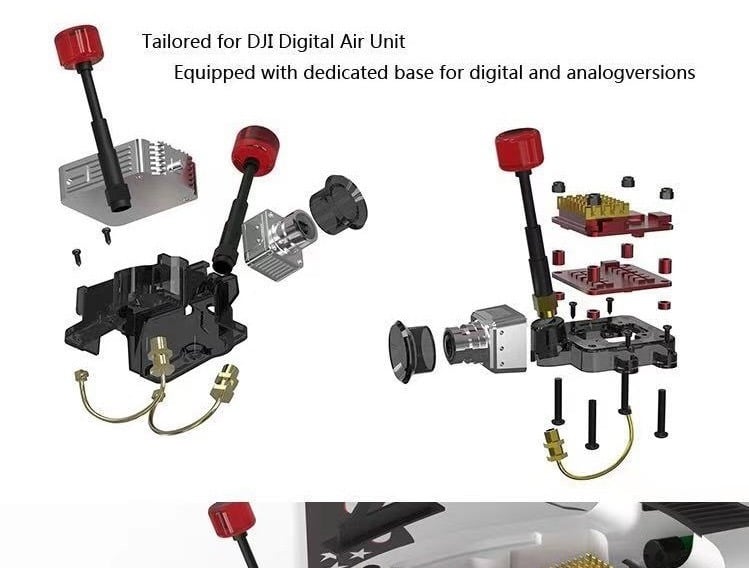

- Tailored for DJI Digital Air unit
Specifications
- Airplane Dimension: Wingspan 690mm, Height: 88mm, Length: 415mm

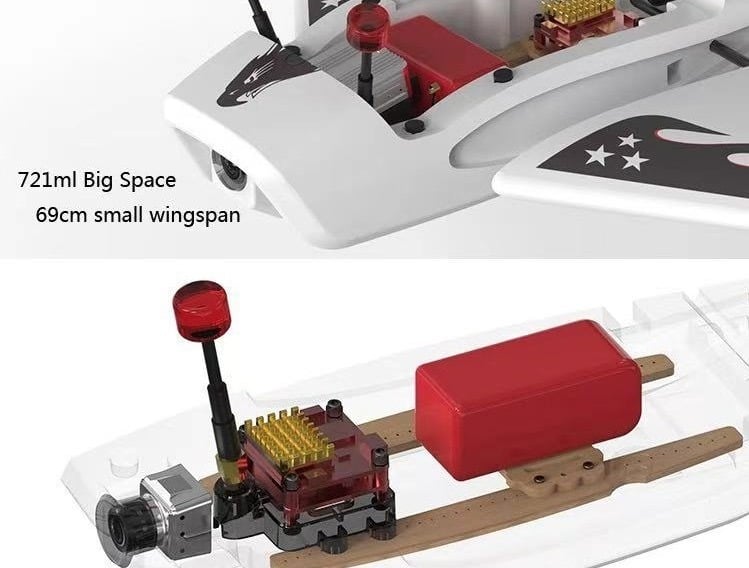

- Fuselage space: Battery compartment: 175mm*175mm*55mm
- VTX fixed seat: compatible with digital VTX and analog VTX
- KIT Weight: 150g (epp-30)/190g (epp-20)
- ESC compartment: 70mm*38mm*20mm
- Material : EPP/ABS/Carbon Fiber

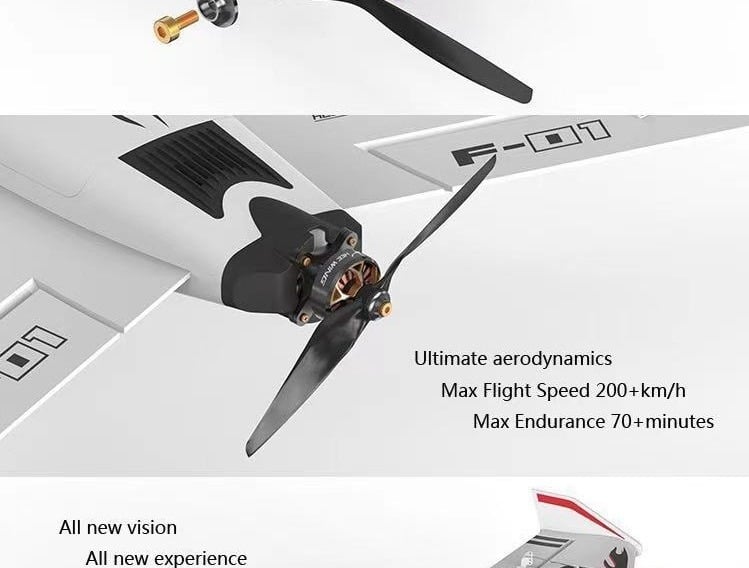

- Max Flight speed: ≥220+km/h
- Max Endurance: >70 minutes
- Take off weight: 350g~850g
- Min Flight speed: <27km/h
- Thrust: ≥920g(6*4E prop)
- Propeller: 5x5E/6x4E
- Max Mileage: >45km
- Battery: 2S~4
- Note: when speed is≥100km/h, should install lens cover to prevent excessive inflow air from blowing away from the hatch.
Includes
DIY Kit Version
- 1x Hee Wing Ultra Delta Wing EPP Body
- 1x VTX Fixed Seat
- 2x Rudder Angle

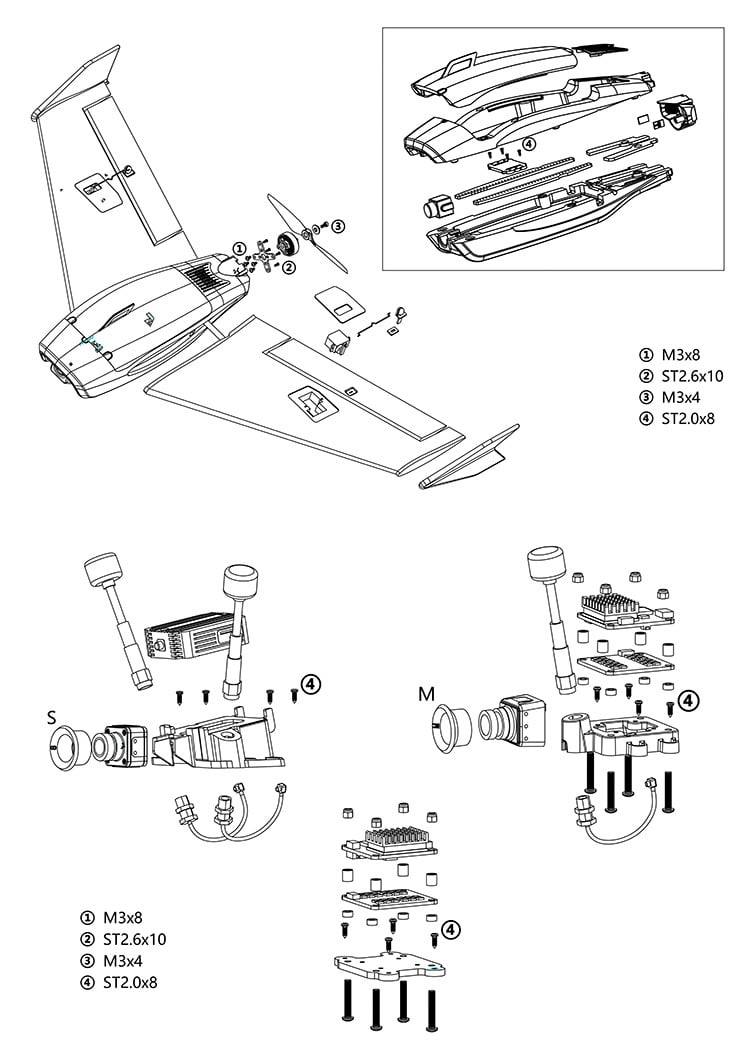

- 1x Hardware Kit
- 2x Tie Rod (+/-)
- 1x Velcro Tape
- 1x Lipo Strap
- 1x 6" Prop
- 1x 5" Prop
- 1x Decal
PNP Version
- 1x Hee Wing Ultra Delta Wing EPP Body
- 1x Metal Servo + Rudder Hanger
- 3x XT60 + 3.5 Banana Plug
- 1x VTX Fixed Seat
- 1x FX 2205 Motor
- 2x Rudder Angle
- 1x Hardware Kit
- 2x Tie Rod (+/-)
- 1x FX35A ESC
- 1x Velcro Tape
- 1x Lipo Strap
- 1x 6" Prop
- 1x 5" Prop
- 1x UBEC
- 1x Decal
