Product Details
Specification
- Brand Name: Happymodel

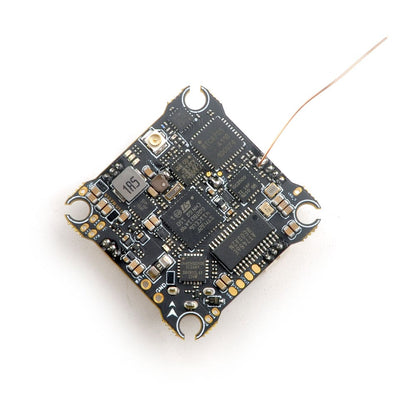

- Item Name: X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver
-
Betaflight firmware target:
- Target:CRAZYBEEF4SX1280
- Weight: 5.1g
- Support 1-2S Lipo/LIHV battery
- Size: 30mm*30mm*8mm
| Flight controller |

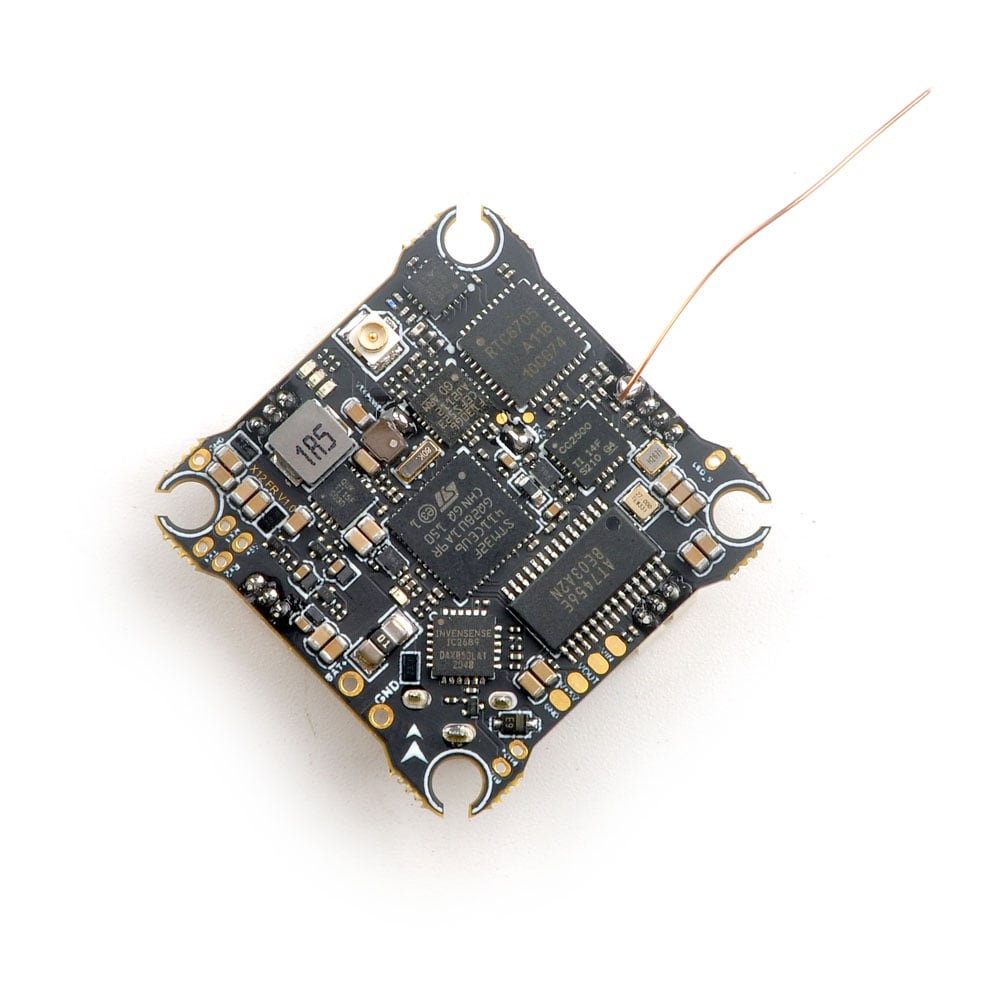

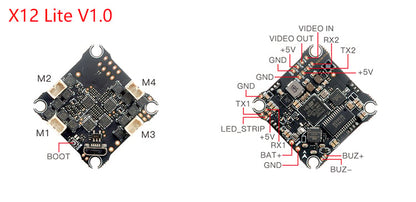

X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU6000 or ICM20689 or BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD (SPI Control) Built-in ExpressLRS 2.4G Built-in voltage meter sensor , voltage meter scale 110Built-in current meter sensor , current meter scale 470 |

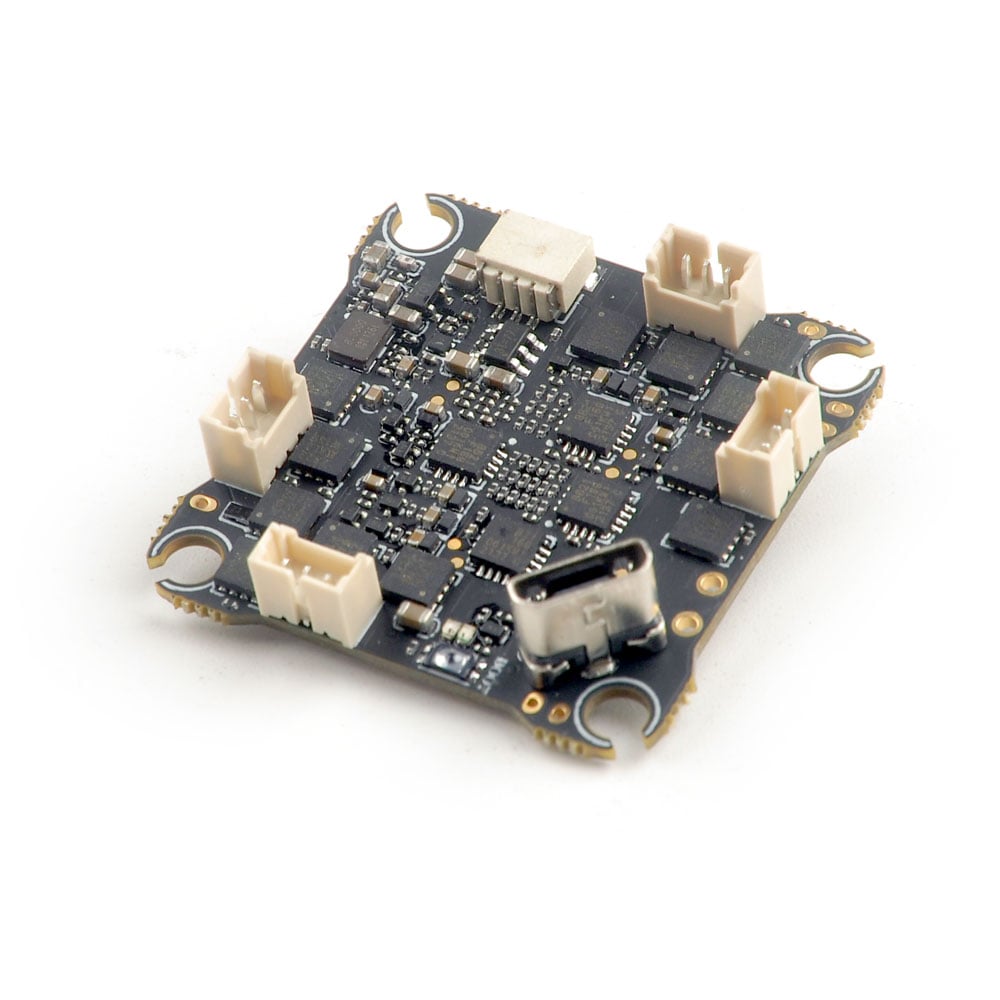

| Onboard 4in1 ESC |
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7.HEX Default protocol: DSHOT300 Support Bluejay firmware When use Blujay firmware with 48khz, should set startup power to 1100/1200 |
| Onboard SPI ExpressLRS 2.4GHz Receiver |
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
|

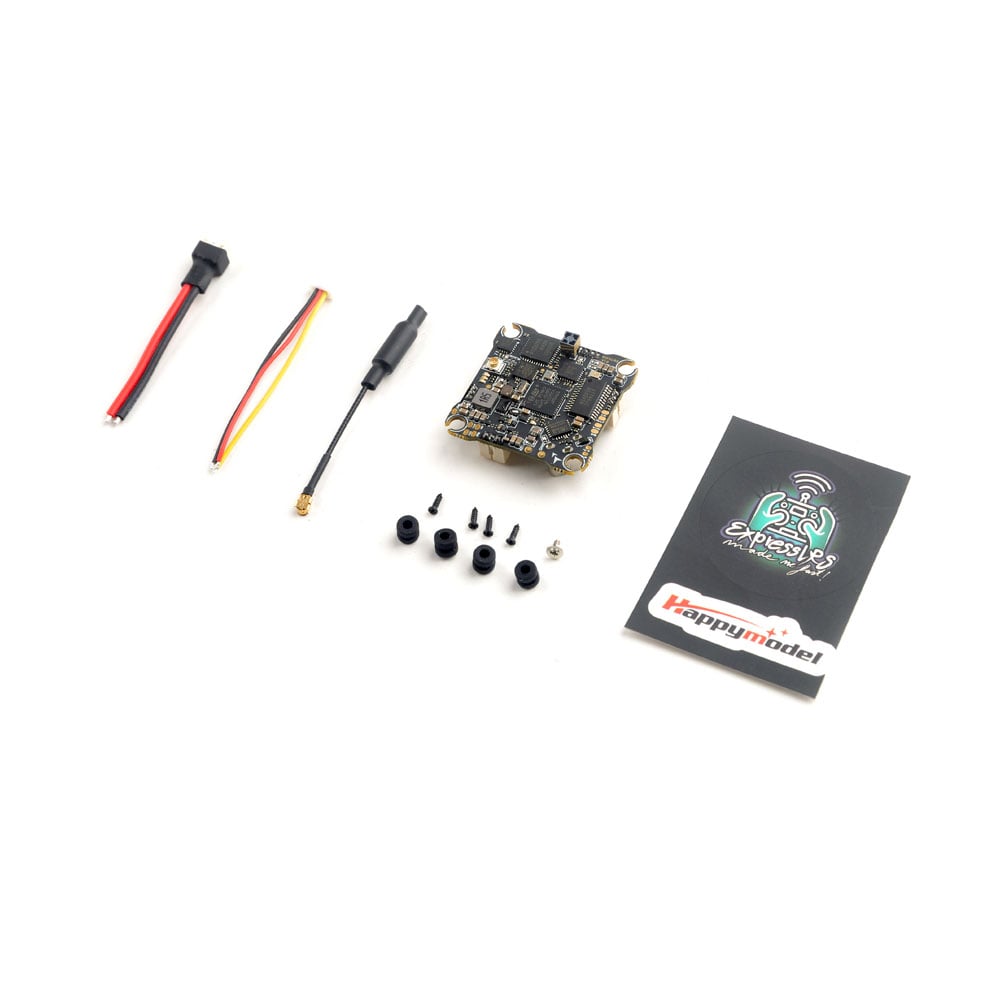

Included
- 1 x ELRS X12 Lite ERLS AIO Flight Controller Board
