Since the solder joints of the flight controller are small and compact, please be careful when soldering. Any problems caused by soldering will void warranty, no replacement can be provided free of charge. But it can still be sent back for repair.
Setup Notes
This flight controller setup at the factory for the Mobula6 HDZERO, the original default device for OSD is "MSP" If you plan to use this FC for for analog FPV camera, you need to activate the OSD :

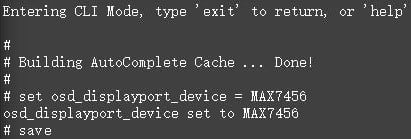

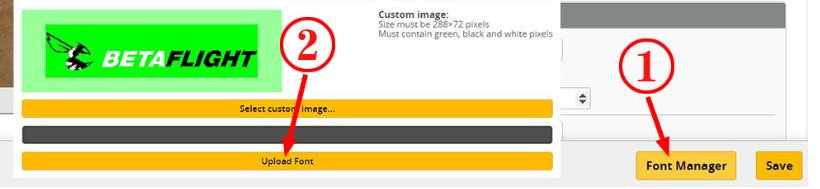

First connect to betaflight configurator , and type the CLI command, and enter "set osd_displayport_device = MAX7456", then reconnect betaflight ,upload osd font. The update font option is important that many users forget about!

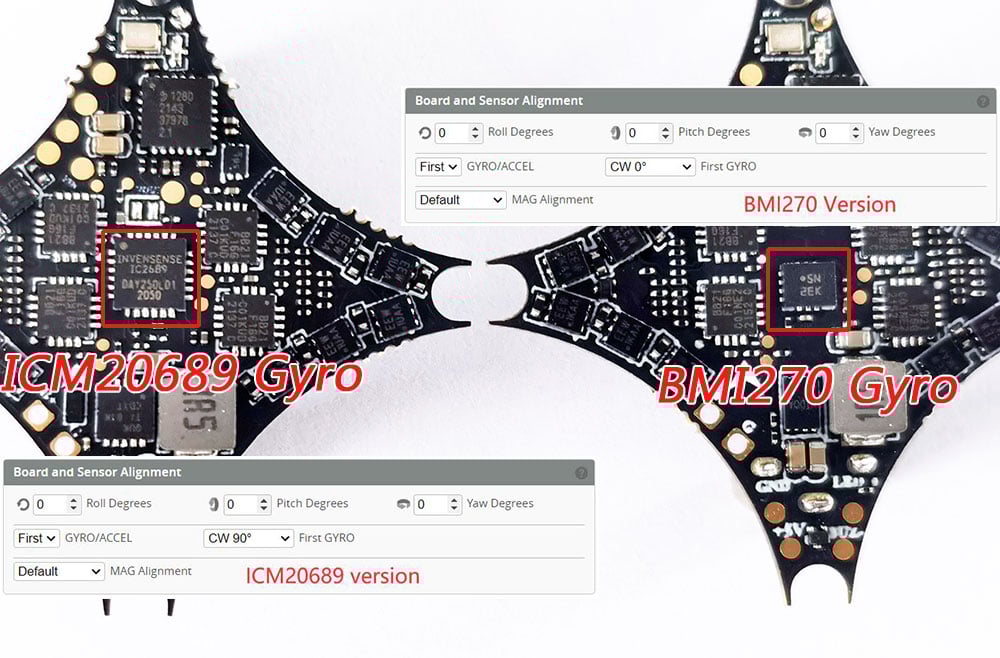

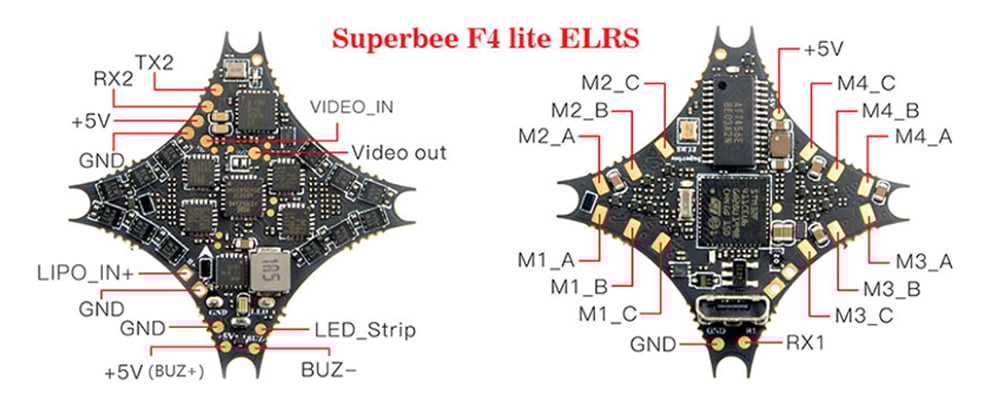

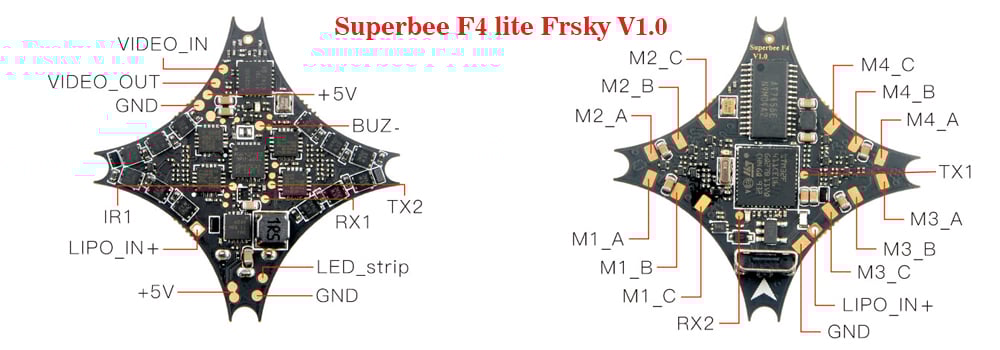

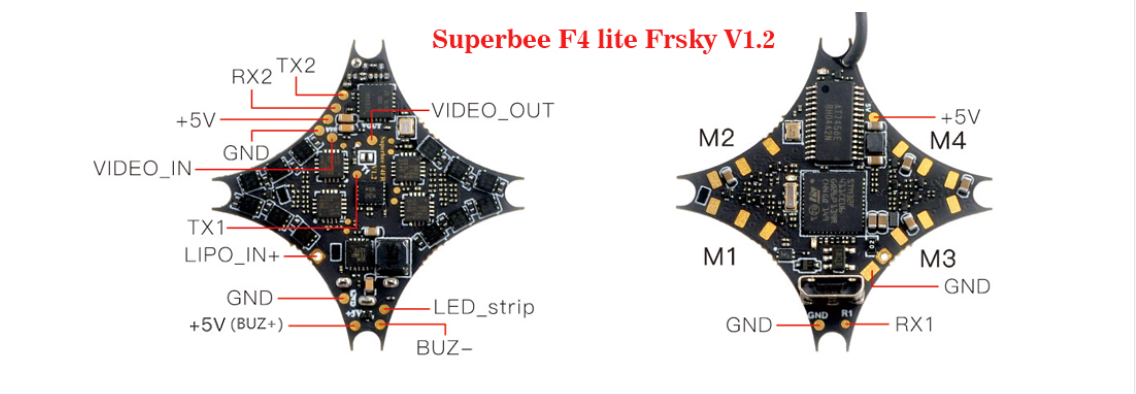

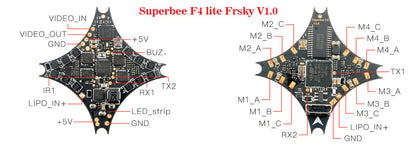

Also depending on supply you may receive a different Gyro, refer to the diagram below to see what orientation to use.

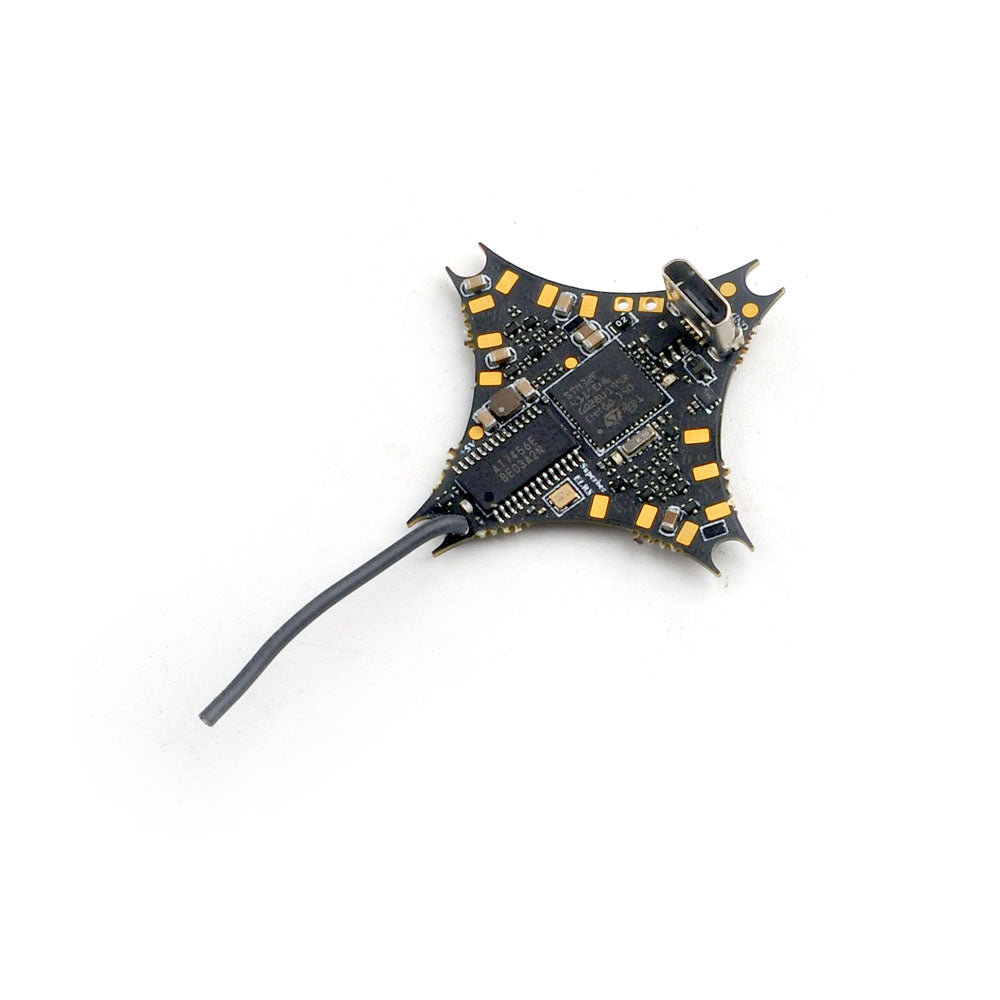

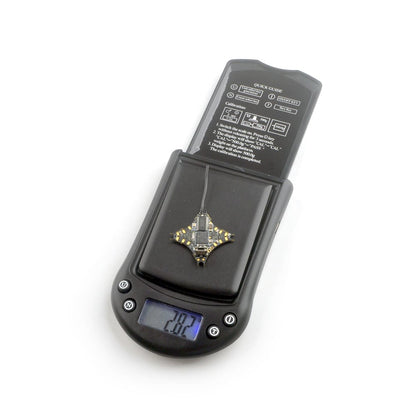

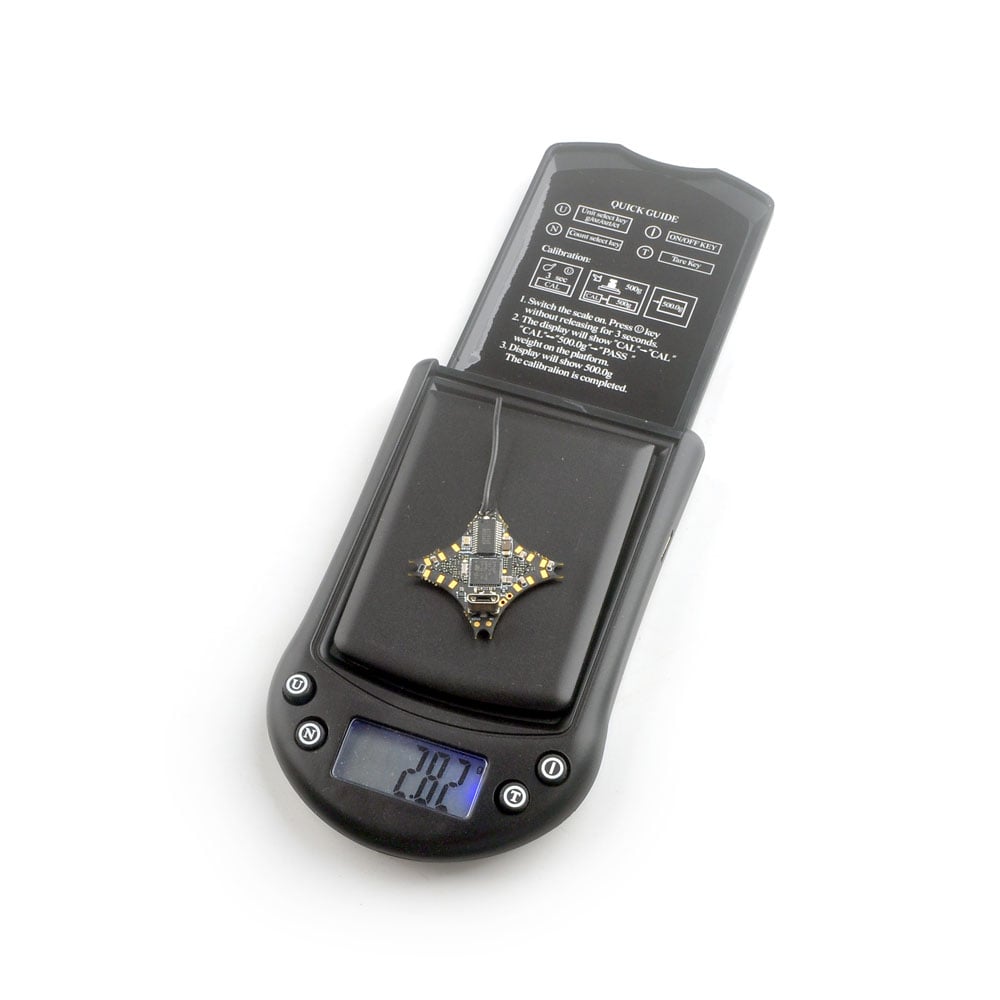

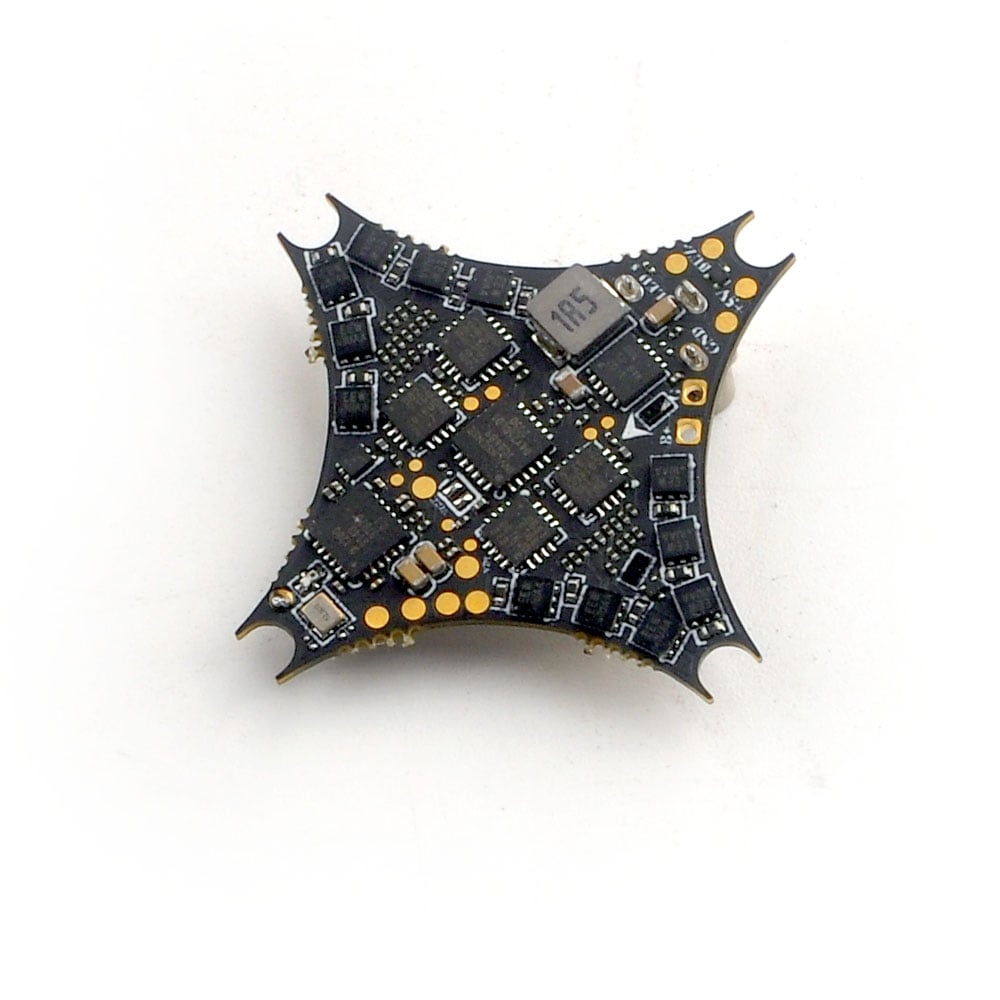

Specification
|
Flight controller
SuperbeeF4 Lite ELRS/FRSKY |
SPI ELRS version Firmware target: CrazybeeF4SX1280
SPI FRSKY version Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection) Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in SPI Frsky/ExpressLRS receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4in1 ESC |
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v) Currents: 5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_8.HEX Default protocol: DSHOT150/DSHOT300/DSHOT600 |
| Onboard SPI ExpressLRS 2.4GHz Receiver |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHzAntenna plug: IPEX Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Could bind with ELRS V2.0 firmware TX module |
| Onboard Frsky SPI D8 /D16 2.4GHz Receiver |
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol |
Included

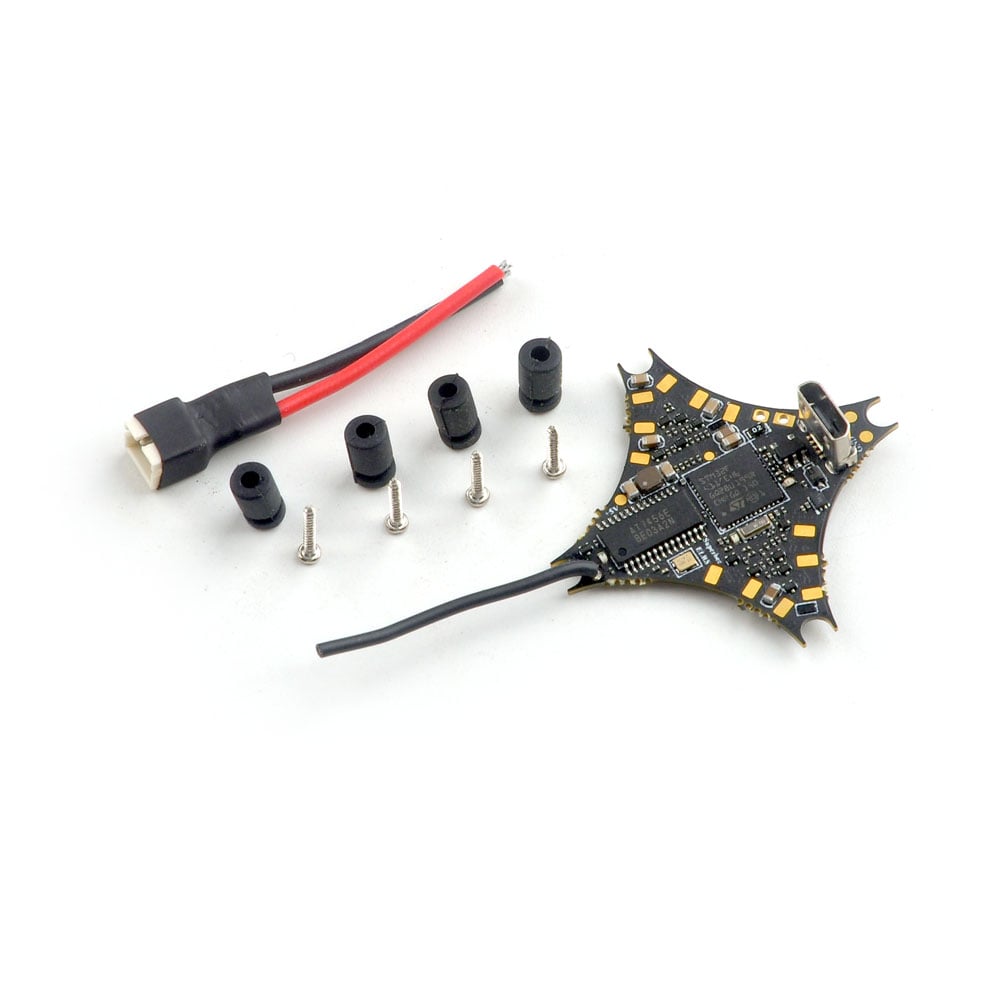

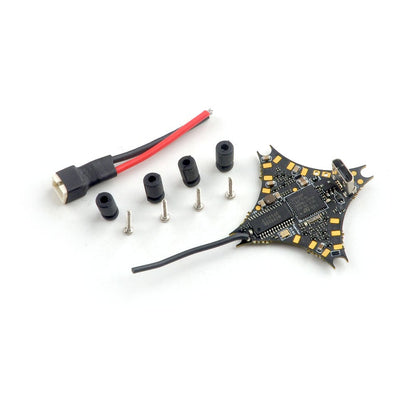

- 1 x Superbee F4 Lite AIO flight controller ELRS / FRSKY version for 1S tiny whoop drone
