Product Details
Make the Sky Your Playground with the Unparalleled Mobula8 Digital HD Micro FPV Whoop
Looking to rev up your FPV flying adventure with a dash of high-definition exhilaration? Gear up and meet the Mobula8 Digital HD Micro FPV Whoop, your ultimate ticket to the sky. This nifty pocket rocket won't just propel you through the clouds, it'll launch you into an unmatched FPV escapade you never knew was possible.
Product Highlights:
- Crystal-clear Digital HD FPV Experience
- Exceptionally smooth and powerful Flight Performance
- Advanced Built-in Gyroflow and PID Tune Blackbox
- Reliable Onboard 12A 4in1 BLheli_S ESC
- Efficient UART ExpressLRS Receiver
- Multiple customizable options to make it your own
Never settle for blurry, mediocre flight footage again. The Mobula8 Digital HD Micro FPV Whoop doesn't merely take you to the sky, it makes you a part of it. Immersive HD FPV flight is the new black, and it's here to stay. The drone comes with support for multiple VTX options, including the popular DJI O3 and Walksnail Avatar, giving you a front row seat to the flight show.
Flying is not just about the height, it's about the ride. The Mobula8 is fitted with a powerful EX1103 11000KV motor, partnered with Gemfan Hurricane 2023 tri-blade propellers and a 1-2S LiPo battery. This dream team ensures your FPV drone can dance, zip and zoom through the sky with precision and agility.
Desire to be in control of your flying escapade? The Mobula8 has your back! With an 8MB built-in blackbox, monitoring and optimizing your drone's performance becomes a walk in the park. A seamless flying experience is no longer wishful thinking, it's the reality.
What are you waiting for? Get ready to propel your FPV experience into the stratosphere with the Mobula8 Digital HD Micro FPV Whoop. A world of thrilling aerial adventure awaits you, just a click away. So, give your inner pilot the wings it deserves and dive into a thrilling high-definition journey in the clouds.
Product Specifications
- Motor: EX1103 11000KV, 1-2S Lipo compatible, weighs 3.8g
- Propellers: Gemfan Hurricane 2023, PC material, pitch 2.3 inch, weighs 0.88g
- Flight Controller: STM32F405RGT6 MCU, 168MHZ, 1Mbyte FLASH, built-in 12A Blheli_S 4in1 ESC, Serial ExpressLRS 2.4G, BMP280 Barometer, 8MBp blackbox, voltage meter sensor, current meter sensor
- ESC: Supports 12A continuous peak 15A (3 seconds), powered by 1-2S LiPo/LiPo HV, DSHOT300 default protocol
- ExpressLRS 2.4GHz Receiver: Firmware target: HappyModel EP 2400 RX, RF Frequency: 2.4GHz

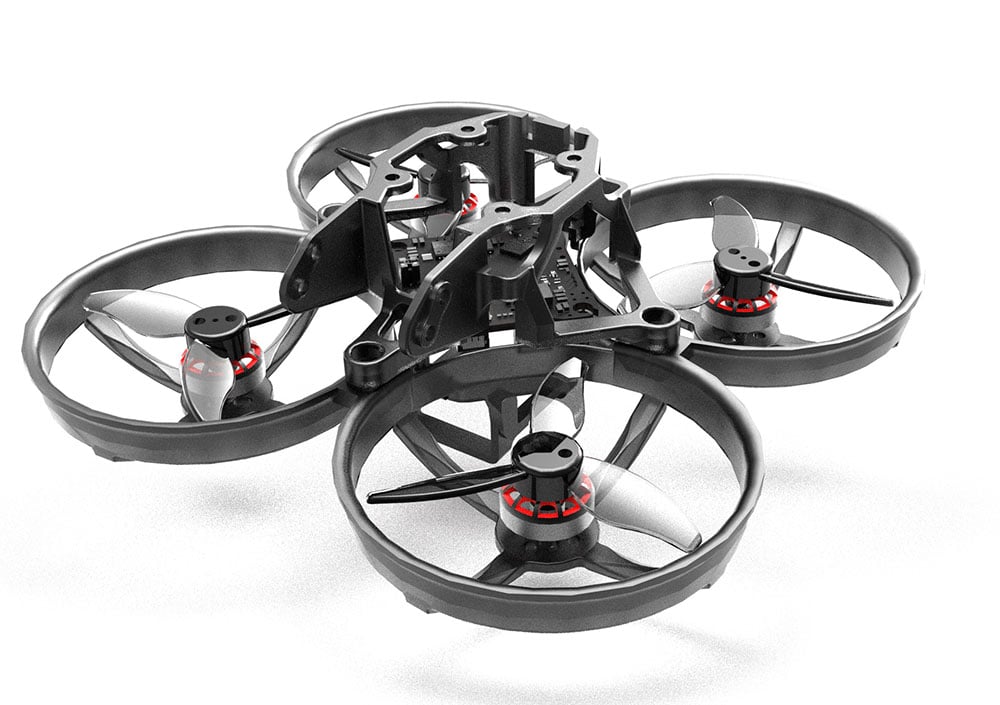

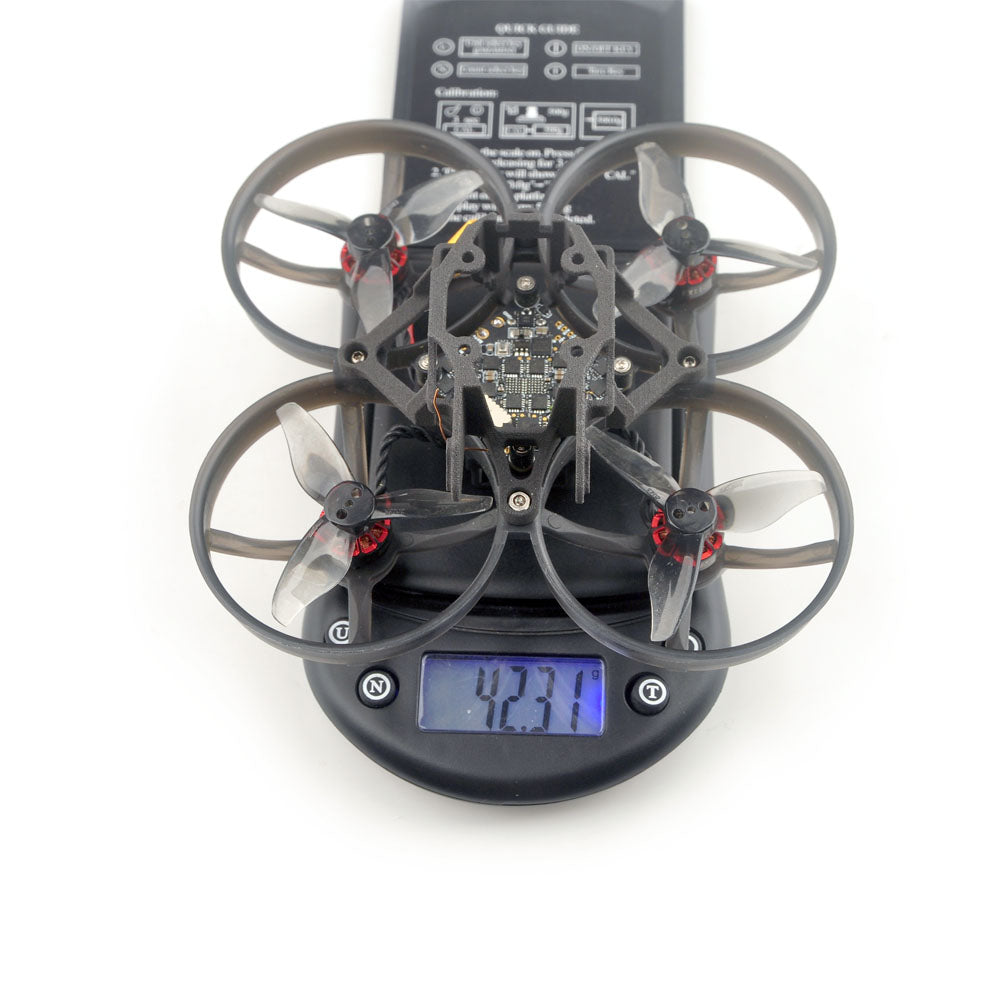

- Customizable Options: DJI O3 Version VTX & Camera, Walksnail Version Camera & VTX, Lite Version (No VTX, No Camera)
Spare parts specifications:
| Motor |
Mode: EX1103 KV11000
Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S |
| Propellers |
Weight:0.88g
Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm |

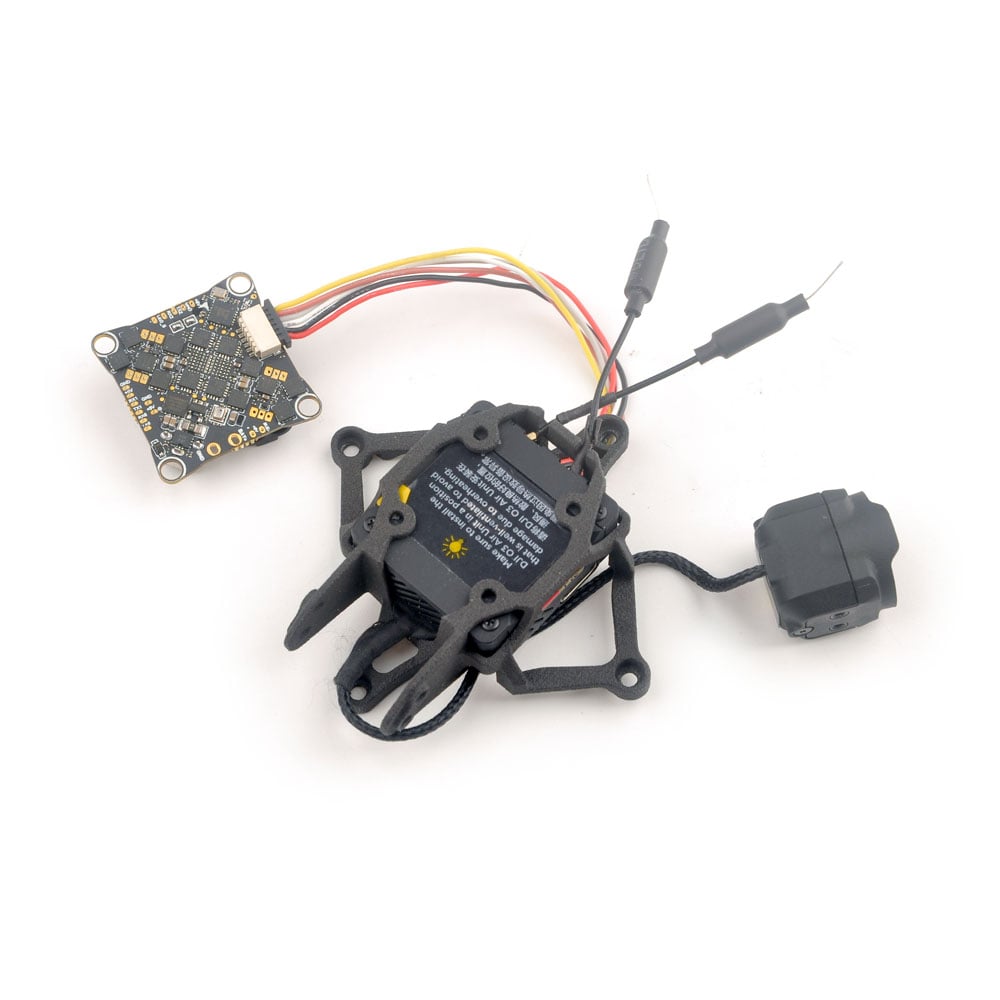

| Flight controller |
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC |
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200 |
| Onboard UART ExpressLRS 2.4GHz Receiver |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator |

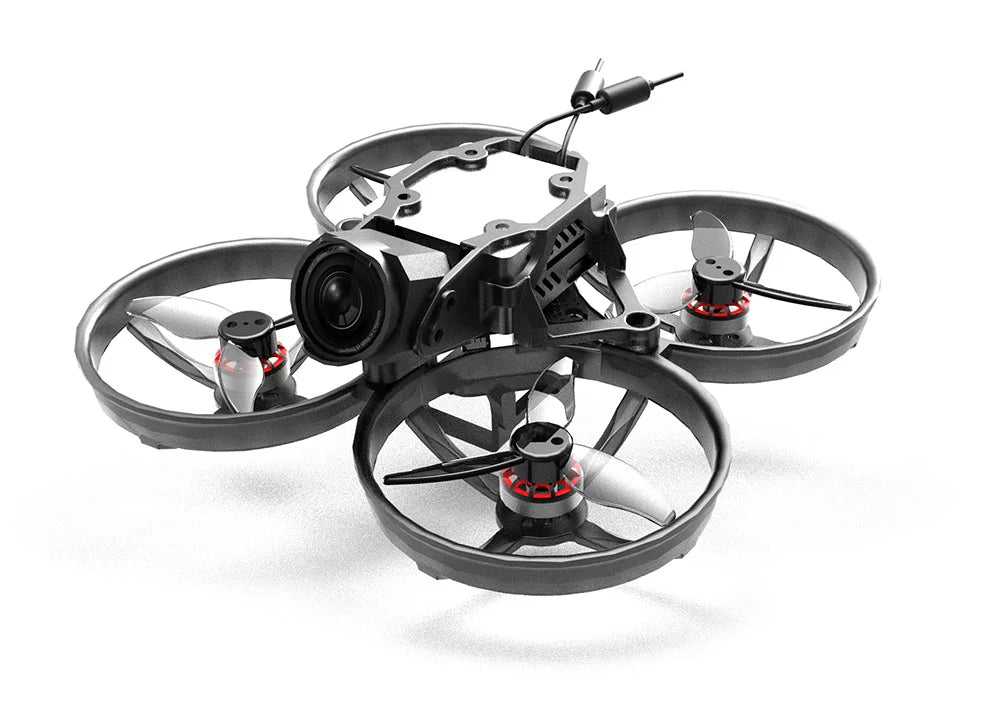

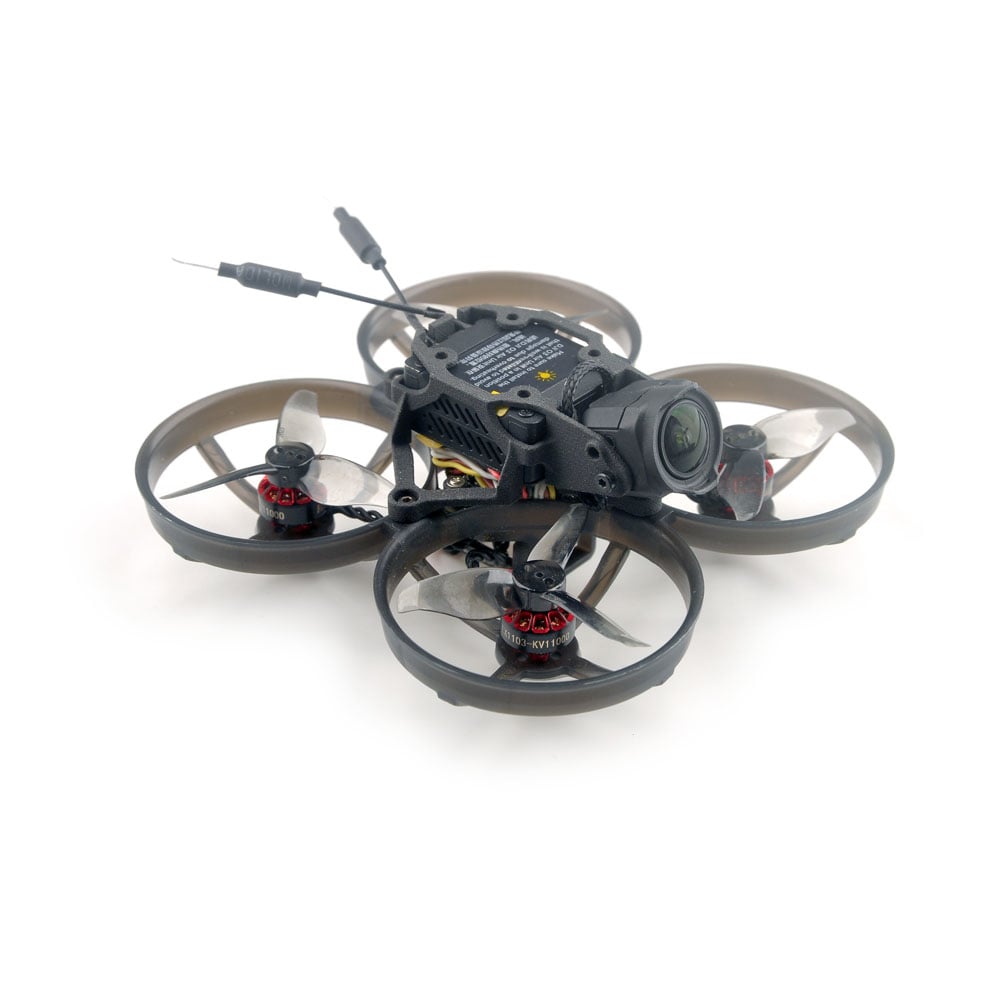

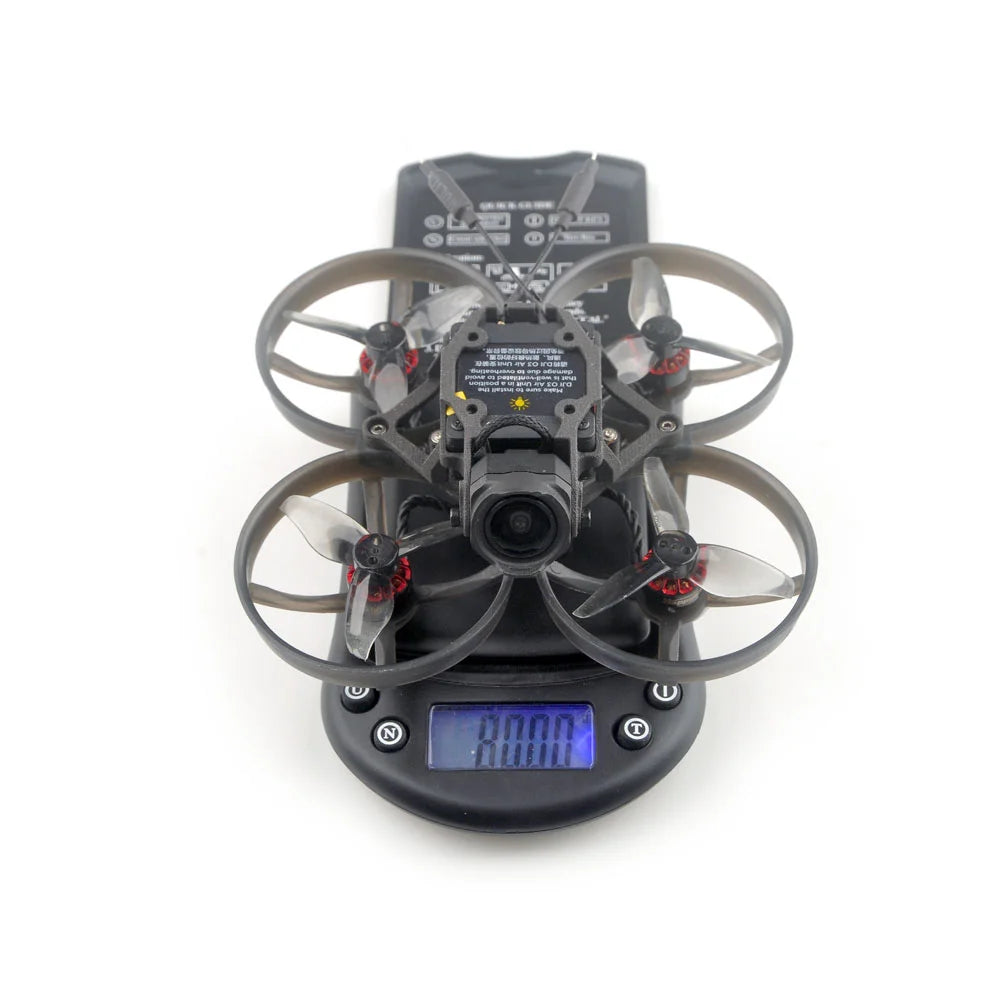

| DJI O3 Air Unit |
Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
D-Cinelike mode for Vivid Colors Flagship O3+ Video Streaming Customizable Canvas Mode 155° Super-Wide FOV 1/1.7-Inch Sensor Compact in Size |

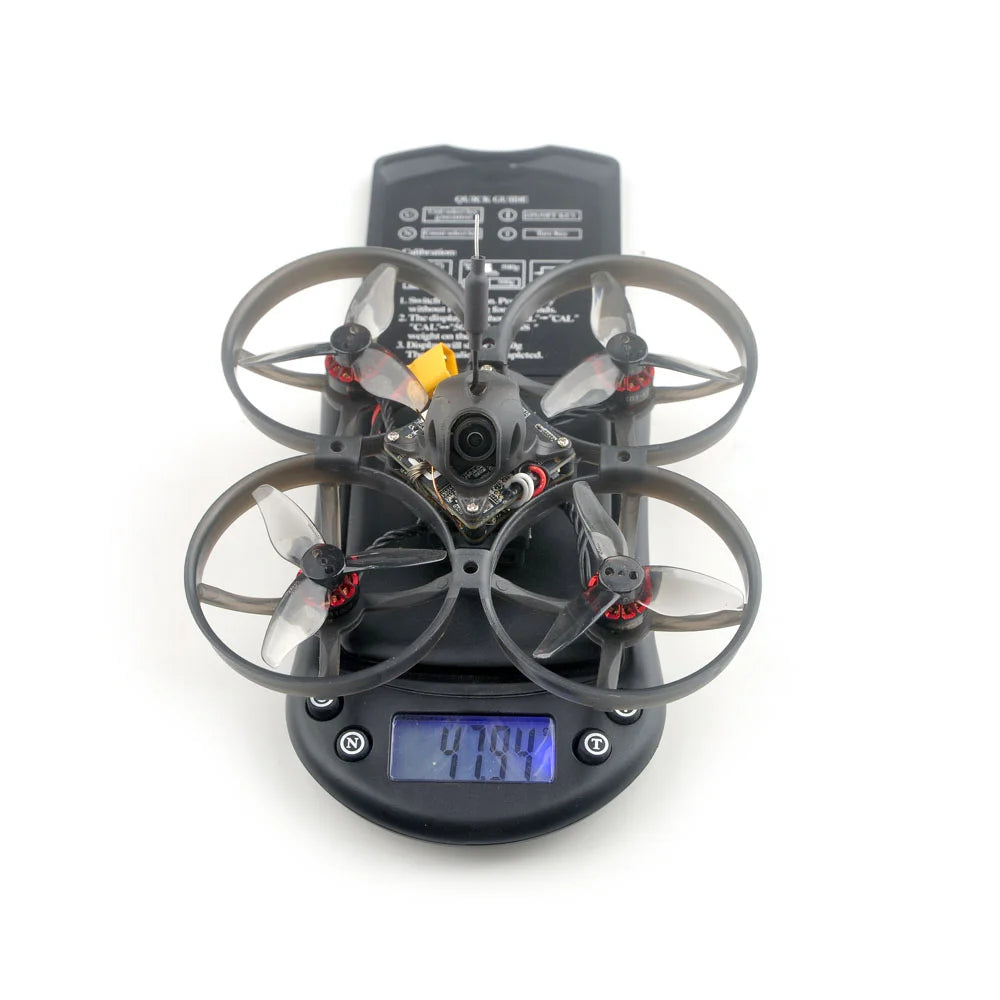

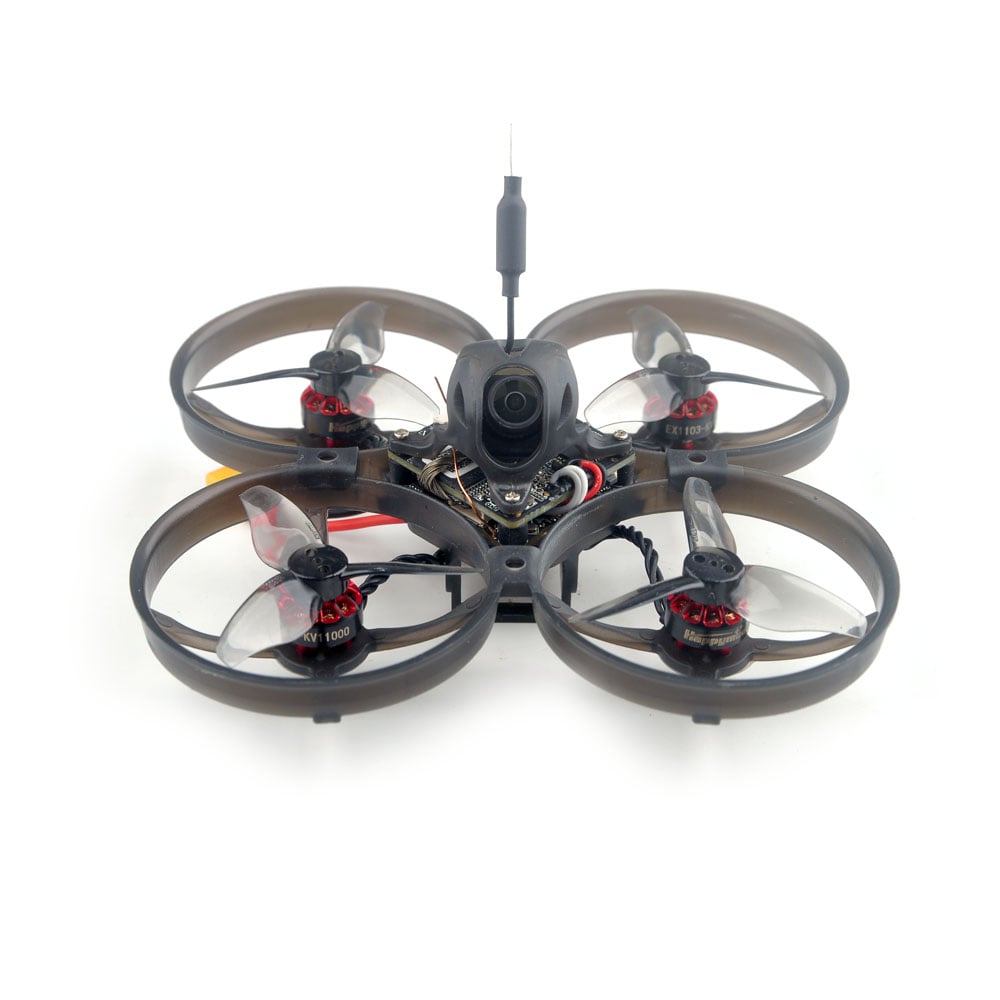

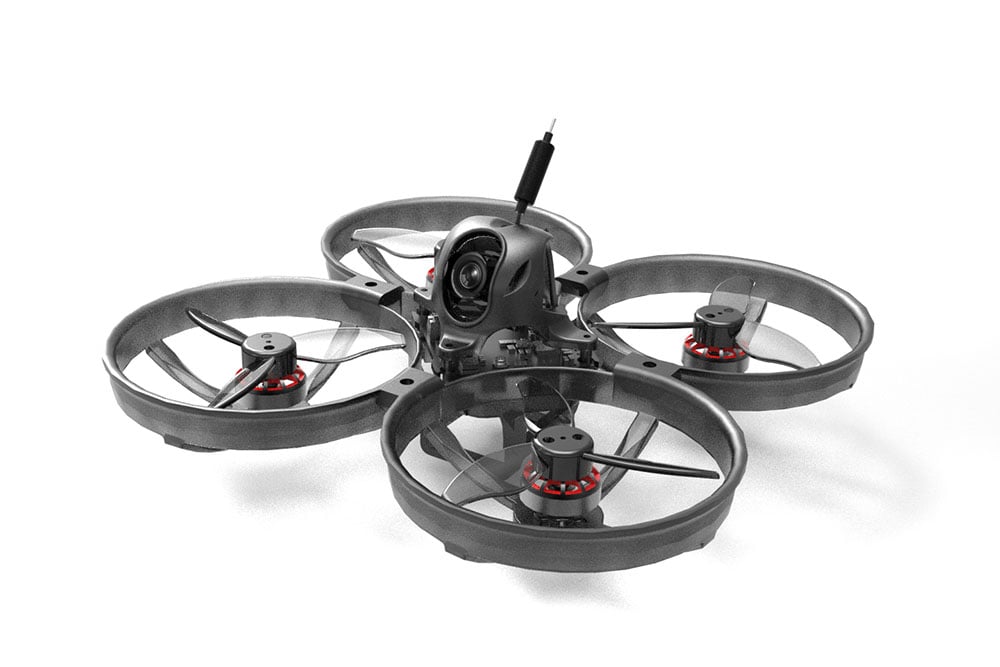

| Walksnail version |
Camera
Model Avatar lite camera Image Sensor 1/2.7"1nch Resolution 1080P/60fps,720P/120fps,720P/60fps Ratio 16/9 4/3 Lens 2.1mm FOV 170° Aperture F2.0 Shutter Rolling Rolling shutter Min.Illumination 0.001Lux Weight 1.8g Dimensions 14*14*16mm VTX Model Avatar mini 1s module Communication Frequency 5.725-5.850GHz Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm I/O Interface JST1.0*6(Power in)JST0.8*4(USB) Mounting Holes 25.5*25.5mm Dimensions 30*30*6.5mm Storage 8G Recording 1080p/720p Weight 5.1g Operating Temperature -20-40℃ Channels 8 Wide Power Input 3.1V-5V Supported FC System Betaflight OSD Canvas mode Bitrate 25mbps 50mbps Latency Average delay 22ms Antenna IPEX |
Sky's the limit, but for the Mobula8 Digital HD Micro FPV Whoop, it's just the beginning. So, get on board for a top-notch flying adventure that's bound to make you the talk of the drone town.
Note: While we've been known to occasionally pilot the Mobula8 to the moon and back, we'd recommend sticking to the Earth's atmosphere for optimal performance.
Included
-
1x Mobula8 HD Drone
- DJI HD version the air unit/camera are sold separately
- Walksnail version the air unit/camera are pre-installed.
- Accesories Kit
