Product Details
You're out there, with your drone fleet that flies like a snail coated in molasses, thinking, "Could FPV get any more lackluster?" You're in need of a turbo-boost, something that'll light your FPV skies ablaze!
Why Settle for Less When You Can Soar? 🦅
Let's not mince words; if your current FPV drone was a cup of tea, it would be tepid water with a bag of mediocrity steeped in it. Forget "good enough" and unleash the adrenaline-pumping thrill you've been longing for.

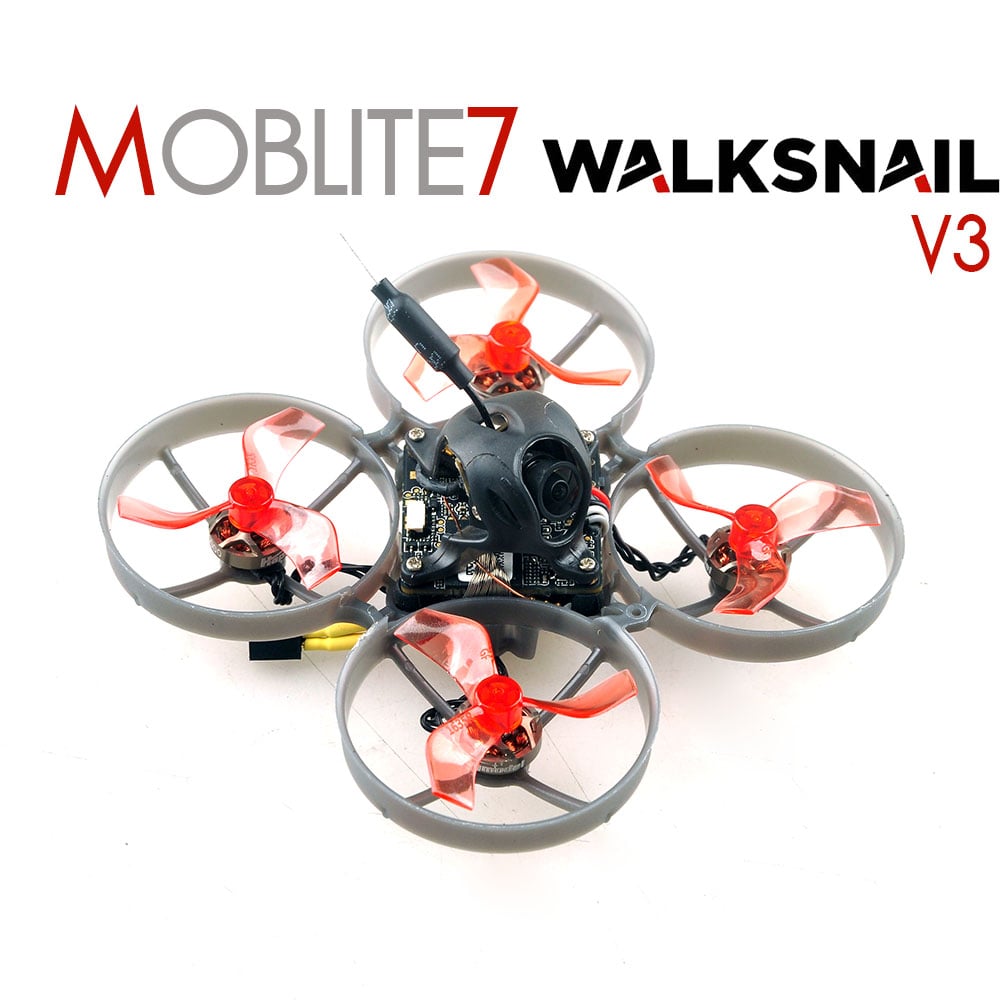

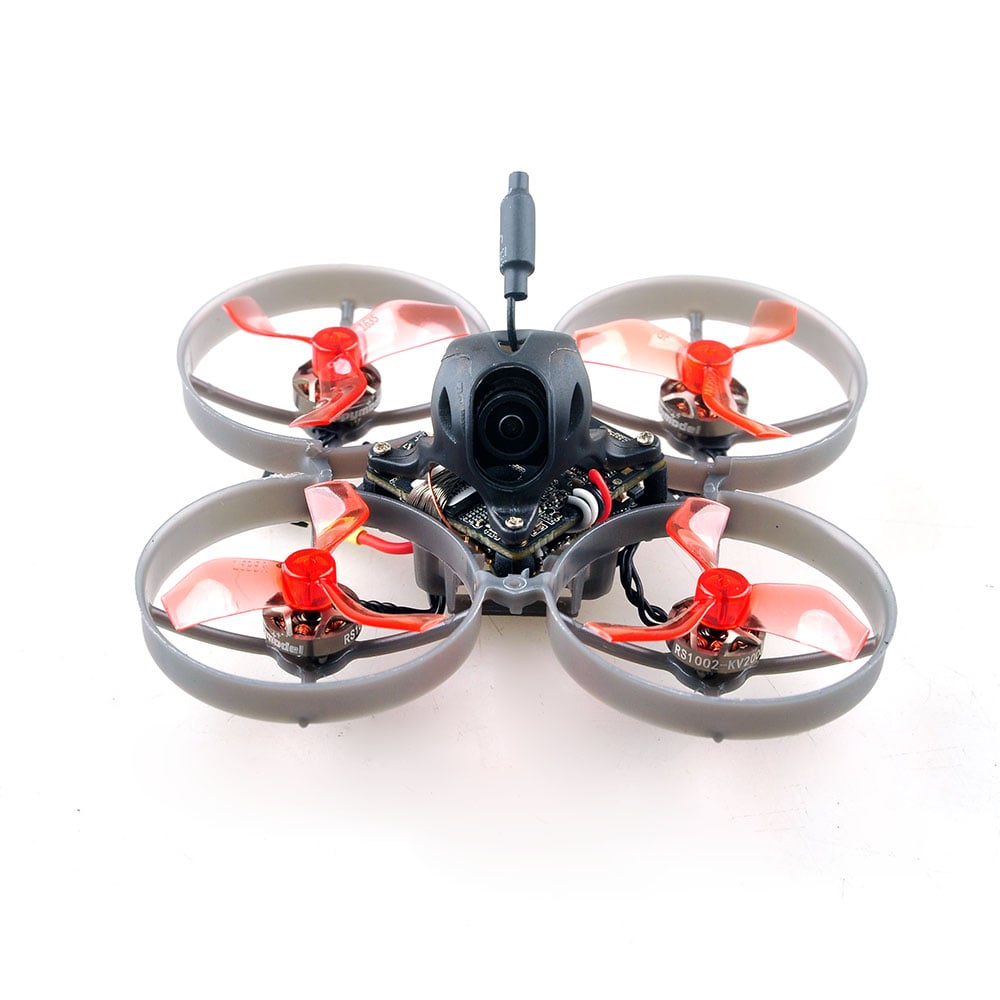

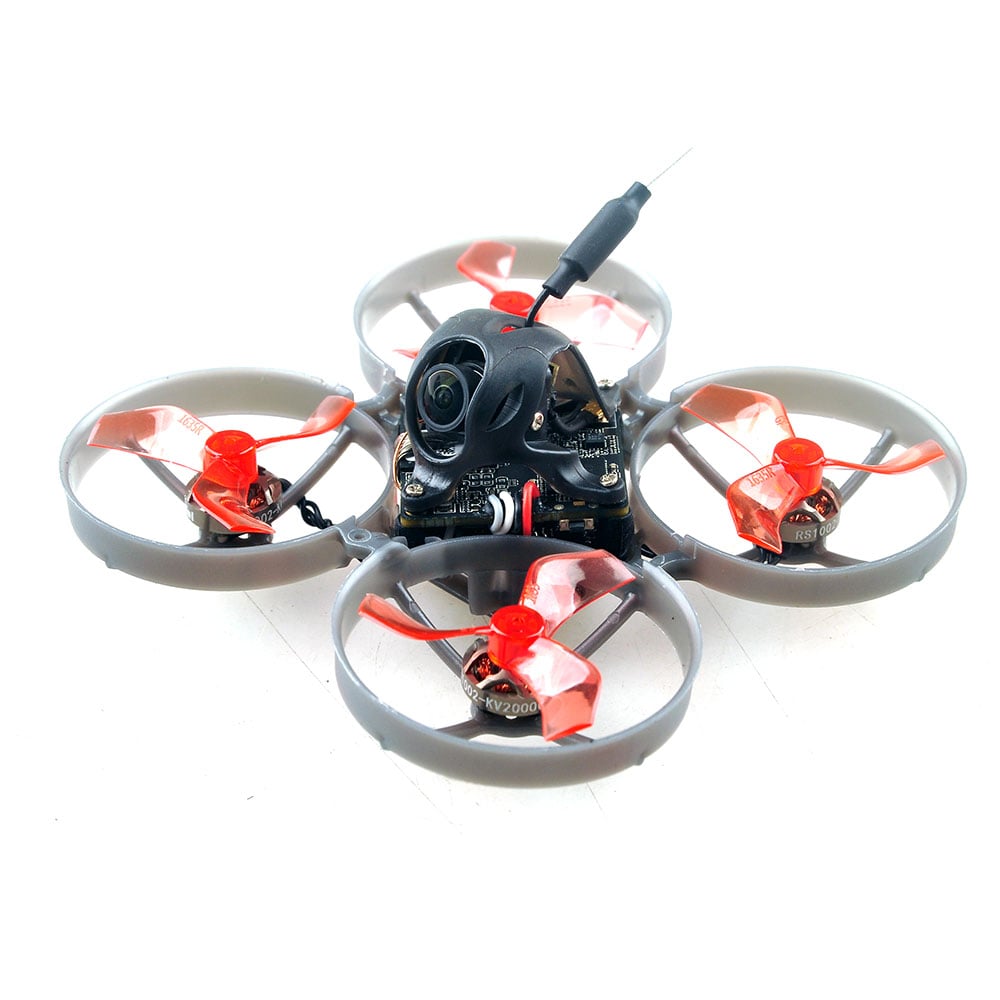

Unveiling the Happymodel Moblite7 Walksnail V3 - Your Ticket to FPV Supremacy! 🌟
🔥 Top Product Highlights 🔥
- Unbeatable Weight : At 34.5g (sans battery), this feathery beast is designed for outrageous agility.
- UART ELRS v3.0 Ready : Say goodbye to latency. The future is now, and it's lightning-fast.
- GNB A30 & BT2.0 Plug-in Play : Plug in and ascend. As easy as a piece of space cake!
- Built-in Blackbox : Record your epic flights and learn from your "less than epic" ones.
- HD Camera : Because if you're going to do it, do it in 1080P, baby!
Specifications
Brand Name: Happymodel
Model: Moblite7 Walksnail V3
Frame wheelbase: 75mm

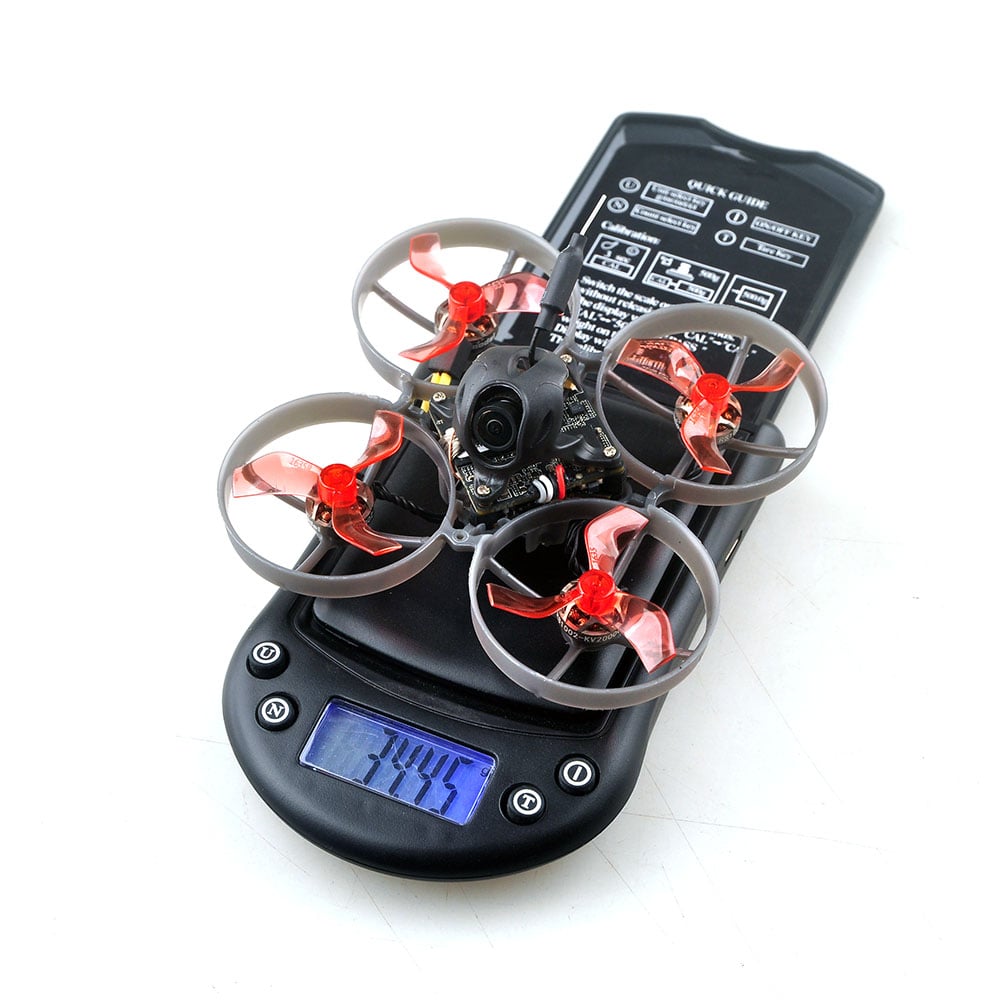

Weight: 34.5 gram without battery
Size: 98mm*98mm*48mm
UART ELRS v3.0 ready
Compatible with 1S Lipo battery or Lihv battery

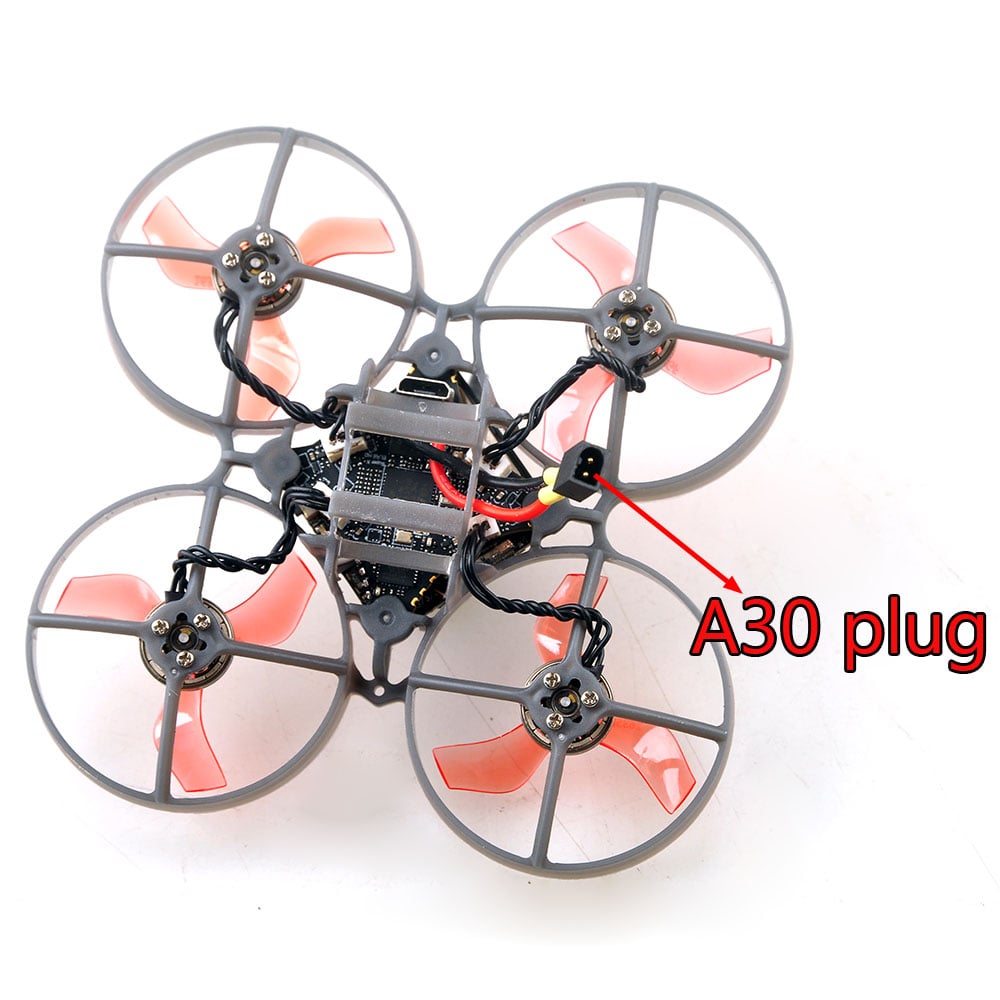

Battery Plug: GNB A30
Onboard blackbox ready
|

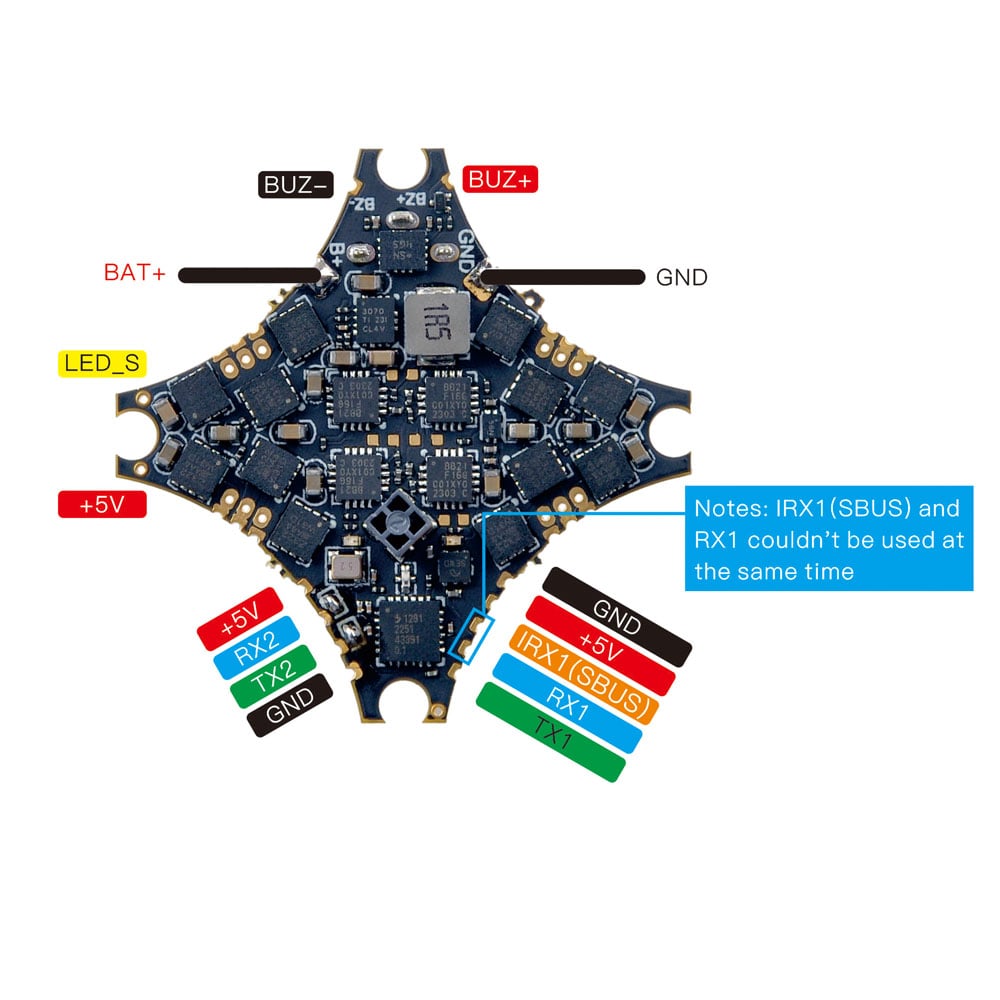

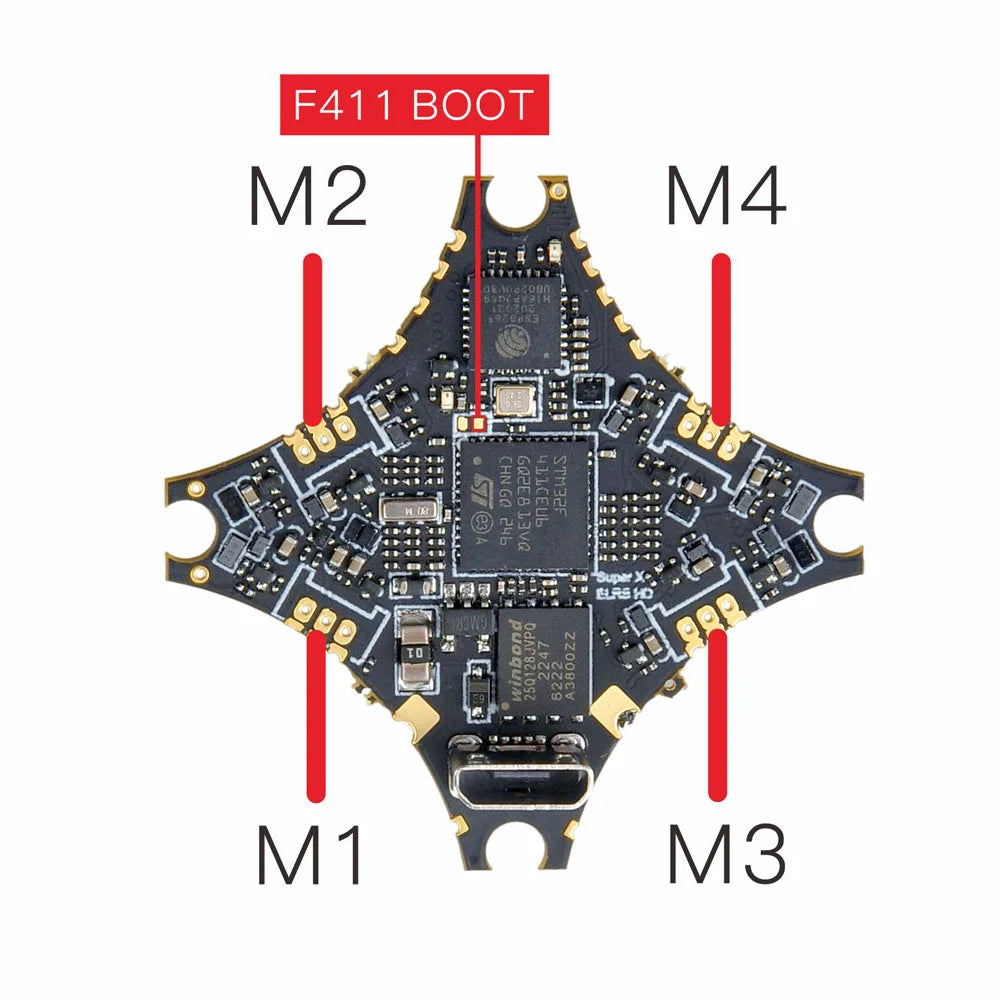

Flight controller
SuperX HD ELRS |
Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: BMI270 or ICM42688P (SPI connection) Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update Bluejay ESC Firmware ready Built-in 5V 1A BEC Built-in voltage detection No betaflight analog osd chip |
| Onboard 4in1 ESC |
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds) Support ESC-Configurator and BLHELI_S Suite configurator Factory firmware: Z-H-30 - Bluejay, 0.19, 48kHz Default protocol: DSHOT300 |
| Onboard UART ExpressLRS 2.4GHz Receiver |
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Receiver protocol: CRSF Default firmware version: ExpressLRS V3.0.1 The same hardware with Happymodel EP1 receiver Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through |
| Motor |
Model: 1002 20000KV
Configu-ration:9N12P Stator Diameter:10mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm Weight(g):2.5g No.of Cells(Lipo):1S only |
| Propeller Gemfan 1610-2 Bi-blades |
Weight:0.24g
Material: PC Pitch:1 inch Props Dia:40mm Center Hole Dia:1.5mm |
| VTX |
Model: Avatar mini 1s module
Communication Frequency: 5.725-5.850 GHz Transmitter Power(EIRP): FCC:<25.5dBm; CE:<14dBm; SRRC: <20dBm;MIC:<25dBm l/o Interface: JST1.O*6(Power in)JST1.O*4(USB) Mounting Holes: 25.5*25.5 mm Dimensions: 33*33*6.5 mm Storage: 8G Recording: 1080p/720p Weight: 6.8 g Operating Temperature: -20-40℃ Channels: 8 Wide Power lnput: 3.1V-5V Supported FC System: Betaflight OSD: Canvas mode Bitrate: 25mbps / 50mbps Latency: Average delay 22ms Antenna connector: IPEX |
| Camera |
Model: Avatar nano
lmage Sensor: 1/2.7"Inch Resolution: 1080P/6Ofps,720P/120fps,72OP/6Ofps Ratio: 16/9 4/3 Lens: 2.1mm FOV 170° Aperture: F2.0 Shutter: Rolling shutter Min.Illumination: 0.001Lux Weight: 3.5g Dimensions: 14*14*17mm Coaxial Cable: 45mm |
Default factory dump file:
Moblite7 Walksnail 1S 75mm digital HD brushless whoop v3 dump file
How to Bind Moblite7 Walksnail ELRS
Molibte7 walksnail Digital HD Whoop V3.0 version bind procedure.mp4 - Google Drive

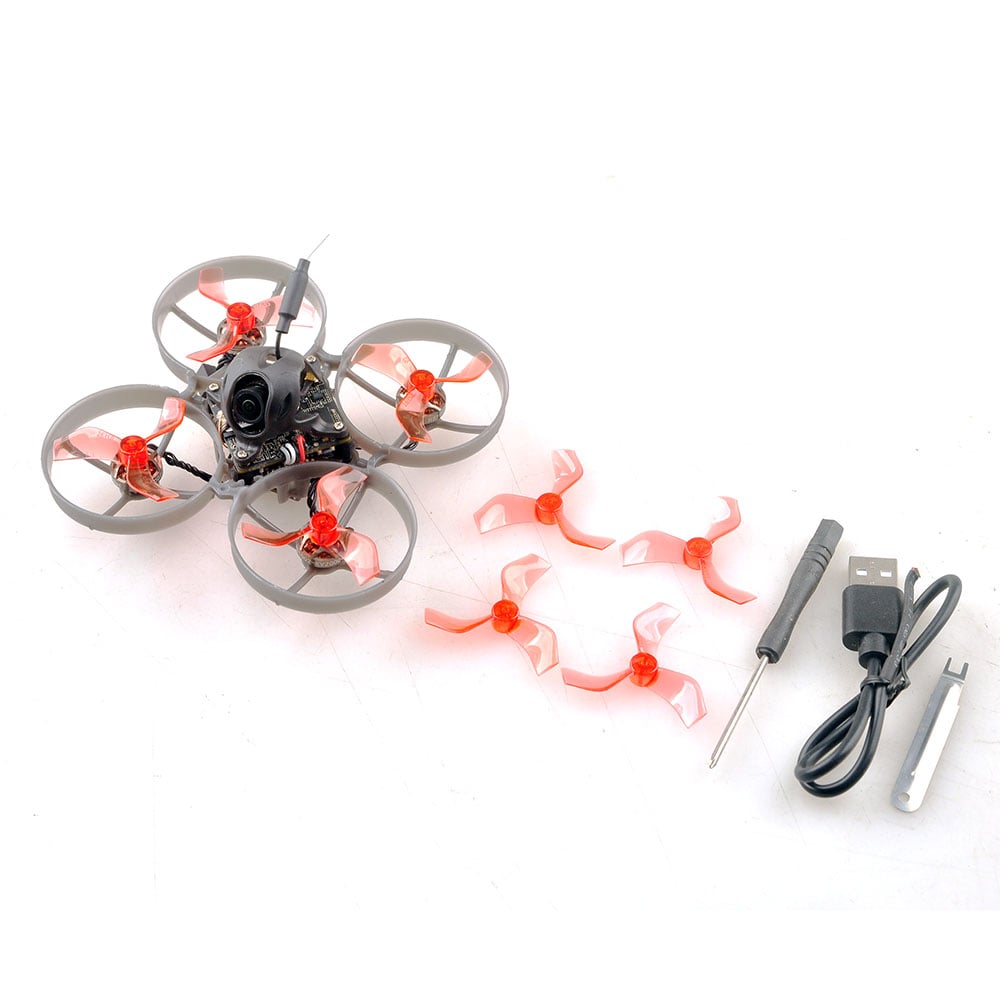

Included
- 1x Moblite7 Walksnail V3 Drone
