Product Details

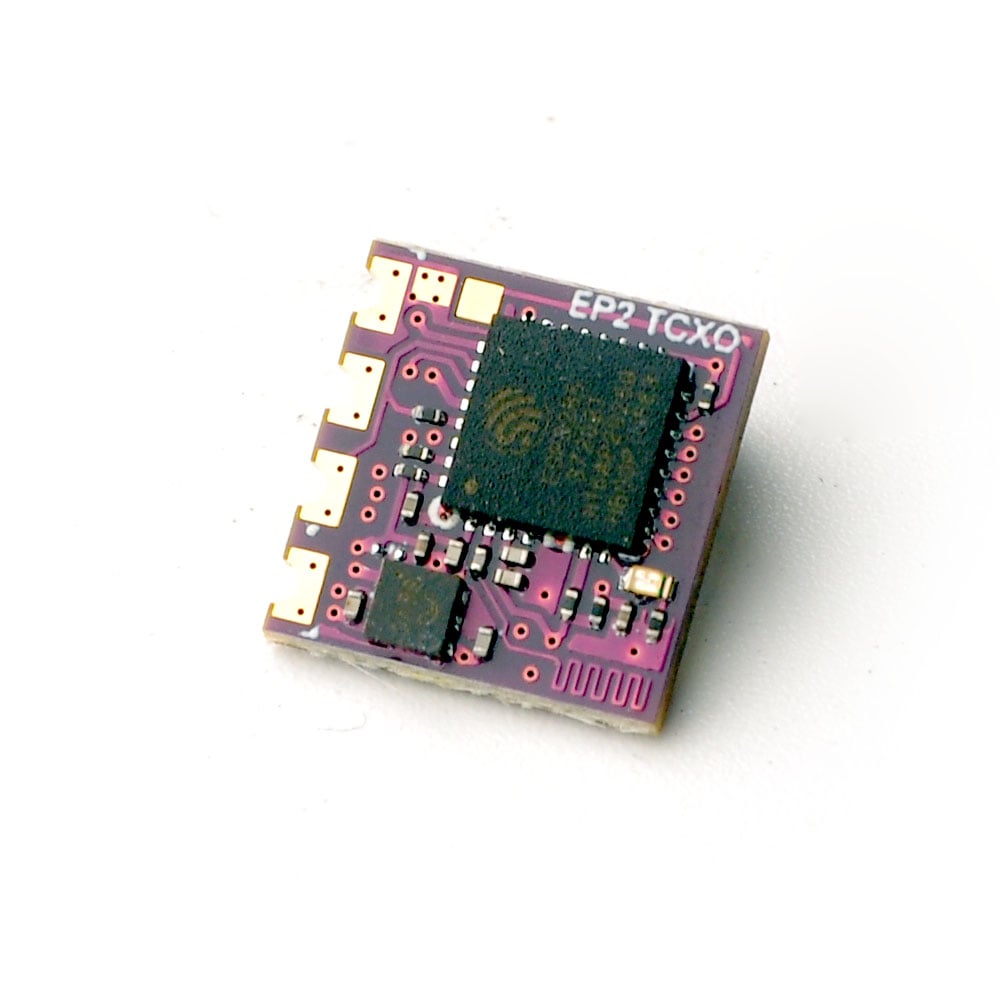

This is a nano sized receiver for the ExpressLRS ELRS system. The EP2 TCXO uses a temperature compensated crystal oscillator which means accurate MCU clock frequency for improved performance and reliability of your RC link. The EP2 TCXO is based on the ESP8285 MCU that allows for upgrading via WiFi, along with the SX1280(SX1281)IMLTRT RF Module.

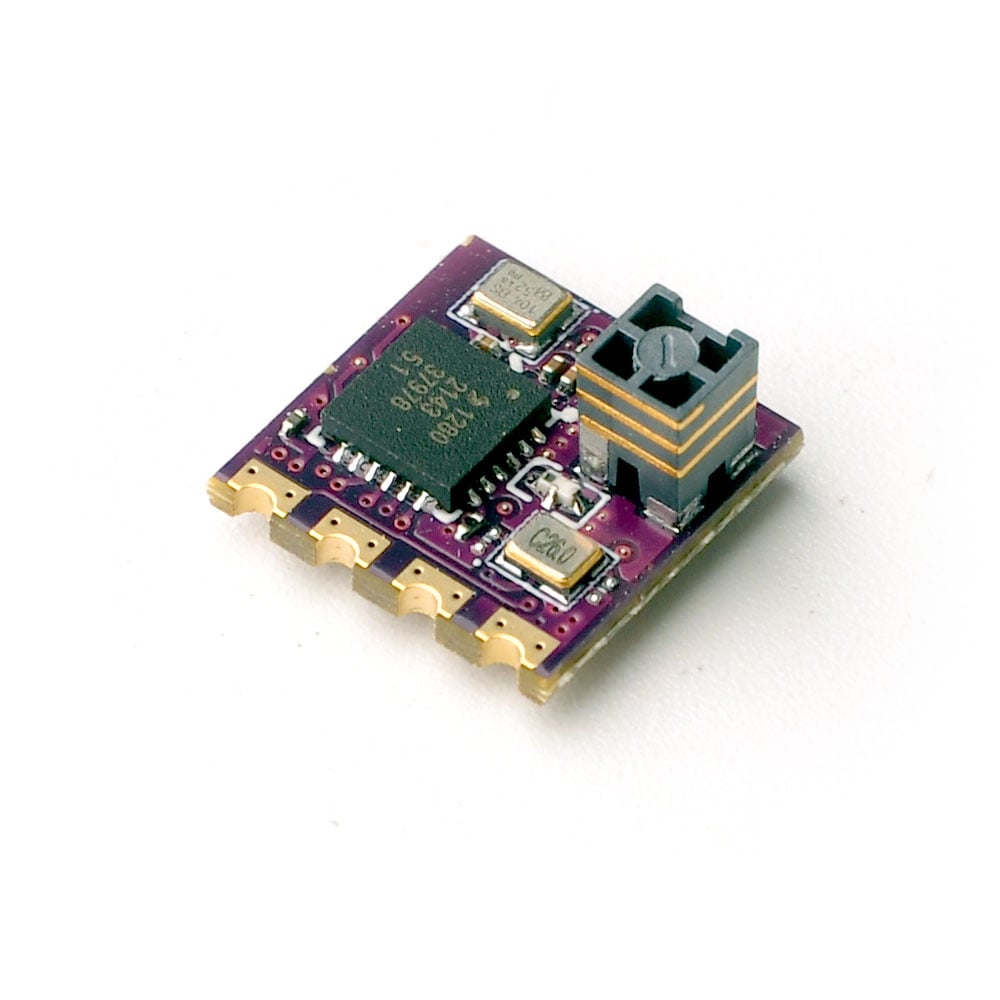

The EP2 RX includes built in SMD Ceramic antenna, making it ideal for use on whoop size drones.
Compatibility: Your transmitter and receiver must use the same frequency band and compatible ExpressLRS firmware major versions. Check both before binding; a firmware update may be needed.
Specifications
- Name: EP2 TCXO Receiver
- Type: ISM2.4GHz
- ESP8285 MCU
- SX1280(SX1281)IMLTRT RF Module
- SMD Ceramic antenna
- Frequency Range: 2400 MHz to 2500 MHz
- Receive refresh rate: 25HZ~500Hz
- Working voltage: 5v

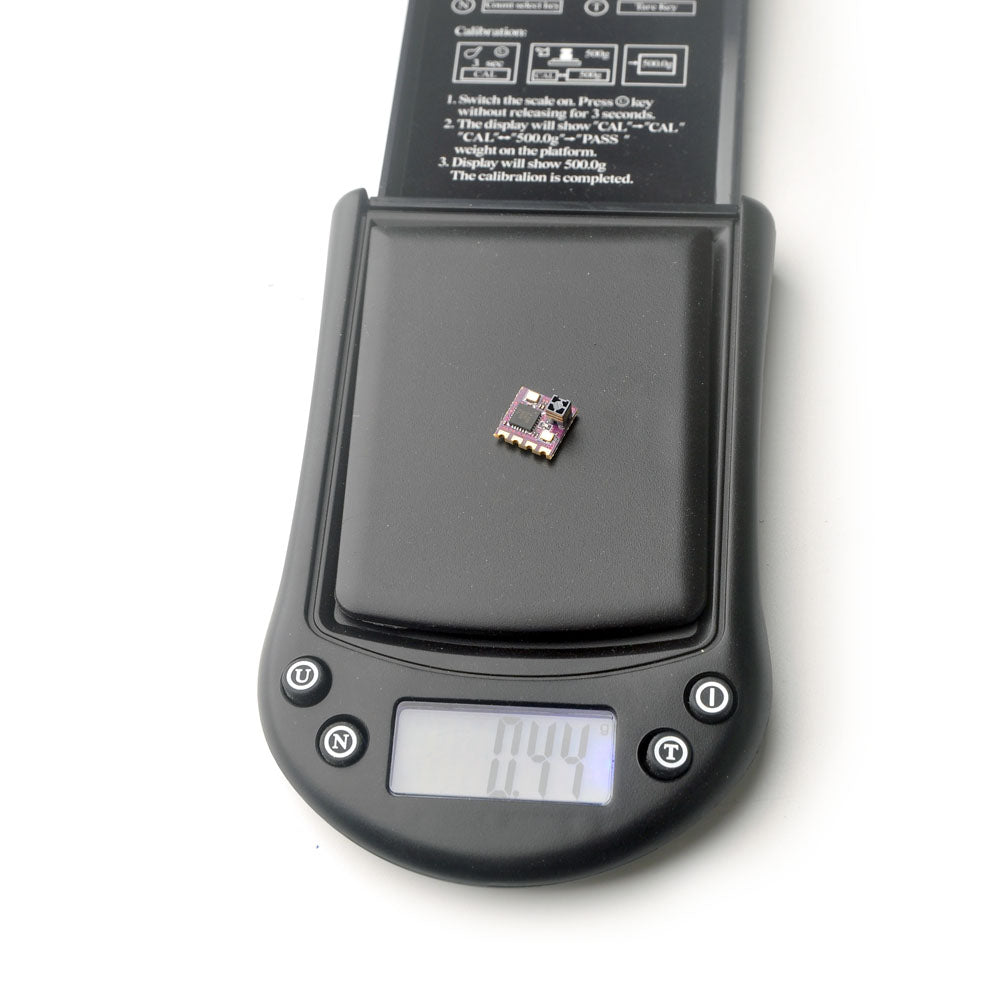

- Weight: 0.44 gram
- Dimension: 10mm 10mm 6mm
- Peak gain: 3.7dB
- Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version
- Built-in a TCXO (temperature compensated crystal oscillator)
Included
- 1x EP2 TCXO Receiver
