Product Details

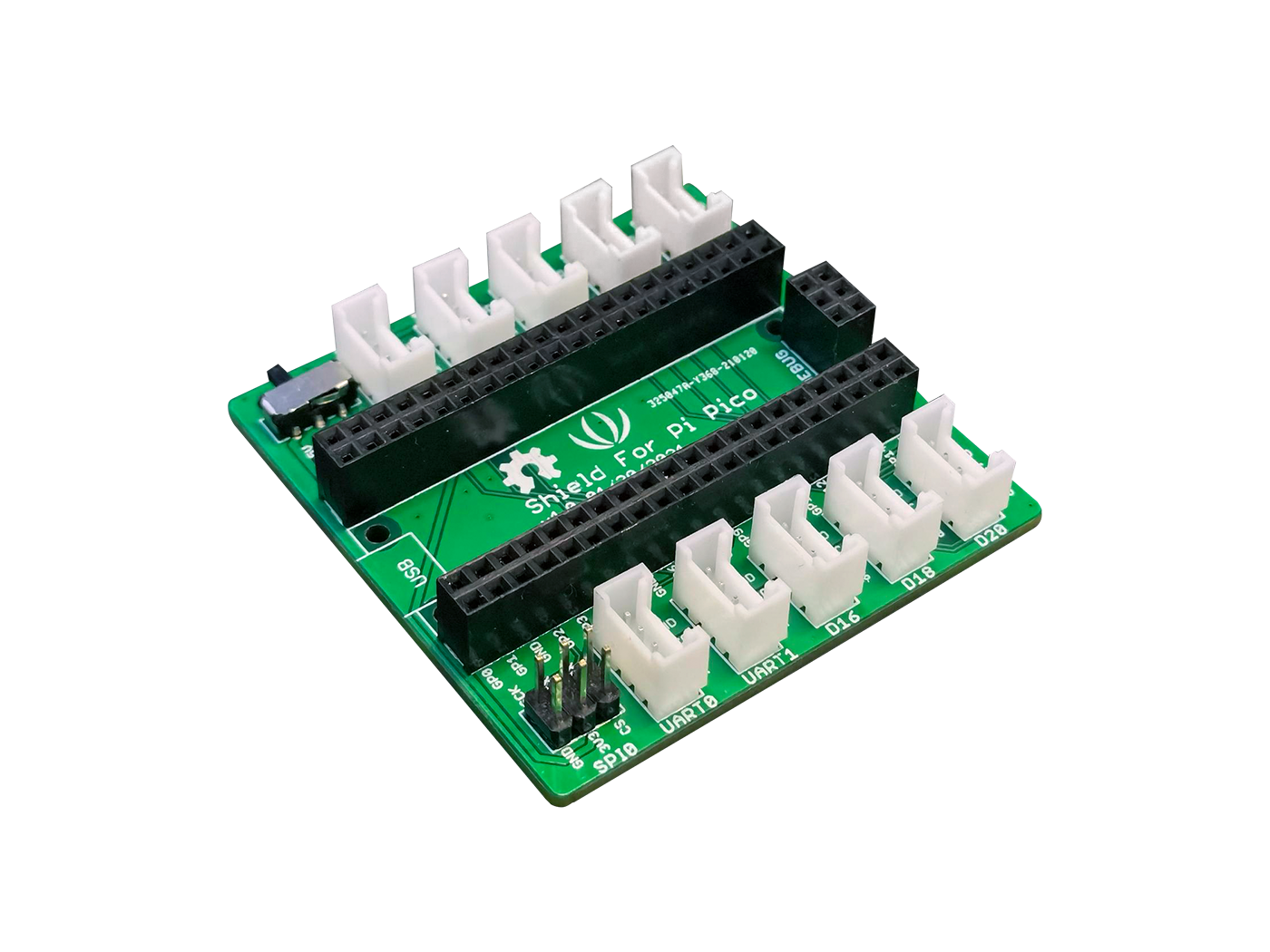

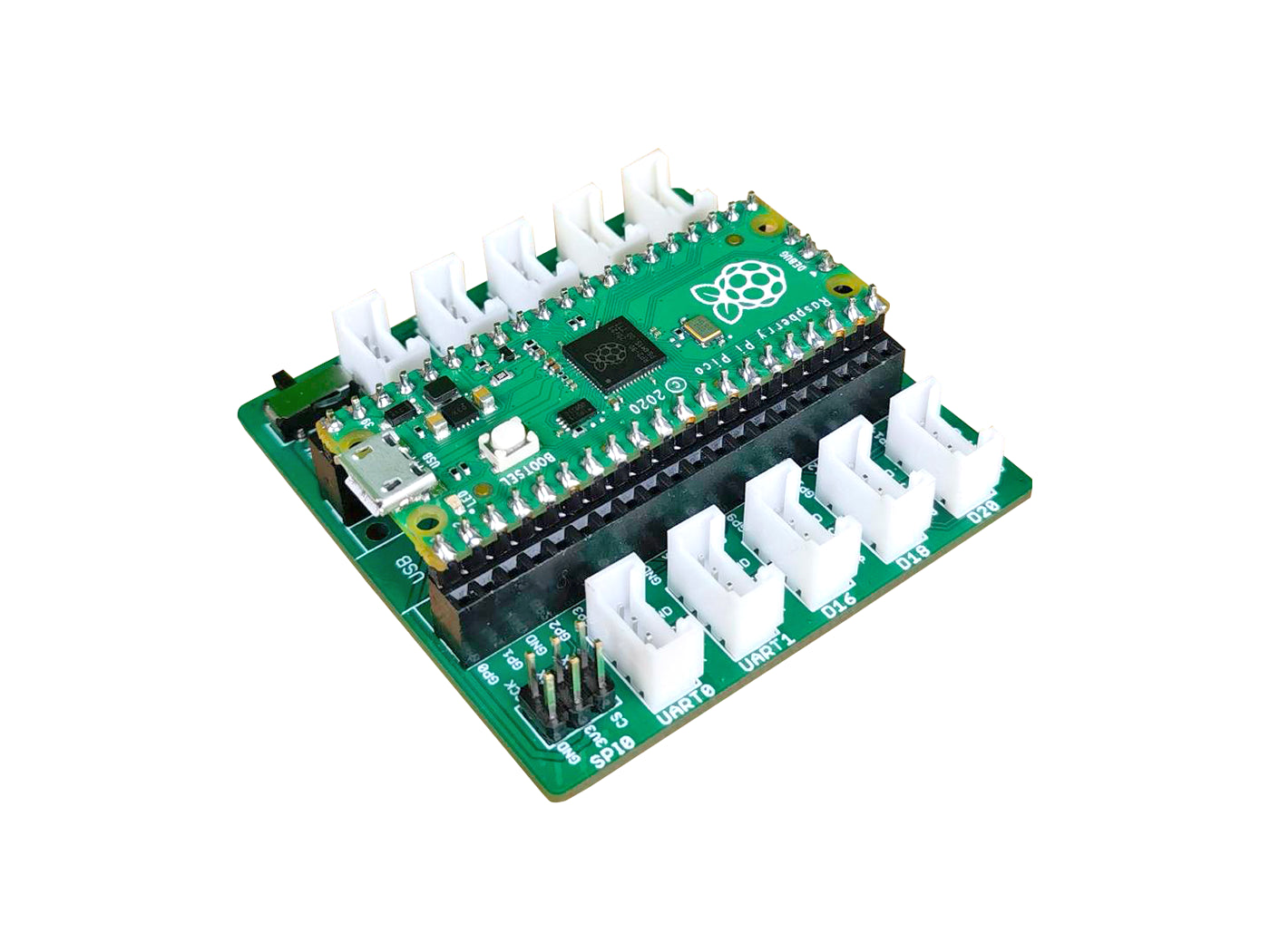

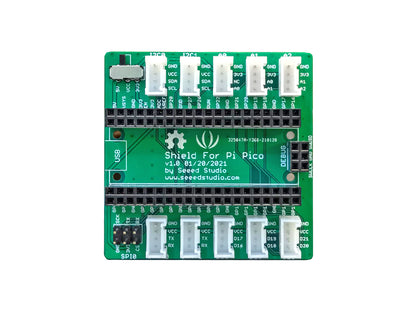

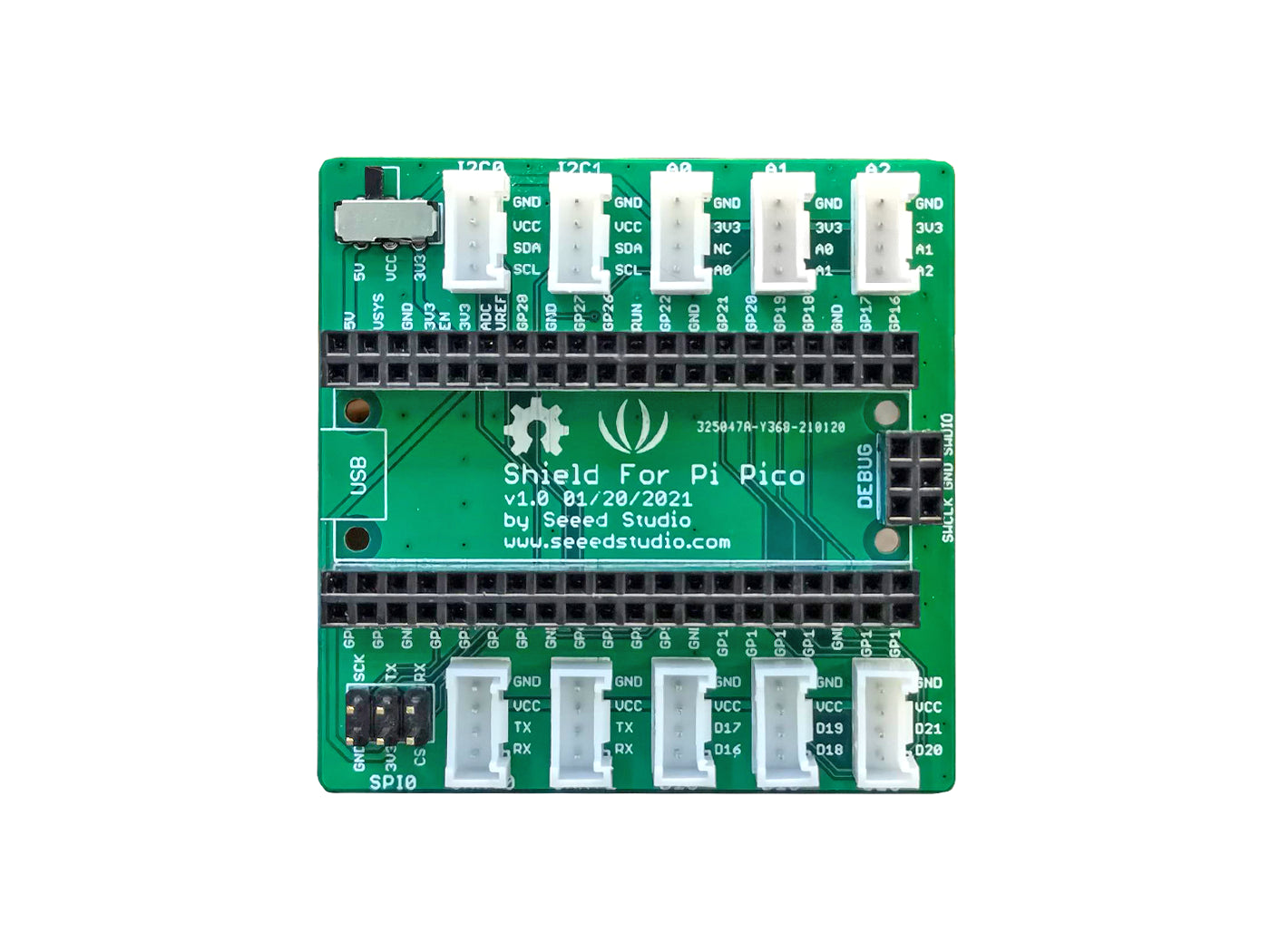

Grove Shield for Pi Pico
This is the Grove Shield for Pi Pico—the board that stops your Pico projects from turning into a loose-wire crime scene. SEO appeasement upfront: Grove Shield for Pi Pico, Raspberry Pi Pico Grove shield, Pico Grove interface board. If you’re skimming (of course): all-female headers, piles of Grove ports, power switch included, and zero soldering gymnastics required.
Why You Want It
Because plugging jumper wires directly into a Pico is a trust exercise that always ends badly. This shield drops clean Grove interfaces onto your Pi Pico so sensors, displays, and modules just plug in and behave. Multiple I2C, UART, analog, digital, SPI, and SWD ports mean you can prototype fast, debug properly, and still pretend your desk chaos is “intentional.” It’s boring infrastructure—in the best possible way.
Specifications
|
Parameter |
Description |
|
Analog Port |
Include 3 anlog ports, A0, A1, A2 |
|
Digital Port |
Include 3 digital ports, D16, D18, D20 |
|
UART Port |
Include 2 UART port |
|
I2C Port |
Include 2 I2C ports |
|
SPI Port |
Provide one SPI0 port |
|
Power Switch |
Provide 5V/3.3V selectable power switch |
|
Operating Temperature |
-25℃ to +85℃ |
|
Operating voltage |
Input power 3/5 V |
|
Dimension |
56mm * 56mm |
Application
- Projects with Grove sensors
- Electronics learn based on Grove Starter Kit for Raspberry Pi Pico
- SWD debug
- Rapid prototyping
- Wearable devices
- Intelligent control
What’s in the Box*
- 1× Grove Shield for Pi Pico
Disclaimer
*Accessory list may change without notice. Will not stop scope creep. Supply chains are a myth, deal with it. Turn your Pico into a plug-and-play machine. Grove Shield in, wiring pain out.
