Product Details

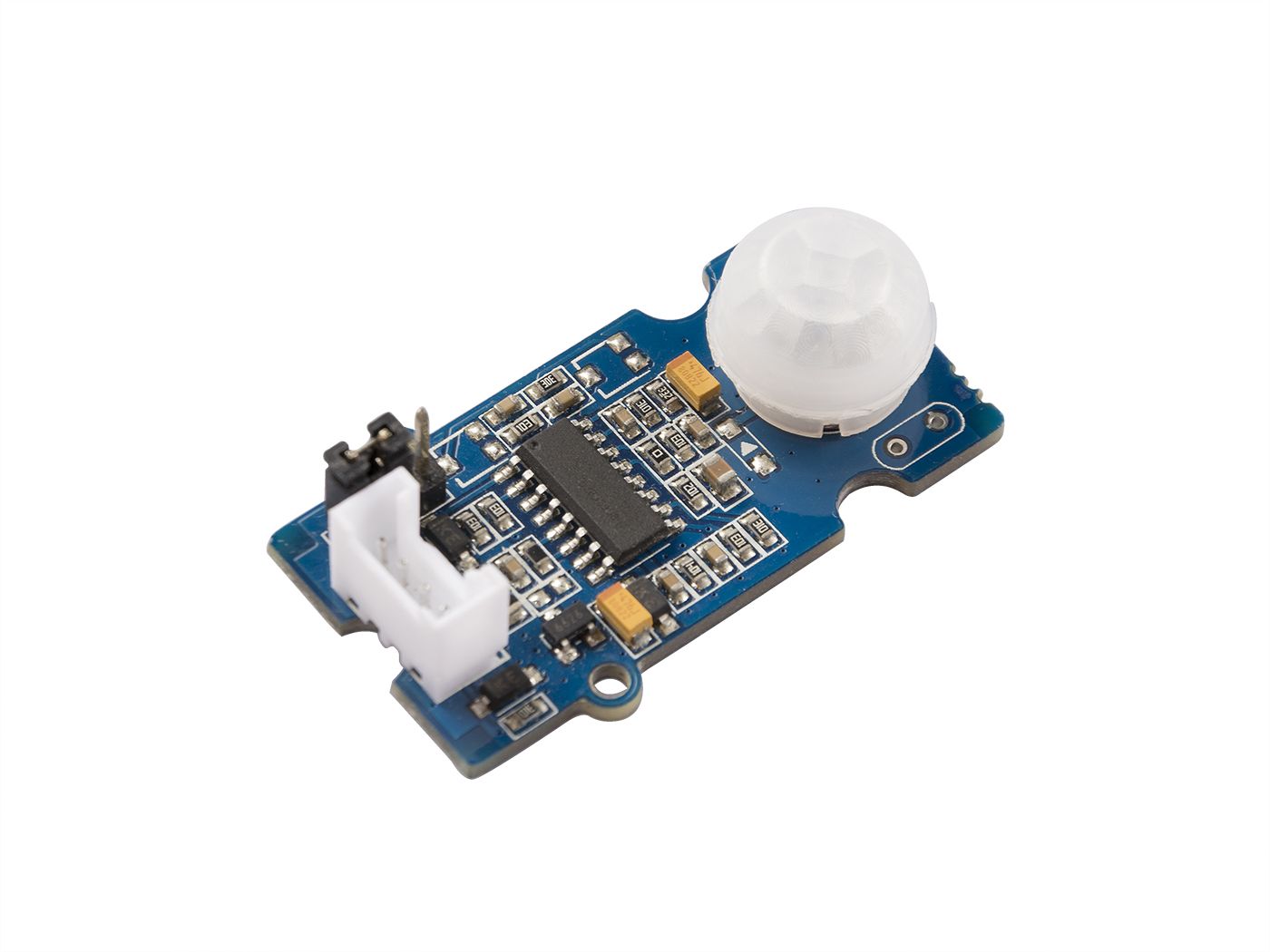

This is a simple to use PIR motion sensor with Grove compatible interface. Simply connect it to Stem shield and program it, when anyone moves in its detecting range, the sensor outputs HIGH on its SIG pin.

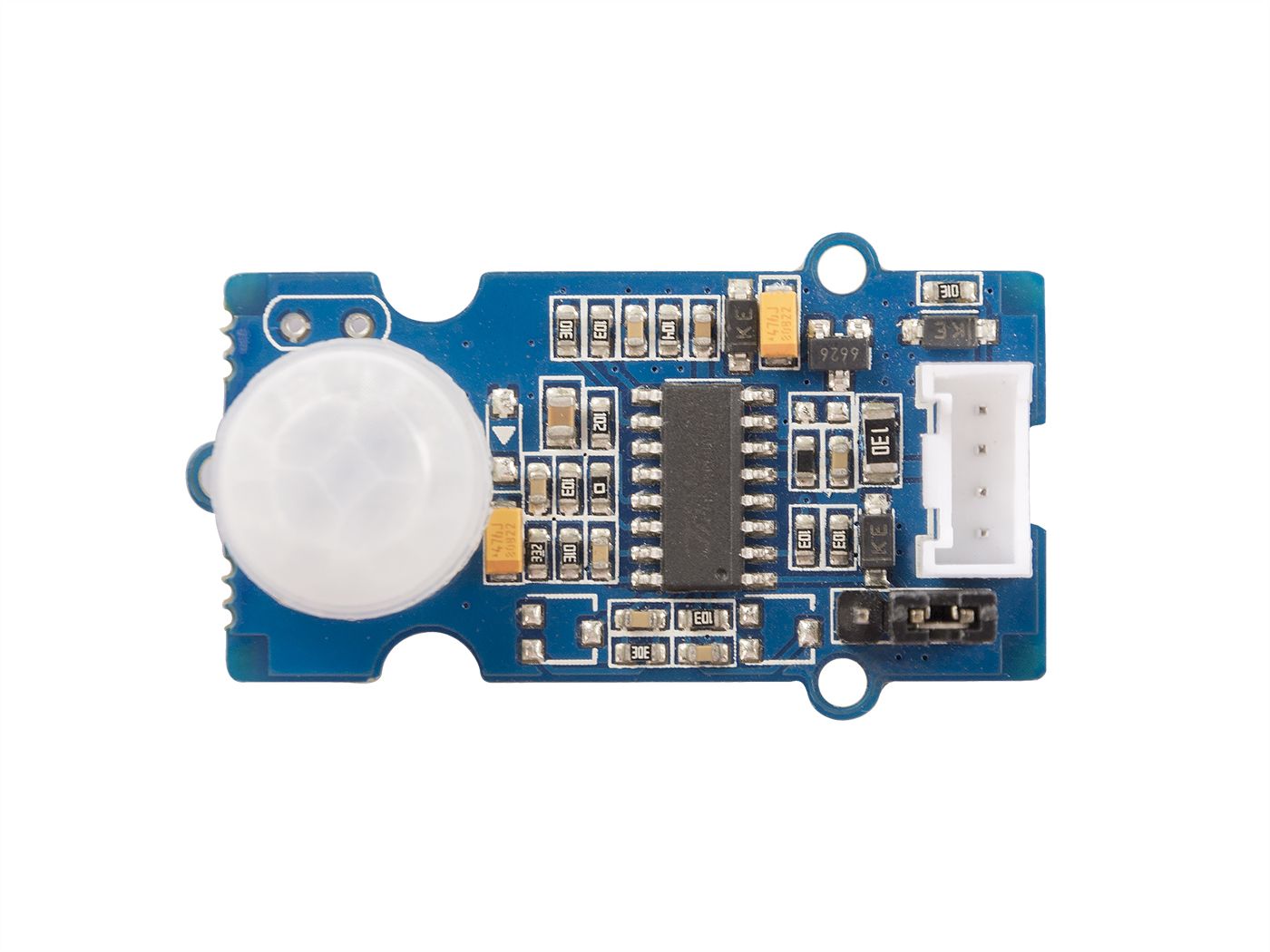

The detecting range and response speed can be adjusted by 2 potentiometers soldered on its circuit board, The response speed is from 0.3s - 25s, and max 6 meters of detecting range.
Specifications
- Grove compatible interface
- Voltage range: 3V-5V

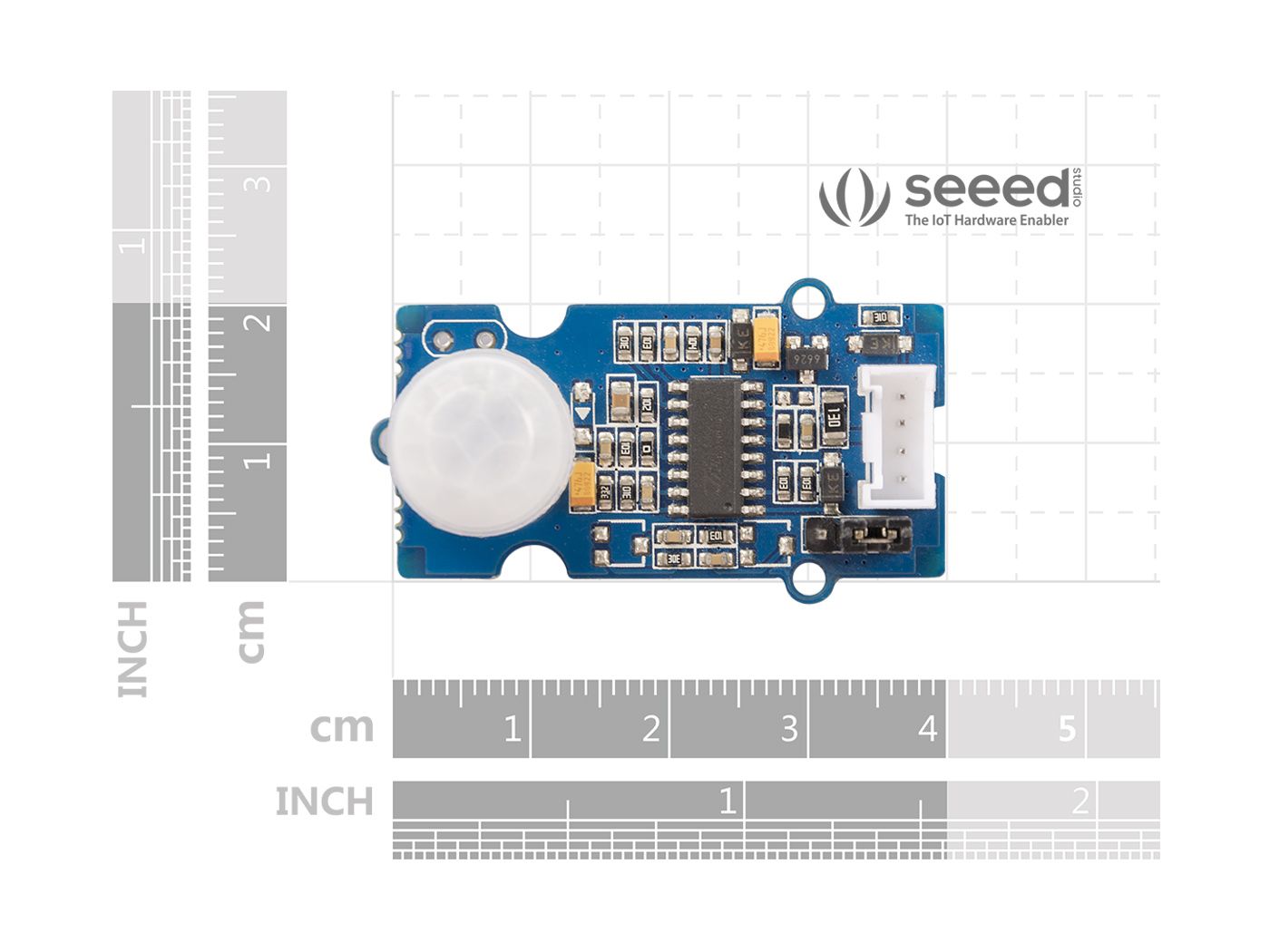

- 2.0cm x 4.0cm twig module
- Detecting angle: 120 degree
- Detecting distance: max 6m
- Adjustable detecting distance and holding time
Application Ideas
- Motion sensor
- Thief-guarding System
- Switch
- Industrial automation
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials
