Product Details

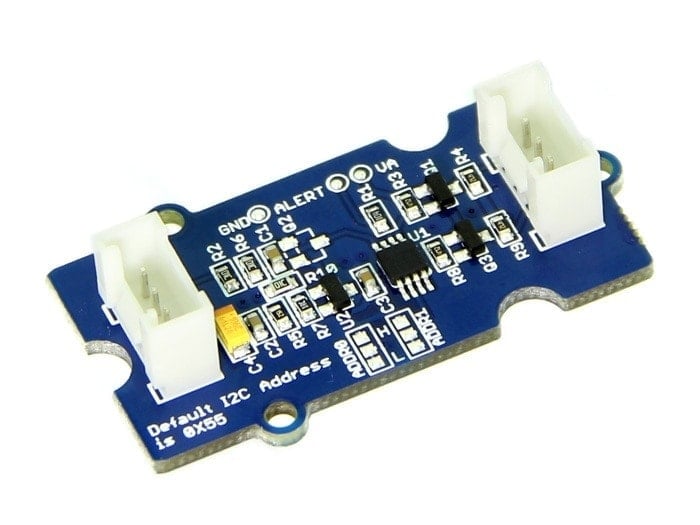

Grove - I2C ADC is a 12-bit precision ADC module based on ADC121C021. It helps you increase the accuracy of value collected from analog sensor by providing a constant reference voltage. Because its address is changeable, you can use up to 9 I2C ADC at the same time at most. At the other hand, this module provides auto sleep function which lowers the power consumption considerably.
This pack includes the board and the cable.
Features
- Low power consumption
- High precision
- Automatic power-down mode
- Address changeable
Specification
| Item | Typical | Unit |
|---|---|---|
| Working Voltage | 5.0 | VDC |
| Resolution | 12 | Bit |
| Sample Rate | 188.9 | ksps |
| Dimension | 40X20 | mm |
Resources
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
