Seeed Studio

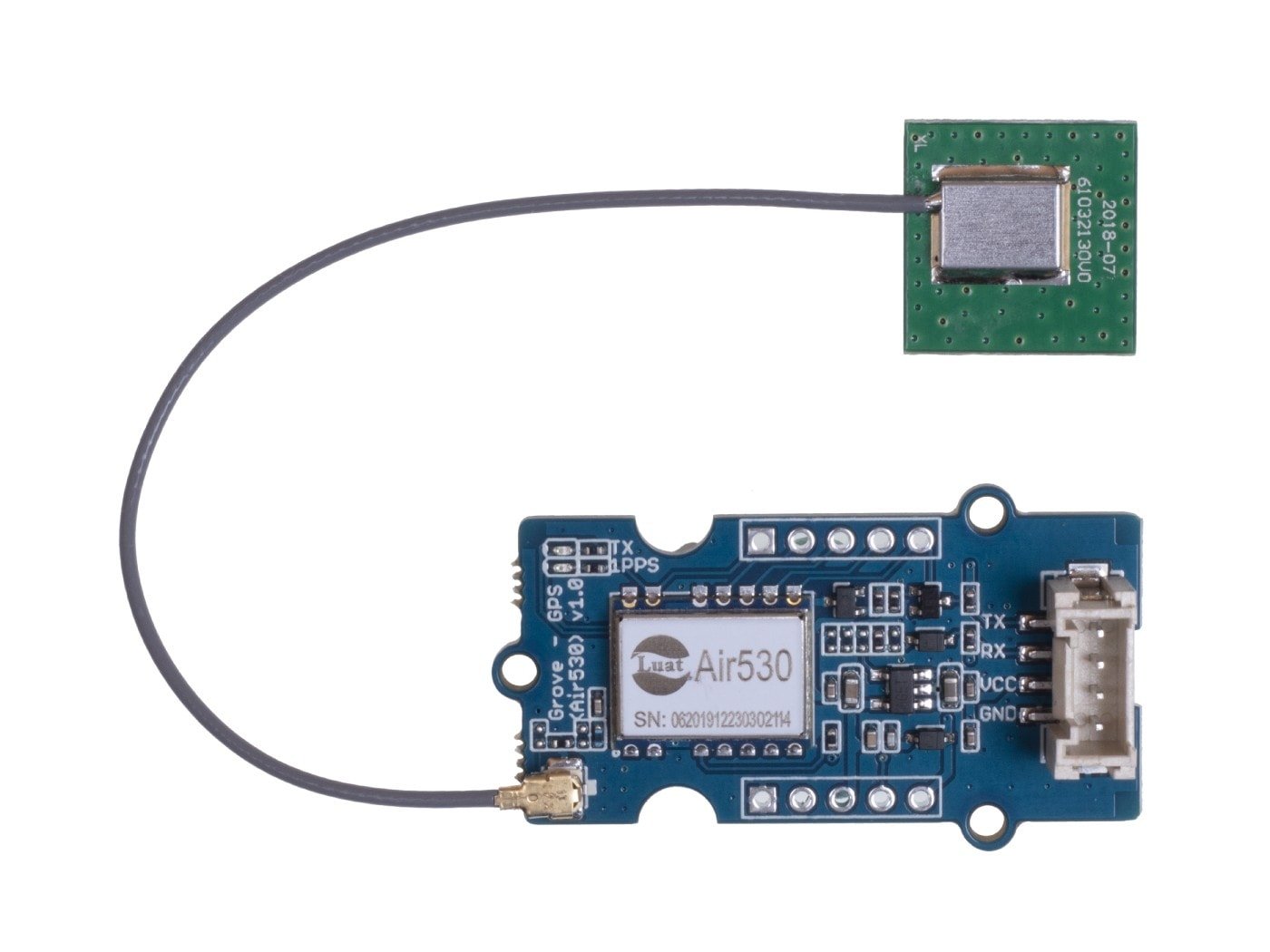

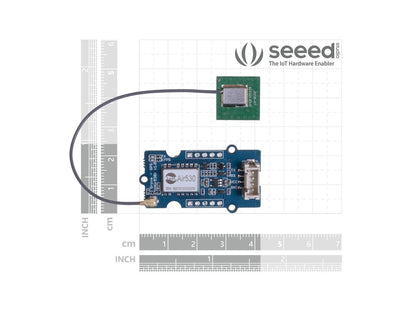

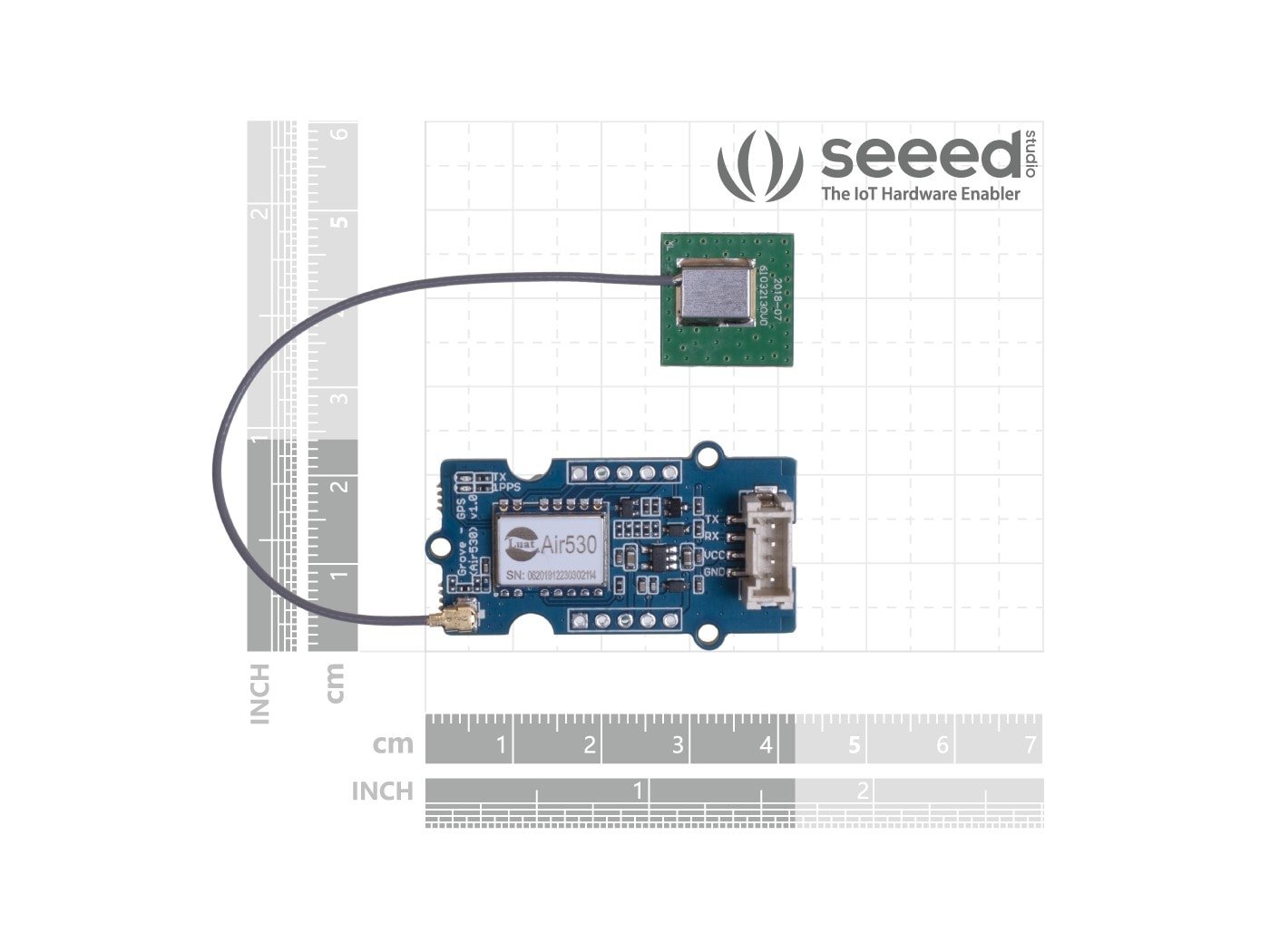

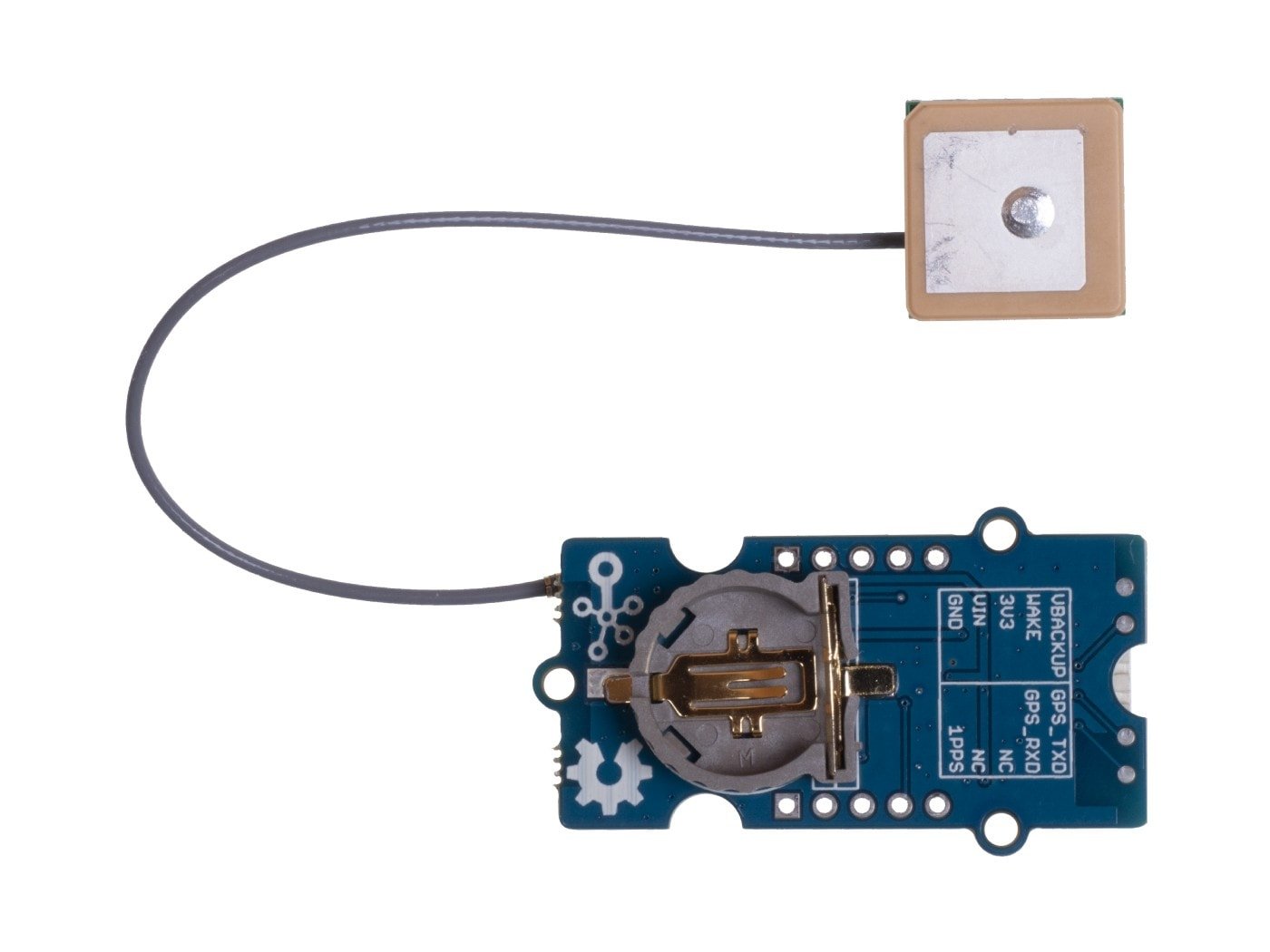

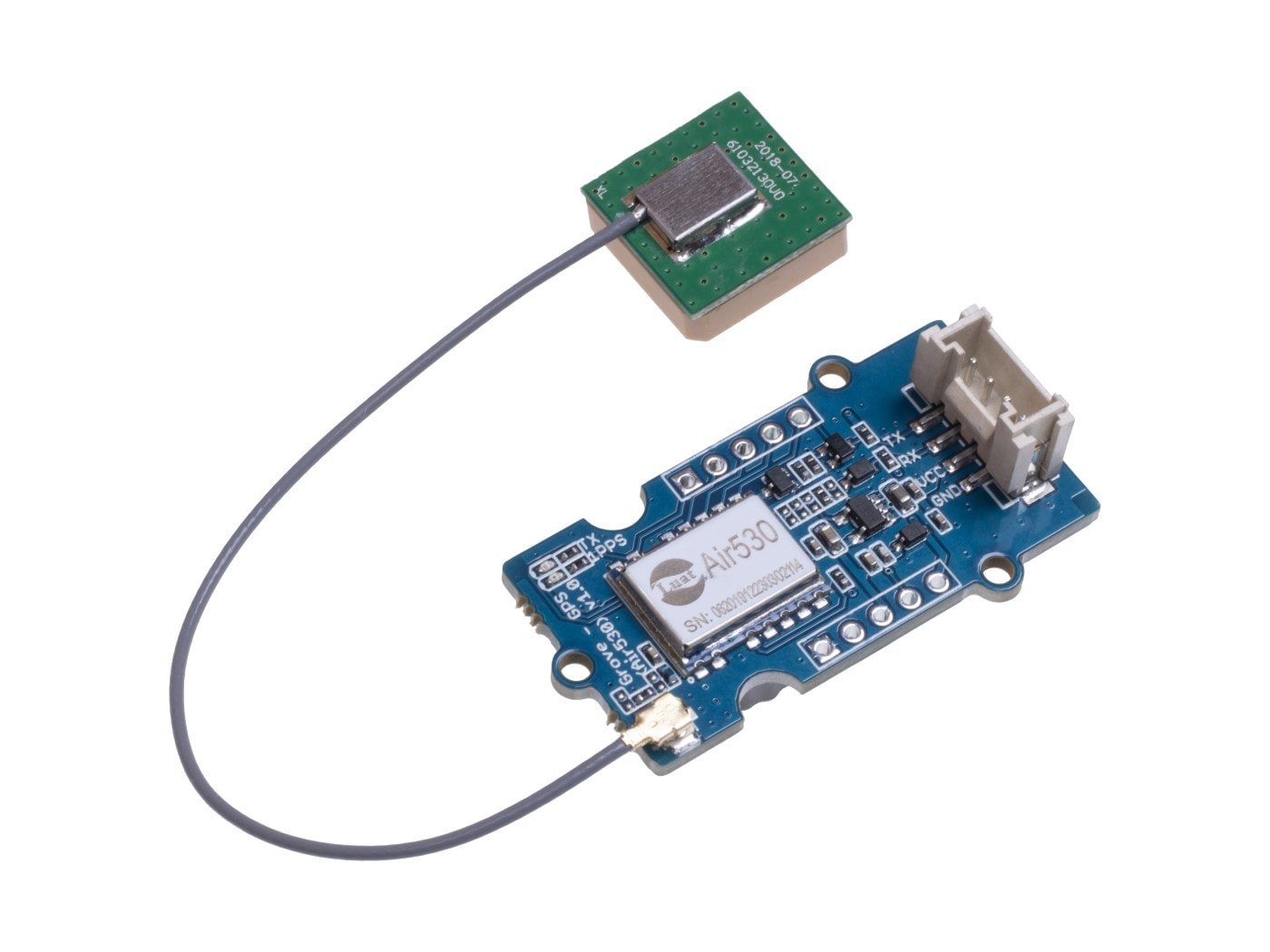

Grove - GPS (Air530)

Grove - GPS (Air530)

SKU:614-9E8-A7B

Regular price £9.76 GBP
Regular price £0.00 GBP Sale price £9.76 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Low stock

View full details

Product Details

Confused about your GPS not working well in urban or outsides under only one or a few satellite module? Then you should not miss our new Grove-GPS (Air530). It's a high-performance, highly integrated multi-mode satellite positioning and navigation module to use with Arduino. It supports GPS / Beidou / Glonass / Galileo / QZSS / SBAS, which makes it suitable for GNSS positioning applications such as car navigation, smart wear, and drone. Meanwhile, this module is capable of receiving more than 6 satellites at the same time and is able to work excellently even if there's a very bad signal.

Features

  • Positioning error within 10 meters
  • Multi-mode satellite positioning & navigation and support more than 6 satellites at the same time
  • The position still quickly and accurately under the condition of bad signal
  • Low power consumption at only 31uA
  • Compatible hard/soft interface for other modules
  • Adopt the integrated design of RF baseband, which integrates DC/DC, LDO, LNA, RF front-end, baseband processing, 32-bit RISC based chip, RAM, FLASH storage, RTC and power management functions

Specification

parameters values
Supply voltage 3.3V/5V
Working current up to 60mA
Interface UART
Time of warm start 4s
Time of cold boot 30s
Working Temperature -35C-85°C
Storage Temperature -55°C-100°C
Humidity 5%-95%
Time of Positioning Pure hardware cold start 27.5s
Pure hardware hot start <1S
Pure hardware recapture <1S
Software-assisted A-GNSS <5S
Sensitivity Cold start -148dBm
Hot Start -162dBm
Recapture -164dBm
Track -166dBm
Accuracy Horizontal positioning accuracy 2.5m
High positioning accuracy 3.5m
Speed accuracy 0.1m/s
Time transfer accuracy 30ns
Consumption Capture current value@3.3V 42.6mA
Tracking current value@3.3V 36.7mA
Low power mode@3.3V 0.85mA
Ultra-low-power mode@3.3V 31uA
