Product Details

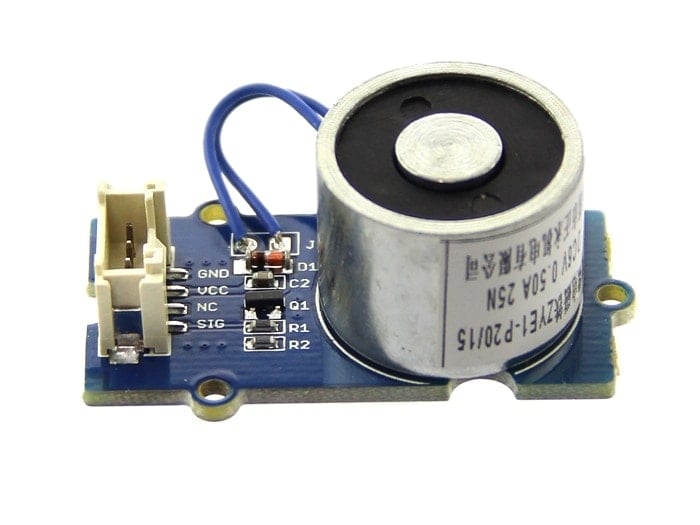

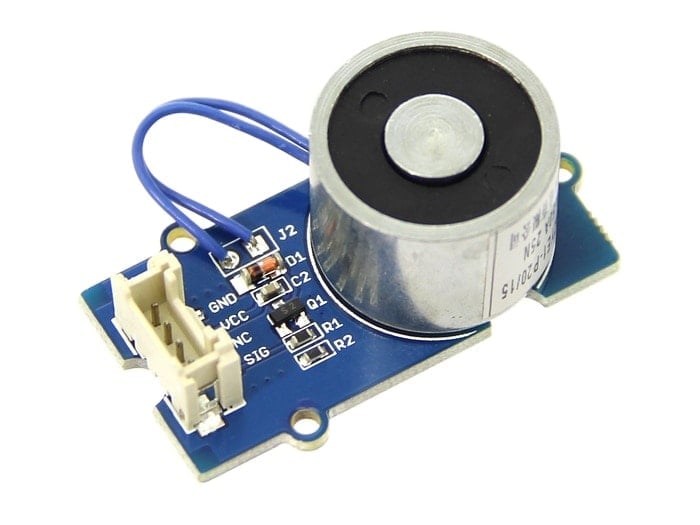

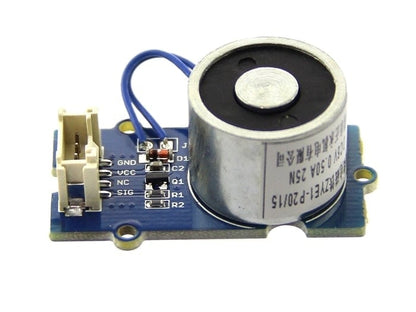

An electromagnet is a type of magnet in which the magnetic field is produced by electric current. An electric current flowing in a wire creates a magnetic field around the wire, due to Ampere's law(see drawing below). To concentrate the magnetic field, in an electromagnet the wire is wound into a coil with many turns of wire lying side by side. The magnetic field of all the turns of wire passes through the center of the coil, creating a strong magnetic field there. Grove - Electromagnet can hold 1KG weight. it easy to use, to learn electromagnet principle.
Features
- Grove shape
- 1KG peak suction
- Low standby current
Specification
- Working Voltage ï¼?DC 5V
- Working Current ï¼? 400mA
- Standby current ï¼? 200uA
- Load Weightï¼? 1KG
Documents
Please visit our
wiki
page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support,
