Product Details

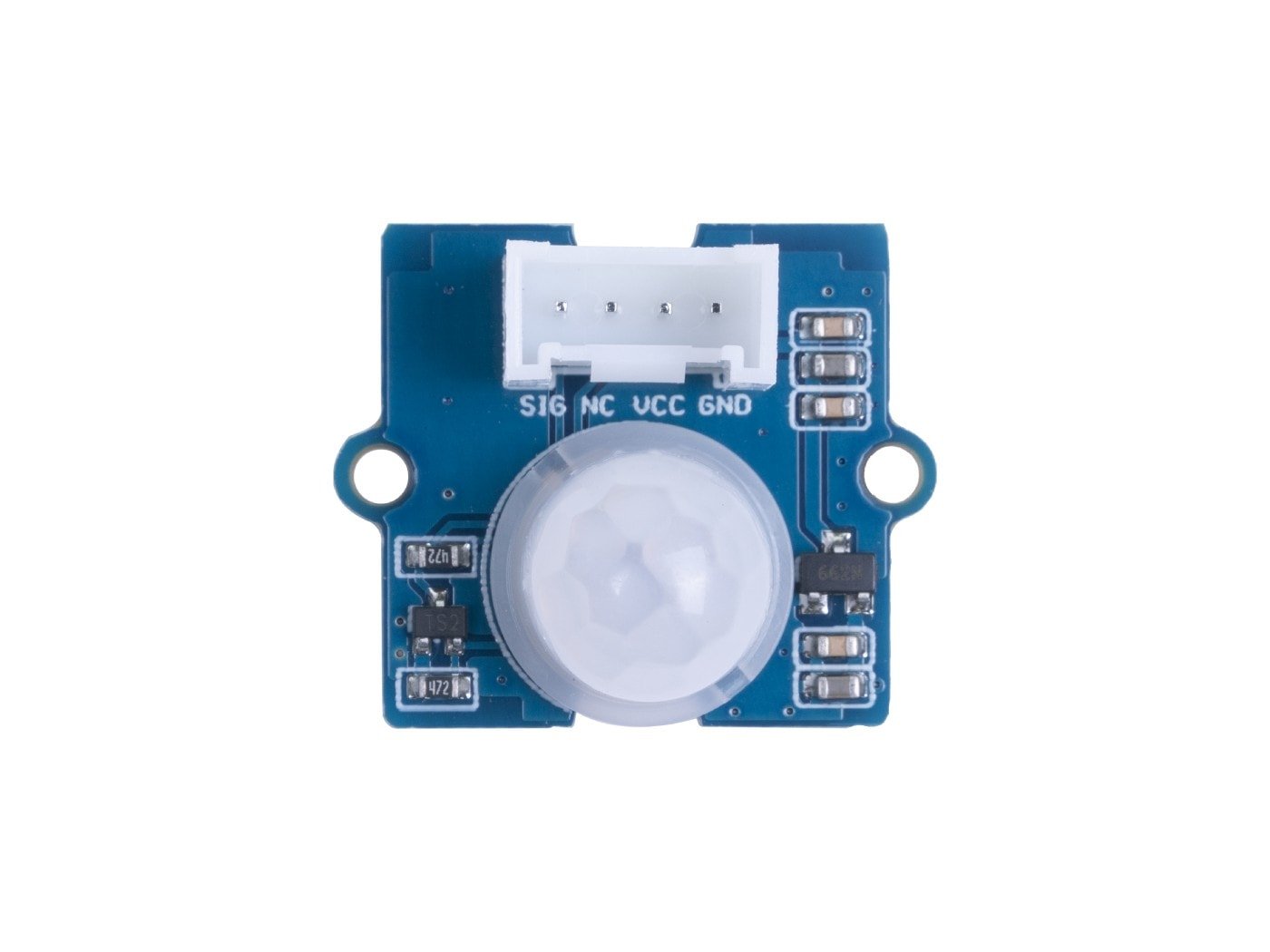

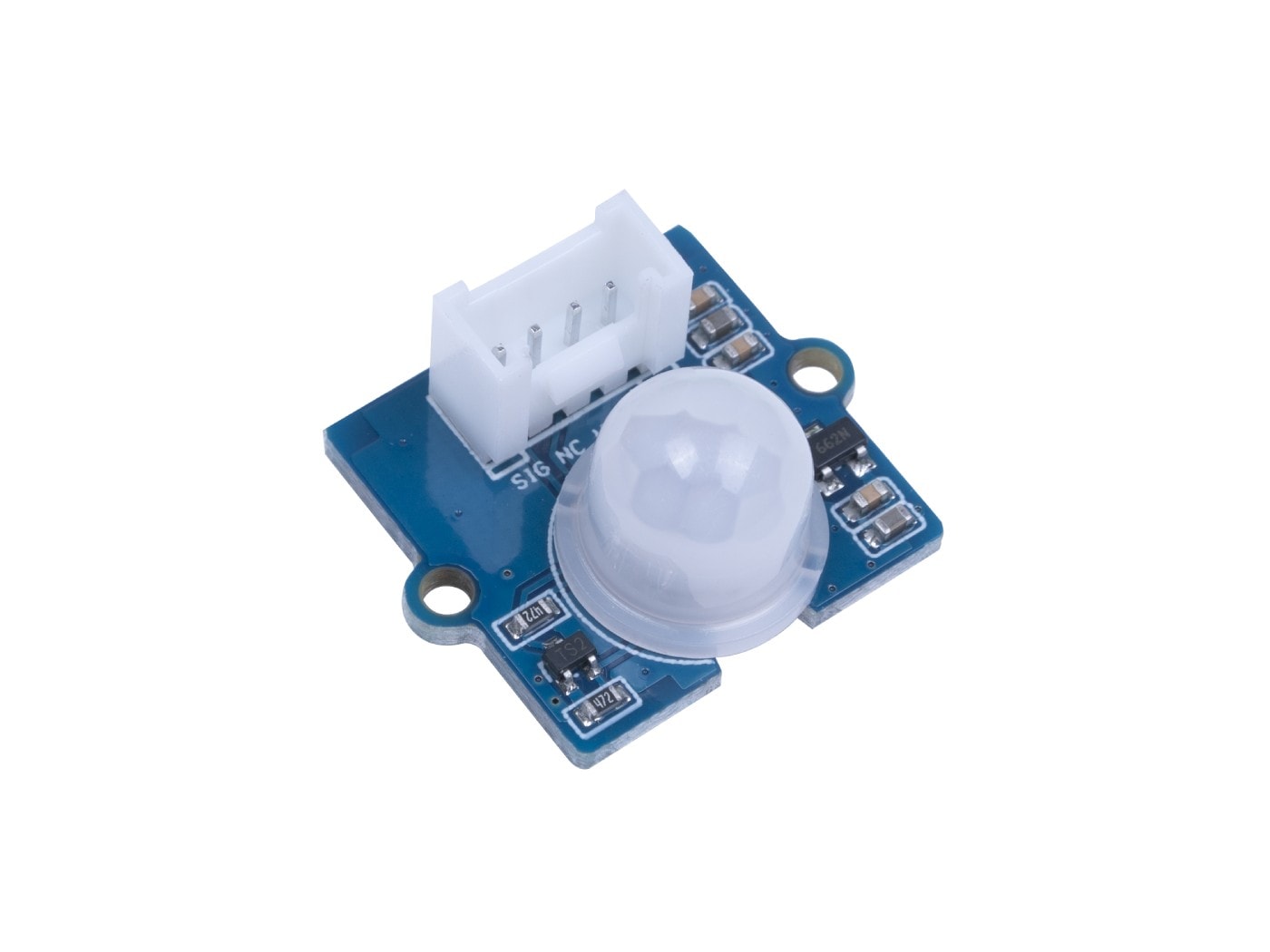

PIR sensor is an IR sensor to detect human motions. This Grove Digital PIR Sensor is the cheapest PIR sensor in the PIR families, however, it is able to give a quick response and generate a high signal from the "sig" Pin.
With the Grove interface, the Grove digital PIR Sensor is easy to be plugged and played. And it doesn't need any Arduino Library.
Features
- High sensitivity: Able to output "high" or "low" level quickly
- Budget-friendly: Cheapest PIR Sensor in our PIR family
- Easy to edit code: No additional library required
- Interface: Grove interface
Specifications
| Item | Value |
|---|---|
| Voltage range | 3V-5V |
| range | 3.2m-12m |
| Response time | < 1s |
| Working temp | -20-85 C |
| Interface | Grove |

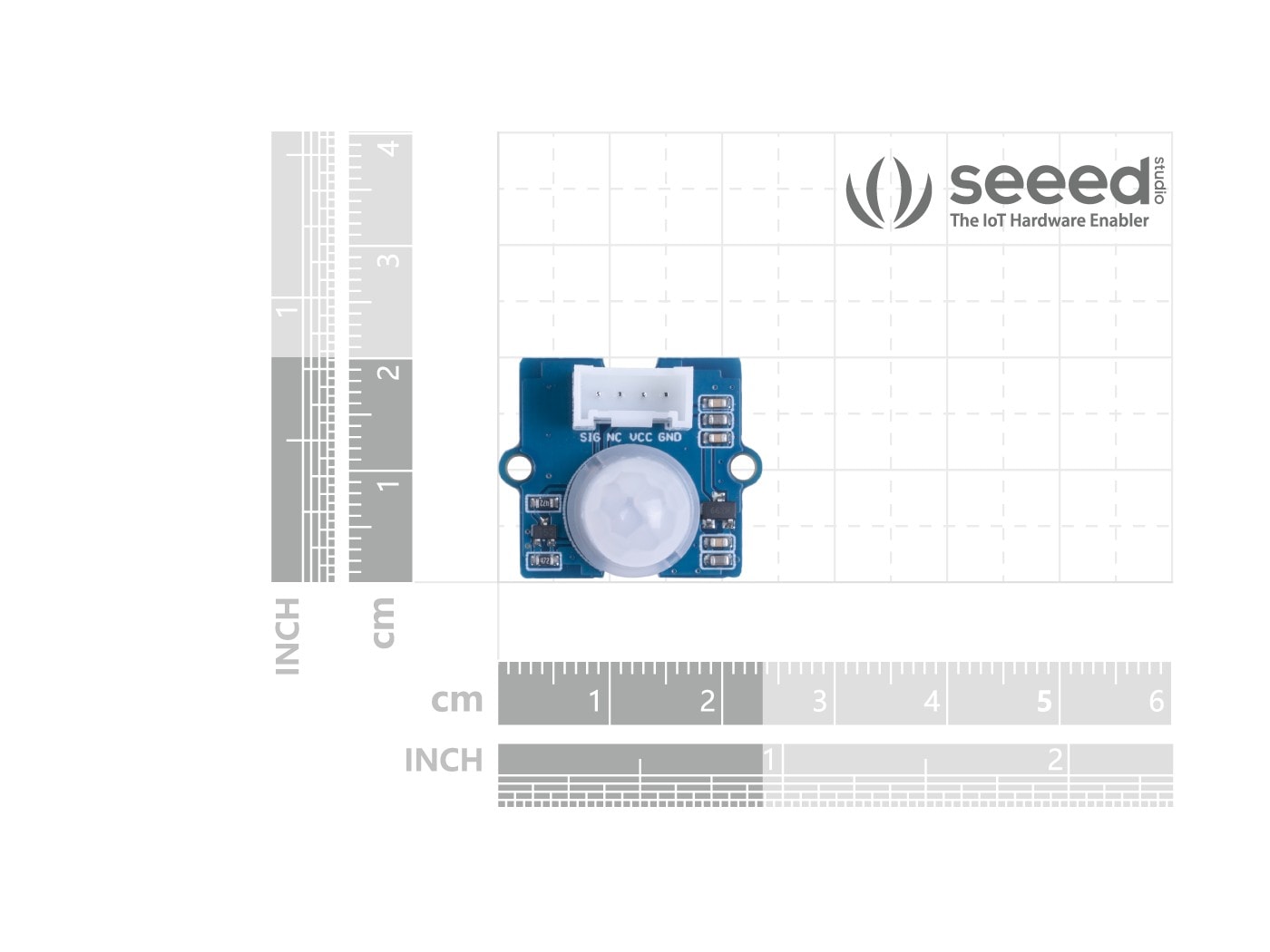

| Dimensions | 20mm * 20mm * 11.5mm |
| Weight | 3g |
| Battery | Exclude |
