Product Details

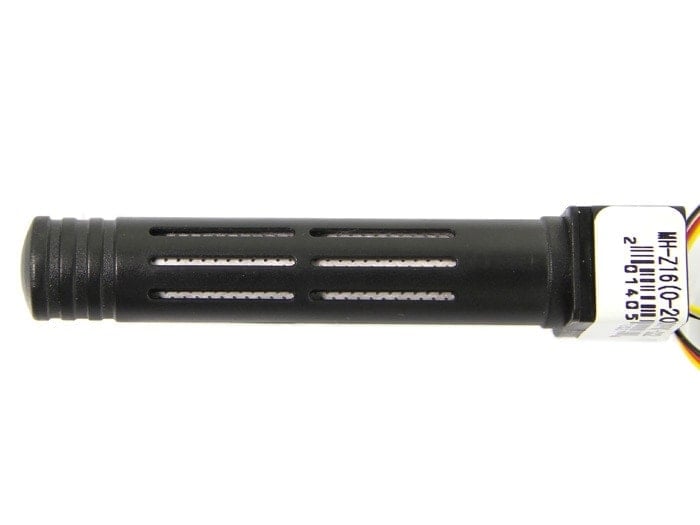

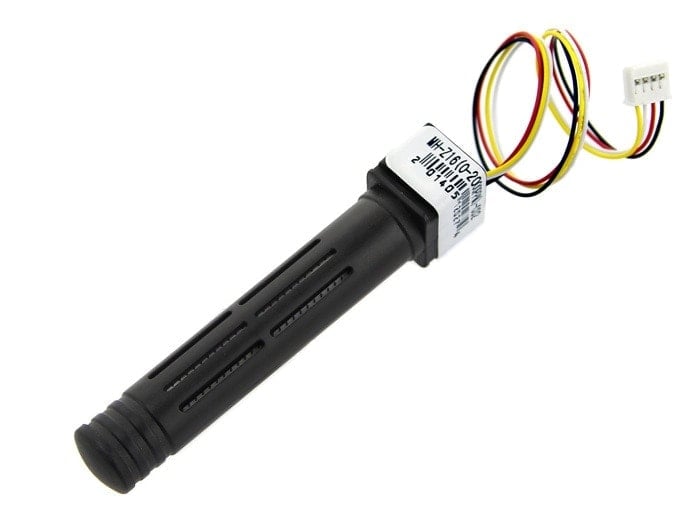

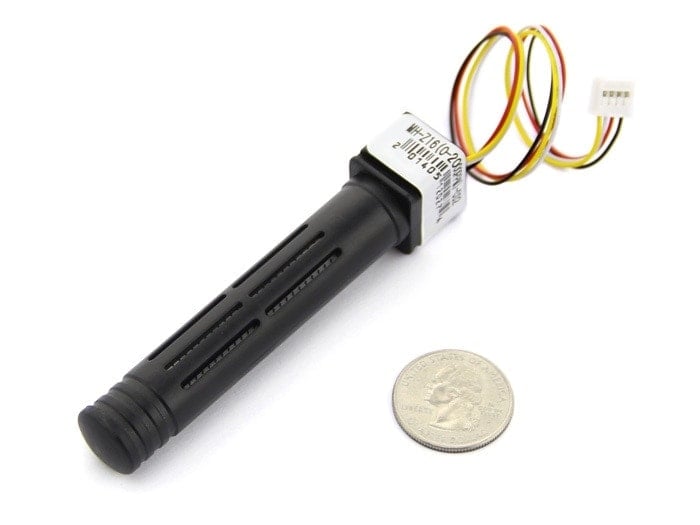

This is the Grove - CO2 Sensor. This uses the MH-Z16 infra-red CO2 sensor that is a handy general-purpose sensor that uses the non-dispersive infrared (NDIR) principle to detect the presence of CO2 in the air. This sensor does this with high-sensitivity, good selectivity and this sensor has been proven to have a long life. It also has a built-in temperature sensor to compensate for the temperature difference. The Grove - CO2 sensor can easily be integrated into many CO2 producing processes, such as greenhouses, hydroponics and brewing using a UART output.
Specifications:
- Boasts a range of 0-2000 parts per million (PPM)
- Resolution of 1 PPM 0-2000 parts per million (PPM)
- Accuracy of 200 PPM
- A warmup time 3 minutes
- Response time: <90s
- Operating temperature: 0 to 50 ℃
- Operating humidity: 0% ~ 90% RH
- Storage temperature: 20-60 ℃
- Operating voltage: 4.5 V to 6 V DC
- Always operate on a current of less than 100ma with an average current of 50ma
- Output mode UART
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum .
