Seeed Studio

Grove - Button

Grove - Button

COM22242P

£2.00 GBP
£2.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

UK delivery: typically 1–3 working days

Order by 3pm Monday–Friday for same-day dispatch. Eligible UK orders over £100 qualify for free shipping.

Some batteries and export-controlled products have shipping or destination restrictions. Checkout shows the options available for your order.

View full delivery information

View full details

Product Details

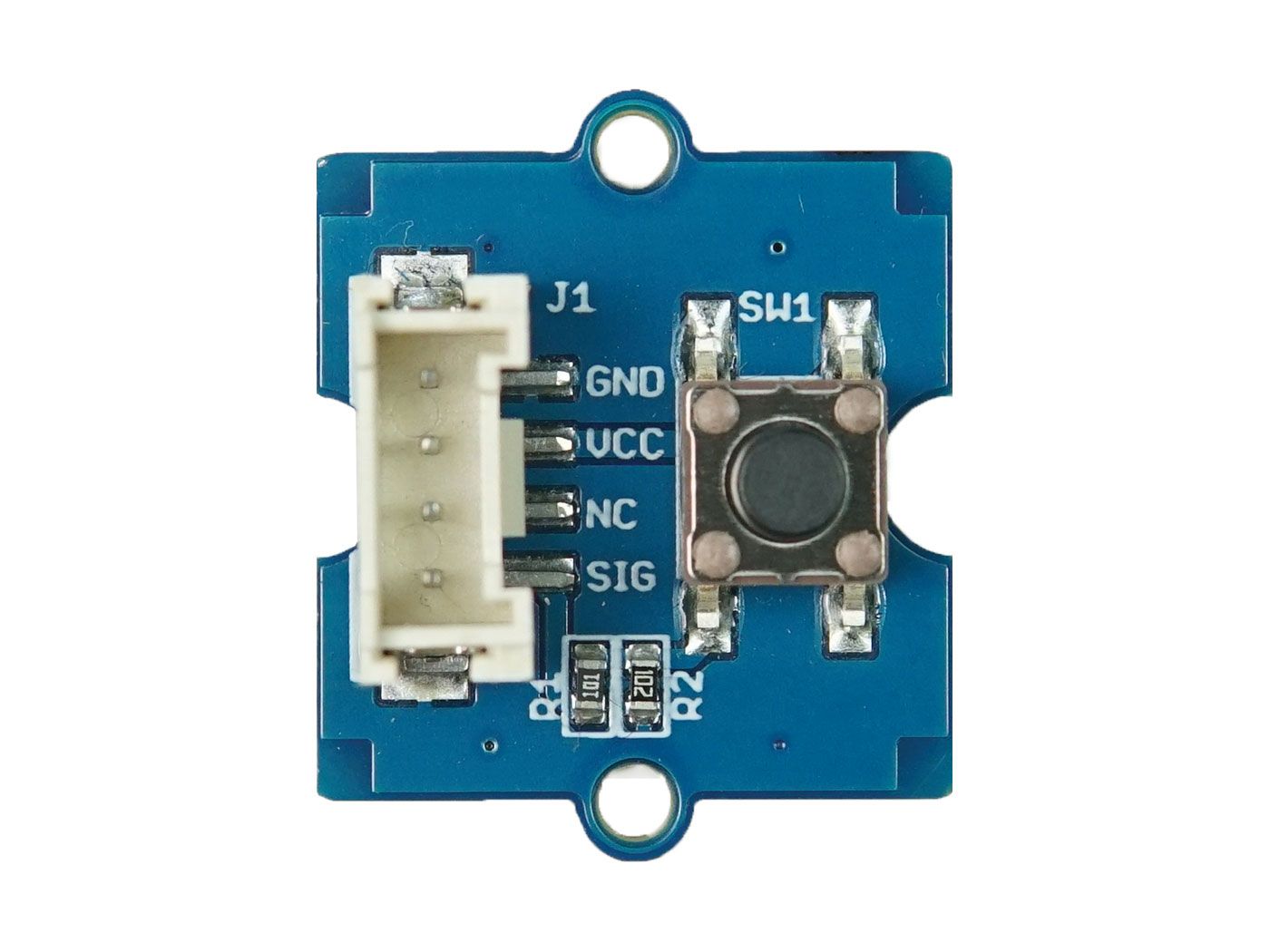

Buttons are important for Arduino interactive projects. Grove - Button is a momentary push button. It contains one independent "momentary on/off" button. "Momentary" means that the button rebounds on its own after it is released. The button outputs a HIGH signal when pressed, and LOW when released. The Sig marked on silk layer stands for a signal while NC stands for not used at all.

Grove connectors also help you paring the button by the way of only plug and play. If you wish to ON/OFF a circuit by pressing a button-down instead of flipping it, the Grove - Button is for you!

Features

  • Easy to use momentary ON/OFF button
  • Grove interface
  • Operating voltage: 3.3/5V
  • Electrical life: 200,000 cycles
  • Operating force: 100 ± 50gf
  • Operating temperature: -25℃ to +70℃
  • Dimensions: 20mmX20mm
