Grove Base Hat for Raspberry Pi

The Grove Base Hat for Raspberry Pi provides Digital/Analog/I2C/PWM/UART port to meet all your needs. With the help of build-in MCU, a 12-bit 6 channel ADC is also available for Raspberry Pi.

Currently, more than 60 groves have supported the Grove Base Hat for Raspberry Pi . In addition, we will continue to add new compatible modules to the compatible list, the more you use, the more grove will be added.

Compared with Grove Pi+, the Grove Base Hat for Raspberry Pi Zero does not use the ATMEGA chip for data conversion, so it runs faster. We provide the Raspberry Pi driver for Grove Base Hat for Raspberry Pi. What's more, Grove Base Hat for Raspberry Pi is much more cost-effective. In other words, we lowered the threshold for using the grove series on the Raspberry Pi. We hope you like it, enjoy :D

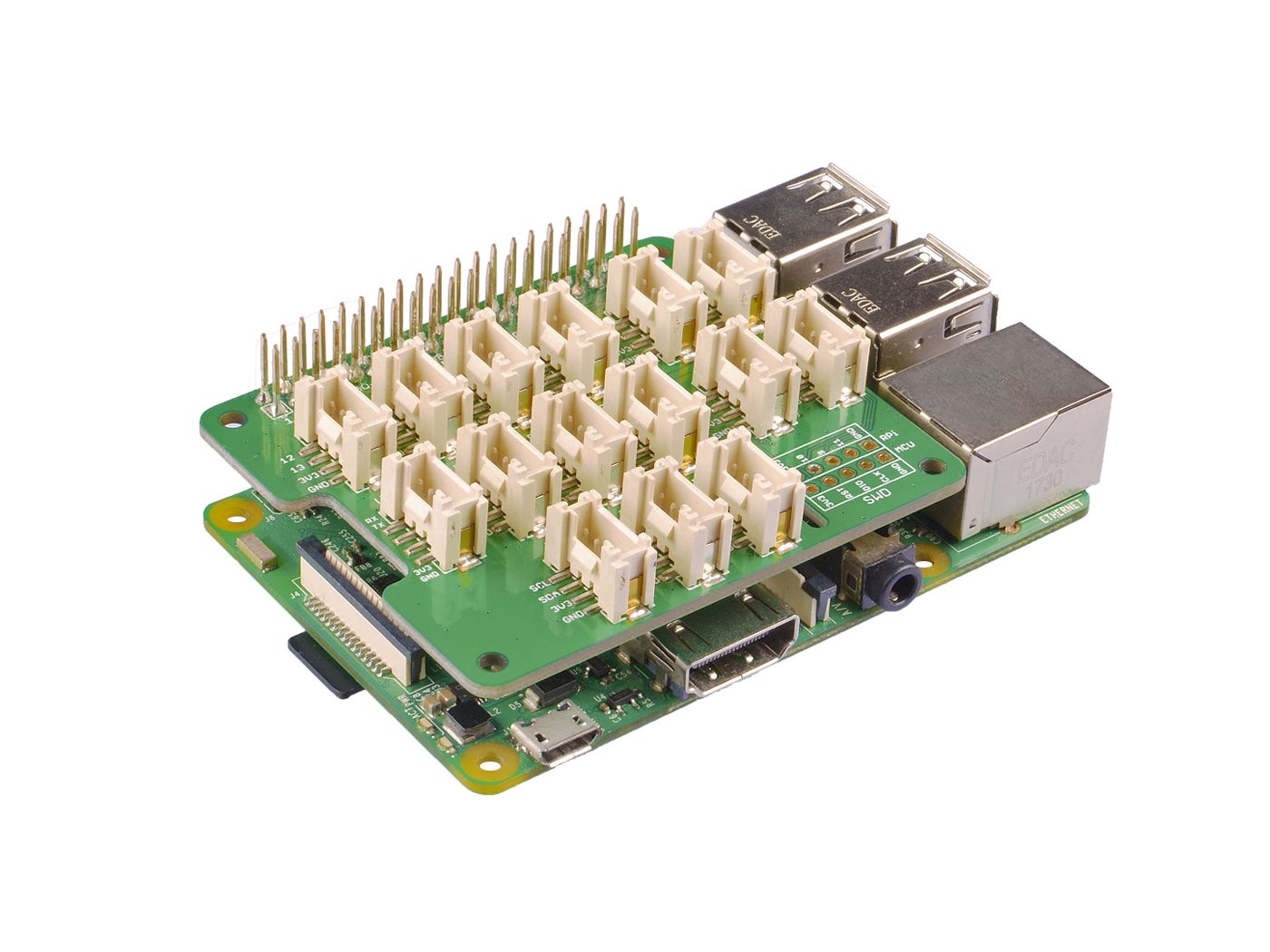

The note that this hat do not contain a Raspberry Pi. The RPI is included in some images for illustration purposes only.

Features

• Support Raspberry 2/ 3 B/B+ Zero
• build-in MCU
• 12-bit ADC
• Multi-type Grove port

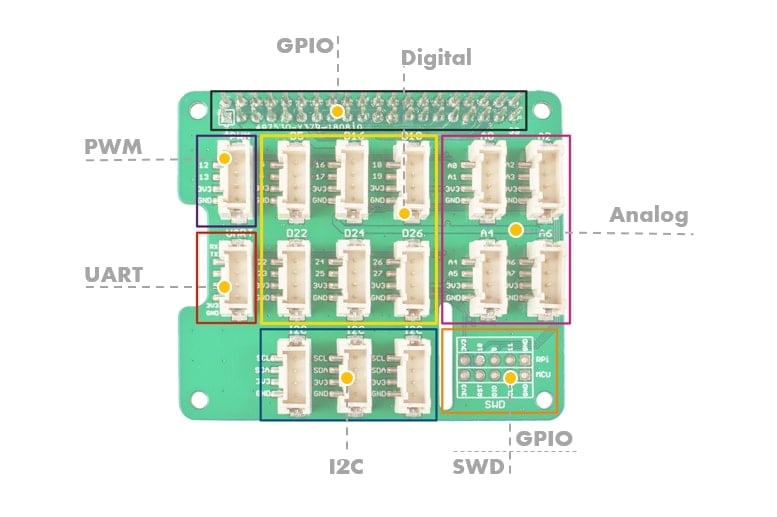

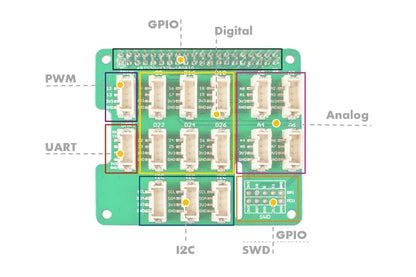

Pin Out
